A stable medical gas supply system is essential for hospitals, clinics, emergency facilities, and healthcare institutions. When oxygen, nitrogen, nitrous oxide, or other medical gases are required continuously, any interruption can affect patient care and operational efficiency. A manual gas manifold provides a practical and dependable method for managing multiple gas cylinders and ensuring a continuous supply through manual switching procedures.
Although automatic gas switching systems are becoming more common in advanced medical facilities, manual gas manifolds remain widely used because of their simple structure, easy maintenance, cost efficiency, and reliable operation. Understanding how they work, where they are used, and how to select the right model helps healthcare professionals build safer and more efficient gas distribution systems.
This article explains the working principle, advantages, selection considerations, installation requirements, maintenance practices, and common questions related to manual gas manifolds. It also introduces how WeClearMed supports customers with professional medical gas equipment solutions.
1. Understanding a Manual Gas Manifold

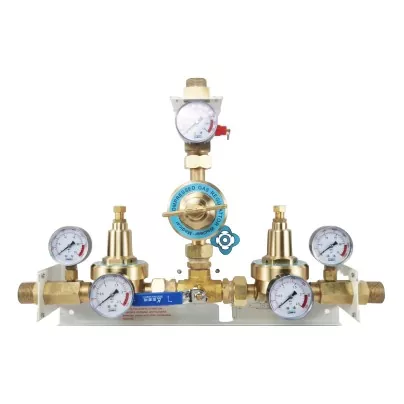

A manual gas manifold is a gas control device designed to connect multiple gas cylinders into a centralized supply system. It allows operators to manage the gas source manually by switching between cylinder banks when one group of cylinders becomes empty.
In medical environments, continuous gas availability is critical. A manual gas manifold helps reduce the risk of supply interruption by allowing staff to replace empty cylinders while maintaining system operation through the remaining gas source.
Unlike a single-cylinder connection, a manifold organizes multiple cylinders together, improving gas management efficiency and reducing the frequency of emergency cylinder replacement. It is commonly installed in medical gas storage rooms, oxygen supply areas, laboratories, and healthcare facilities requiring controlled gas distribution.
Main Components of a Manual Gas Manifold
Although designs vary depending on application requirements, a typical manual gas manifold may include several important components:
- Cylinder connection ports: Allow multiple gas cylinders to be connected safely.
- Isolation valves: Control individual gas sources during operation or maintenance.
- Pressure gauges: Display cylinder pressure and system status.
- Pressure regulators: Reduce cylinder pressure to a suitable outlet pressure.
- Outlet connection: Connects the manifold to the medical gas pipeline system.
- Relief devices: Provide additional protection against excessive pressure conditions.
The combination of these components creates a controlled and manageable gas supply point. Proper design and installation are important because medical gas systems require strict attention to safety, cleanliness, and reliability.
2. How a Manual Gas Manifold Works
The operating principle of a manual gas manifold is straightforward. Multiple cylinders are connected to the manifold, and the operator manually controls which cylinder bank supplies gas to the downstream pipeline.
Step 1: Connecting Gas Cylinders
The required number of cylinders are connected to the manifold through designated inlet ports. Each connection must match the correct gas type to prevent incorrect gas mixing or unsafe operation.
Step 2: Supplying Gas to the System
When the cylinder valves are opened, high-pressure gas enters the manifold. The pressure regulation system reduces the pressure to an appropriate level before gas enters the facility pipeline.
Step 3: Monitoring Gas Pressure
Operators monitor pressure gauges to understand remaining cylinder capacity. When the active cylinder bank approaches a low-pressure condition, staff can manually switch the supply to the reserve cylinder bank.
Step 4: Replacing Empty Cylinders
After switching supply sources, empty cylinders can be safely removed and replaced with full cylinders. This process allows continued gas availability without shutting down the entire system.
| Component | Function | Importance |
|---|---|---|
| Cylinder connection | Links gas cylinders to the manifold | Ensures stable gas input |
| Pressure gauge | Shows cylinder pressure | Helps operators monitor supply status |
| Regulator | Controls outlet pressure | Maintains suitable pipeline pressure |
| Valve system | Controls gas flow direction | Supports safe switching operation |
Because the switching process is manual, operators must receive proper training and follow established procedures. Clear labeling, regular inspections, and correct cylinder handling are essential parts of safe operation.
3. Main Benefits of Using a Manual Gas Manifold
Reliable Medical Gas Management
The most important advantage of a manual gas manifold is improved control over gas supply. By connecting multiple cylinders, healthcare facilities can maintain a reserve supply and reduce the risk of unexpected interruption.
Simple Structure and Easy Maintenance
Manual gas manifolds contain fewer automated components compared with automatic switching systems. This simpler design can make inspection, maintenance, and troubleshooting easier for facility technicians.
Cost-Effective Solution
For facilities with moderate gas consumption or applications where manual monitoring is acceptable, a manual gas manifold provides an economical method of managing multiple cylinders without unnecessary complexity.
Flexible Installation Options
Manual manifolds can be configured according to different cylinder quantities, gas types, and installation environments. This flexibility makes them suitable for various healthcare and industrial applications.
Better Cylinder Organization
Managing individual cylinders separately can create safety and storage challenges. A manifold provides a centralized connection point, improving workplace organization and making gas inventory management easier.
4. Common Applications of Manual Gas Manifolds
Manual gas manifolds are widely used in healthcare facilities and professional environments where a stable compressed gas supply is required. Their reliable structure makes them suitable for applications that require controlled gas distribution, easy operation, and practical maintenance.
Hospitals and Medical Centers
Hospitals require a dependable medical gas infrastructure to support operating rooms, intensive care units, emergency departments, patient wards, and diagnostic areas. A manual gas manifold provides a centralized method for managing oxygen and other medical gases supplied from multiple cylinders.
For smaller hospitals, clinics, or facilities with moderate gas consumption, manual systems can provide an effective balance between reliability and operational simplicity. Proper cylinder management procedures ensure that staff can replace empty cylinders without affecting the medical gas pipeline.
Clinics and Healthcare Facilities
Private clinics and specialized healthcare centers often need compact and practical gas supply solutions. A manual gas manifold can help organize cylinder storage while maintaining a stable supply for treatment rooms and medical equipment.
Because these facilities may have limited technical resources, systems with straightforward operation and easy inspection procedures can be especially valuable.
Laboratories and Research Facilities
Laboratories may use various gases for analytical instruments, testing equipment, or research processes. A manual gas manifold allows operators to manage multiple gas cylinders efficiently while maintaining proper pressure control.
Emergency and Backup Gas Systems
Even facilities with automated gas systems may require backup solutions. Manual gas manifolds can serve as reliable secondary supply equipment when additional cylinder management flexibility is needed.
| Application Area | Common Gas Types | Main Requirement |
|---|---|---|
| Hospitals | Oxygen, Nitrous Oxide, Medical Air | Continuous and safe supply |
| Clinics | Oxygen and treatment gases | Compact and easy operation |
| Laboratories | Specialized gases | Stable pressure management |
| Emergency backup | Various compressed gases | Fast switching capability |
5. How to Select the Right Manual Gas Manifold
Choosing a suitable manual gas manifold requires careful consideration of gas type, cylinder quantity, pressure requirements, installation environment, and operational needs. Selecting the correct configuration helps improve system reliability and long-term performance.
Confirm the Gas Type
Different gases require different connection standards, materials, and safety considerations. Oxygen systems, for example, require components designed specifically for oxygen service because cleanliness and compatibility are critical factors.
Before purchasing, confirm the exact gas type, purity requirements, and applicable connection specifications to avoid installation problems.
Determine Required Cylinder Capacity
The number of connected cylinders affects supply duration and replacement frequency. Facilities with higher gas consumption may require larger cylinder banks to reduce the frequency of manual switching.
- Estimate average daily gas consumption.
- Consider peak usage periods.
- Calculate required backup capacity.
- Determine available installation space.
Check Pressure Requirements
Medical gas systems require controlled outlet pressure. The selected manifold should provide suitable pressure regulation according to the downstream pipeline requirements and equipment specifications.
Evaluate Safety Features
Important safety considerations include:
- Accurate pressure monitoring.
- Reliable shut-off valves.
- Suitable pressure relief protection.
- Correct gas identification labels.
- Compatible materials for the intended gas.
Consider Installation Environment
The installation location can influence product selection. Factors such as indoor or outdoor placement, temperature, humidity, ventilation, and accessibility should be considered before choosing a manifold configuration.
| Selection Factor | Questions to Consider | Purpose |
|---|---|---|
| Gas type | Which gas will be supplied? | Ensures compatibility and safety |
| Cylinder quantity | How much backup capacity is required? | Supports continuous operation |
| Pressure rating | What inlet and outlet pressure are needed? | Ensures correct system performance |
| Installation area | Where will the manifold be installed? | Improves reliability and maintenance access |
6. Installation and Safety Considerations
Correct installation is essential for maintaining a safe and reliable medical gas supply system. A manual gas manifold should always be installed according to applicable regulations, manufacturer instructions, and professional engineering requirements.
Proper Installation Location
The manifold should be installed in a clean, ventilated, and accessible location. The area should allow technicians to inspect gauges, operate valves, replace cylinders, and perform maintenance safely.
Correct Cylinder Connection
Each cylinder connection must be checked carefully before operation. Incorrect connections can create serious safety risks, especially when multiple gas types are used in the same facility.
Pressure Testing Before Operation
After installation, the system should be inspected and tested to confirm that connections are secure and pressure performance meets requirements. Any leakage or abnormal pressure behavior should be corrected before use.
Staff Training
Because manual gas manifolds depend on operator actions, staff training is an important part of safe operation. Personnel should understand:
- How to read pressure gauges.
- How to switch cylinder banks correctly.
- How to identify empty cylinders.
- How to follow emergency procedures.
- How to report abnormal conditions.
7. Maintenance and Troubleshooting
Regular maintenance helps extend service life and ensures that a manual gas manifold continues operating reliably. Preventive inspections are especially important because medical gas systems are directly connected with healthcare operations.
Routine Inspection Checklist
- Check pressure gauge readings regularly.
- Inspect valves for proper operation.
- Examine connections for signs of leakage.
- Confirm cylinder identification labels are clear.
- Keep the manifold area clean and accessible.
- Review cylinder replacement procedures with operators.
Common Problems and Solutions
| Problem | Possible Cause | Recommended Action |
|---|---|---|
| Low outlet pressure | Insufficient cylinder supply or regulator issue | Check cylinder pressure and inspect regulation components |
| Gas leakage | Loose connection or damaged sealing component | Inspect connections and replace damaged parts |
| Difficulty switching cylinders | Valve problem or incorrect operation | Check valve condition and operating procedure |
| Incorrect pressure reading | Gauge damage or malfunction | Inspect and replace faulty gauge components |
Long-Term Reliability Practices
A good maintenance program should include inspection records, replacement history, pressure monitoring information, and operator feedback. Keeping accurate records helps identify potential issues before they affect the gas supply system.
8. Frequently Asked Questions
1. What is a manual gas manifold used for?
A manual gas manifold connects multiple gas cylinders into one controlled supply system. It allows operators to manually switch between cylinder groups and maintain a continuous gas supply.
2. What gases can be used with a manual gas manifold?
Manual gas manifolds can be designed for different gases, including oxygen, nitrogen, nitrous oxide, medical air, and other compressed gases. The correct model must match the intended gas type and application requirements.
3. Why choose a manual gas manifold instead of connecting cylinders individually?
A manifold provides centralized management, better organization, easier monitoring, and improved replacement procedures compared with managing separate cylinder connections.
4. Does a manual gas manifold require regular maintenance?
Yes. Regular inspections of valves, gauges, connections, and pressure performance help maintain safe and reliable operation.
5. Can a manual gas manifold be used in hospitals?
Yes. Manual gas manifolds are commonly used in hospitals, clinics, laboratories, and healthcare facilities where controlled medical gas management is required.
6. How many cylinders can connect to a manual gas manifold?
The number of cylinder connections depends on the product design and application requirements. Facilities should select a configuration based on consumption demand and required backup capacity.
Conclusion: Improving Medical Gas Supply Reliability with the Right Solution
A manual gas manifold provides a practical and reliable approach for managing compressed gas supplies in healthcare and professional environments. Its simple operation, flexible configuration, and effective cylinder management make it an important component in many medical gas systems.
Selecting the right manifold requires attention to gas type, pressure requirements, cylinder capacity, safety features, and installation conditions. With proper selection, installation, and maintenance, a manual gas manifold can support stable operation and improve confidence in daily medical gas management.
