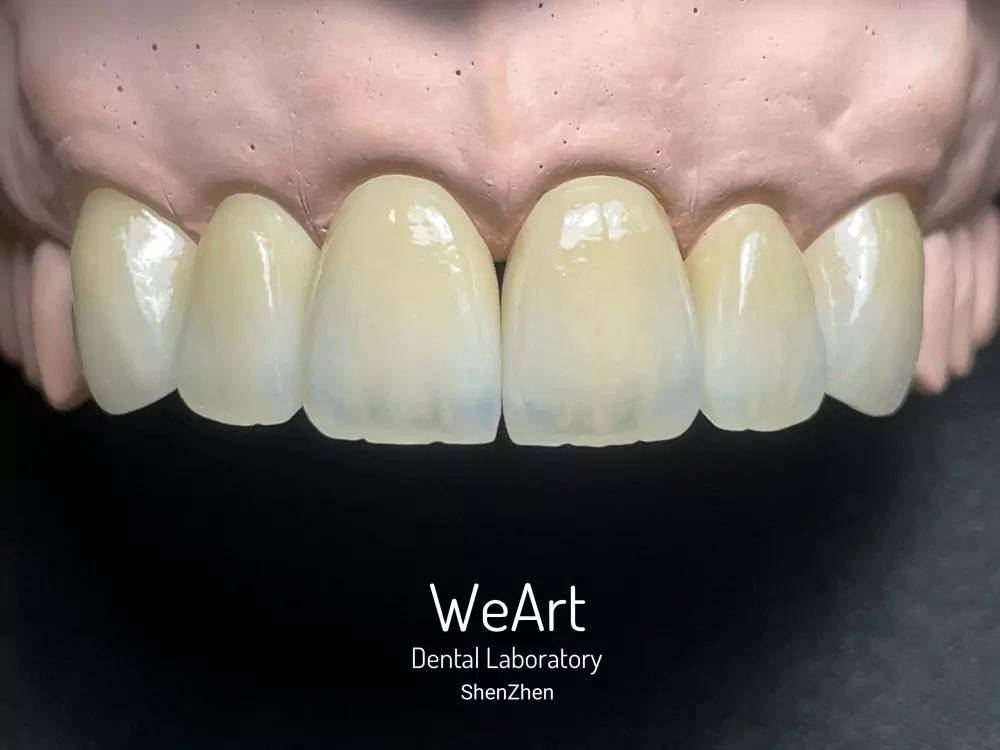

A Zirconia Layered Porcelain Crown combines a zirconia substructure with an external porcelain layer designed to reproduce the color, translucency, and surface characteristics of natural teeth. This construction offers a balance between structural support and aesthetic customization, making it a valuable option for selected anterior and posterior restorations. Understanding its benefits, limitations, fabrication process, and maintenance requirements helps dental professionals make informed decisions for individual cases.
What Is a Zirconia Layered Porcelain Crown?
A Zirconia Layered Porcelain Crown is a custom-made dental restoration consisting of a zirconia framework covered with an aesthetic ceramic veneer. Zirconia, or zirconium dioxide, is a high-strength ceramic widely used in restorative dentistry. The outer porcelain is applied to refine the crown's appearance, allowing technicians to reproduce the subtle optical characteristics of natural enamel and dentin.
Unlike a monolithic zirconia crown, which is milled primarily from one piece of zirconia, a layered restoration combines two ceramic materials with different functions. The framework supports the restoration, while the porcelain veneer provides opportunities for detailed shade matching, surface characterization, and incisal translucency.
This distinction is especially important when restoring visible teeth. Natural teeth are rarely uniform in color from the gumline to the biting edge. Their appearance may include cervical color variations, translucent incisal edges, fine surface textures, and differences between neighboring teeth. A layered crown gives dental technicians additional flexibility to reproduce these details.
How Does Its Two-Layer Structure Work?
1. The Zirconia Framework
The inner zirconia structure provides the principal supporting framework. Zirconia offers favorable mechanical properties and can be designed using computer-aided design and manufacturing (CAD/CAM) technology. The framework must be shaped to accommodate the prepared tooth, provide appropriate support for the porcelain, and preserve sufficient material thickness within the available space.
Its design also influences how chewing forces are distributed through the restoration. Inadequate support beneath the veneer or poorly planned functional contacts can increase the risk of ceramic complications.
2. The Porcelain Veneer
The outer porcelain layer is responsible for much of the crown's visible appearance. Dental technicians can combine different ceramic shades and translucencies to recreate natural-looking color transitions, incisal effects, and surface anatomy.
However, veneering porcelain is more susceptible to chipping than a properly designed, single-material zirconia surface in certain loading conditions. The interface between the framework and veneer, firing procedures, veneer thickness, and occlusal design all influence performance.
3. The Framework–Veneer Interface
The two layers must work as a coordinated system. Material compatibility, framework geometry, porcelain application, and controlled firing and cooling are important to achieving a dependable restoration. A crown may have an attractive appearance yet still underperform if its structural design or manufacturing process is inadequate.
What Benefits Can It Offer?
Natural-Looking Aesthetics
One of the principal advantages of layered zirconia is its capacity for detailed aesthetic customization. By adjusting porcelain shades, translucency, contours, and surface texture, technicians can create a restoration that blends more naturally with surrounding teeth. This is particularly valuable in the anterior region, where small differences in color and shape can be noticeable.
Metal-Free Construction
A zirconia-based crown does not require a metal substructure. This can be advantageous for patients and clinicians seeking a tooth-colored restoration without the metal framework associated with conventional porcelain-fused-to-metal crowns. Actual gingival appearance still depends on marginal accuracy, tissue health, crown contour, and individual clinical factors.
Structural Support
The zirconia framework provides a strong ceramic foundation. When the material is appropriately selected and the restoration is designed and fabricated correctly, it can provide reliable support for many indicated restorative situations. Nevertheless, strength is not determined by the material name alone: thickness, geometry, occlusion, cementation, and the supporting tooth all matter.
Individualized Shade and Surface Characterization
Layering offers technicians the opportunity to reproduce subtle variations that may be difficult to achieve with a uniformly colored restoration. This includes cervical saturation, natural-looking transitions, incisal translucency, and individualized surface morphology.
- Tooth-colored construction without a metal framework.
- Detailed customization for demanding aesthetic cases.
- A zirconia supporting structure combined with a ceramic veneer.
- Compatibility with digital design workflows and laboratory finishing techniques.
- Potential use in selected anterior and posterior crown indications.
When Is This Crown a Suitable Option?
A layered zirconia crown may be considered when a tooth requires full-coverage restoration and aesthetic integration is a significant priority. The final material choice should always be based on a clinical examination rather than appearance alone.
Anterior Teeth
Front teeth are highly visible during speaking and smiling. Layered porcelain can help reproduce the optical depth, translucency, and surface detail needed to blend a crown with adjacent natural teeth. It may be especially useful when a case requires more detailed characterization than a standard monolithic restoration can provide.
Premolars and Selected Posterior Teeth
Layered zirconia may also be suitable for selected premolars and posterior teeth when the aesthetic requirements and functional conditions support its use. However, posterior teeth experience substantial chewing forces, and the risk of veneer chipping must be considered. Depending on the clinical situation, a monolithic zirconia crown or another restorative material may be more appropriate.
Cases Requiring Customized Shade Matching
Existing restorations, unusual tooth coloration, and demanding smile rehabilitation cases may require careful shade mapping and communication between the clinician and laboratory. Good reference photographs, shade information, and preparation details can improve the technician's ability to reproduce the intended appearance.
When Should an Alternative Be Considered?
Patients with significant bruxism, heavy occlusal loading, insufficient restorative space, or limited support for the porcelain veneer may require a different design. Active gum disease, untreated decay, and other oral health problems should also be addressed before definitive restoration whenever clinically indicated.
How Does It Compare with Other Crown Types?
Different crown materials offer different combinations of strength, optical properties, fabrication requirements, and clinical limitations. The best option depends on the tooth being restored and the treatment objectives.
| Feature | Layered Zirconia | Monolithic Zirconia | Lithium Disilicate |
|---|---|---|---|
| Construction | Zirconia framework with porcelain veneer | Predominantly one zirconia material | Glass-ceramic restoration |
| Aesthetic customization | High potential for detailed layering | Depends on zirconia grade and staining or characterization | Good translucency and shade options |
| Structural considerations | Framework strength plus veneer-related risks | No separate porcelain veneer to chip | Performance depends on material, thickness, and indication |
| Potential concern | Porcelain chipping or delamination | Optical limitations for some cases; wear and fracture must be considered | May be unsuitable for some high-load situations |
| Typical consideration | Cases requiring detailed aesthetic layering | Cases prioritizing a single-material design | Cases requiring favorable translucency and suitable ceramic strength |
These descriptions are general rather than absolute rankings. Modern zirconia materials vary considerably in strength and translucency, while lithium disilicate products also differ by formulation and indication. A qualified clinician should select the material according to the manufacturer's instructions and the patient's specific clinical needs.
How Is a Layered Zirconia Crown Manufactured?
Successful fabrication requires coordination between clinical preparation, digital design, material processing, ceramic artistry, and quality verification. A typical workflow includes the following stages.
Step 1: Clinical Assessment and Case Submission
The dentist evaluates the tooth, periodontal condition, occlusion, and restorative space. The laboratory receives the prescription, impression or digital scan, shade information, opposing dentition records, and relevant clinical photographs.
Step 2: Digital Design and Framework Planning
CAD software is used to design the zirconia framework according to the preparation geometry and intended restoration. The design should provide appropriate thickness, marginal adaptation, and support for the veneering ceramic.
Step 3: Milling and Sintering
The zirconia framework is milled from a suitable ceramic blank and sintered according to the manufacturer's validated instructions. Processing parameters must be controlled to achieve the intended material properties and dimensional accuracy.
Step 4: Porcelain Layering
The technician applies compatible veneering porcelain to build the required contour, shade transitions, and surface characteristics. Layer thickness and framework support must be managed carefully to reduce areas vulnerable to fracture.
Step 5: Firing and Final Characterization
Controlled firing and cooling help manage residual stresses within the layered ceramic system. The technician refines the anatomy, contact areas, surface texture, and shade before completing the final finishing process.
Step 6: Quality Inspection
The finished crown is checked for marginal fit, contour, contacts, occlusal design, shade, surface quality, and visible defects. The clinician then performs the necessary clinical verification and adjusts or approves the restoration before final cementation.
What Factors Affect Crown Quality and Longevity?
A well-made crown depends on more than the intrinsic properties of zirconia. Clinical preparation, laboratory execution, patient habits, and long-term maintenance all contribute to its performance.
Porcelain Chipping
Chipping is a recognized complication of layered ceramic restorations. It may be associated with insufficient framework support, excessive veneer thickness, unfavorable occlusal contacts, material incompatibility, or residual stresses from processing. Proper design and careful case selection can help reduce risk but cannot eliminate it completely.
Marginal Fit and Contour
Poor marginal adaptation can complicate cementation and oral hygiene. Overcontoured restorations may make cleaning more difficult, while unsuitable contact points can affect food impaction and comfort. Accurate digital or conventional impressions and careful verification are therefore important.
Occlusal Forces and Bruxism
Clenching, grinding, and unfavorable bite contacts can expose restorations to repeated high stresses. Dentists should evaluate these factors when choosing a crown design and may recommend an appropriate protective night guard for patients with bruxism.
Material Compatibility and Process Control
The zirconia framework and veneering porcelain must be suitable for use together. Milling accuracy, sintering, porcelain application, firing schedules, and cooling protocols should follow the relevant material manufacturer's requirements. Inconsistent processing can compromise the final restoration.
Realistic Expectations
No crown material can guarantee a specific service life for every patient. Longevity depends on oral hygiene, caries risk, periodontal health, bite forces, restoration design, cementation, and regular professional review. A repair or replacement may eventually be necessary even when a crown is initially well fabricated.
How Can Patients Maintain Their Crowns?
Although the ceramic itself does not decay, the natural tooth beneath and around the crown remains vulnerable to disease. Daily oral hygiene and preventive dental care are therefore essential.
- Brush twice daily with fluoride toothpaste and a soft-bristled toothbrush.
- Clean between teeth every day using floss or an appropriate interdental aid.
- Avoid using teeth to open packages or bite hard non-food objects.
- Follow professional advice if you clench or grind your teeth.
- Attend regular dental examinations and professional cleaning appointments.
- Seek dental assessment if the crown feels loose, the bite changes, or sensitivity and discomfort persist.
Patients should also contact their dentist promptly if they notice a chipped surface, unusual movement, swelling, or pain. A dental professional can determine whether adjustment, repair, or replacement is appropriate.
What Should Dentists Look for in a Dental Laboratory?
Choosing a capable dental laboratory is an important part of achieving predictable restorative outcomes. For layered zirconia crowns, dentists should consider both technical consistency and the laboratory's ability to interpret aesthetic requirements.
Material Knowledge and Technical Expertise
A laboratory should understand the characteristics of zirconia and compatible veneering ceramics, including framework support, material thickness, firing requirements, and the limitations of different designs. Material selection and processing should be based on verified product specifications rather than generalized performance claims.
Digital Compatibility
Digital workflows can streamline case communication and improve design consistency. Dentists should confirm accepted scan formats, submission requirements, and the procedures used to clarify incomplete or conflicting prescriptions.
Aesthetic Communication
Detailed shade photographs and written characterization instructions help bridge the gap between clinical expectations and laboratory execution. A useful laboratory partner should communicate when a requested design may conflict with available restorative space, functional requirements, or material limitations.
Quality Assurance and Case Support
Clear inspection procedures, traceable material information, predictable communication, and defined remake or adjustment policies support a more efficient working relationship. Dentists should evaluate these capabilities directly when selecting a supplier.
WeArt Dental Laboratory Co., Ltd. can be introduced to dental professionals seeking laboratory support for aesthetic ceramic restorations. When discussing a potential partnership, clinics can share their preferred workflow, case requirements, material expectations, and shade-matching needs to establish whether the service is appropriate for their practice.
Frequently Asked Questions About Zirconia Layered Porcelain Crowns
1. What is the main purpose of a Zirconia Layered Porcelain Crown?
Its purpose is to restore a damaged or compromised tooth using a zirconia supporting framework and an aesthetic porcelain veneer. It combines structural support with the potential for detailed customization of shade, translucency, and surface appearance.
2. Is a layered zirconia crown stronger than a monolithic zirconia crown?
Not necessarily. The zirconia framework can provide substantial strength, but the porcelain veneer introduces an additional component that may chip under certain conditions. Monolithic zirconia avoids this separate veneer layer and may be preferable in selected high-load situations. Performance depends on the specific material and restoration design.
3. Are layered zirconia crowns suitable for front teeth?
They can be suitable for selected anterior restorations because porcelain layering allows detailed shade and translucency customization. The final choice depends on the tooth's condition, available space, functional contacts, and the patient's aesthetic requirements.
4. Can the porcelain on a zirconia crown chip?
Yes. Veneer chipping is a recognized risk. Appropriate framework support, compatible materials, controlled firing and cooling, suitable occlusal design, and careful patient selection can help reduce the risk.
5. How long does a zirconia layered porcelain crown last?
There is no guaranteed lifespan for an individual crown. Longevity depends on clinical conditions, fabrication quality, oral hygiene, bite forces, and ongoing maintenance. Regular dental examinations help identify problems early and determine when intervention is needed.
6. Does a layered zirconia crown look like a natural tooth?
It can achieve a natural-looking appearance when the shade, translucency, contours, and surface texture are carefully customized. The result also depends on the underlying tooth color, neighboring teeth, available material thickness, and the quality of clinical and laboratory communication.
7. What information should a dentist provide to the laboratory?
Useful information includes the prescription, preparation scan or impression, opposing dentition, bite records, shade selection, reference photographs, margin details, and special aesthetic or functional instructions. Complete records reduce avoidable uncertainty during fabrication.
8. Is a layered zirconia crown suitable for patients with bruxism?
Bruxism can increase mechanical stress and the risk of veneer complications. A dentist should evaluate the severity of grinding, occlusal contacts, available restorative space, and alternative crown designs before recommending a treatment.
9. How is a layered zirconia crown different from a porcelain-fused-to-metal crown?
A layered zirconia crown uses a zirconia ceramic framework, whereas a porcelain-fused-to-metal crown uses a metal substructure. Both can have an external porcelain veneer. Their optical properties, material behavior, processing requirements, and potential complications differ.
10. Can a damaged layered zirconia crown be repaired?
Some minor veneer defects may be repairable, depending on their size, location, and clinical circumstances. More extensive damage may require replacement. A dentist must assess the restoration before selecting a repair method.
Conclusion: Balancing Aesthetics, Function, and Precision
A Zirconia Layered Porcelain Crown offers a practical combination of a zirconia framework and a customizable ceramic veneer. Its ability to reproduce natural-looking color and surface detail makes it valuable for selected aesthetic restorations, while its layered construction requires careful attention to framework support, porcelain thickness, material compatibility, and occlusal forces.
Successful outcomes depend on the entire restorative process, from clinical assessment and accurate digital records to laboratory craftsmanship, final fitting, and long-term patient care. By evaluating the advantages and limitations of each material, dental professionals can select restorations that better align with individual clinical needs.
