Anesthesia Equipments & Accessories Type Datex Ohmeda Anesthesia Machine

Anesthesia Equipments & Accessories Type Datex Ohmeda Anesthesia Machine

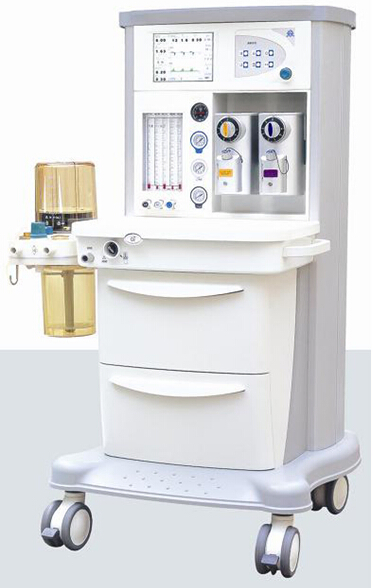

Anesthesia System
Model:MCA-302

 Main Feature of Anesthesia Machine:
1. Applied for closed, semi-closed, semi-open
inhalation anesthesia, controlled or
assisted ventilation, monitoring and
display patients' ventilation parameters

2. Applied for adult and pediatric

3. Integrated anesthetic ventilation system,
APL security air relief valve is available

4. Vaporizers: 2.  Advanced temperature,
flow and pressure compensation technology,
Isofurane, Enfurance, Halothane and
Sevoflurance as per option

5. 8.4" TFT-LCD display screen

Main Specification of Ohmeda Anesthesia Machine:
Type: Electronically controlled, Pneumatic driven
Patient spectrum: Pediatric to bariatric

Mode of Equipments & Accessories Type manual ane: VCN, SIGH, SIMV, Stand-by, Manual, PEEP
Hypoxic guard system: N2O cut-off valve, O2 concentration no less than 25%
Safety valve: <12.5kpa

Monitoring of Anesthesia Equipments & Accessories: VT, MV, BPM, Paw, FiO2, Lung compliance
Waveform: Pressure-time, flow-time, pressure-volume loop, volume-time (Optional), flow-volume loop (Optional)
Power: AC 220V±10%, 50Hz±2%, built-in battery support

Gas: O2, N2O, air

Alarm: Optimal multi-class alarm unit, VT beyond limitation, upper and lower limitation of ventilation, upper  and lower limitation of ventilation, upper and lower limitation of airway pressure, asphyxiation, current failure, gas source hypotonic, gas circuit abnormity, upper and lower limitation of CO2 concentration (Optional)

Prompt and protection: Prompt for parameter limitations, protection for unreasonable parameter setting.
