Bipap S9030 for Patient
S9030 Duo-level non-invasive VentilatorFriendly Powerful ReliableApplication:The Duo-level non-invasive Ventilator makes a good performance in sleep center, home and other departments. From high to low acuity, simple to complex cases, adult to geriatric patients, Our Duo-level non-invasive Ventilato......
Send Inquiry
Product Description

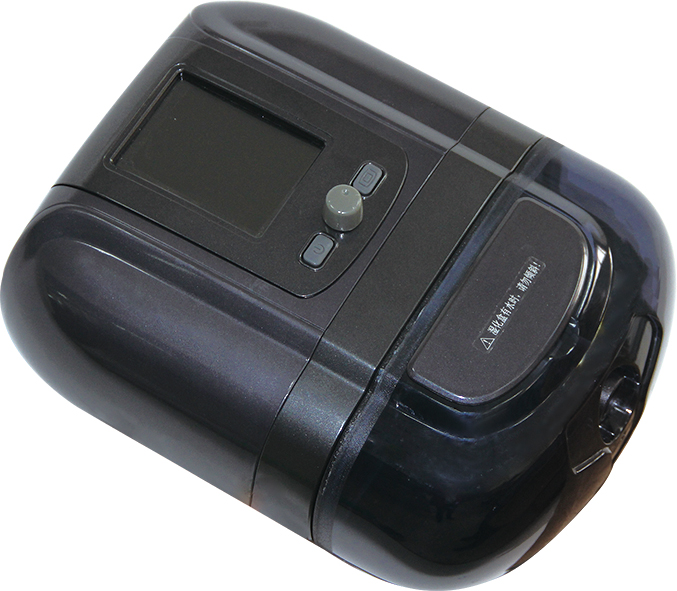

S9030 Duo-level non-invasive Ventilator
Friendly Powerful Reliable
Application:
The Duo-level non-invasive Ventilator makes a good performance in sleep center, home and other departments. From high to low acuity, simple to complex cases, adult to geriatric patients, Our Duo-level non-invasive Ventilator offer you the choices you need in ventilation, monitoring and technique. what's more, our expertise in ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
Trust Points
l Simplicity: easy to use, easy to take with your package anywhere.
l Choice: adapt the equipment to your patients and procedures freely.
l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 4 modes: CPAP; S; T; S/T.
l Designed and manufactured with over 23 years experience in this area.
l Flexible configurations to suit your needs.
l International standard and advanced technology suitable for wide range use.
l Compact interface and screen display give you better operating experience.
l Over 2,000 units installed in the world.
Features

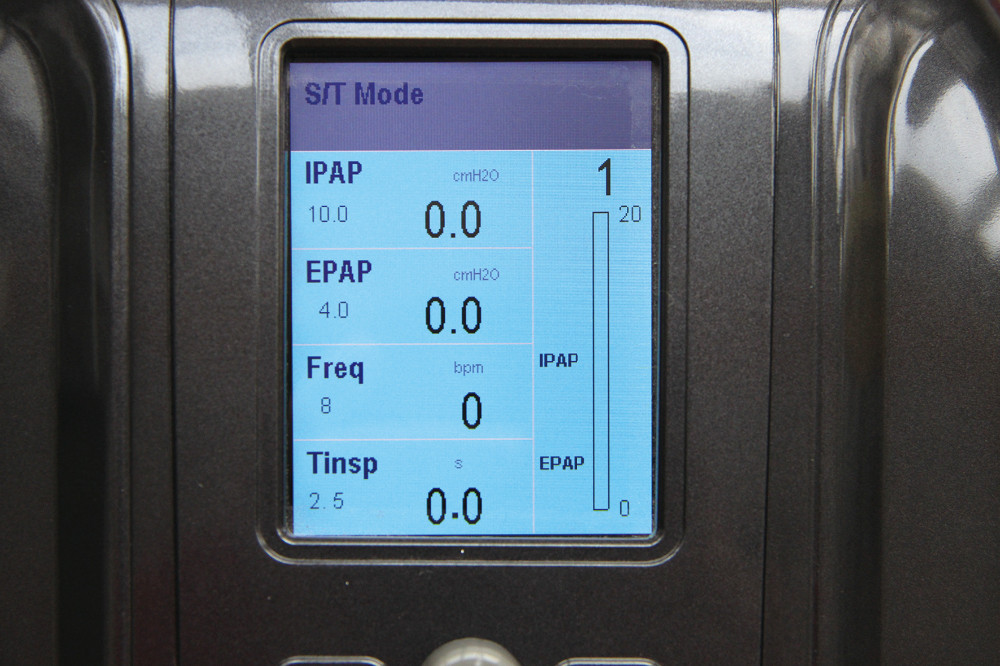

l TFT LCD screen displays the Ventilation parameters and alarming information.
l Integration breathing circuit design, ensure easy operating and keep tidy.
l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
l Optimized design and fine manufacture, cooperating sound absorption composite, unique super mute design.
l Unique shuttle knob design, easy to operate and use in house.
l No need to add water by stopping the machine, very easy to use.
Safety
l Three level alarming system, visual and sound alarm information.
l With lots of alarming, reminding and protection functions.
l Advanced power management control technology.
Specifications
Ventilation modes: | CPAP,S,T,S/T,PC,AVAPS,VT control(20-2000ml) |
Frequency | Adjusting range:3bpm-40bpm |
| Increment:1bpm |
Inspiration time | Adjusting range:0-3s |
| Increment:0.1s |
IPAP | Adjusting range:4cmH2O-25cmH2O |
| Increment:0.5cmH2O |
EPAP | Adjusting range:4cmH2O-20cmH2O |
| Increment:0.5cmH2O |
CPAP | Adjusting range:4cmH2O-20cmH2O |
| Increment:0.5cmH2O |
Ramp time | Adjusting range:0-60min |
| Increment:1min |
Rise time | Adjusting range:0.1s-0.5s |
|
|
| Increment:0.1s |
Inspiration trigger | Adjusting range: auto adjusting, 1-3 |
| Increment:1 |
Expiration trigger | Adjusting range: auto adjusting, 1-3 |
| Increment:1 |
Flex | Adjusting range:OFF, 1-3 |
| Increment:1 |
Humidifier | Adjusting range:0-5 |
| Increment:1 |
Ppeak | 0-30cmH2O |
Graphical display: Airway pressure histogram |
|
Alarm and protection | |
Low ventilation | 0-15L/min |
High airway pressure | 20cmH2O-30cmH2O |
High frequency | 1bpm-99bpm |
Low frequency | 1bpm-60bpm |
Suffocation warning | 8s-12s no spontaneous ventilation |
The maximum limited pressure | <12.5 kPa |
Pipe detached
Working conditions Using conditions | Pipe detached 16s |
Environmental temperature | 5ºC-35ºC |
Relative humidity | 15%-95% |
Atmosphere pressure | 830hPa-1060hPa |
Storage conditions | -20ºC-+60ºC |
Relative humidity | 15%-95% |
Atmosphere pressure | 500hPa-1060hPa |
