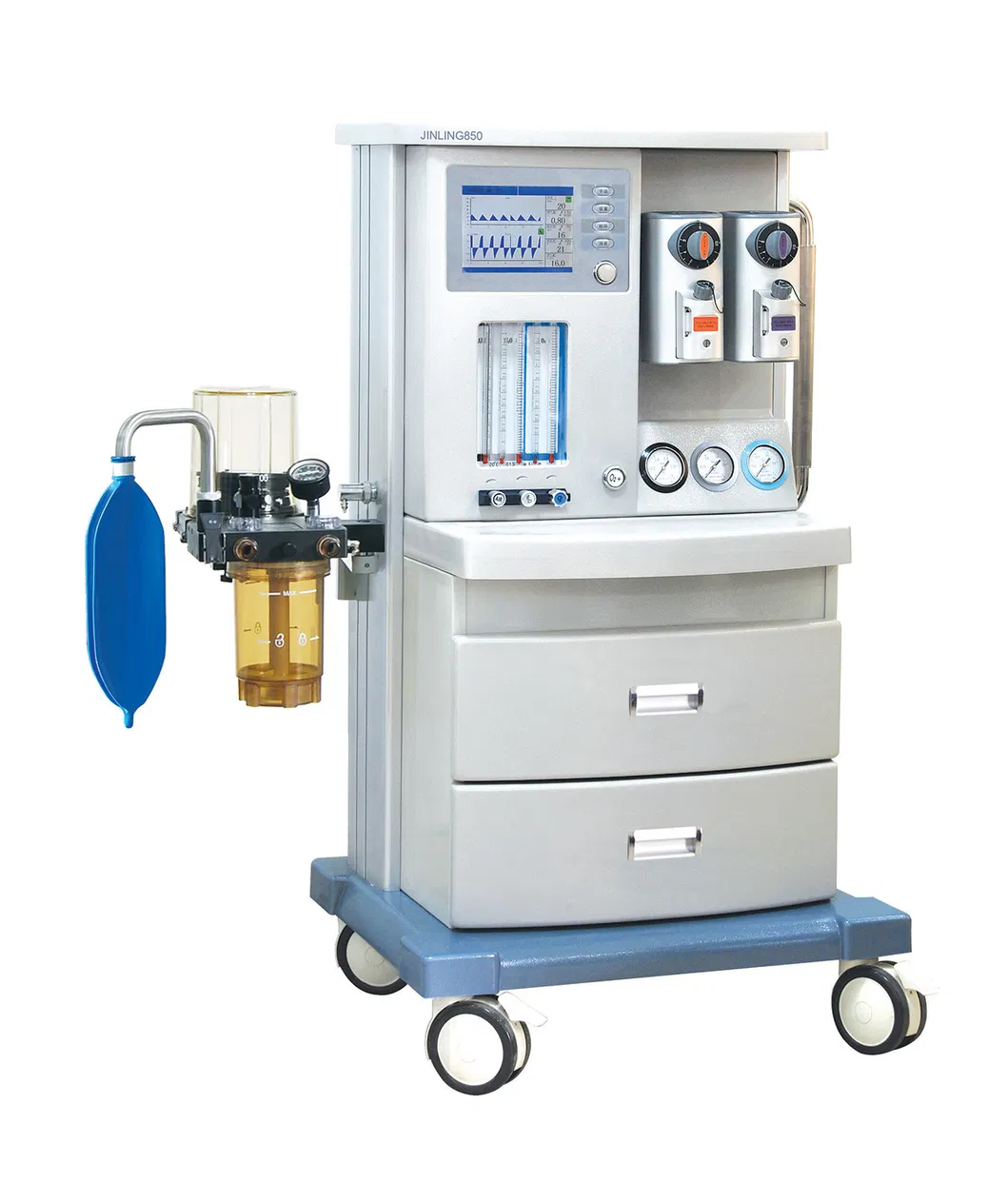

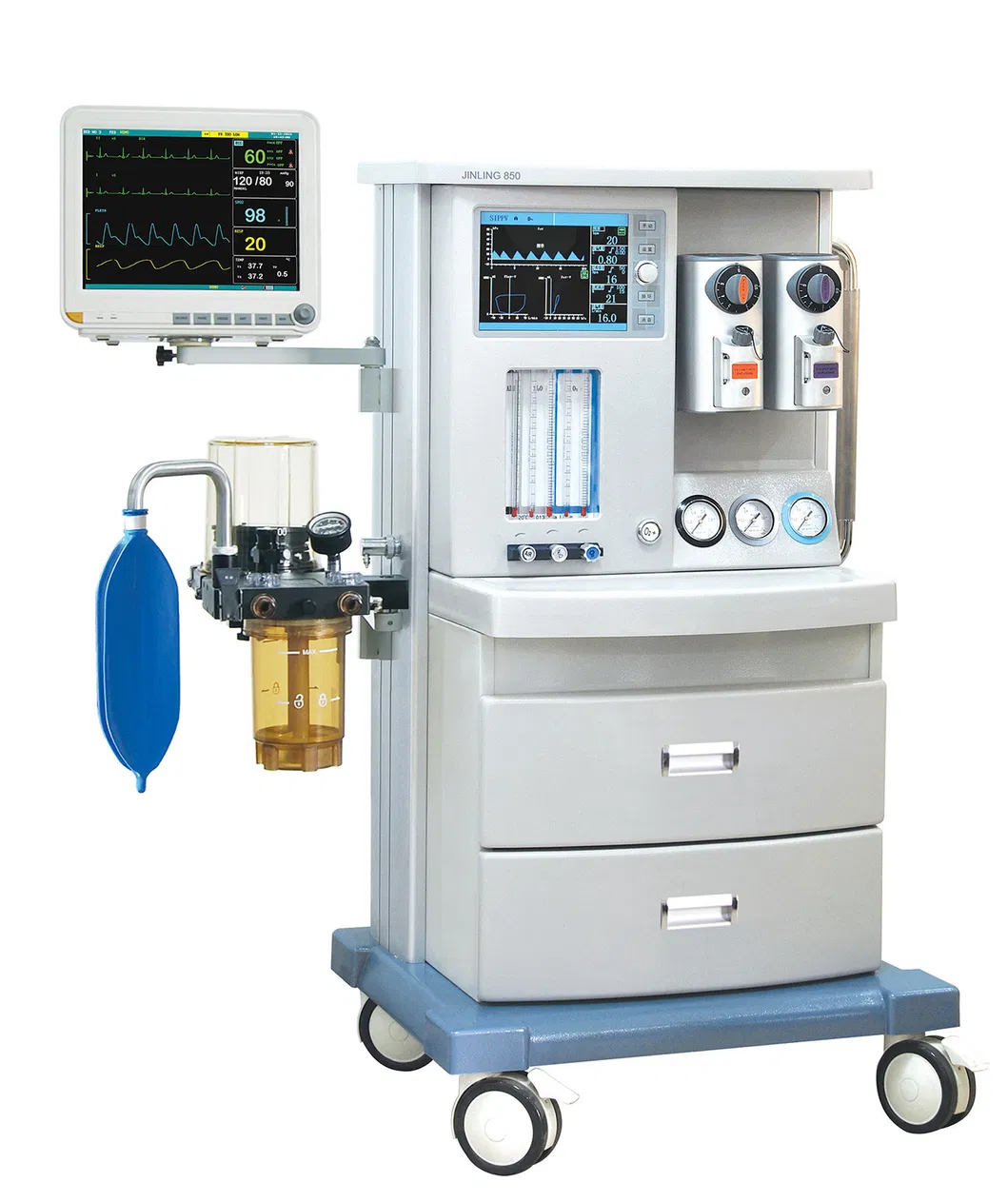

CE Approved Portable Anesthesia Machine Medical Apparatus Instruments Anesthesia Machine
Specification:Common Features Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-openAnesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a but......
Send Inquiry
Product Description
Specification:
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Oxygen failure alarm is supported by the anesthetic gas delivery system; when the oxygen supply within the circuit or cylinder falls below 0.20 MPa, an alarm will sound and the nitrous oxide will be cutoff
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Model: Optional
Advanced Model Exclusive Features
Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability
Specifications
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Oxygen failure alarm is supported by the anesthetic gas delivery system; when the oxygen supply within the circuit or cylinder falls below 0.20 MPa, an alarm will sound and the nitrous oxide will be cutoff
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Model: Optional
Advanced Model Exclusive Features
Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability
Specifications

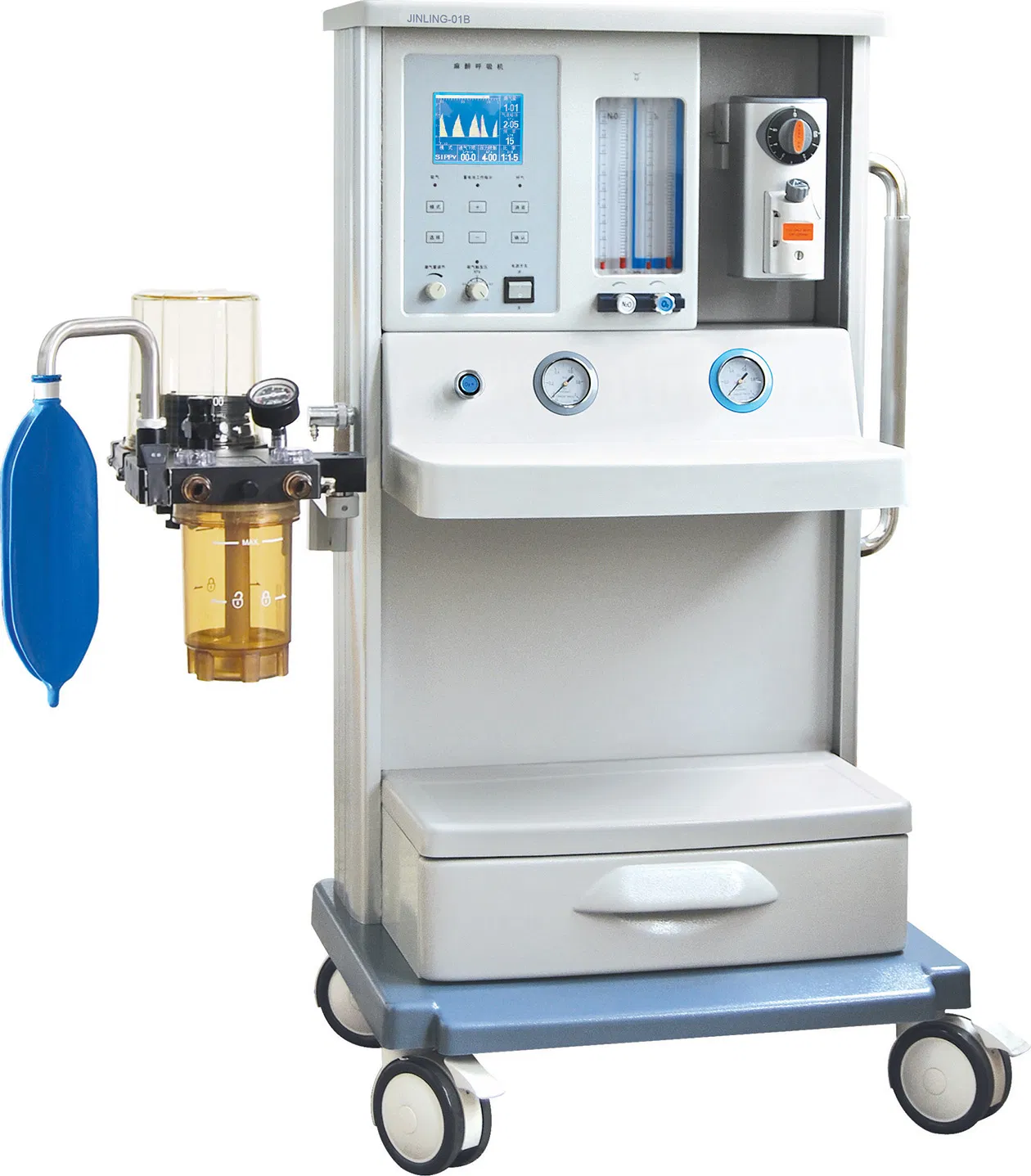

| Model | JINLING-01B Economic Model | JINLING-01B Standard Model | JINLING-01B Advanced Model |
| Display | 5.4 inch TFT display | ||
| Flowmeter Range | O2: 0.1-10L/min | ||
| N2O: 0.1-10L/min | |||
| Ventilation Mode | IPPV,SIPPV, IMV, SIMV, MANUAL | ||
| Back-up Power Supply | At least 4 hours | ||
| Tidal Volume | Adjustable range: 50-1500ml | ||
| Display range: 0-2000ml | |||
| Respiratory Rate | 1-99bpm | ||
| Oxygen Supply Flow Rate | 25~75L/min | ||
| Inspiratory/Expiratory (I:E) Ratio | 4:1-1:10 (capable of inverse ratio ventilation) | ||
| Inspiratory Pressure Trigger | .-10-10cmH2O (electronically controlled) | ||
| SIGH | 1 sigh breath in every 80-160 breaths | ||
| Vaporizer Concentration Ranges | 0-5% | ||
| Vaporizer Slots | Single PA-80 type slot | Single PA-I type slot | Double PA-I type slots |
| Gas Supply Pressure | O2: 0.32MPa~0.6MPa: N2O: 0.32MPa~0.6MPa | ||
