Product Description

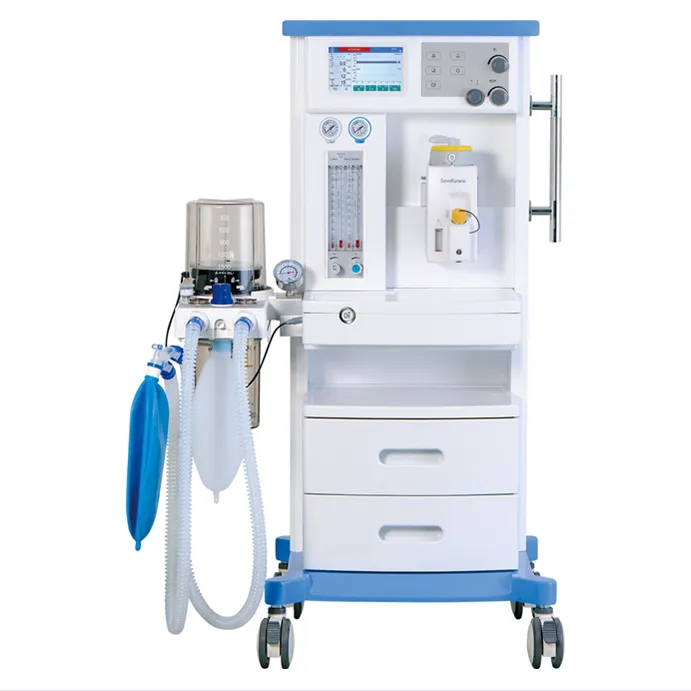

S6100 Anesthesia System
Application:
The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients,Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what's more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
Trust Points
l Simplicity: easy to use, easy to move with 4 wheels.
l Choice: adapt the equipment to your patients and procedures freely
l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 3 modes: IPPV; A/C; SIMV.
l Designed and manufactured by Superstar Medical with over 23 years experience in this area.
l Flexible configurations to suit your needs.
l International standard and advanced technology suitable for wide range use.
l Compact interface and big screen give you better operating experience.
l Over 3,500 units installed in the world.
Features
l 7" TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.
l High precision flow meter, instantly know the fresh gas flow to your patient.

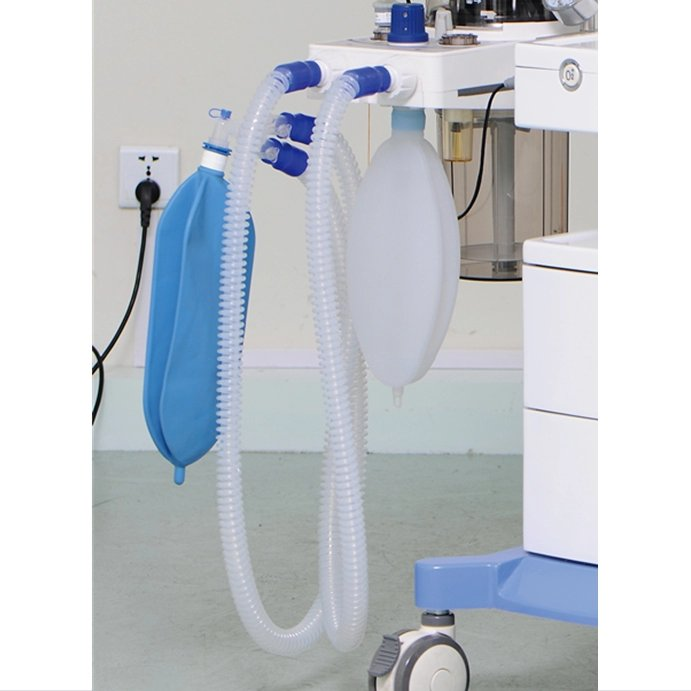

l Integration breathing circuit design, ensure easy operating and keep tidy.
l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

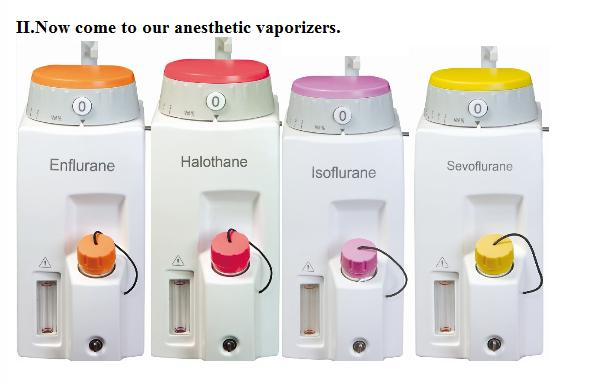

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
l Vital sign monitor and Anesthetic gas monitor are optional.
Ventilation Modes | IPPV; A/C; SIMV; | Alarm and protection | |
Ventilator Parameter Ranges | The AC power failure alarm | Power failure or no connection | |
Flow Meter | O2(0.1 ~ 10L/min) | Internal battery backup low voltage alarm | <11.3±0.3V |
| N2O(0.1 ~ 10L/min) | No tidal volume | ≤5Ml within 6s |
|
| High oxygen concentration alarm | 19%-100% |
Rapid Oxygen Supply | 25L/min ~ 75L/min | Low oxygen concentration alarm | 18%-99% |
Tidal Volume(Vt) | 0,20ML ~ 1500ML | High Airway pressure alarm | 20cmH2O-100cmH2O |
Frequence | 1bpm ~ 100bpm | Low Airway pressure alarm | 0cmH2O-20cmH2O |
I/E | 2:1 ~ 1:6 | High Minute Volume alarm | Adult(5L/min-20L/min); Paed(1L/min-15L/min |
PEEP | 0cmH2O ~ 30cmH2O | Low Minute Volume alarm | 0-10L/min) |
Pressure Triggering Sensitivity(PTr) | -20cmH2O ~ 0cmH2O |
|
|
Flow Trigger Sensitivity(FTr) | 0.5L/min ~ 30L/min | Continuous Pressure alarm | (PEEP+1.5kPa) over 16s |
|
| Suffocation warning | 5s-60s no spontaneous ventilation |
SIGH | 0(OFF)1/100~ 5/100 | The maximum limited pressure | <12.5 kPa |
Apnea Ventilation | OFF,5s~ 60s | Fan error Oxygen deficit | Show on screen Show on screen |
Pressure Limit | 20cmH2O ~ 100cmH2O | Working conditions | |
Monitored Parameters | Gas source | O2,N2O | |
Frequence(Freq) | 0 /min ~ 100 /min | Pressure | 280kPa-600kPa |
Tidal volume(Vt) | 0 mL ~ 2000 mL | Voltage | 100-240V |
MV | 0 L/min ~ 100 L/min | Power frequency | 50/60Hz |
Oxygen concentration | 15 % ~ 100 % | Input Power | 40 VA |
Oscillographs Display | Packing Size | ||
P-T(pressure - time) | Wooden Case Packing Size | L740*W800*1460mm | |
F-T(Flow - time) | G.W. | 93KG | |
| N.W. | 66KG | |
