Ce Mark Medical Surgical Anesthesia Ventilator Machine Price

Product Description

Features:
1. Pneumatically driven electronically controlled system
2. Built-in ventilator, LED display screen
3. With 1 patient circuit for adult (Option: patient circuit for children).
4. 4-tube flowmeters, O2 & N2O;0.1 L/Min ~ 10 L/Min;
5. Vaporizer: Enflurane / Isoflurane / Sevoflurane;
(Option: Halothane)
6. Ptr:-10~10hPa;
7. Respiration Mode: IPPV, SIPPV, Manu
8. Tidal Volume: 50~1500mL;
9. Respiration Frequency: 4~40bpm;
10. I/E Ratio: 1:1.5~1:3

Prospective service and support

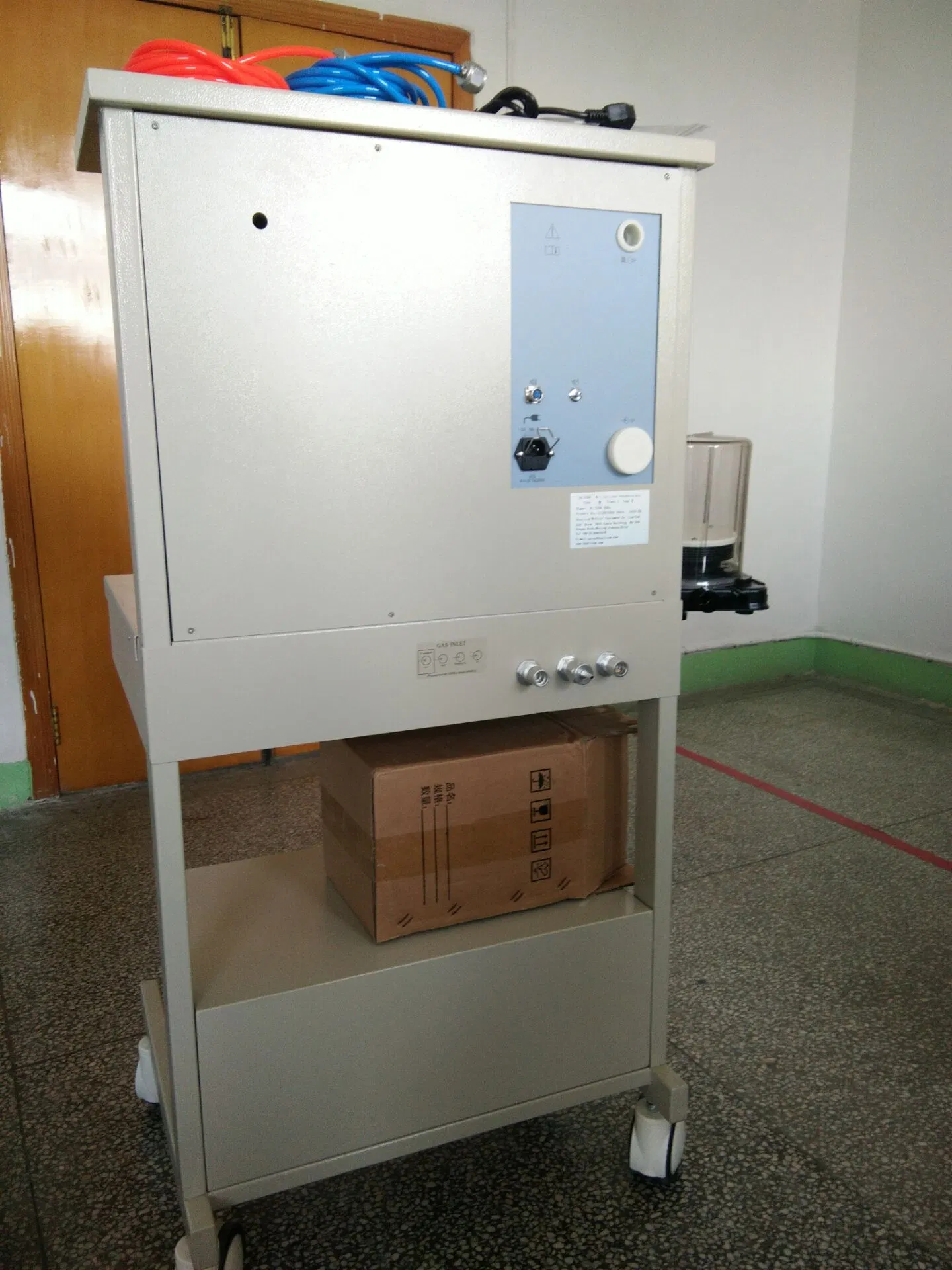

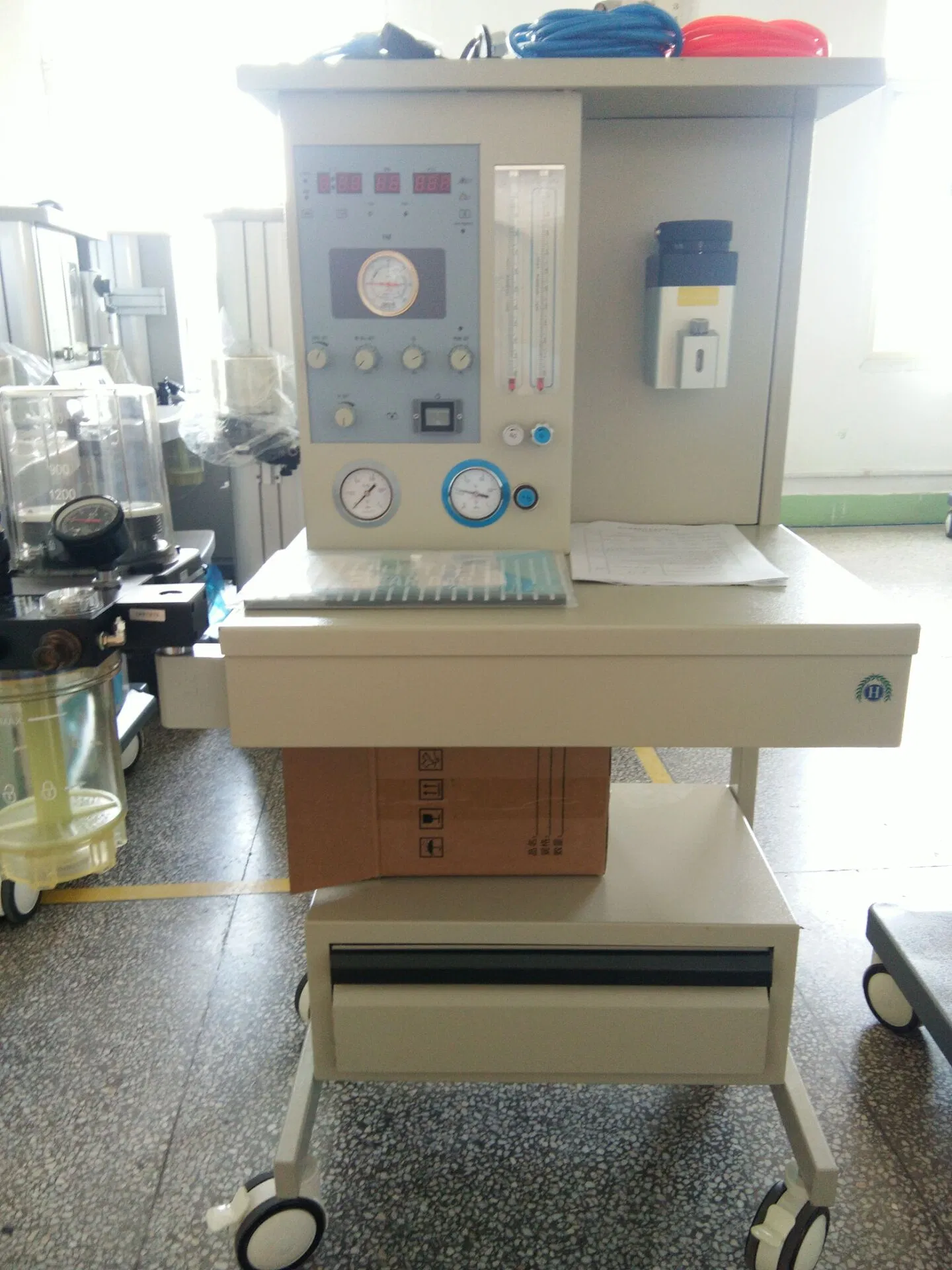

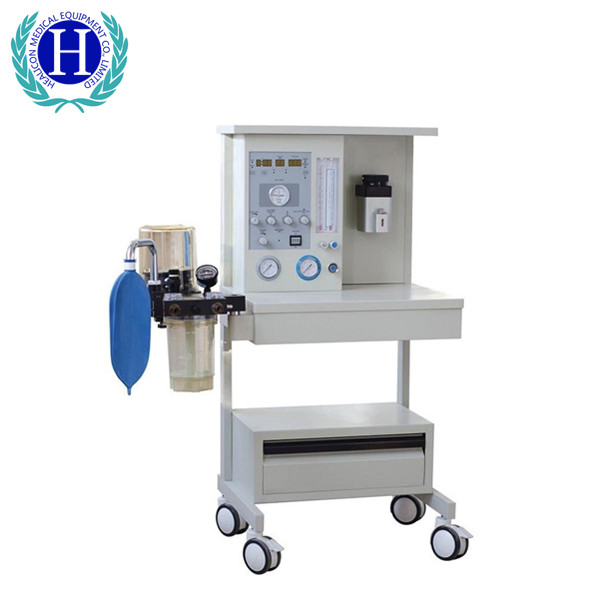

This HA-3200A Anesthesia Machine is an essential important anesthesia device in an operation room. Its function is to provide oxygen and anesthetic agent to a patient needing to go through an anesthesia operation and perform ventilation management.
A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.

TECHNIQUES SPECIFICATIONS
Physical specifications
Screen	LED Display Screen
Suitable	Adult & Child
Mode	pneumatically powered and electrically controlled system
Working Mode	Closed; Semi-Closed; Semi-Open
Circuit	Breathing circuit integrated standards
Tube	2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min
Trolley	Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
Drawer unit	ONE drawer totally extractable
Technical Specifications:
Gas requirement	Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa.
Safety valve	<12.5 kPa
Respiratory Rate	4~40bpm
Flow meter	O2:0.1~10L/Min, N2O:0.1~10L/Min
Oxygen concentration in the mixed gas N2O/O2	> 21%
Oxygen Flush:	25~75 L/min
Maximum error of the pressure testing device	not exceed ± (4% of the full scale reading + 8% of the actual reading)
modes of ventilation	A/C,IPPV, SIPPV, MANUAL
I/E Ratio	1:1.5; 1:2.0;1:2.5; 1:3
Tidal Volume	0~1500ML
Controlled ventilation and assisted ventilation switching time	6s
Maximum safety pressure	≤ 12.5 kPa
Pressure limit range	0 ~ 6.0 kPa
Airway pressure alarm: Audible and visual and with yellow and red color indicating	Lower: 0.2kPa~5.0kPa; Upper: 0.3~6.0 kPa
	±0.2 kPa
Tidal volume alarm: Audible and visual and with yellow and red color indicating	upper alarm: 50 to 2000ml,lower alarm: 0~1800ml
Power Supply Alarm	Ac/dc power supply are after failing to send out alarm immediately Alarm Time: keep >120s
Operating conditions
Ambient temperature	10 ~ 40oC
Relative humidity	no higher than 80 %
Atmospheric pressure	860 hPa ~ 1060 hPa
Power requirement:	100-120 Vac, 50/60 Hz;
Air source requirement	Medical oxygen and laughing gas with a rated pressure ranging from 0.3 to 0.5MPa.
Attention: the AC power supply used for the anesthesia machine must be well grounded.
Attention: the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System.
Configuration:
Vaporizer	Enflurane/ Isoflurane(Option: Halothane)
Storage
Ambient temperature	-15oC ~ +50oC
Relative humidity	no higher than 95 %
Atmospheric pressure	86 kPa ~ 106 kPa.
It should be stored in a room without corrosive gas and well ventilated
Package
packaging box	comply with the requirement of GB/T 15464
	Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation
	Moisture protection and rain protection to ensure that product is protected from natural damage.
Safety & Alarm
Oxygen Alarm	It alarms when the oxygen supply from pipe or cylinders lower than 0.2MPa
Ventilation Volume Alarm	Lower: 0~12L/Min; Up: 18L/ Min
Power Alarm	It Alrmas while AC and DC supply failure ; Keep alraming time: >120s
