China Dragon Crown Orthopedic Implant Vertebroplasty Balloon Catheter

Product Description

1. General Description

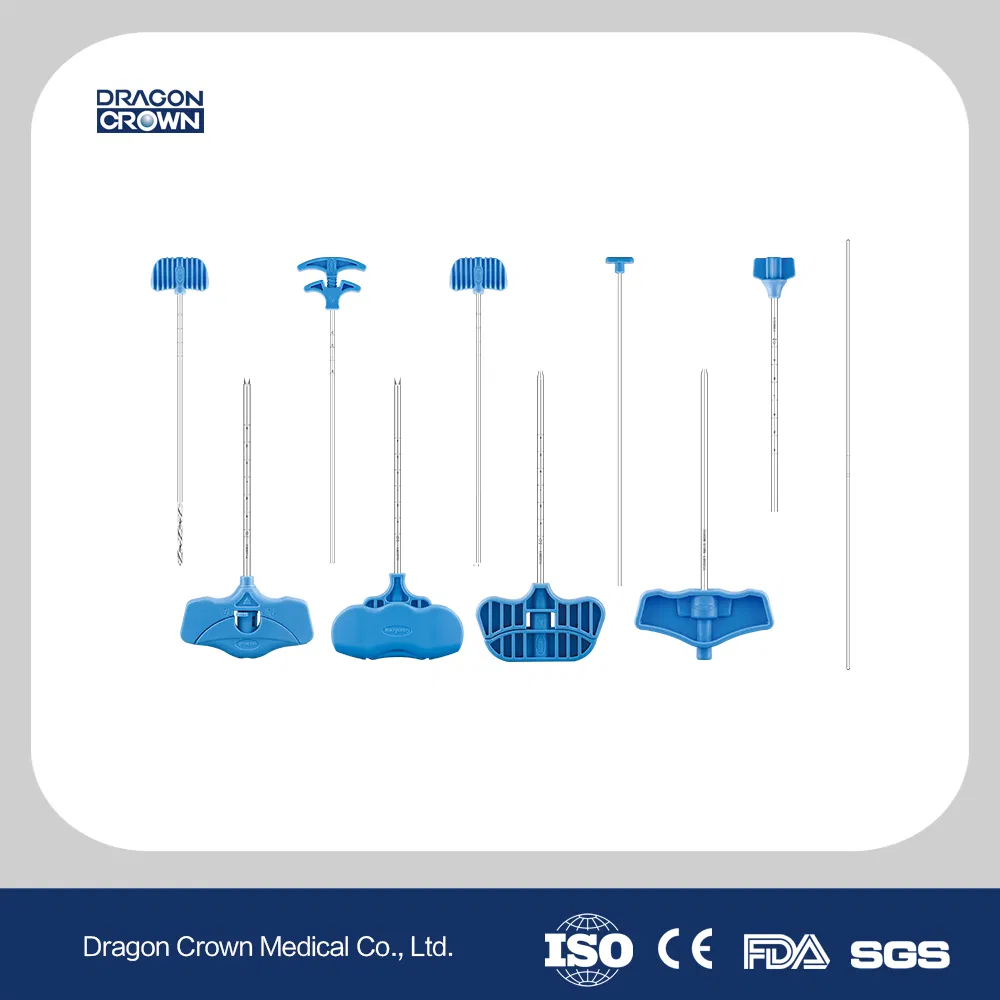

Vertebral Forming Unitized Surgical Instruments Model 202 (PKP system)are composed of
Puncture Needle, Guide Pin, Dilating Tube, Working Cannula, Solid Bone Drill, Hollow Bone Drill,
Pushing Rod, Cement Injection Device, Balloon and Inflation Device.
There are two types of Puncture Needle, Locking-handle and Rotary handle.
The products are sterilized with ethylene oxide. And the valid period of sterilization is 24 months.Single use.

2. Structure of instruments

Instruments	Structure	Specification(mm)

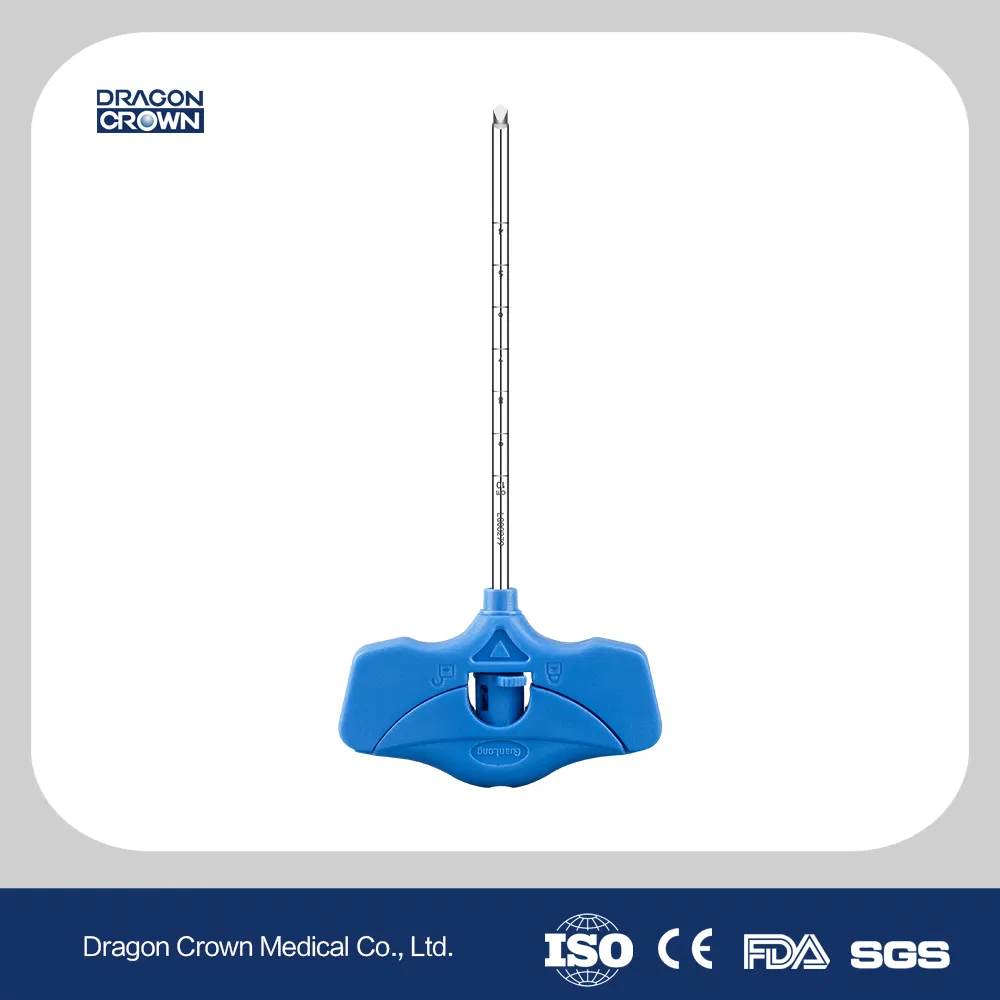

Puncture Needle	1,Inner Stylet 2,Outer Sleeve 3,Outer Sleeve Handle 4,Stylet Handle	Diameter	3.0,3.2,4.0
		Length	100,126,130
Guide Wire		Diameter	1.2,1.5
		Length	300
Dilating tube	1,Dilating tube 2,Handle	Diameter	3.4,3.6
		Length	140
Working Cannula	1,working cannula 2,working cannula handle	Diameter	4.0,4.2
		Length	123
Solid Drill		Diameter	3.0,3.4,3.6
		Length	190
Hollow Drill		Diameter	3.0,3.4,3.6
		Length	190
Pushing Rod		Diameter	2.0
		Length	220
Cement Injector		Diameter	3.0,3.4
		Length	195

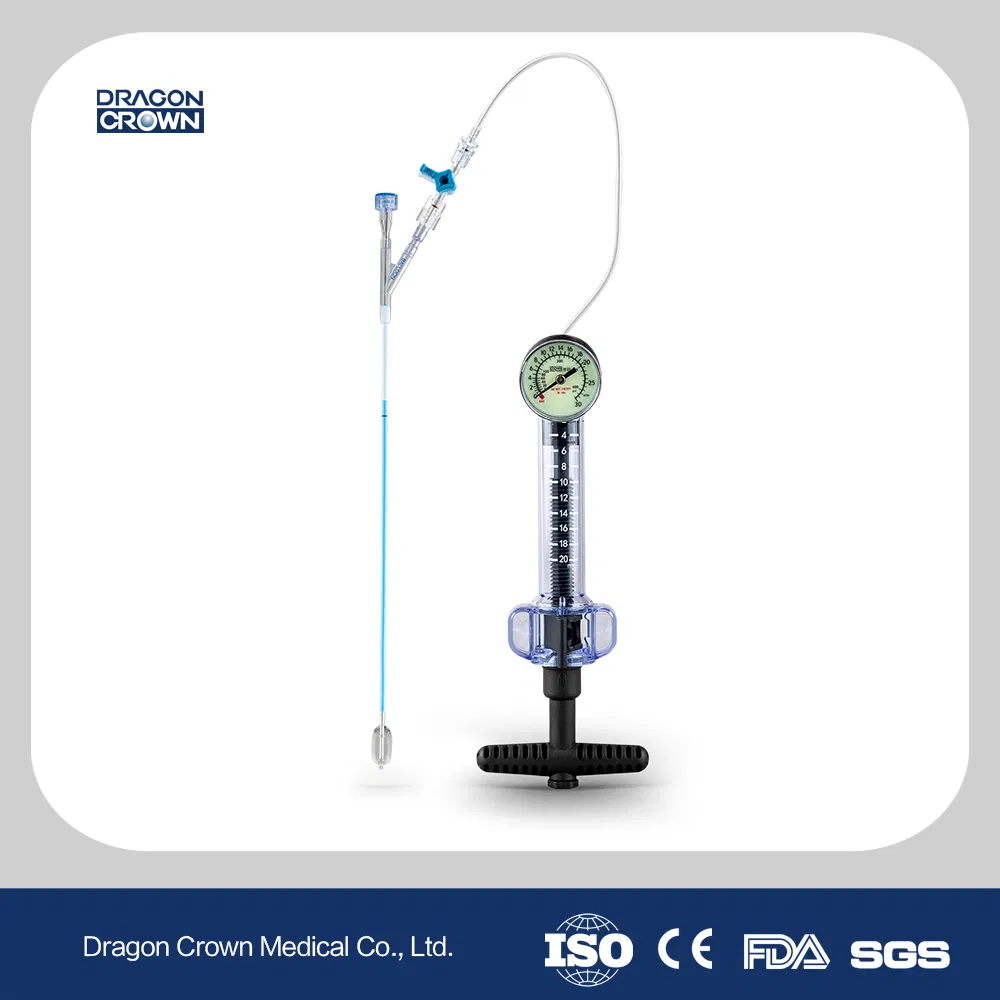

Balloon	Balloon 2,Ring Mark 3,Connect Tube 4,Balloon Seat 5,Stylet Seat 6,Stylet	Diameter	14
		Length	17
Inflation Device	1,Tee 2,High Pressure Tube 3,Pressure Gauge 4,Lock Nut Handle 5,Plunger Handle	Capacity	20ml
		Pressure	30atm
