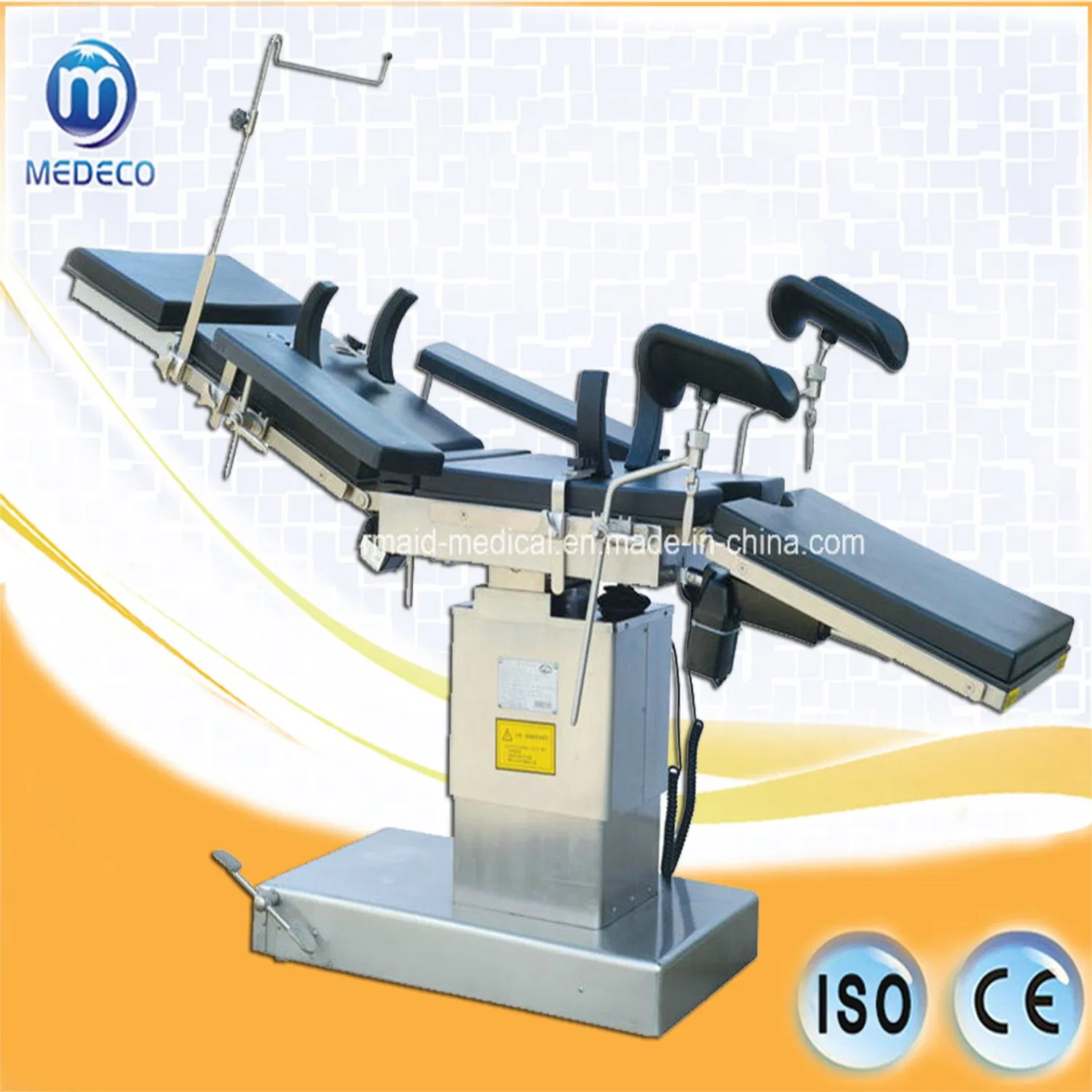

Electric Operating Table 2000A (ECOH26)

Electric operating Table  2000A (ECOH26)

Electric operating Table  2000A (ECOH26)  is used in all the operations like head, neck, chest, abdomen , perineum, limbs and other surgeries, obstetrics and gynecology, urology, ENT, neurosurgery and so on.
Adjustable height, trendelenburg and Reversed trendelenburg, tilt, folding movement of back section and leg section, up-and-down of kidney section are controlled by electric circuit. Mattress is made of anti-static senior PY foam materials.

Dimension of table top:

Length:2000mm
Width: 500mm
Max Height:620mm
Min Height:820mm

Range of movements:
Reversed Tendelenburg..........................................   ...≥200
Trendelenburg...............................................................≥150
Lateral tilt....................................................................≥150

Adjustment of sections:
Head Section Raised from the horizontal....................... ≥450
Head Section lowered from the horizontal.......................≥900
Leg Section Lowered from the horizontal.....................≥900
Leg Section opened.....................................................≥900
Back Section Raised from the horizontal..........................≥450
Back Section lowered from the horizontal.........................≥150
Kidney Bridge Elevated....................................................≥100mm
Safe Working Load..........................................................135kg
Lifting speed................................................................4~16mm/s

Foot and leg board board into a horizontal or vertical.

IPX4   Ingress Protection:IPX4
Power: AC220V,50Hz
Internal electric source:(DC)24V
Battery capacity ≥ 2.4AH Device safety sort  I     B

Structure:

Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg movements ,back section bending are all drived by the motors.
The table top is made up of head section, back section, seat section, leg section and kidney bridge. The head section can be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. The back section can be raised or lowered from the horizontal. Table top is made of engineering plasties, thus X-ray examination of can be carried out on it.
The main part includes rotary frame, lateral tilt arrangements, trendelenburg and reversed trendelenburg arrangements, ascending and descending arrangements and the base.
