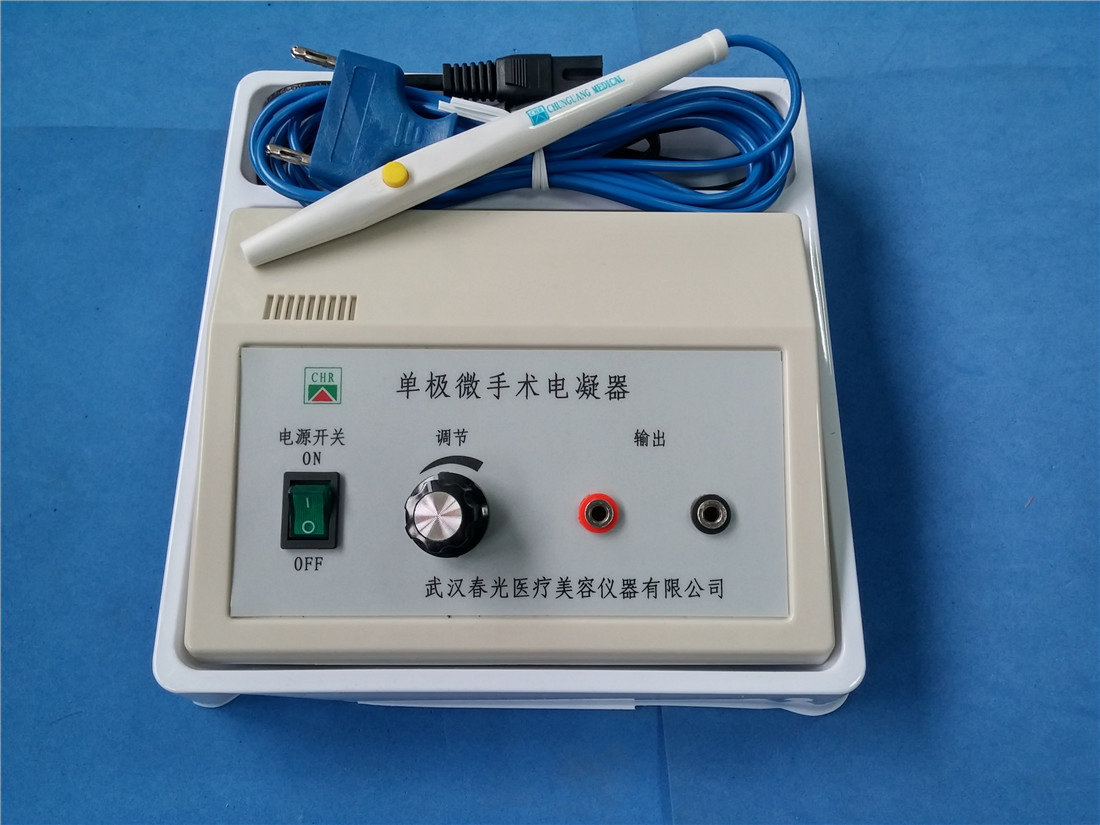

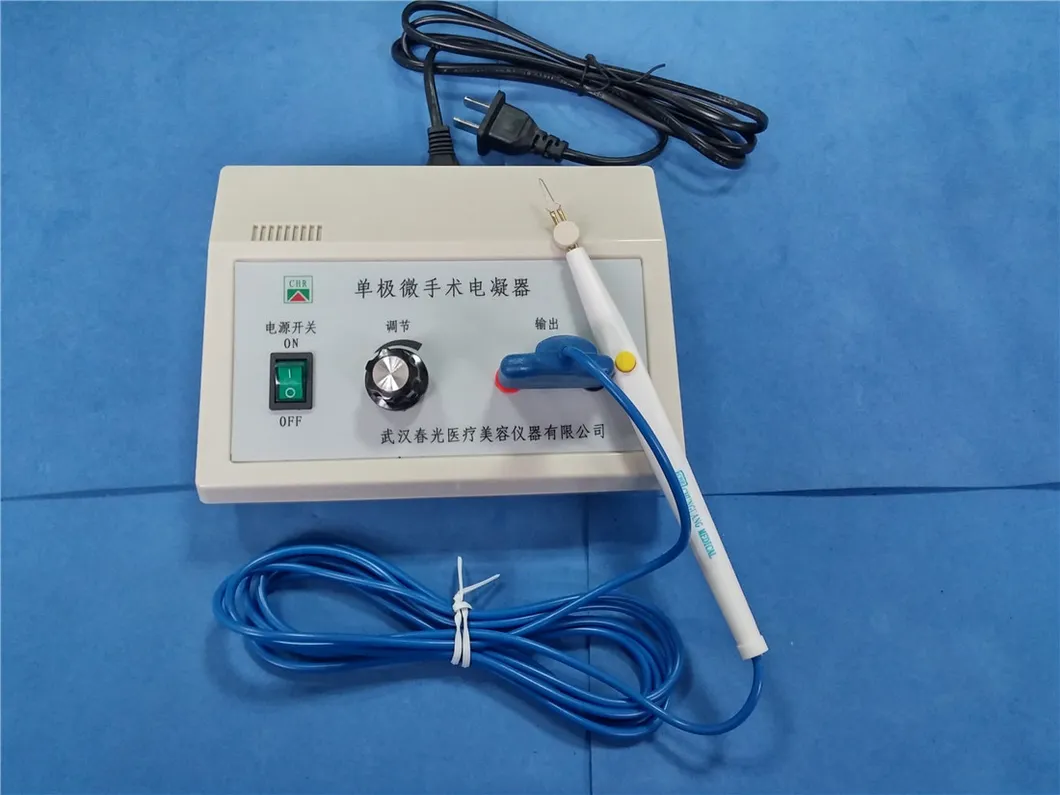

Electric Stop Bleeding Medical Electrocoagulator

The electric stop bleeding medical electrocoagulator is a kind of simple operation, good effect of hemostasis, small volume, light weight, easy to carry and use safety of flexible ideal hemostatic tools.
Main application;
Applicable to the superficial small surgical hemostasis,organization setting, vegetations burning, etc.
Method of application:
1. Turn on the power switch
2. Adjust the work gear, clockwise for big, counterclockwise for small. The principle is to choose minimum power if it can reach the ideal effect.
3.Press the button on the pen when use it, the tip heat, put the tip point to the surgical site till surgical site pale or bleeder solidification.
Attentions:
1,Surgical pen tip should avoid direct contact with the patients and doctors, to prevent burns.
2,Avoid no-load work for a long time. After the completion of the operation should loosen the hand control switch in order to prolong the service life of surgical pen.
3,Sterilized by fumigation.
4,Press the switch when the tip becomes like a red as the best work state, after finish please loosen the switch, do not press on the switch for a long time, in order to avoid damage, when need to press the switch.

Technical Specifications
Voltage:AC220V±22V
Frequency:50Hz±1 Hz
Power≤20VA
Output voltage≤12V

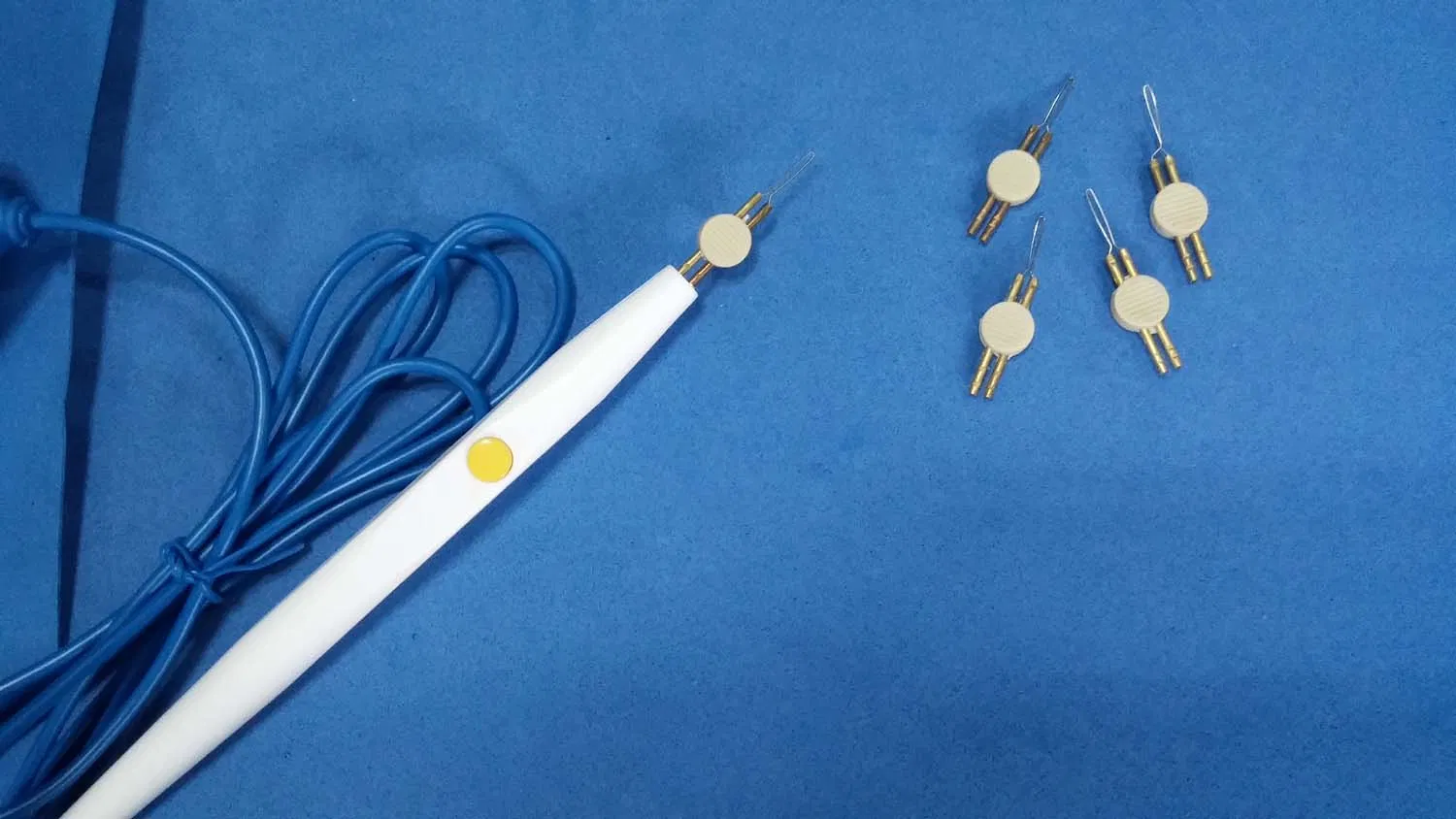

Accessories:
electric pen 1 pcs,
electric coagulation tip 5 pcs,
the power cable 1 pcs.
