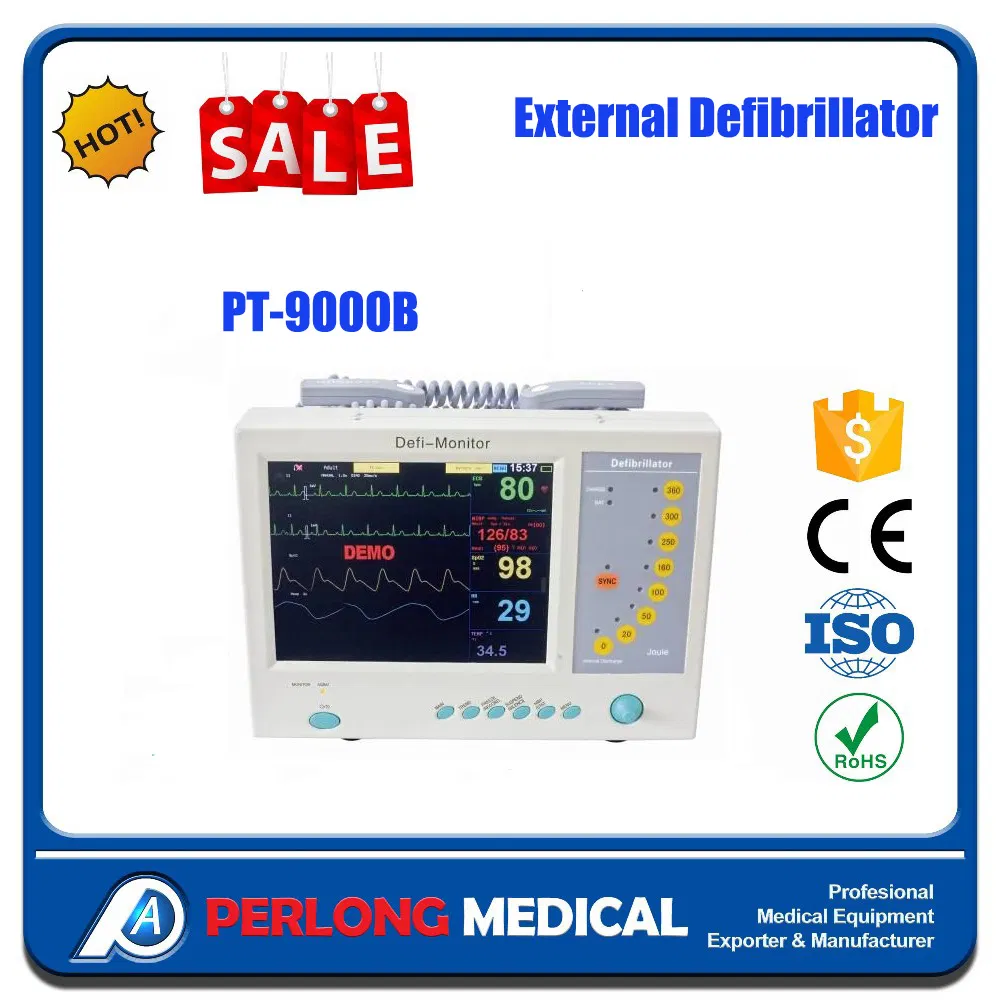

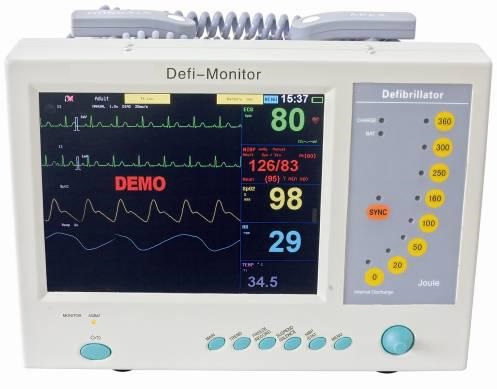

First-Aid Equipment 10.4 Inch PT-9000b External Defibrillator
PT-9000B External Defibrillator Specifications ModelPT-9000BDisplay10.4 Inch TFT displayDefibrillator ModeDefibrillator Mode: Manual, Synchronous, AsynchronousSine WaveMonophasic waveform technologyEnergy Selection0, 20, 50, 100, 160, 250, 300, 360J (nominal at 50 resistance) Charge TimeLess than 10......
Send Inquiry
Product Description
Specifications
| Model | PT-9000B |
| Display | 10.4 Inch TFT display |
| Defibrillator Mode | Defibrillator Mode: Manual, Synchronous, Asynchronous |
| Sine Wave | Monophasic waveform technology |
| Energy Selection | 0, 20, 50, 100, 160, 250, 300, 360J (nominal at 50 resistance) |
| Charge Time | Less than 10s at 360J |
| Paddle Options | Standard Adult/Pediatric Paddles: reusable external adult paddles (pediatric paddles integrated) |
| Respiration | Measurement Method: Thoracic impedance |
| Power Supply | AC and built-in rechargeable battery |
Feature
ECG
ECG Lead Inputs: I, II, III, aVR, aVL, aVF, V1~V6
S-T Segment Analysis: -2.0-2.0mv
Electrical Protection: able to withstand 4000V (AV)/50Hz voltage in isolation, protected from electrosurgical devices & defibrillation
ECG Lead/Cable: general lead/cable for adult, pediatric and neonatal patients
NIBP
Method: oscillometric (automated)
Operating Mode: manual/automatic
Measurement Range: adult 10~250mmHg, pediatric 10~250mmHg, neonatal 10~135mmHg
TEMP
Measurement Range: 20~45°C
Resolution: 0.1°C
SpO2
Display: SpO2 value, pulse histogram, waveform, pulse
Range: 0~99% for adult, pediatric and neonatal patients
Probe: standard adult finger clip,
Optional pediatric Y-type clip and neonatal wrap
Pulse
Pulse Range: 0~300bpm
Pulse Accuracy: ±2bpm
