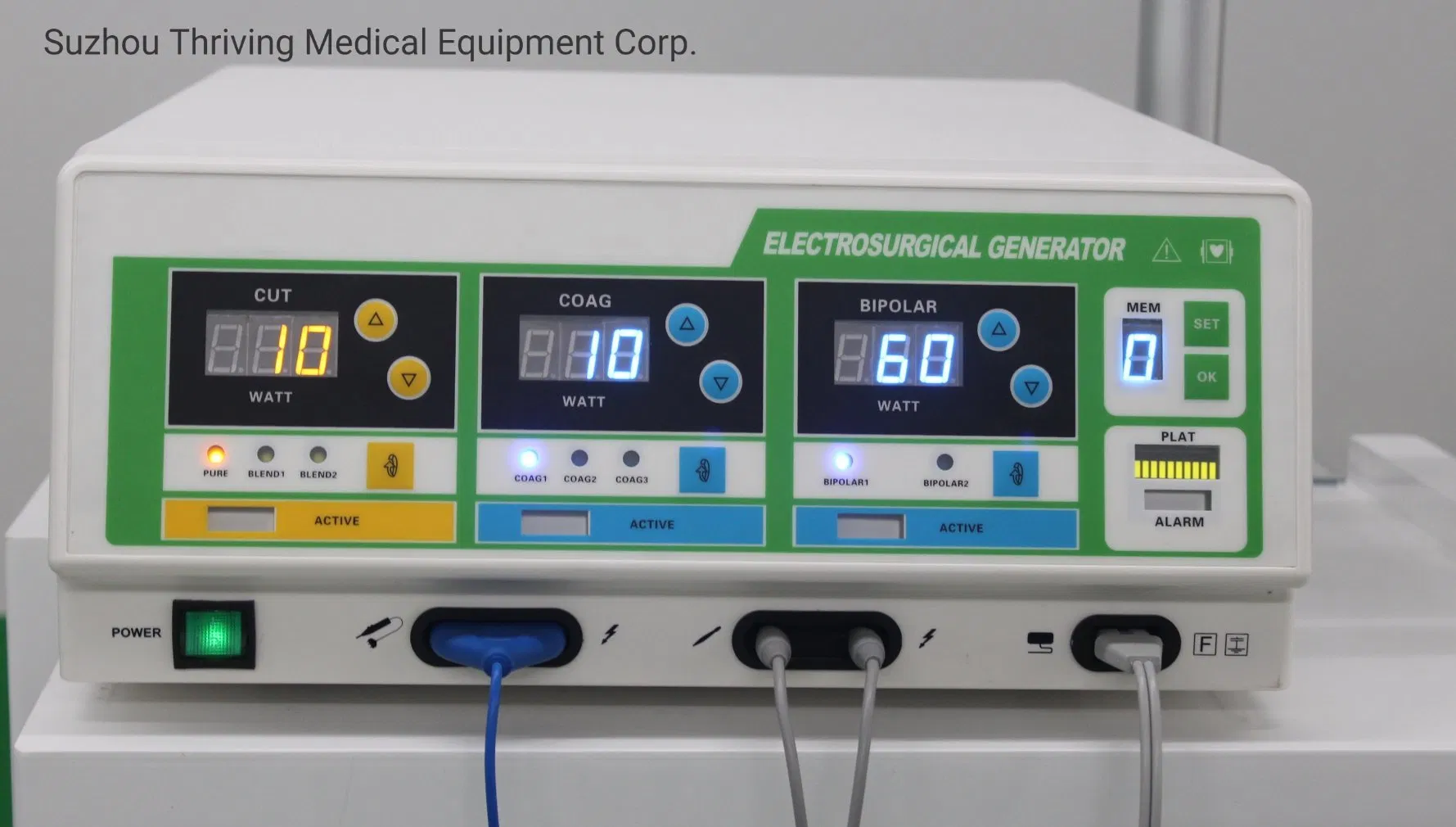

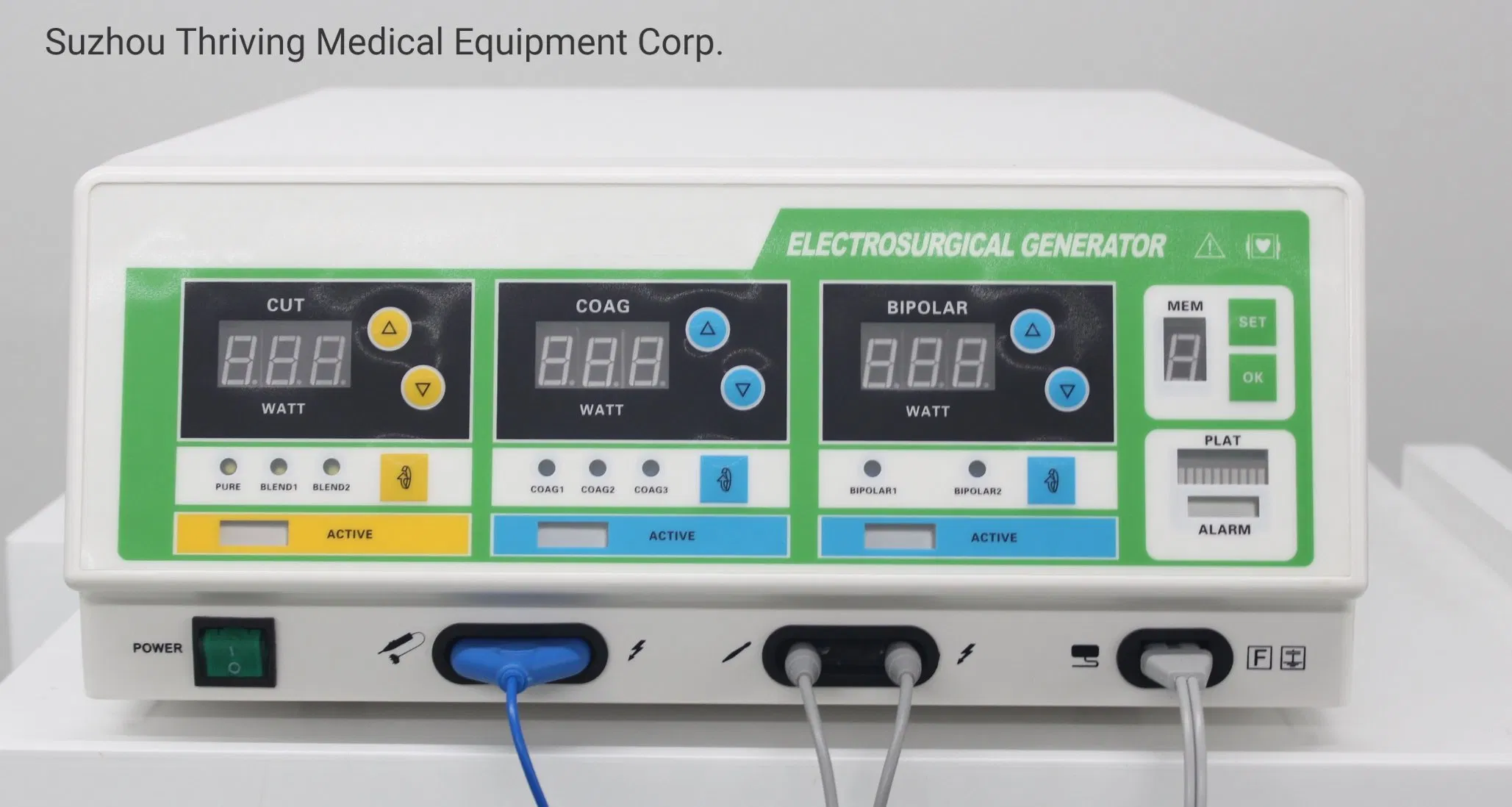

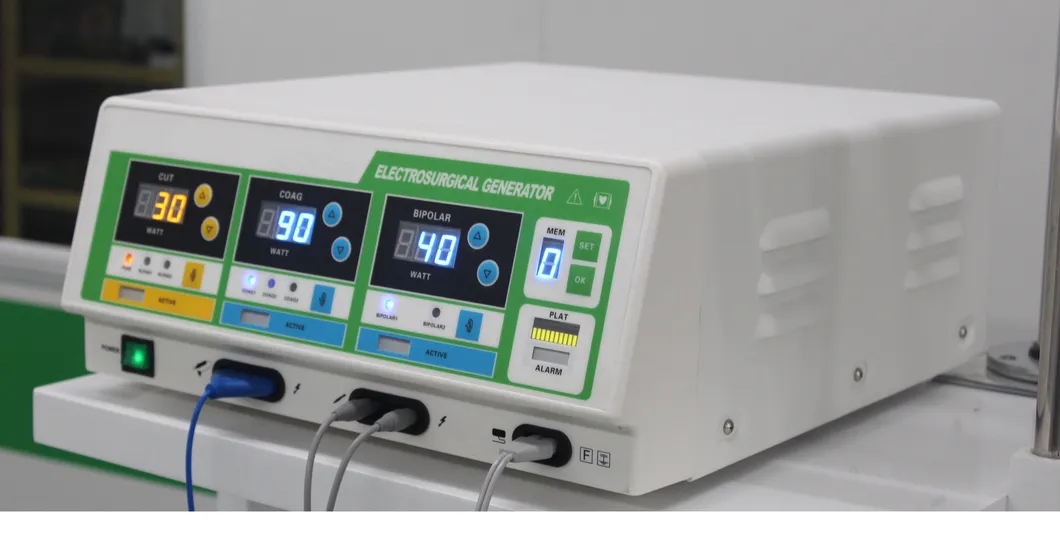

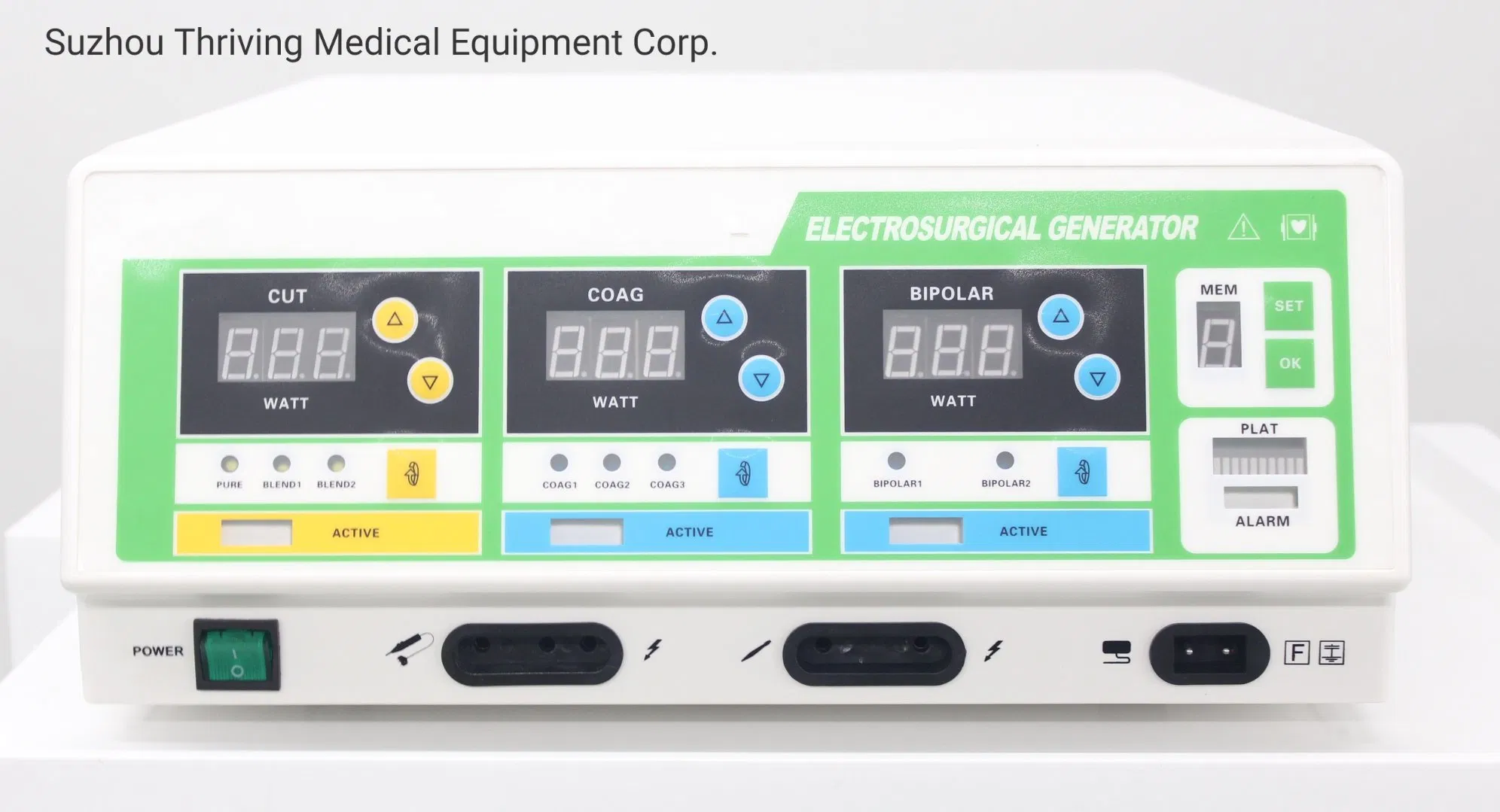

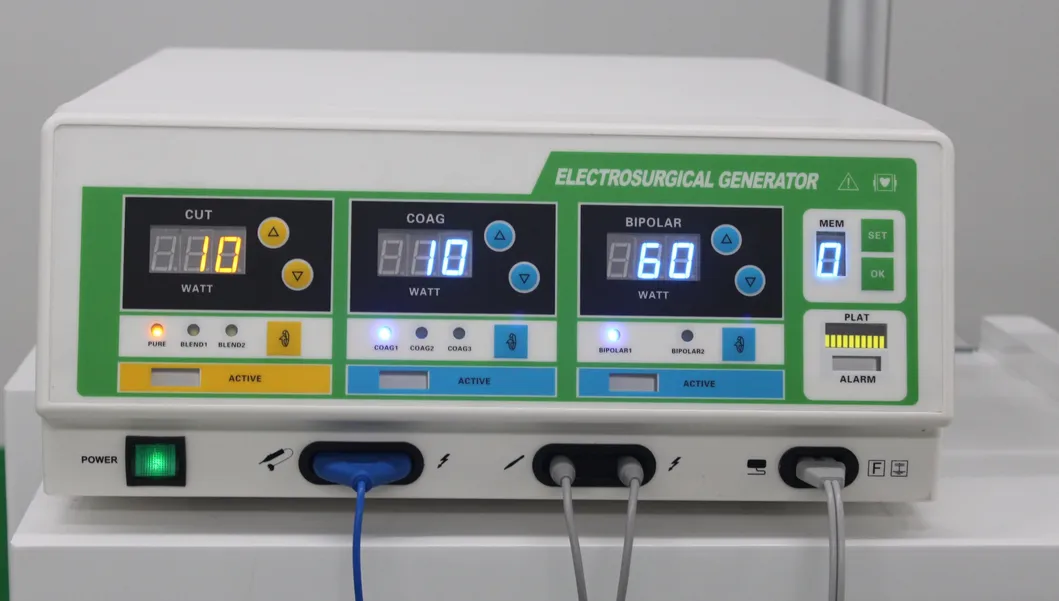

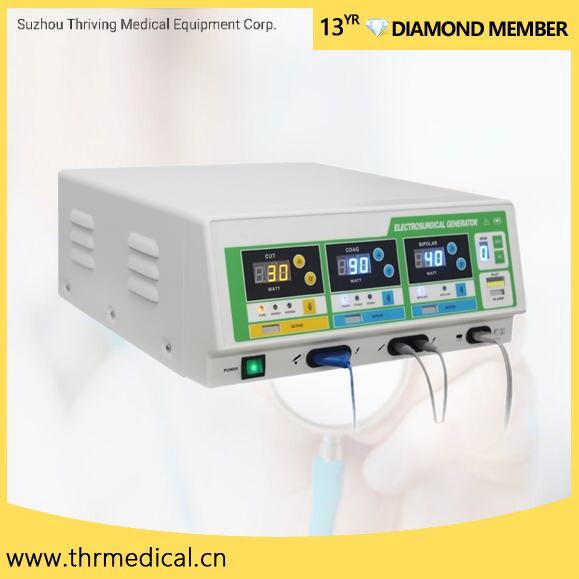

High Frequency Electrosurgical Generator Esu Unit (THR-HV350)

Pure Cut

(1W-350W,Load:500Ω)

Fine Cutting, fresh tissue surface and no cursting existed.

Blend Cut 1

(1W-200W,Load:500Ω)

With slight coagulation during cutting

Blend Cut 2

(1W-150W,Load:500Ω)

With strong coagulation in the process of cutting

Coagulation 1

(1W-120W,Load:500Ω)

spray coagulation,which is providing the efficient non-contact coagulation with the operation of the argon system.

Coagulation 2

(1W-150W,Load:500Ω)

Strong coagulation or spray coagualtion and the coagulation is comparatively much faster also the working area is much bigger.

Coagulation 3

(1W-120W,Load:500Ω)

Soft coagulation or pinpoint coagulation, comparatively they have more effect on the solidated layer of the tissure,

and the scope is smaller , it works with endoscopy

Bipolar Coagulation 1

(1W-150W,Load:100Ω)

Large vessel sealing, then the arteriovenous of 7mm or less can be safe closure,

the ESU generator feels the electrical impedance of the tissue from the forceps, the system will automatically stop the output and the sound alarm is activated when the tissue get coagulations reaching to the optimum standard.

Bipolar Coagulation 2

(1W-120W,Load:100Ω)

Without any delay at the instant of startup, and it's applicable to micro surgery.
