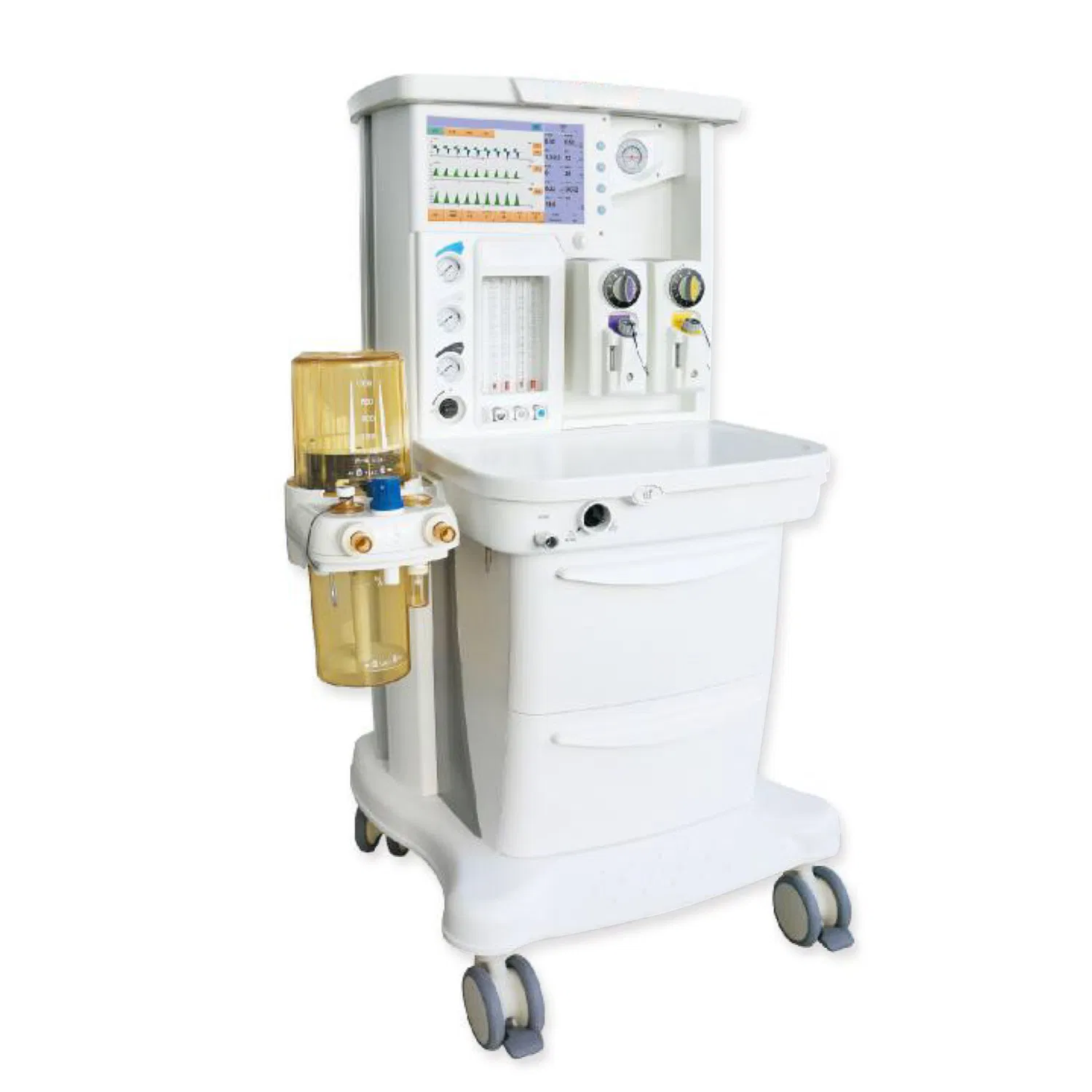

Hospital Operating Room Anesthesia Machine with Vaporizers
Hospital Operating Room Anesthesia Machine with Vaporizers Description:High-precision VaporizerNew vaporizer can be used for large flow anesthesia(15L/Min).Apply automatic compensation function for temperature, pressure and flow.Apply Interlock Selectatec.Pour type: Isoflurane, Enflurane, Halothan......
Send Inquiry
Product Description
Hospital Operating Room Anesthesia Machine with Vaporizers
Description:
High-precision Vaporizer
New vaporizer can be used for large flow anesthesia(15L/Min).
Apply automatic compensation function for temperature, pressure and flow.
Apply Interlock Selectatec.
Pour type: Isoflurane, Enflurane, Halothane, Sevoflurane.
Display
12.1 inch touch screen with no dead space.
NEW interface design with user friendly layout and colour assortment,
Day/Night display mode brings a better visual perception to users. Night mode suitable for dark environment.
To display a full range of ventilation modes including VCV, PCV, SIMV-V, SIMV-P, PSV. Also displays pressure, flow rate, volume and CO2 waveform in same interface.
Real-time detection for loops, airway pressure, flow rate, volume, compliance and airway resistance.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
Typical display for Zoom in/out, comparison, freeze.
Event logging function
ACGO
International standard design. (diameter: 22mm).
Convenient for patients' oxygen inhalation and postoperative recovery.
To connect with T circuit or bain circuit for open-operation.
Yoke system
Up to 3 back up cylinders with A-type 11L size.
AGSS(Optional)
Made by aluminum alloy. High strength, light weight. never rusts.
Enhance the safety of the environment in which members of staff in close proximity with waste anaesthetic gases and vapors (agents) work.
Specification:
Description:
High-precision Vaporizer
New vaporizer can be used for large flow anesthesia(15L/Min).
Apply automatic compensation function for temperature, pressure and flow.
Apply Interlock Selectatec.
Pour type: Isoflurane, Enflurane, Halothane, Sevoflurane.
Display
12.1 inch touch screen with no dead space.
NEW interface design with user friendly layout and colour assortment,
Day/Night display mode brings a better visual perception to users. Night mode suitable for dark environment.
To display a full range of ventilation modes including VCV, PCV, SIMV-V, SIMV-P, PSV. Also displays pressure, flow rate, volume and CO2 waveform in same interface.
Real-time detection for loops, airway pressure, flow rate, volume, compliance and airway resistance.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
Typical display for Zoom in/out, comparison, freeze.
Event logging function
ACGO
International standard design. (diameter: 22mm).
Convenient for patients' oxygen inhalation and postoperative recovery.
To connect with T circuit or bain circuit for open-operation.
Yoke system
Up to 3 back up cylinders with A-type 11L size.
AGSS(Optional)
Made by aluminum alloy. High strength, light weight. never rusts.
Enhance the safety of the environment in which members of staff in close proximity with waste anaesthetic gases and vapors (agents) work.
Specification:
| Technique Specifications | |
| Product name | Hospital Operating Room Anesthesia Machine with Vaporizers |
| Physical specifications | Dimensions: 70*85*140cm Weight: 65kg Casters: Front wheels with lock Screen: 12.1 inch LCD |
| Working Specification | Power: AC220V±10%, 50Hz±2% Pipeline Supply Gas configuration: O2, N2O, Air |
| Pipeline input range | Battery Power Run-time: ≥180mins |
| Pre-setting Functions | Language: English Calibration: Automatic |
| Applications | Patient range: Adult/ Pediatric |
| Ventilator Specification | |
| Modes of ventilation | VCV: Volume Controlled Ventilation SIMV: Synchronized Intermittent Mandatory Ventilation MANUAL: Manual A/C: Assist/control Ventilation PCV: Pressure Control ventilation PSV: Pressure Support Ventilation STAND-BY: STAND-BY |
| Ventilator parameter | Working type: Electronically controlled, pneumatic driven Tidal Volume range: 20-1500ml Pressure range: 5-60 cmH2O Respiration Rate Range: 1-100bpm (1-40bpm under SIMV) I:E Range: 4:1-1:8 Ptrigger Range: -20-20cmH2O(based on PEEP) Flow trigger: 0-15L Minute volume range: >18L/Min SIGH range: 0-5/100 |
| System Standard | Hypoxic guard system: N2O cut-off valve, O2 concentration >25% Safety valve: <12.5kPa Fresh gas compensation: 25-75L/min Volume of CO2 absorber: 2L Flowmeter: 5tubes, Cascade 0.1-15L/minO2 0.1-15L/min N2O, 0.1-15L/min air E-flowmeter(Optional) Vaporizer: 2 Selectetac maximum 2 mounts(Isoflurane/Enflurane/Sevoflurane/Halothane) |
| Monitoring | Display graphics: Waveforms of P-T, F-T, V-T, loops of P-V, V-F, F-P(Zoom in/out, comparison, freeze) Types: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2 |
| Alarm Limits | Audio/Visual: No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, Battery low |
| PEEP | Type: Integrated, Electronic control Range: OFF, 0-30cmH2O |
| Optional | 1.AGSS Anaesthetic Gas Scavenging Systems 2.Suction unit Suction unit |
