Home > Products > Surgical Equipment > Hospital Orthopedic Urology Radiolucent Surgical Electric Delivery Room Operating Tables
Hospital Orthopedic Urology Radiolucent Surgical Electric Delivery Room Operating Tables
Aot500 Hospital Orthopedic Urology Radiolucent Surgical Electric Delivery Room Operating Tables Features: AOT500 Electro-hydraulic Operating TableEngineered for increasingly complex surgical scenes, AOT500 comes with intelligent automatic control system satisfying various demands of general surgeri......
Send Inquiry
Product Description
Aot500 Hospital Orthopedic Urology Radiolucent Surgical Electric Delivery Room Operating Tables

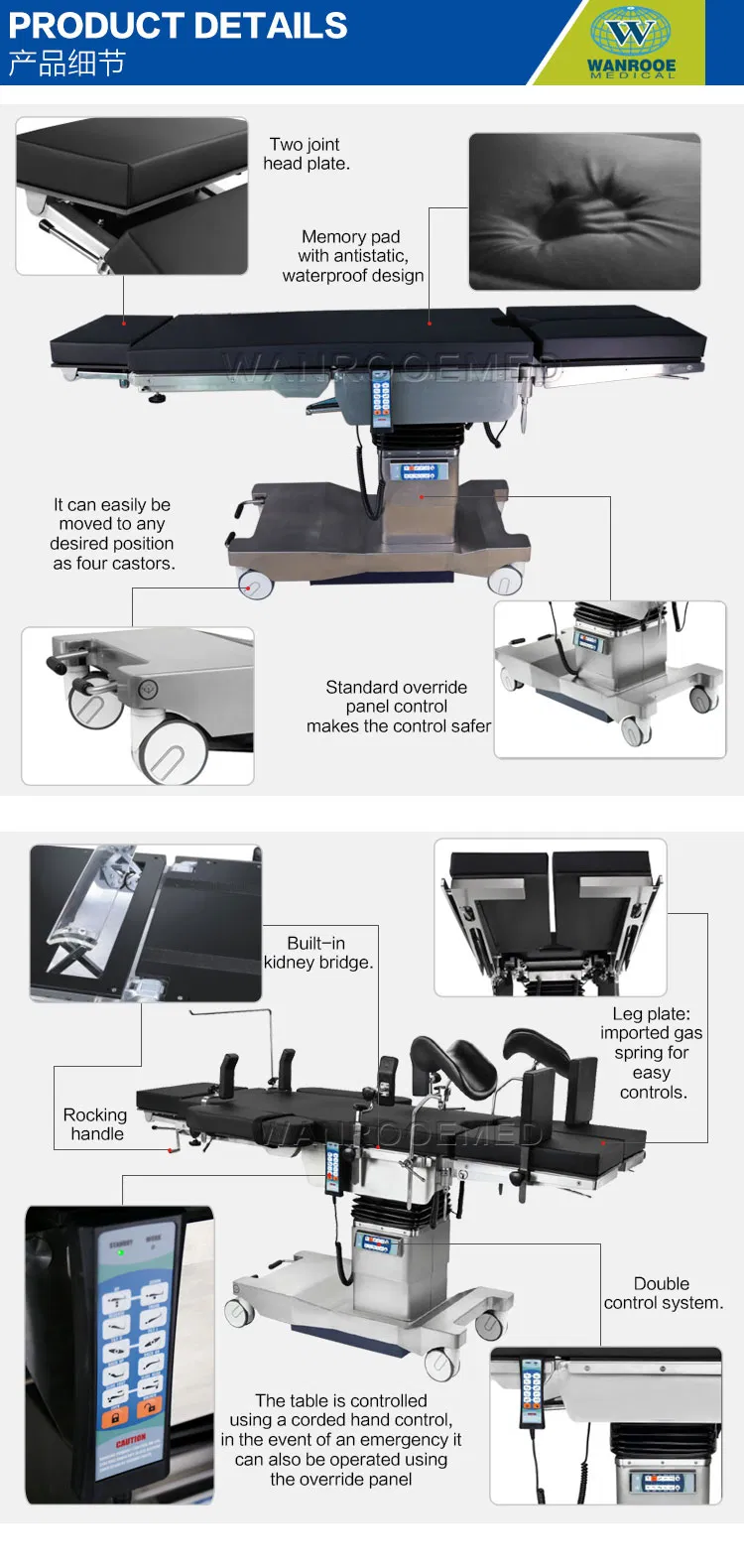

Features:

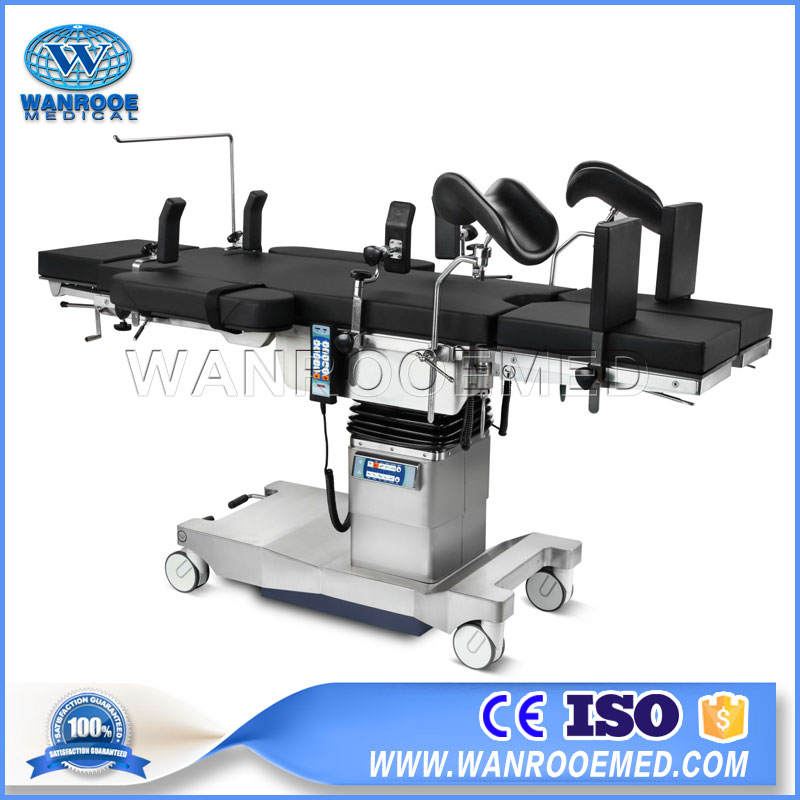

AOT500 Electro-hydraulic Operating Table
Engineered for increasingly complex surgical scenes, AOT500 comes with intelligent automatic control system satisfying various demands of general surgeries.
Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.AOT500 is an ideal electric operating table.
1.Memory pad with antistatic, waterproof design
2.Optional Battery power for 50-80 operations
3.Standard override panel control makes the control safer
4.Longitudinal slide up to 350mm for free access to C-arm
5.Extreme weight load capacity of 250kgs with highest safety and stability
6.It can easily be moved to any desired position as four castors
7.Leg plate:imported gas spring for easy controls
8.Two joint head plate
9.Built-in kidney bridge
10.Double control system
Main specification
Details:
Company information:
AOT500 Electro-hydraulic Operating Table
Engineered for increasingly complex surgical scenes, AOT500 comes with intelligent automatic control system satisfying various demands of general surgeries.
Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.AOT500 is an ideal electric operating table.
1.Memory pad with antistatic, waterproof design
2.Optional Battery power for 50-80 operations
3.Standard override panel control makes the control safer
4.Longitudinal slide up to 350mm for free access to C-arm
5.Extreme weight load capacity of 250kgs with highest safety and stability
6.It can easily be moved to any desired position as four castors
7.Leg plate:imported gas spring for easy controls
8.Two joint head plate
9.Built-in kidney bridge
10.Double control system

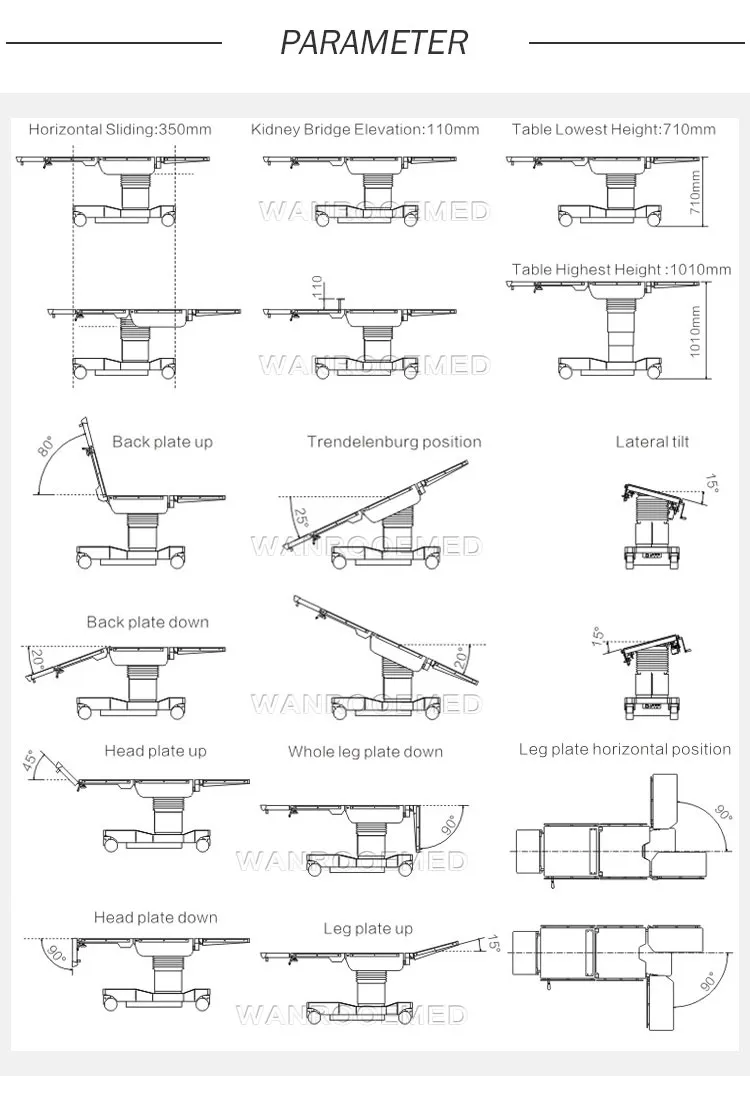

Main specification
| model site | Length | Width | Tabletop lowest height | Elevation range |
| AOT500 | >=2100mm | >=550mm | <=710mm | 300mm |
| Movements | Model:AOT500 | |
| Tabletop trendelenburg | Reverse trendelenburg | >=25˚ |
| Trendelenburg | >=25˚ | |
| Lateral tilt (left and right) | >=15˚ | |
| Head plate | Up | >=40˚ |
| down | >=90˚ | |
| flexible | >=40˚ | |
| Back plate | up | >=80˚ |
| down | >=20˚ | |
| Leg plate | up | >=15˚ |
| down | >=90˚ | |
| outward | >=90˚ | |
| Kidney bridge up | 111mm | |
| Horizontal sliding | >=350mm | |
