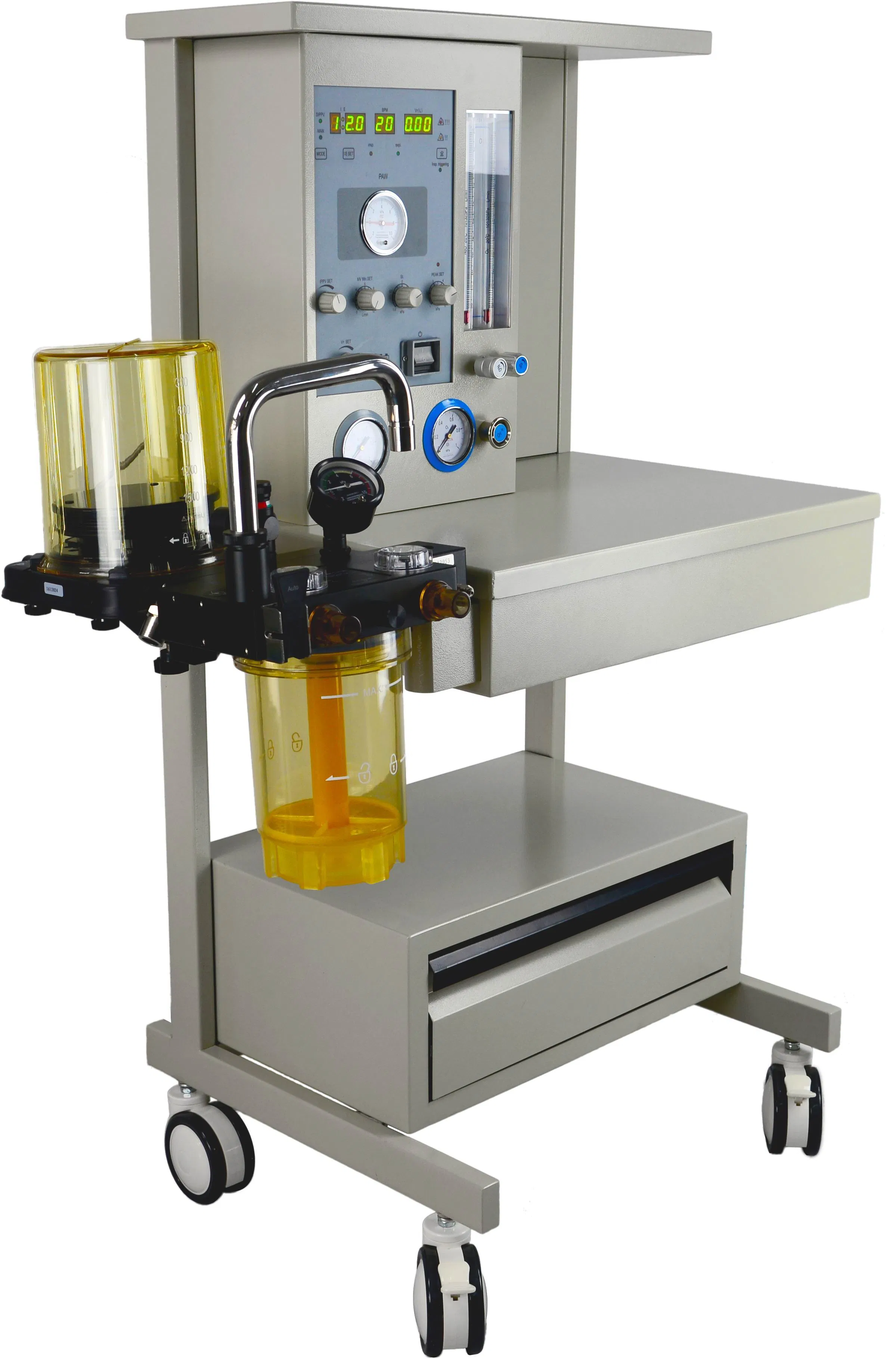

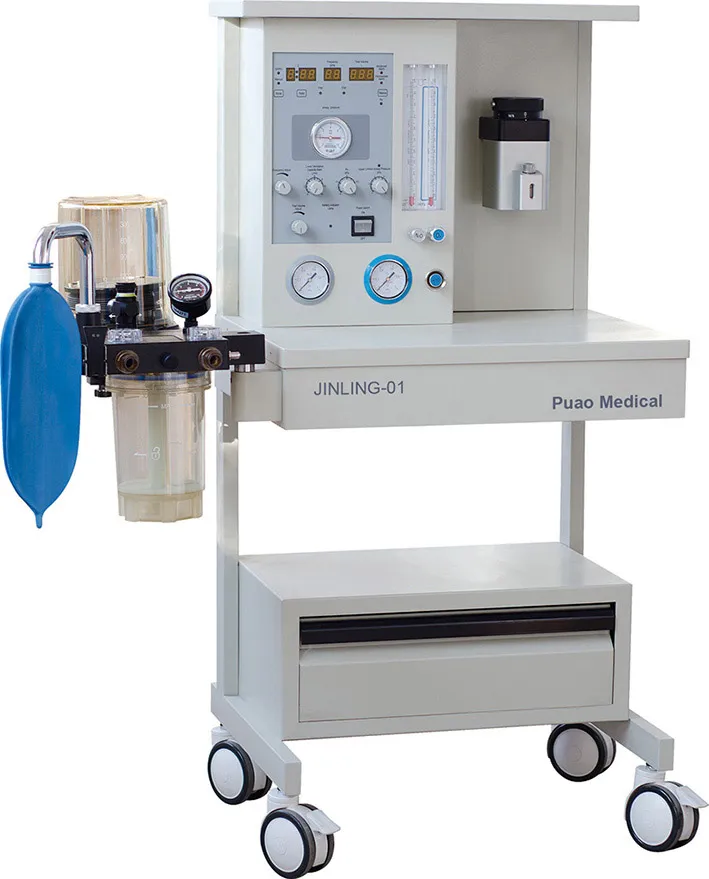

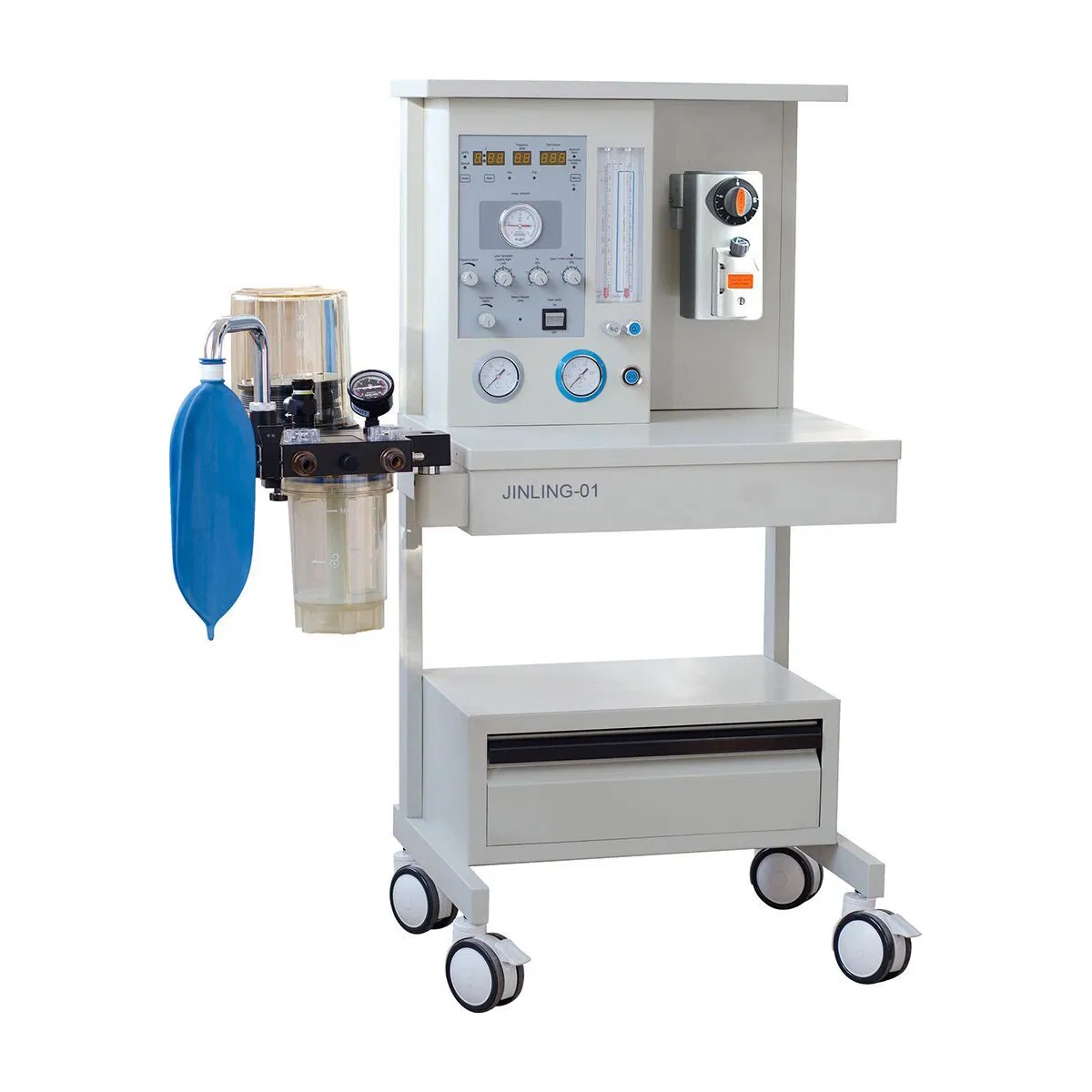

Hospital Used ICU Medical Equipment Anesthesia Machine for Surgical Operation
Hospital Used ICU Medical Equipment Anesthesia Machine For Surgical OperationCommon FeaturesOperating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-openAnesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data displayStandard integr......
Send Inquiry
Product Description
Hospital Used ICU Medical Equipment Anesthesia Machine For Surgical Operation
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Model: Optional
Specifications
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Model: Optional
Specifications
| Model | JINLING-01 (Standard Model) | JINLING-01 (Advanced Model) |
| Display | LED | |
| Flowmeter Range | O2: 0.1-10L/min | |
| N2O: 0.1-10L/min | ||
| Ventilation Mode | IPPV, SIPPV, MANUAL | |
| Back-up Power Supply | At least 4 hours | |
| Tidal Volume | Adjustable range: 50-1500ml | |
| Display range: 0-2000ml | ||
| Respiratory Rate | 4-40bpm | |
| Inspiratory/Expiratory (I:E) Ratio | 1:1.5-1:3.0 | |
| Inspiratory Pressure Trigger | .-10-10cmH2O | |
| Vaporizer Concentration Ranges | 0-5% | |
| Vaporizer Slots | Single PA-80 type slot | Double PA-80 type slots |
