Hot Selling Hospital Medical High Frequency Bipolar Electrosurgery Unit
lcd medical electrosurgical generatorYSESU-2000AI(LCD)Main Features Max 400W Electrosurgical Generator, with mono-polar and bipolar function. Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut. Wide clinical applications, such as the......
Send Inquiry
Product Description

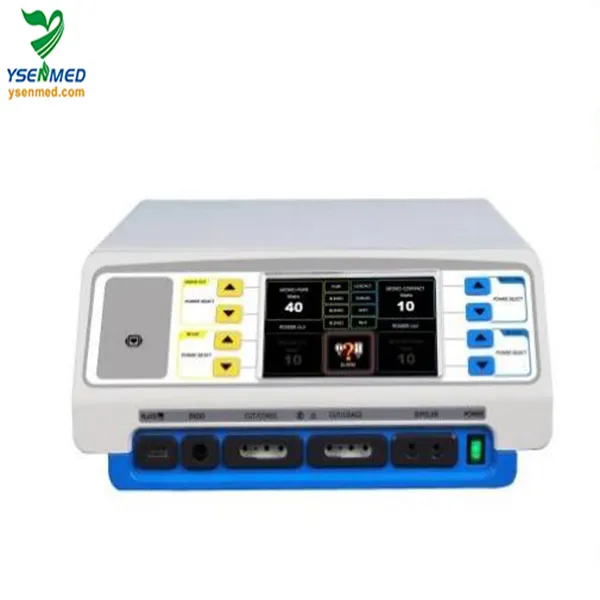

lcd medical electrosurgical generator
YSESU-2000AI(LCD)
Main Features
Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.
Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
The unit always remember the last setting when it turned off.
Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
The ESU unit can be connected with laparoscope and endoscope, etc.
Protection against over-voltage and over-current.
Defibrillation protected.
Convection refrigeration without ventilator.
Mounted on a 4 wheels cart(optional).
Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:512KHz b) Bipolar:1024KHz
Power rating: 1100VA±10%
Nine working modes:
Mono-polar Cut
a) Pure cut:1W~400W( Load 800Ω)
b) Blend1:1W~300W(Load 800Ω)
c) Blend2:1W~200W(Load 800Ω)
d) Blend3:1W~150W(Load 800Ω)
Mono-polar Coag
e) Spray Coag:1W~80W( Load 800Ω)
f) Forced Coag:1W~120W( Load 800Ω)
g) Soft Coag:1W~120W( Load 800Ω)
Bipolar
h) Bipolar Coagulation: 1W~70W( Load 200Ω)
i) Bipolar Cut: 1W~120W( Load 200Ω)
Power Consumption: ≤1100VA
Configuration Sheet
Electrosurgical Pencil 5pcs
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs
Yuesenmed provides various equipment for operatiom room. We guarantee high quality, reasonable prices and fast delivery.
We are a company aiming to make one stop shopping for our customers. We equiped medical operatiom room with many kind of items like anesthesia machines, ventilator, operation tables, lamps, pendant and so on.
We listed some medical operation room basic items for your reference as below:
For more medical operation room equipment, please go to our homepage and search by catagories. Thanks for your interest!
YSESU-2000AI(LCD)
Main Features
Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.
Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
The unit always remember the last setting when it turned off.
Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
The ESU unit can be connected with laparoscope and endoscope, etc.
Protection against over-voltage and over-current.
Defibrillation protected.
Convection refrigeration without ventilator.
Mounted on a 4 wheels cart(optional).
Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:512KHz b) Bipolar:1024KHz
Power rating: 1100VA±10%
Nine working modes:
Mono-polar Cut
a) Pure cut:1W~400W( Load 800Ω)
b) Blend1:1W~300W(Load 800Ω)
c) Blend2:1W~200W(Load 800Ω)
d) Blend3:1W~150W(Load 800Ω)
Mono-polar Coag
e) Spray Coag:1W~80W( Load 800Ω)
f) Forced Coag:1W~120W( Load 800Ω)
g) Soft Coag:1W~120W( Load 800Ω)
Bipolar
h) Bipolar Coagulation: 1W~70W( Load 200Ω)
i) Bipolar Cut: 1W~120W( Load 200Ω)
Power Consumption: ≤1100VA
Configuration Sheet
Electrosurgical Pencil 5pcs
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs
Yuesenmed provides various equipment for operatiom room. We guarantee high quality, reasonable prices and fast delivery.
We are a company aiming to make one stop shopping for our customers. We equiped medical operatiom room with many kind of items like anesthesia machines, ventilator, operation tables, lamps, pendant and so on.
We listed some medical operation room basic items for your reference as below:
| one-stop shopping for operation room | anesthesia machine |
| ventilator | |
| operating lamp | |
| operation table | |
| Pendant | |
| medical drill and saw | |
| ECG | |
| patient monitor | |
| Defibrillator | |
| infusion pump | |
| Electrocoagulation | |
| oxygen generator | |
| electric suction device | |
| autoclave sterilizer |
For more medical operation room equipment, please go to our homepage and search by catagories. Thanks for your interest!
