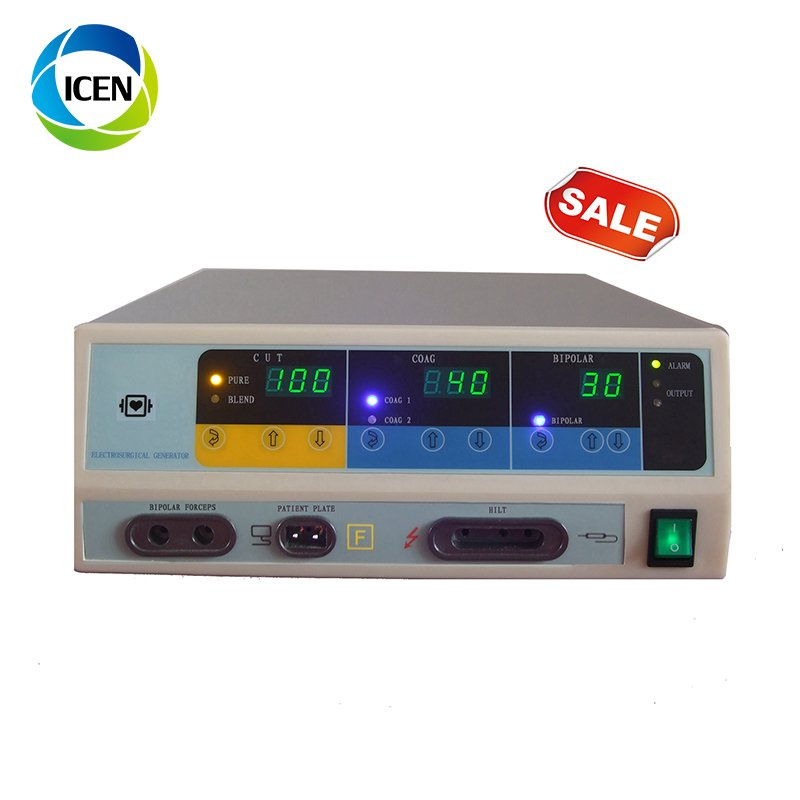

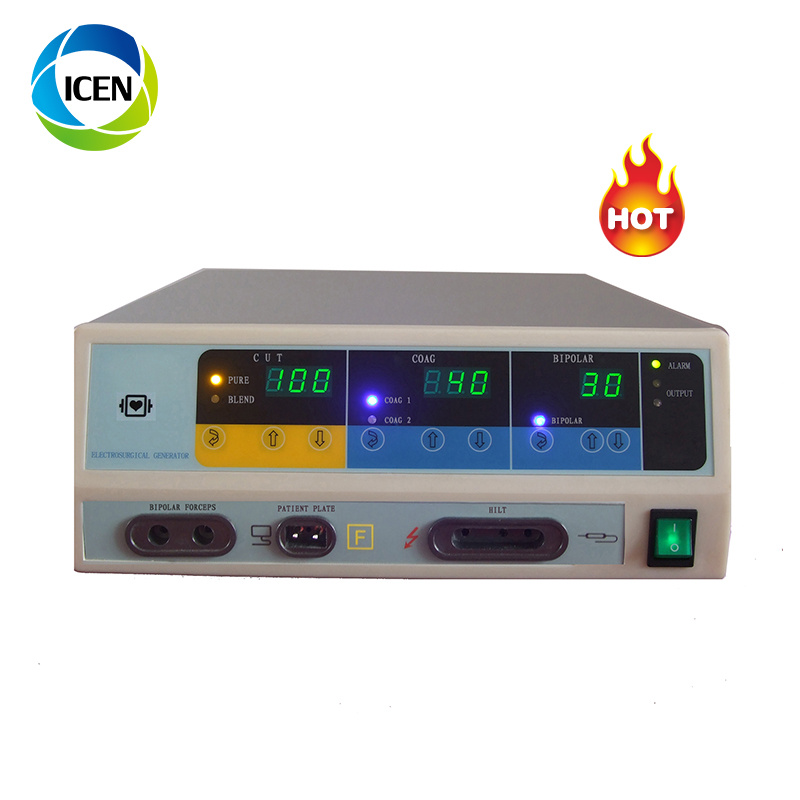

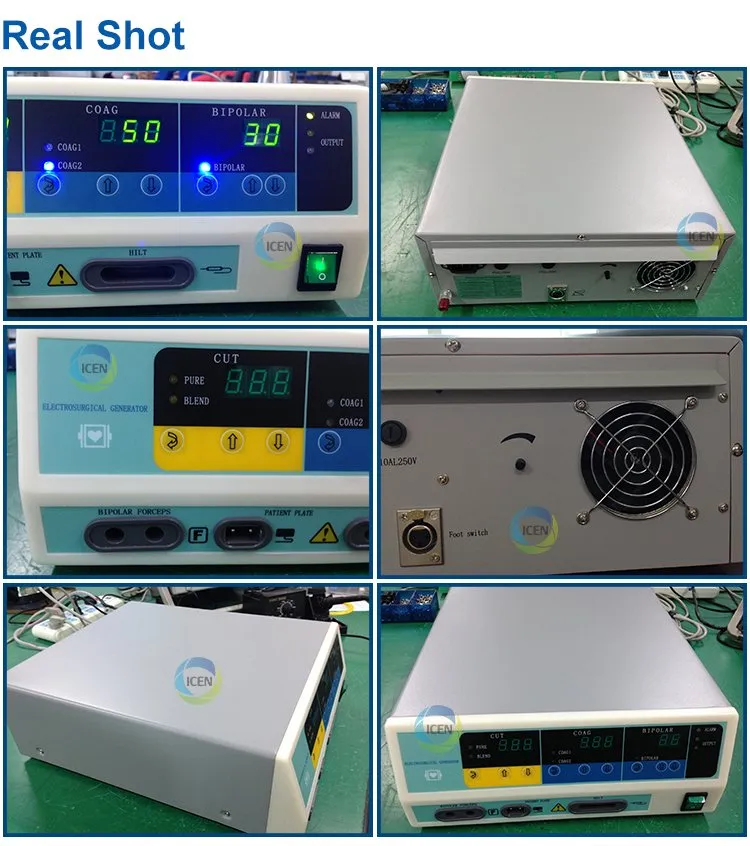

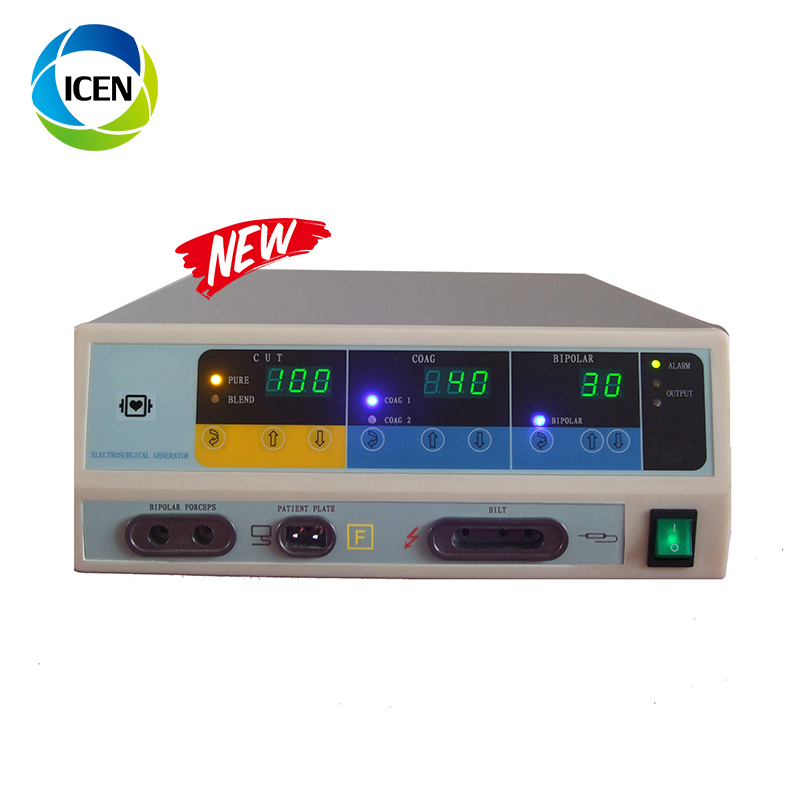

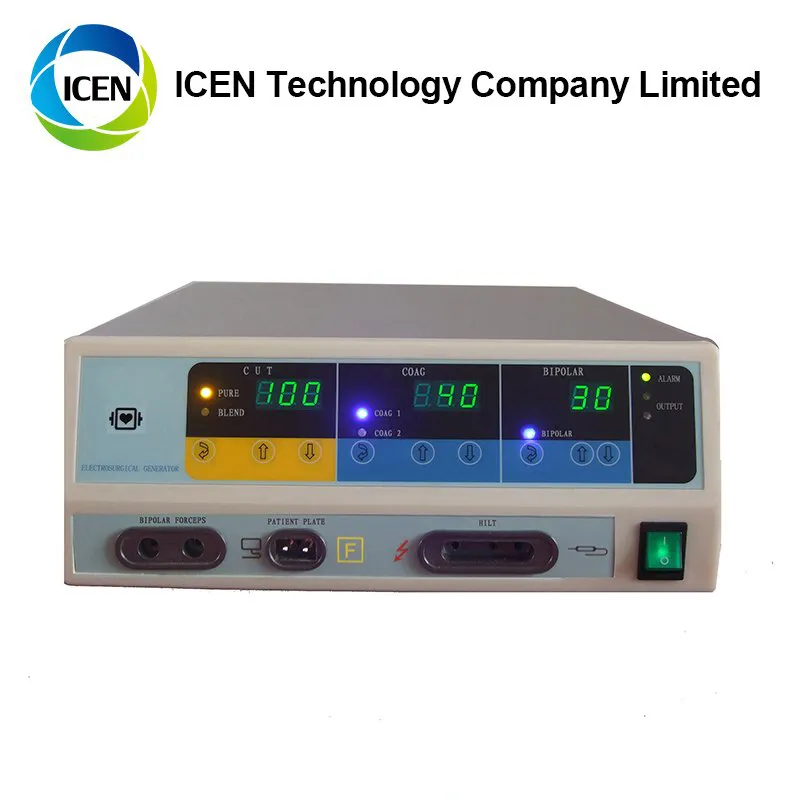

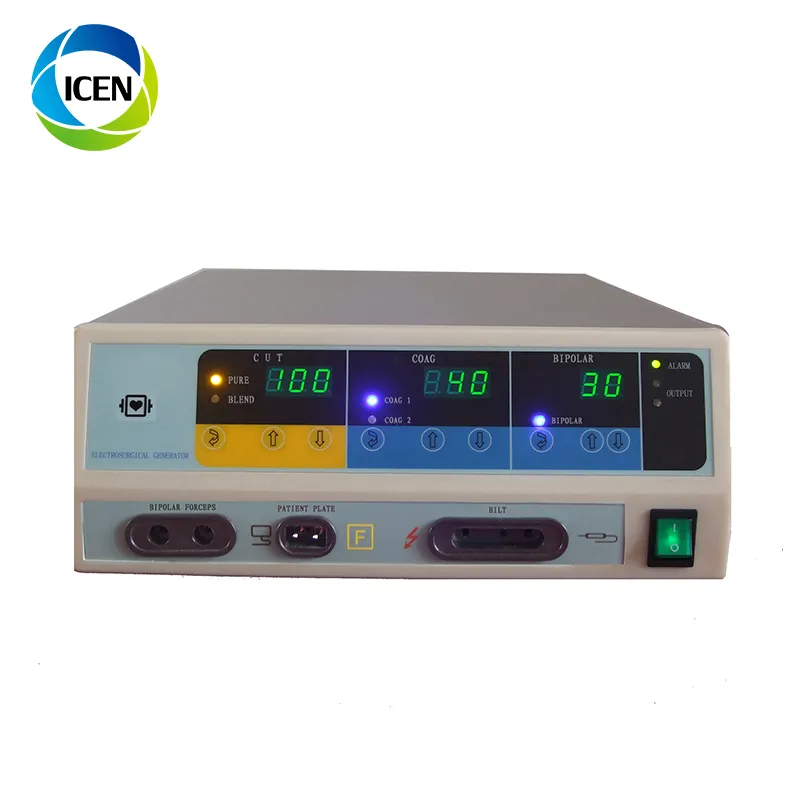

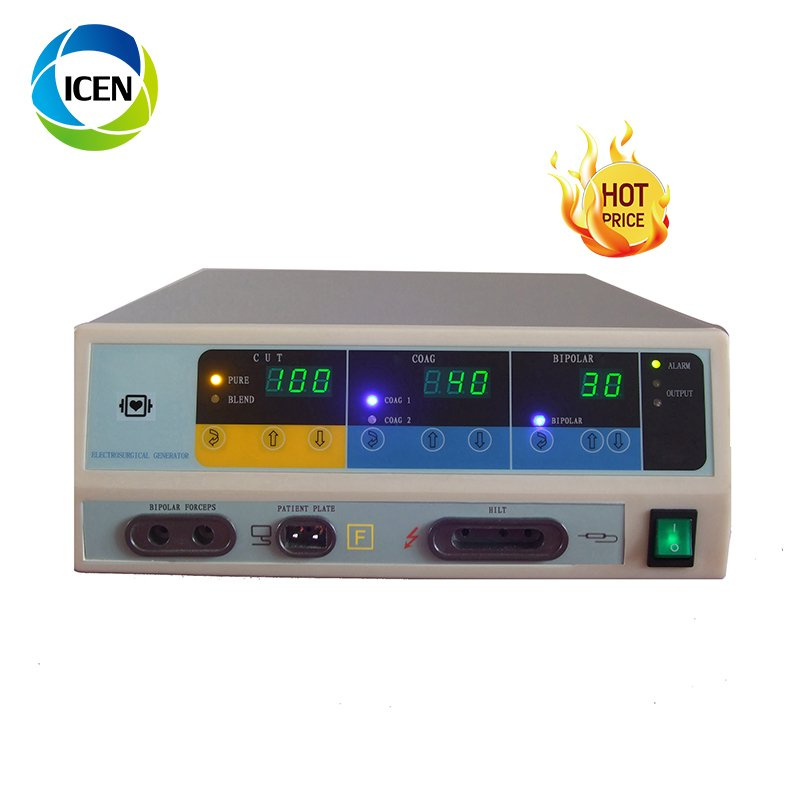

IN-I2000 High Frequency 5 Model Diathermy Electrosurgical Unit with mono-polar and bipolar function.
IN-I2000 High Frequency 5 Model Diathermy Electrosurgical Unit with mono-polar and bipolar functionMain Features1 Max 350W Electrosurgical Generator, with mono-polar and bipolar function.2 Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.3 Wide clinical applications,......
Send Inquiry
Product Description
Main Features
1 Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
2 Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.
3 Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
4 Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
5 Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
6 Both hand and foot controlled.
7 Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
8 The unit always remember the last setting when it turned off.
9 Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
10 The ESU unit can be connected with laparoscope and endoscope, etc.
11 Protection against over-voltage and over-current.
12 Defibrillation protected.
13 Mounted on a 4 wheels cart(optional).
14 Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Power rating: 1100VA±10%
Ralated Power output:
Function | Working modes | Power output (Max) | load | Frequency | V-PP | Crest Factor |
Monopolar Cut | Pure cut | 350W | 800Ω |
416KHz | 1.4kV | 1.4 |
Blend1 | 200W | 800Ω | 1.72KV | 1.7 | ||
Blend2 | 100W | 800Ω | 2.1KV | 2.5 | ||
Monopolar Coagulation | Spray | 80W | 800Ω | 2.8KV | 5.8 | |
Forced | 120W | 800Ω | 640KV | 2.1 | ||
Bipolar | Standard coag | 70W | 200Ω | 480V | 1.8 |
