Jinling-840 Surcial ICU Anestesia Machine Anesthesia Workstation

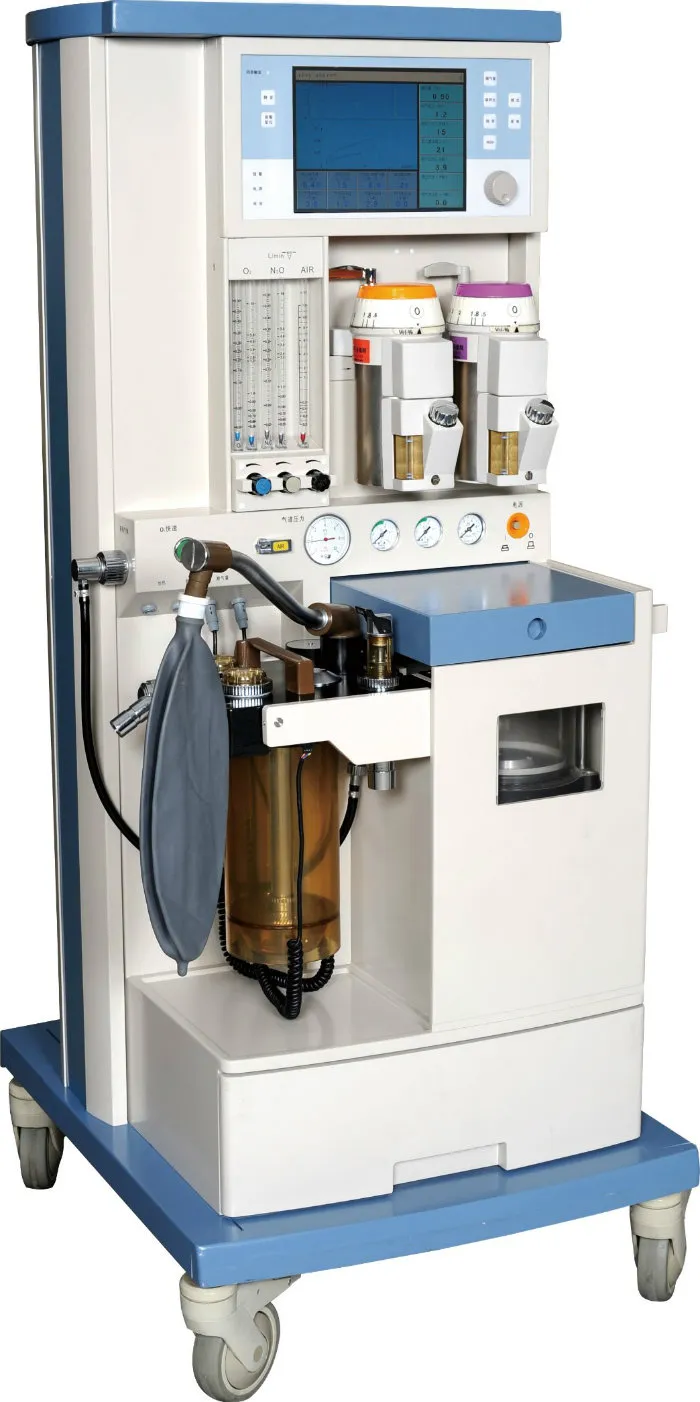

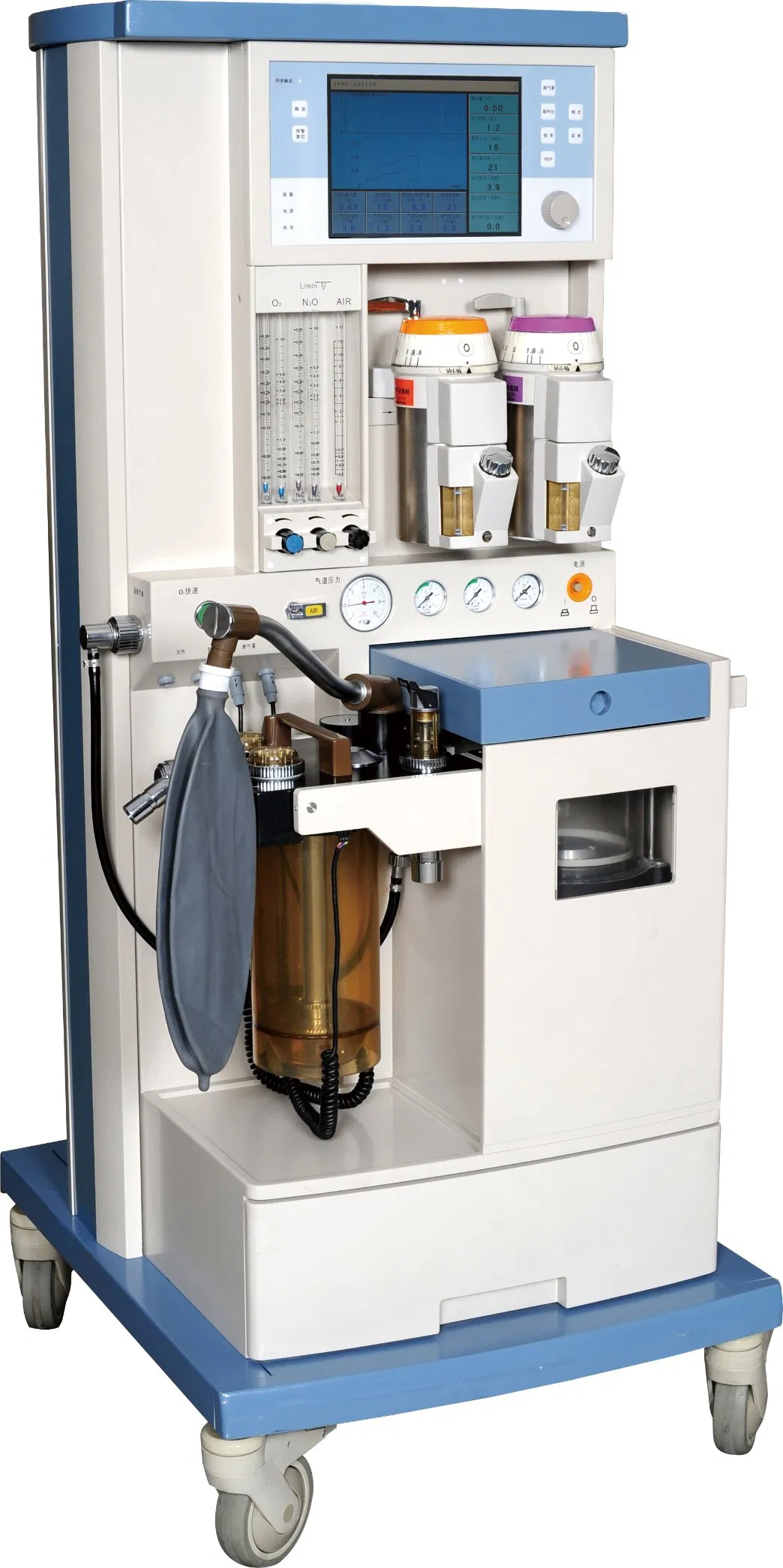

JINLING-840 Anesthesia Machine

Specifications

1. Flow Rate:

       O2 0.05~1L/min; 1~10L/min

       N2O 0.05~1L/min; 1~10L/min

       Air 0.2~1L/min; 1~12L/min (ORC O2≥25%)

2.  O2 flush: 35~75L/min

3.  Insufficient Oxygen Alarm & Automatic N2O Calibration Function:

       When O2 level is ≤0.2 MPa, audible alarm

       When O2 level is ≤0.14 MPa, N2O flow decreases correspondingly

       When O2 level is ≤0.04 MPa, N2O flow is cut off completely

4.  Integrated breathing circuit system, APL adjustment range: 0.5~7kPa

5.  CO2 Absorber Capacity: 1.6L

6.  Vaporizer Air Temperature: 15~35°C

7.  Input Flow: 0.25~15L/min

8.  Output Back Pressure: -10kPa~20kPa

9.  Output Concentration: 0.2%~5% (±0.2%) (Vol%)

10.  Ventilation Frequency: 6~40bpm

11.  Tidal Volume: adult: 100~1100ml Infant: 30~150ml

12.  I:E: ratio 1:1~1:9.9 (adjustable)
