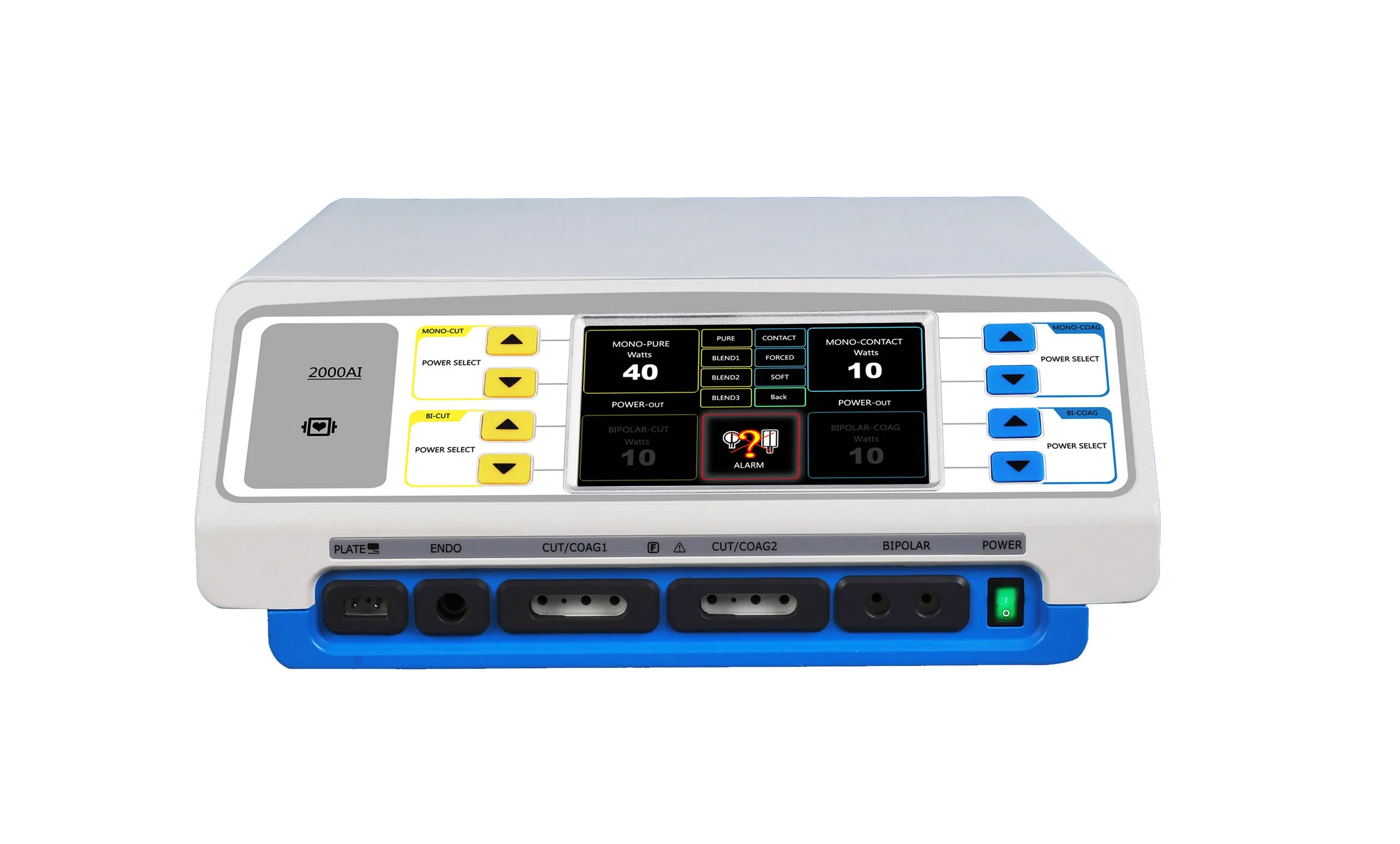

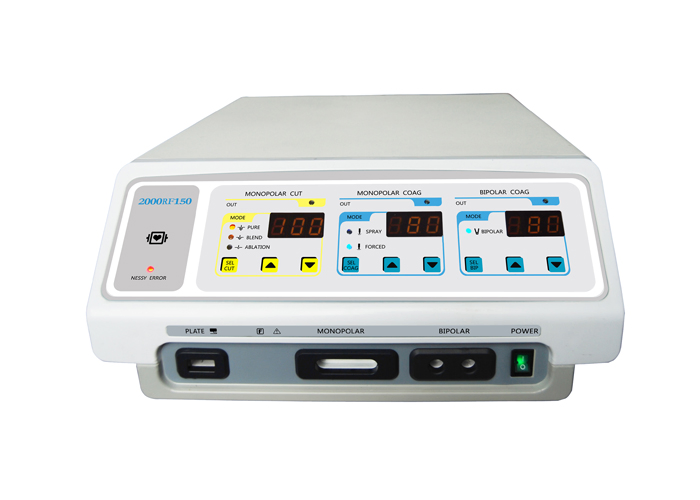

Mcs-2000RF Six Working Modes, Radiofrequency Surgical Unit

Main Features
Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.
Six working modes: pure cut, blend, ablation, spray coag, forced coag, bipolar coag.
Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT,  Stomatology, etc.
Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag,and bipolar coag, each output can be individually configured.
It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.
Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.
Protection against over-voltage and over-current.
Convection refrigeration without ventilator.
Mounted on a 4 wheels cart(optional).

Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:4MHz  b) Bipolar:1MHz
Power rating: 1100VA±10%
Six working modes:
Mono-polar Cut
a) Pure cut:1W~150W( Load 700Ω)
b) Blend:1W~100W(Load 700Ω)
c) ablation:1W~100W(Load700Ω)
Mono-polar Coag
d) Spray Coag:1W~80W( Load 700Ω)
e) Forced Coag:1W~100W( Load 700Ω)
Bipolar
f) Bipolar Coagulation: 1W~120W( Load 200Ω)
Power Consumption: ≤1100VA

 Medical Euiqpment

 and

 and

 and

 and









 and

Why Choose MeCan






Configuration Sheet
Electrosurgical Pencil      5pcs
Neutral Electrode         1pcs
Neutral Electrode cable    1pcs
Footswitch                1set
Bipolar Forceps           1pcs
Bipolar forceps cable       1pcs
Electrodes                10pcs
