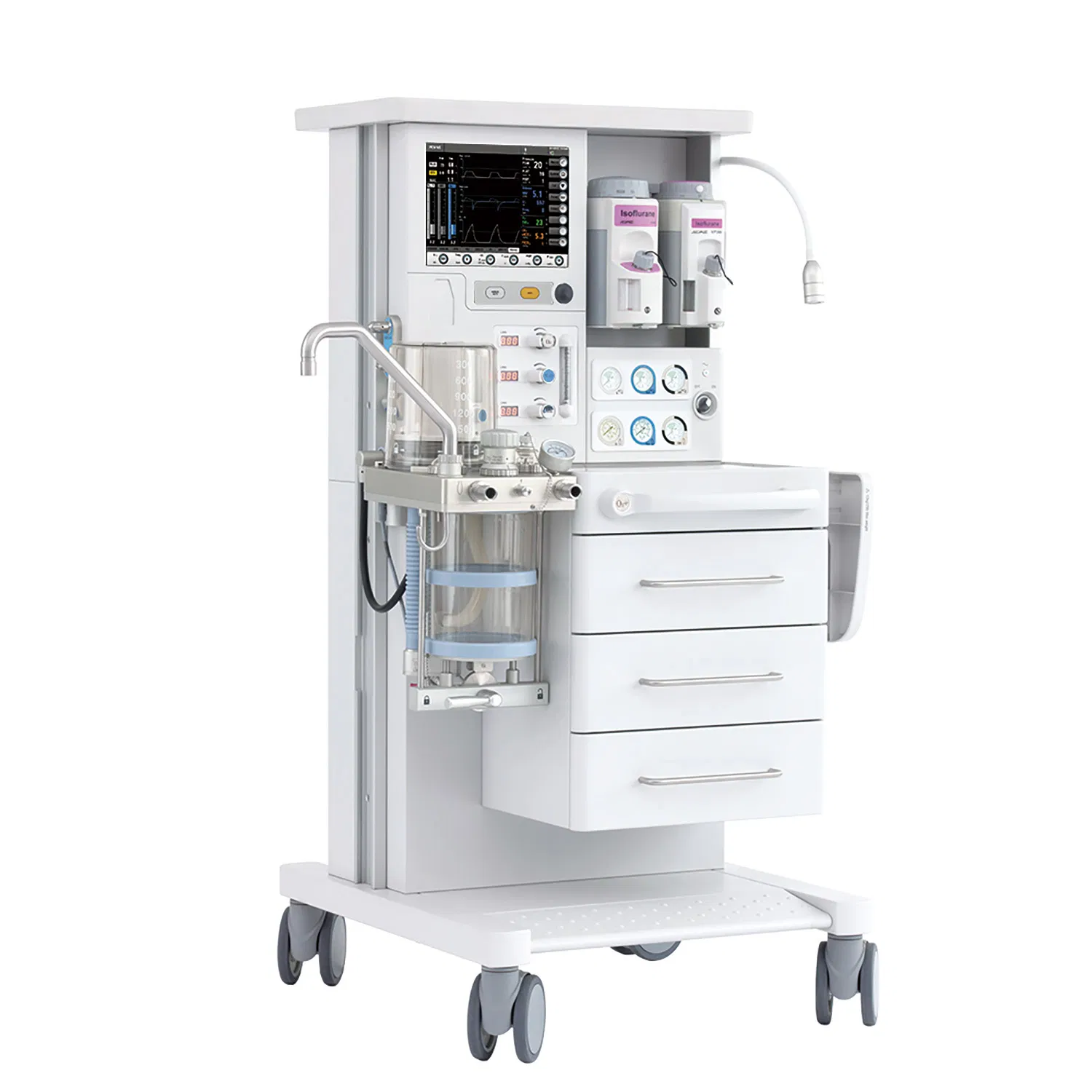

Medical Equipment Anesthesia Machine/Workstation with 12.1 Inch Touch Screen

Product Description

Medical Equipment Anesthesia Machine/Workstation with 12.1 Inch Touch Screen

Technical Specification:

BASE UNIT
Product name	Medical Equipment Anesthesia Machine/Workstation with 12.1 Inch Touch Screen
Dimensions (H x W x D)	Trolley version (with breathing circuit): 1403mm×704mm×750mm or 55.2in×27.7in×29.5in
Weight and load	Trolley (without vaporizer and backup cylinder): 100kg or 220.5 lb Top shelf load: 25kg or 55 lb
Power and battery backup	Power input: 100~240 VAC, 50/60 Hz Batteries and Operation time with fully charged: DC24V, 4.0AH, Min.120minutes
Environmental requirement	Operation temperature: 10~+40ºC or 50~104ºF Operation humidity : ≤80%(non-condensing) Storage temperature: -20~+60ºC or -4~131ºF Storage humidity: ≤95%(non-condensing)
ANESTHESIA GAS SUPPLY MODULE	Gas supply: O2, N2O, AIR; 280kPa - 600kPa Cylinder yokes: Optional: O2, N2O, AIR Fresh gas flow indicator: Electronically display and virtual fresh gas flow tubes Range of fresh gas flow indicators: O2, N2O (0.05~10.0 l/min), AIR (0.05~12.0 l/min) O2 flush: 25~75 l/min

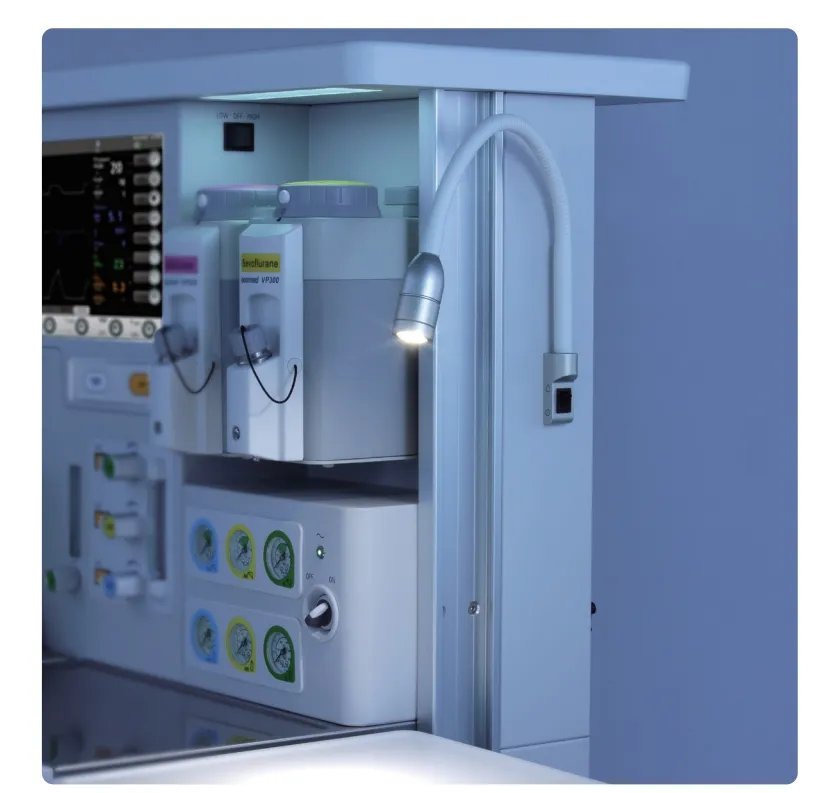

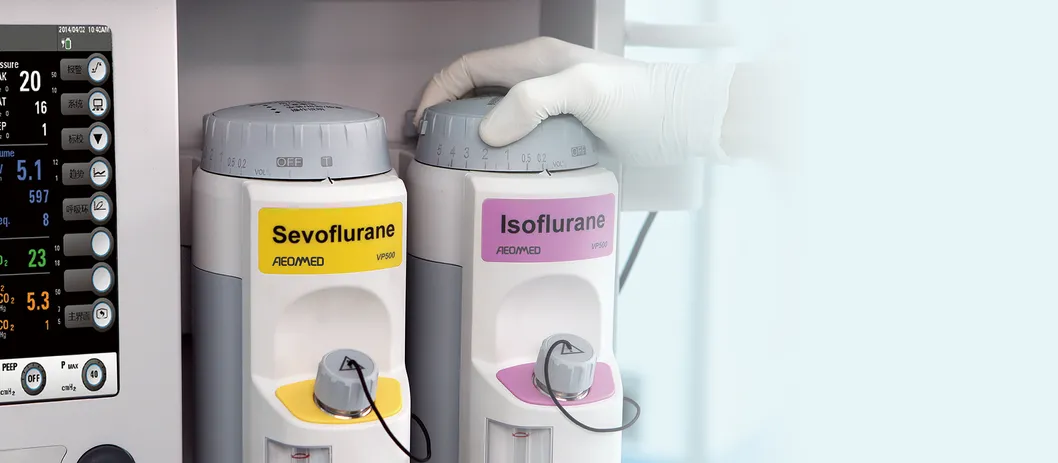

Vaporizer	Auxiliary common gas outlet (ACGO): Optional Anesthetic Gas Scavenging System (AGSS): Optional Agent: Halothane, Enflurane, Isoflurane, Sevoflurane Installation mode: Selectatec with interlock, optional standby vaporizer parking holder Filling type: Pour Fill, Key Fill, Quik-Fil
Breathing system	Volume of CO2 absorber : 3L for double-canister or 1.8L for optional single canister
VENTILATOR OPERATING SPECIFICATIONS	APL Range: Spontaneous breathing (SP) -70cm H2O Material: Autoclavable (except O2 cell and mechanical pressure gauge) Heating system: 32-40ºC CO2 bypass: Optional Ventilator : Electronically controlled, pneumatically driven Ventilation modes: Manual/spontaneous Volume control (IPPV) Pressure control (PCV) Pressure Controlled Ventilation Volume Guaranteed(PCV-VG) Synchronized Intermittent Mandatory Ventilation in volume(SIMV-VC) Synchronized Intermittent Mandatory Ventilation in pressure(SIMV-PC) Pressure support (PS) with Apnea backup
Control input ranges	Breathing frequency (rate): 2~100bpm Positive end expiratory pressure (PEEP): OFF, 3~30cm H2O Inspiration/expiration ratio (Ti:Te): 4:1~1:8 Tidal volume (Vt): 20~1,500ml in volume control Inspiration pause: OFF, 5%~60% Inspiratory time: 0.2~5.0 s Inspiratory pressure (PTARGET): 5~70cm H2O Pressure support level (P): 3~50cm H2O Pressure limit (Pmax): 10~70 cm H2O Trigger level: 1~15 l/min Inspiratory Slope Time (TSLOPE): 0~2s Compensation: Compliance and Leak compensation, fresh gas compensation, altitude compensation
Ventilator monitoring & alarm	Monitoring: Continuous monitoring of inspiratory O2 concentration, breathing frequency, tidal volume, minute volume, peak airway pressure, PEEP, mean or plateau pressure, CO2 concentration (optional), anesthetic gas concentration (optional) paramagnetic oxygen sensors (optional) Compliance: 0~100 mL/cm H2O Control screen: 12.1 in; TFT color touch screen Graph Display: Waveform of P-t, F-t, V-t, CO2-t (option), Paw-V Loop, V-Flow Loop Alarm: MV high/low limit, FiO2 high/low limit, Paw high/low limit, Power failure Breath Rate high limit Subatmospheric pressure Sustained airway pressure Apnea alarm, Alarm Silence(120s)

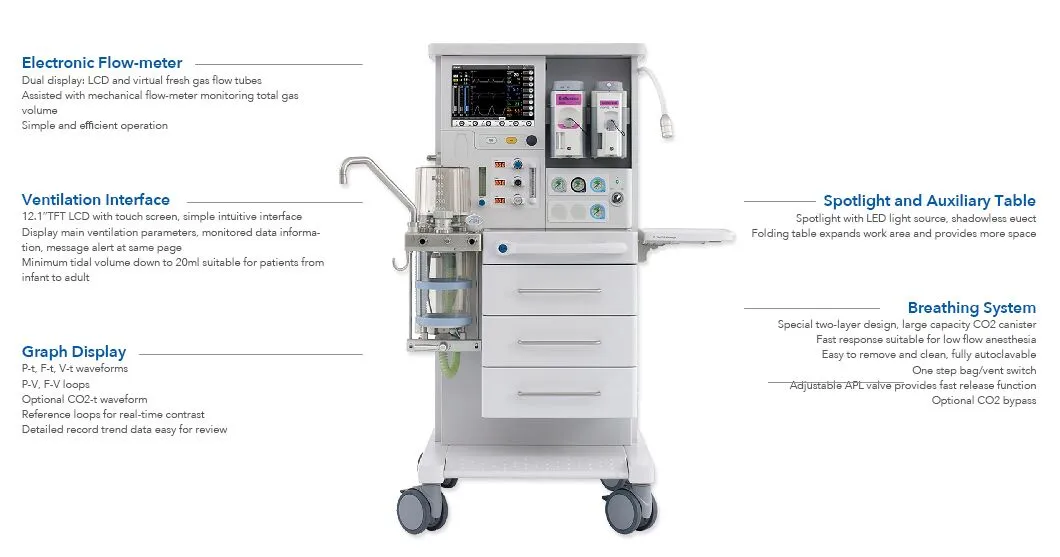

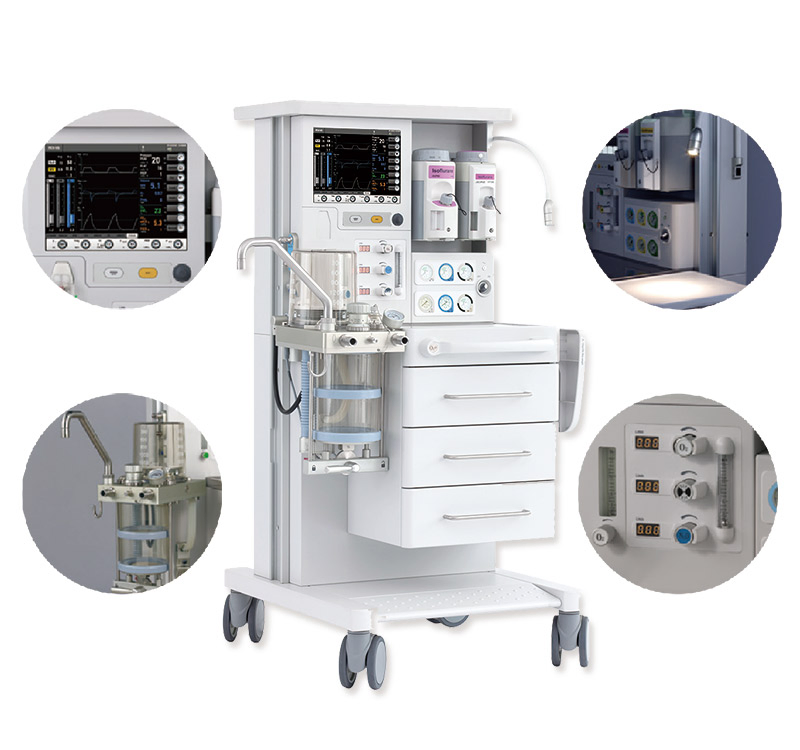

Medical Equipment Anesthesia Machine/Workstation for Infant and Adult Description:
The comprehensive ventilation modes including PCV-VG, SIMV-PC provide more flexibility to ventilation strategy, suitable for various patients operation including pediatric and adult
Advanced ventilation management, provides a accurate and broad of settings enabling eﬀective care across a wide range of patient sizes and acuity types
Support both low-flow anesthesia and mini-flow anesthesia
Compact breathing system, easy to remove and clean, fully autoclavable, optional CO2 bypass
Electronic flow-meter, precise control and convenient operation

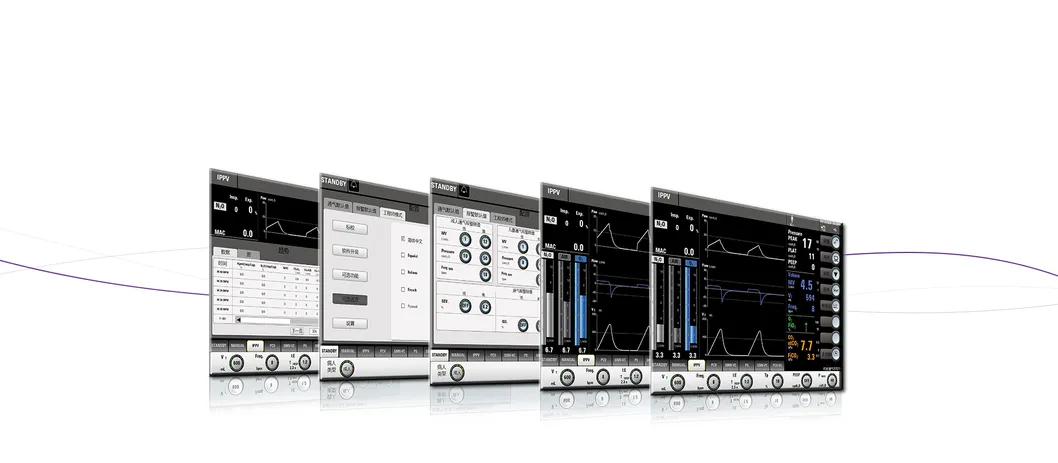

12.1'' TFT LCD with color touch screen, highlighted display
Optional comprehensive gas monitoring include: oxygen (paramagnetic), CO2, AG, etc.
CE marked, meets EU clinical requirement
