Medical Surgical Table Hospital Table Electric Hydraulic Operating Table Ecoh002-B
Medical Surgical Table Hospital Table Electric Hydraulic Operating Table ECOH002-BElectric Operating Table ECOH002-BElectric operating Table ECOH002-B (99B)is developed independently by our company with innovative and advanced technologies. The table is first-class comprehensive one with high-qualit......
Send Inquiry
Product Description
Medical Surgical Table Hospital Table Electric Hydraulic Operating Table ECOH002-B

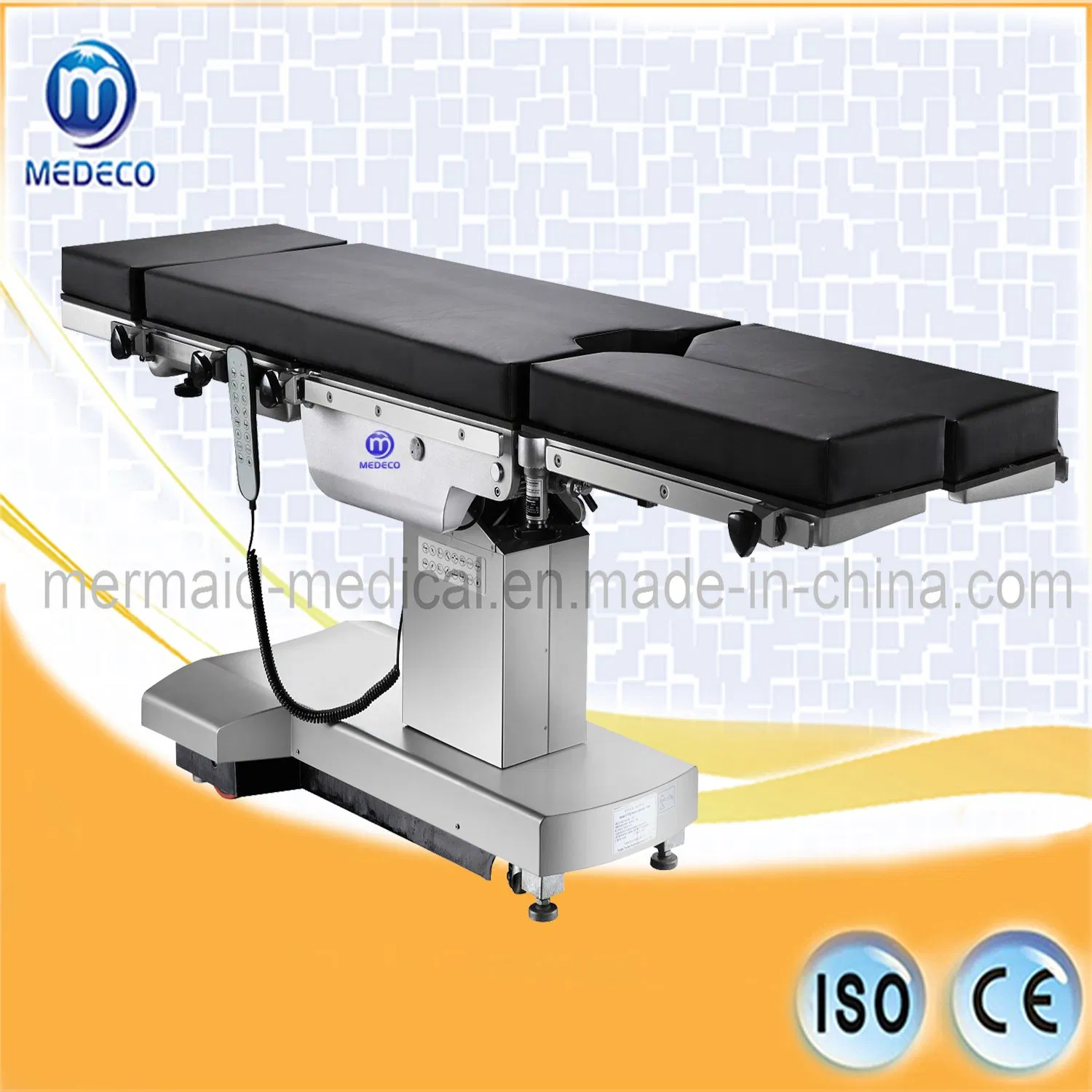

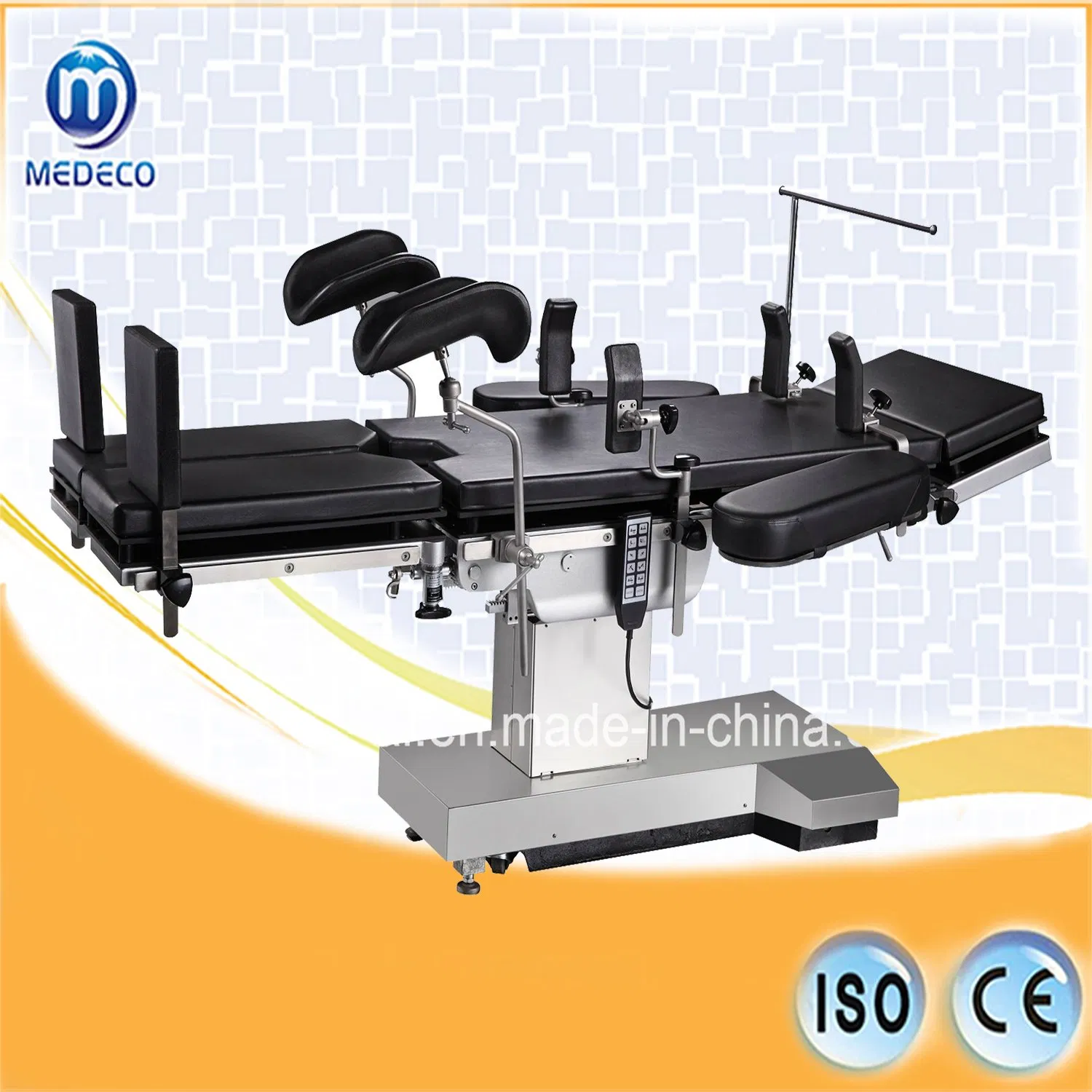

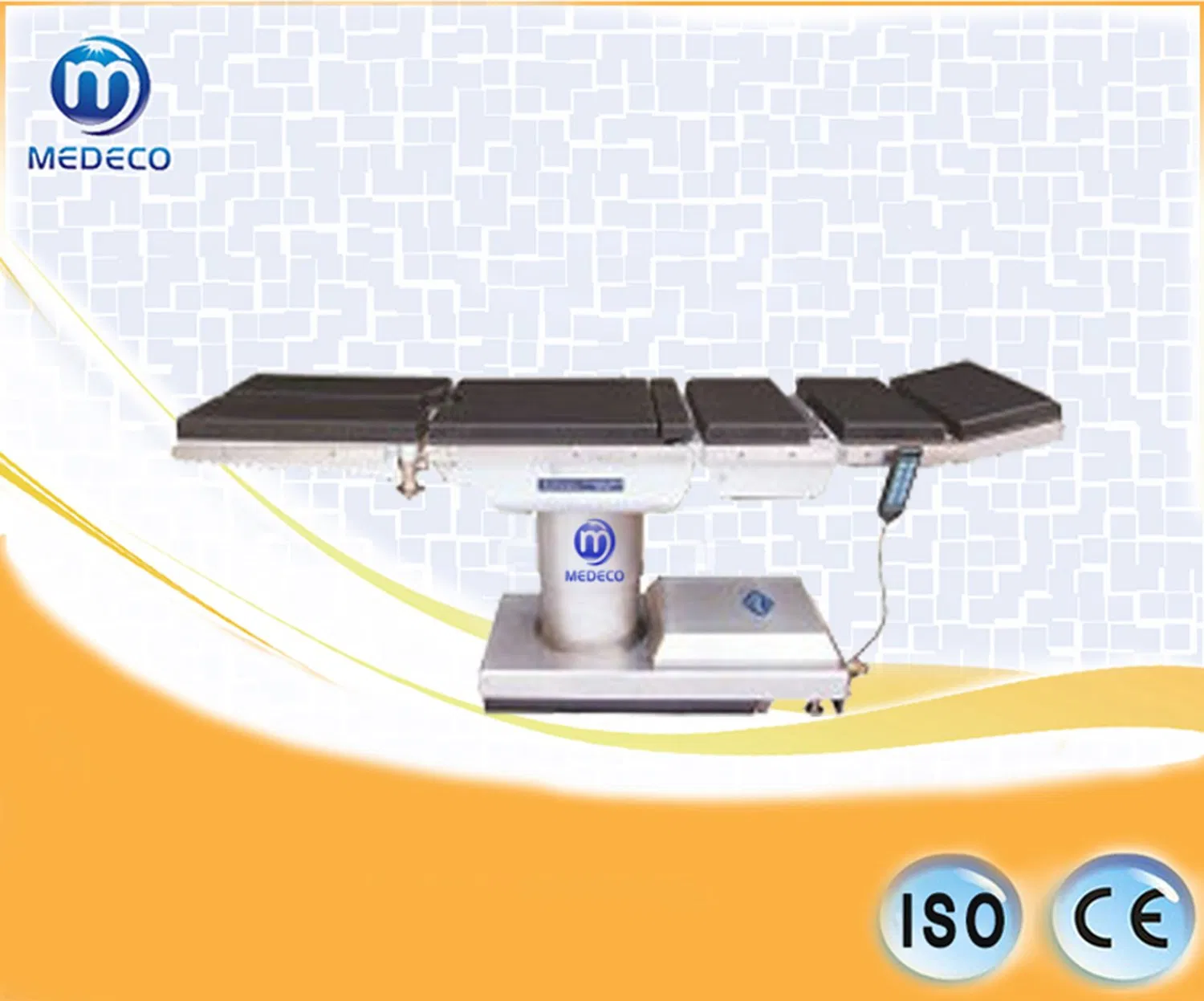

Electric Operating Table ECOH002-B
Electric operating Table ECOH002-B (99B)is developed independently by our company with innovative and advanced technologies. The table is first-class comprehensive one with high-quality and multi-purposes, which takes the leading position in the domestic market. The table can be used in almost all kinds of operations such as abdominal surgery, neurosurgery,ENT, obstetrics and gynecology, urology, orthopedics and other types of surgery.
In addition to above-mentioned performance, electric operating table ECOH002-B integrates multi-purposes with advantages: low position design of tabletop meets the requirement of needed low position in the operation; adjustable tabletop, moveable in the longitudinal direction and rotation angle of tabletop Conducting full body imaging and perspective examination with C-arm without moving the patient for ample space, and providing doctors with comfortable positions for perspectives and surgical operations. No beam between head section and back section, cervical perspective; five-section structure, V-shaped, and anti-v-shaped composite position; Back section downward, anti-v-shape with sitting section, helpful to kidney surgery; back section upward, forming sitting position, to facilitate the brain surgery; detachable head and feet section, Option: uninterruptible power systems, and automatic re-set systems, Option: orthopedic traction table
Excellent performance, comprehensive functions, beautiful appearance, easy operation, the main body material is made from high-strength cast iron, aluminum, stainless steel; mattress is made of antistatic senior PY foam materials. Imported parts in hydraulic system, stable performance, low noise.
Specifications
Overall Length/ Width: 2150mm/500mm
Min Height/Max Heigh: 580mm-930mm
Reversed Trendelenburg/ Trendelenburg: ≥20°/≥15°
Lateral Tilt≥15°
Backward and Forward Movements: ≥250mm
Head Section Raised / lowered from the horizontal: ≥45°/≥90°
Shoulder Section Raised/ lowered from the horizontal: ≥25°/≥20°
Back Section Raised/lowered from the horizontal: ≥75°/≥30°
Leg Section Lowered from the horizontal: ≥90°
Leg section opened: ≥90°
Horizonal ratation of tabletop:0~180°
Level reset zero (elected timing):±2°
Lifting speed:4~16mm/s
safe working load:135kg
Power:(AC)220V,50Hz
Battery capacity is 14 AH Battery capacity ≥ 2.4AH
Electric Operating Table ECOH002-B
Electric operating Table ECOH002-B (99B)is developed independently by our company with innovative and advanced technologies. The table is first-class comprehensive one with high-quality and multi-purposes, which takes the leading position in the domestic market. The table can be used in almost all kinds of operations such as abdominal surgery, neurosurgery,ENT, obstetrics and gynecology, urology, orthopedics and other types of surgery.
In addition to above-mentioned performance, electric operating table ECOH002-B integrates multi-purposes with advantages: low position design of tabletop meets the requirement of needed low position in the operation; adjustable tabletop, moveable in the longitudinal direction and rotation angle of tabletop Conducting full body imaging and perspective examination with C-arm without moving the patient for ample space, and providing doctors with comfortable positions for perspectives and surgical operations. No beam between head section and back section, cervical perspective; five-section structure, V-shaped, and anti-v-shaped composite position; Back section downward, anti-v-shape with sitting section, helpful to kidney surgery; back section upward, forming sitting position, to facilitate the brain surgery; detachable head and feet section, Option: uninterruptible power systems, and automatic re-set systems, Option: orthopedic traction table
Excellent performance, comprehensive functions, beautiful appearance, easy operation, the main body material is made from high-strength cast iron, aluminum, stainless steel; mattress is made of antistatic senior PY foam materials. Imported parts in hydraulic system, stable performance, low noise.
Specifications
Overall Length/ Width: 2150mm/500mm
Min Height/Max Heigh: 580mm-930mm
Reversed Trendelenburg/ Trendelenburg: ≥20°/≥15°
Lateral Tilt≥15°
Backward and Forward Movements: ≥250mm
Head Section Raised / lowered from the horizontal: ≥45°/≥90°
Shoulder Section Raised/ lowered from the horizontal: ≥25°/≥20°
Back Section Raised/lowered from the horizontal: ≥75°/≥30°
Leg Section Lowered from the horizontal: ≥90°
Leg section opened: ≥90°
Horizonal ratation of tabletop:0~180°
Level reset zero (elected timing):±2°
Lifting speed:4~16mm/s
safe working load:135kg
Power:(AC)220V,50Hz
Battery capacity is 14 AH Battery capacity ≥ 2.4AH
