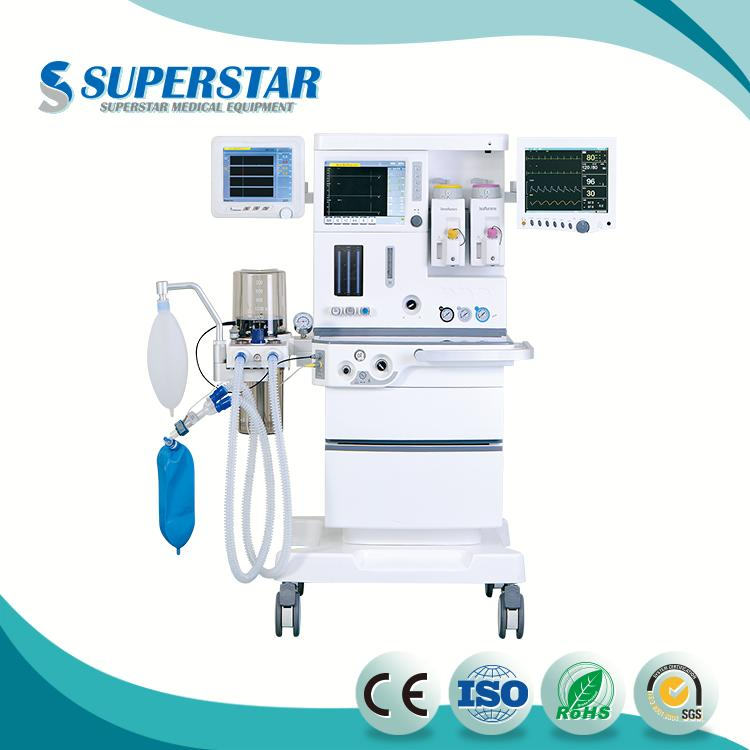

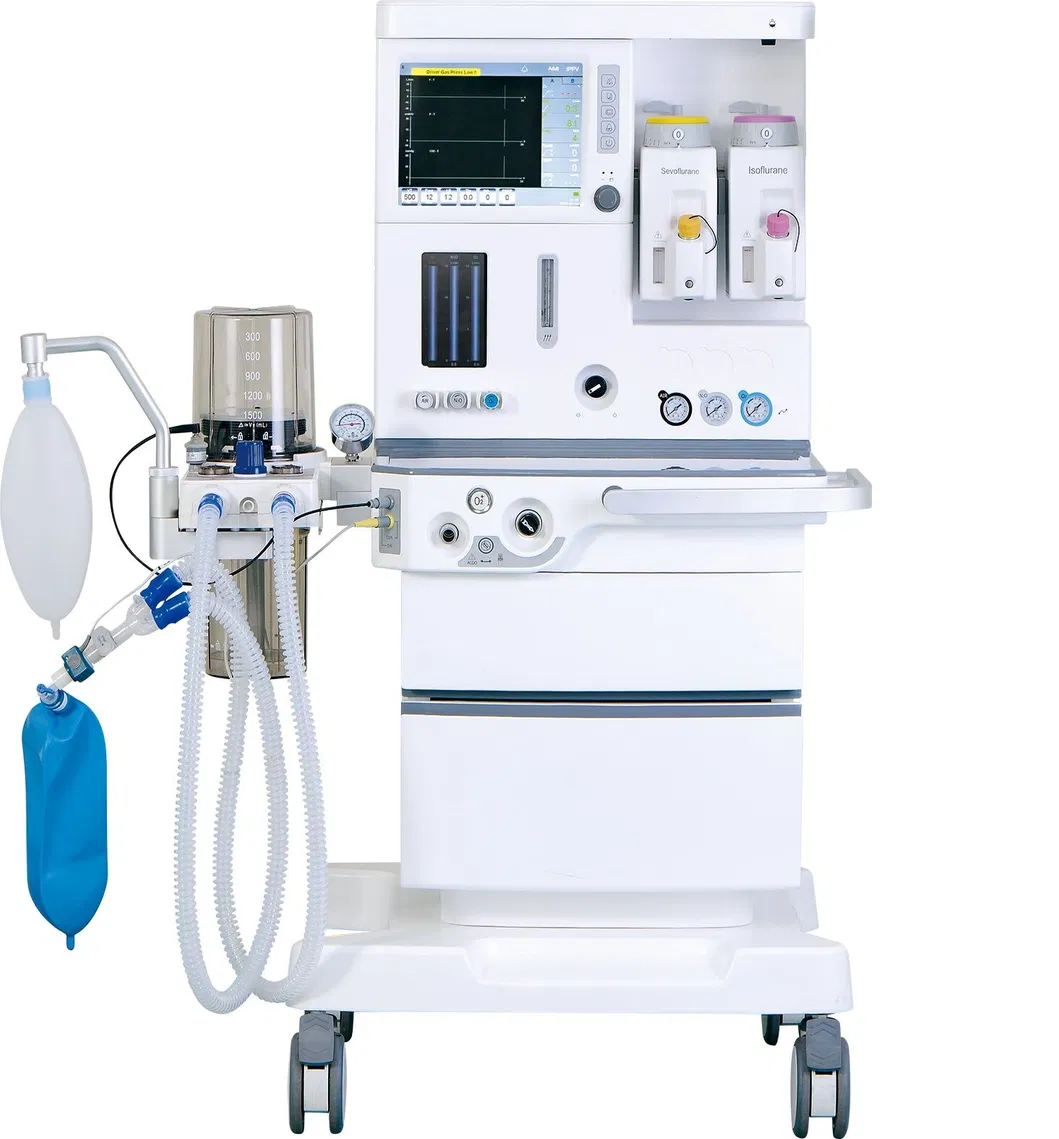

Medical Use Anesthesia Vaporizer for Anesthesia Machine
Application:The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Superstar Medical Anesthesia Systems offer you the choices yo......
Send Inquiry
Product Description
Application:
The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Superstar Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what's more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
Features
- 10.4" TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.
- High precision flow meter, instantly know the fresh gas flow to your patient.

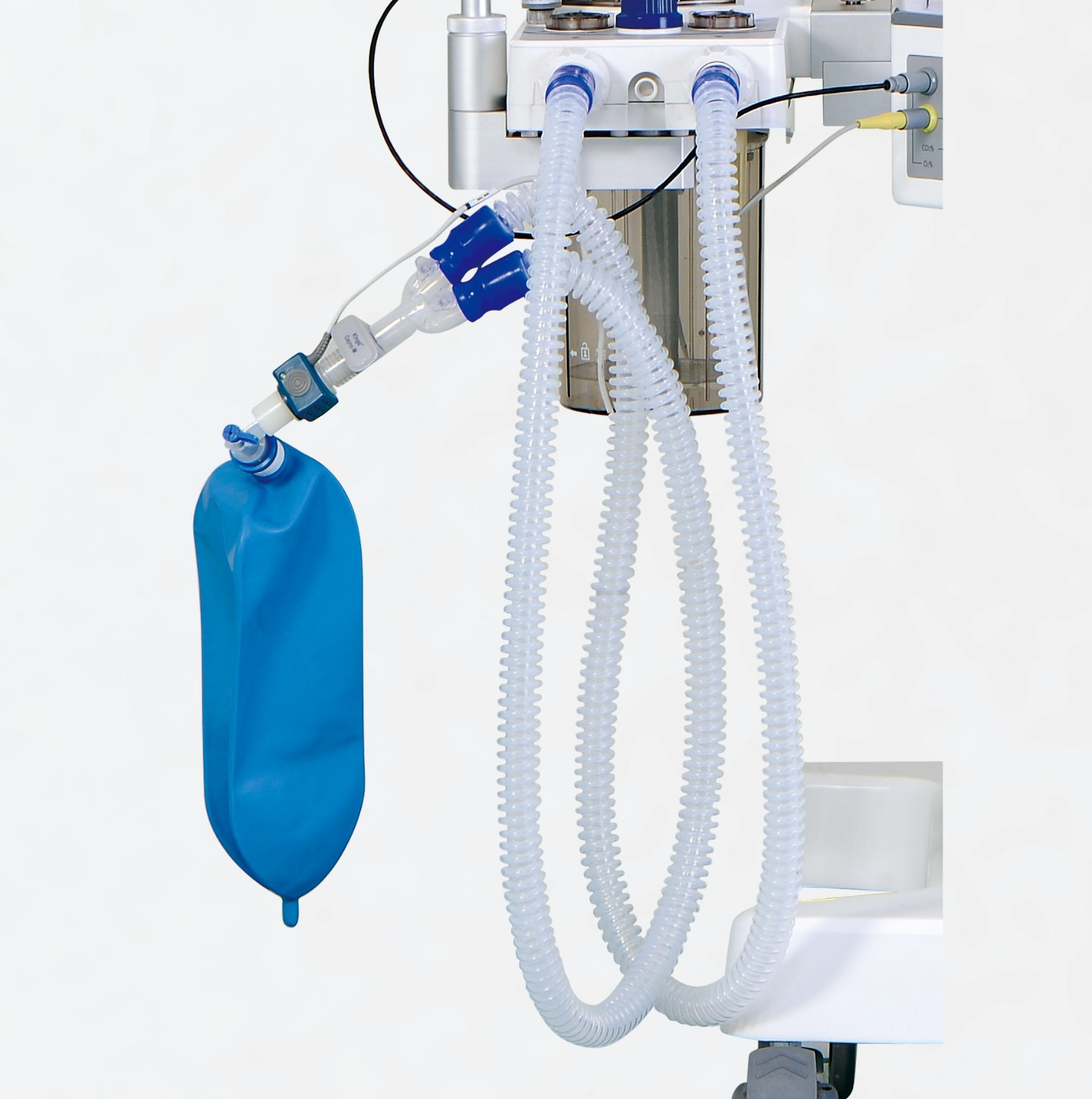

- Integration breathing circuit design, ensure easy operating and keep tidy.
- Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
- Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
- Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
- Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
- Vital sign monitor and Anesthetic gas monitor are optional.
- ETCO2 module is optional.
| Ventilation modes: | IPPV; A/C; PCV; SIMV; SIGH |
| Ventilator parameter ranges | |
| Graphical display: | |
| P-T(pressure - time) | |
| F-T(flow - time) | |
| P-V loop (pressure - volume loop) | |
| Alarm and protection | |
| The AC power failure alarm | Power failure or no connection |
| Internal battery backup low voltage alarm | <11.3±0.3V |
| No tidal volume | ≤5Ml within 6s |
| High oxygen concentration alarm Low oxygen concentration alarm | 19%-100% 18%-99% |
| High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm | 20cmH2O-100cmH2O 0cmH2O-20cmH2O Adult(5L/min-20L/min) Paed(1L/min-15L/min 0-10L/min) (PEEP+1.5kPa) over 16s |
| Suffocation warning | 5s-60s no spontaneous ventilation |
| The maximum limited pressure | <12.5 kPa |
| Fan error Oxygen deficit | Show on screen Show on screen |
| Working conditions | |
| Gas source | O2,N2O,AIR |
| Pressure | 280kPa-600kPa |
| Voltage | 100-240V |
| Power frequency | 50/60Hz |
| Input power | 85VA |
| Vaporizer | |
| Anesthesia gas | Adjustable scope % (volume percentage) |
| Halothane | 0 ~ 5 |
| Enflurane | 0 ~ 5 |
| Isoflurane | 0 ~ 5 |
| Sevoflurane | 0 ~ 8 |
packaging&shipping
Size
Wooden case packing size:L 770*W 890*H 1535mm , GW:151KG ; NW:91.2KG
our service
- Good quality products with high technology and stable performance--We have the first batch engineer for ICU equipment in China.
- Enough choices for customer--Our machine have different range from common level to high level.Every product series have at least 3 choices.
- Maximize your benefit--We are manufacturer, so the price we give you is the first hand price,it can protect your benefit and your competitiveness in your market.
- Fast delivery time--We locate in Nanjing which is very close to Shanghai, whenever you need the products, it will only spend one day to Shanghai port.
- Great support to our customer--We will give 5-10 catalogs with small gift once you give order to us,everything will be delivered with products together.By the way,we can do OEM service for you for free if you need.
Our business line:Anesthesia System, Ventilator, Nitrous Oxide Sedation system,CPAP system,Sleep Therapy System etc.
