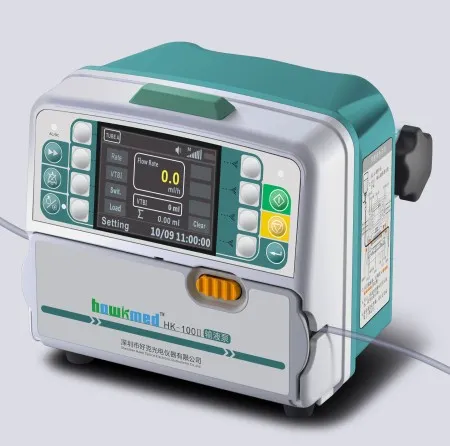

Peristaltic Mini Medical Infusion Pump with Drop Sensor
HK-100II Infusion PumpFeature & Functions:The compact and light weight designSoft key design, easy to operateTop indicator light indicating infusion statusLoad directly the last infusion rate and volume limitAdjustable buzzer volumeThree adjustable occlusion pressure settingsFree flow protection......
Send Inquiry
Product Description
HK-100II Infusion Pump
Feature & Functions:
The compact and light weight design
Soft key design, easy to operate
Top indicator light indicating infusion status
Load directly the last infusion rate and volume limit
Adjustable buzzer volume
Three adjustable occlusion pressure settings
Free flow protection
Double CPU ensuring safe infusion
Removable pump body for easy cleaning
Feature & Functions:
The compact and light weight design
Soft key design, easy to operate
Top indicator light indicating infusion status
Load directly the last infusion rate and volume limit
Adjustable buzzer volume
Three adjustable occlusion pressure settings
Free flow protection
Double CPU ensuring safe infusion
Removable pump body for easy cleaning
| Model | HK-100II Infusion Pump |
| Flow rate range | 0.1~1200 ml/h Micro mode: 0.1-99.9 ml/hr in 0.1 ml increments |
| Infusion mode | rate mode, drip mode, time mode, dose mode |
| Volume limit (VTBI) | 0 ~ 9999 ml |
| Volume Infused (∑) | 0 ~36000 ml |
| Infusion accuracy | ±5% |
| Applicable infusion set | Various brands of infusion set |
| KVO rate | 1 ~ 5 ml/h |
| Bolus rate | 300 ~ 1200 ml/h |
| Purge | 600 ml/h |
| Air bubble detection | Ultrasound sensor detection with four levels of air in line alarm adjustable |
| Occlusion pressure detection | 3 adjustable occlusion pressure settings: low, middle and high |
| Alarms | Visual and audible alarms:Door open,Air-In-Line, Occlusion,Infusion completion,infusion near over, Start reminder function, Low Battery,Battery depleted,malfunction etc. |
| Power supply | AC:100~240V,50/60Hz DC:12V ±1V |
| Battery | Rechargeable lithium polymer battery,7.4V, 1900mAh Can operate about 6 hours at 25ml/h after full charged. |
| Dimensions | 145×100×120 mm (length×width×height) |
| weight | ≤1.4kg |
