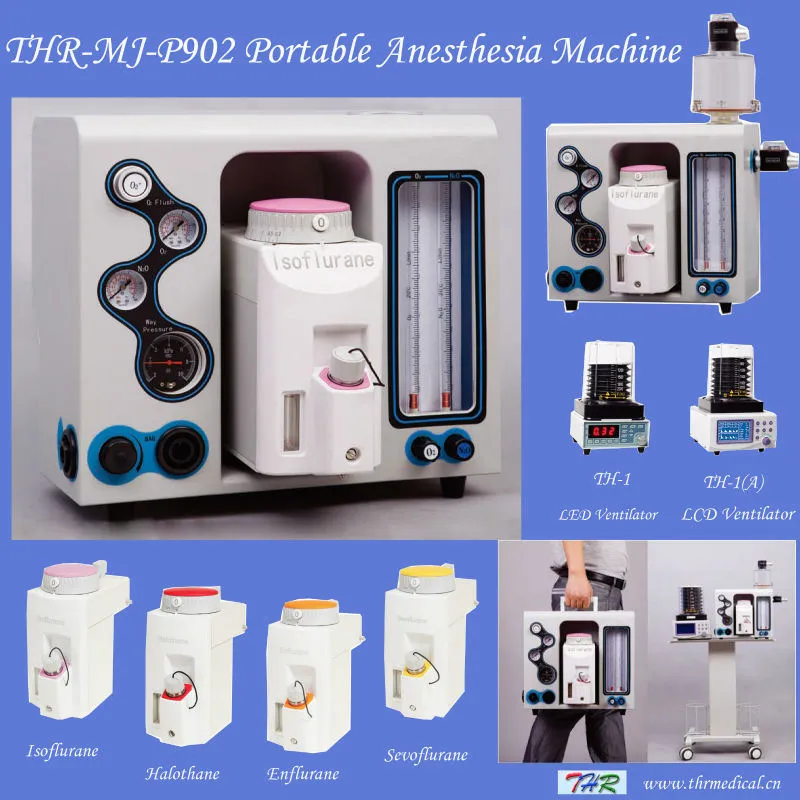

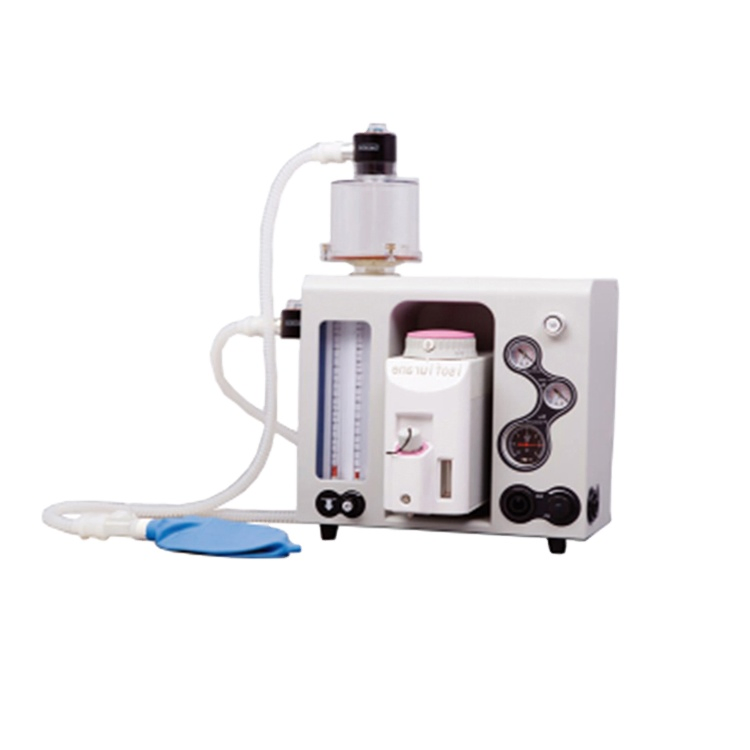

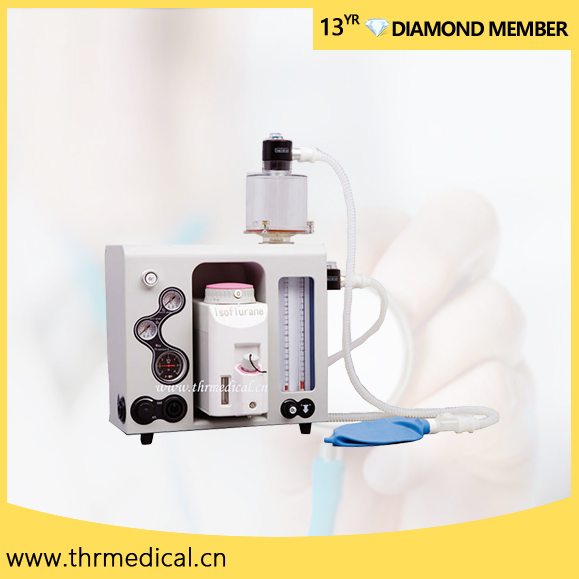

Portable Anesthesia Medical Equipment (THR-MJ-P902-V)

Product Description

High quality Hospital Portable Anesthesia Medical equipment (THR-MJ-P902-V)

Feature of Vet Anaesthesia Machine :
CE Certificated

Module rack with polyester medical material, high strength and light weight.

Superior thin spray technology, delicate color, beautiful and durable.

High precious vaporizer, halothane, enflurane, isofurane and sevoflurane could be choosed freely.

Main unit are only 2kg (W/O vaporizer), light weight and easy to move.

With a dedicated handle, could move by hand-pull.

Two gas source: O2

Ventilator(option): TH-1B

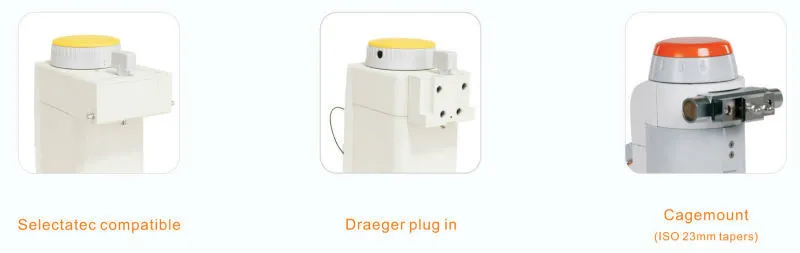

Several Mounting Types:
Portable Anesthesia Medical Equipment (THR-MJ-P902-V)

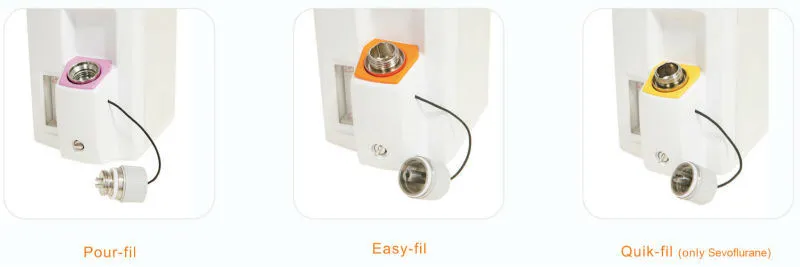

Various Filler Types:
Portable Anesthesia Medical Equipment (THR-MJ-P902-V)

Our advantages:
1. Original Manufacturer, the producing workshop is more than 40000 Square Meters
2. All parts are produced by our factory
3. Strict Material Inspection & Quality Controlling
4. ISO9001, ISO13485(SGS) Quality Management System
5. More than 10 years experience in producing and engineering
6. CE (SGS) Certificate
7. Products are exported to more than 30 countries

Ventilation Method:	Closed, Semi-closed, Semi-open
Application	2-100kg animal
Gas Source	O2, 0.25mpa-0.65mpa
Two-tube (O2)	Scope, 0-10L/min. With linkage device, O2 concentration not low than 25%.
O2 flush	More than 25L/min
Respiratory mode	Manual, Oxygen
TV (Tidal volume)	50-2000ml
I:E	According to the doctor operation
BPM	According to the doctor operation
APL valve pressure	0.5-6Kpa
Monitoring	Airway pressure, respiratory mode
Three Gauges	Two for O2, one for airway pressure.

Temperature	Operation: 18-36 ºC Storage: -20-55 ºC
humidifier	Operation: 45%-75% Storage: ≤93%
Atmospheric pressure	Operation: 0.95-1.05 bar Storage: 500hpa-1060hpa
Altitude	Operation: 500 to 800 mmHg (3565 to -440m) Storage: 375 to 800 mmHg (5860 to -440m)
Size	380mm (W) 360mm (H) 180mm (L)
weight	8.5kg
