Product Description

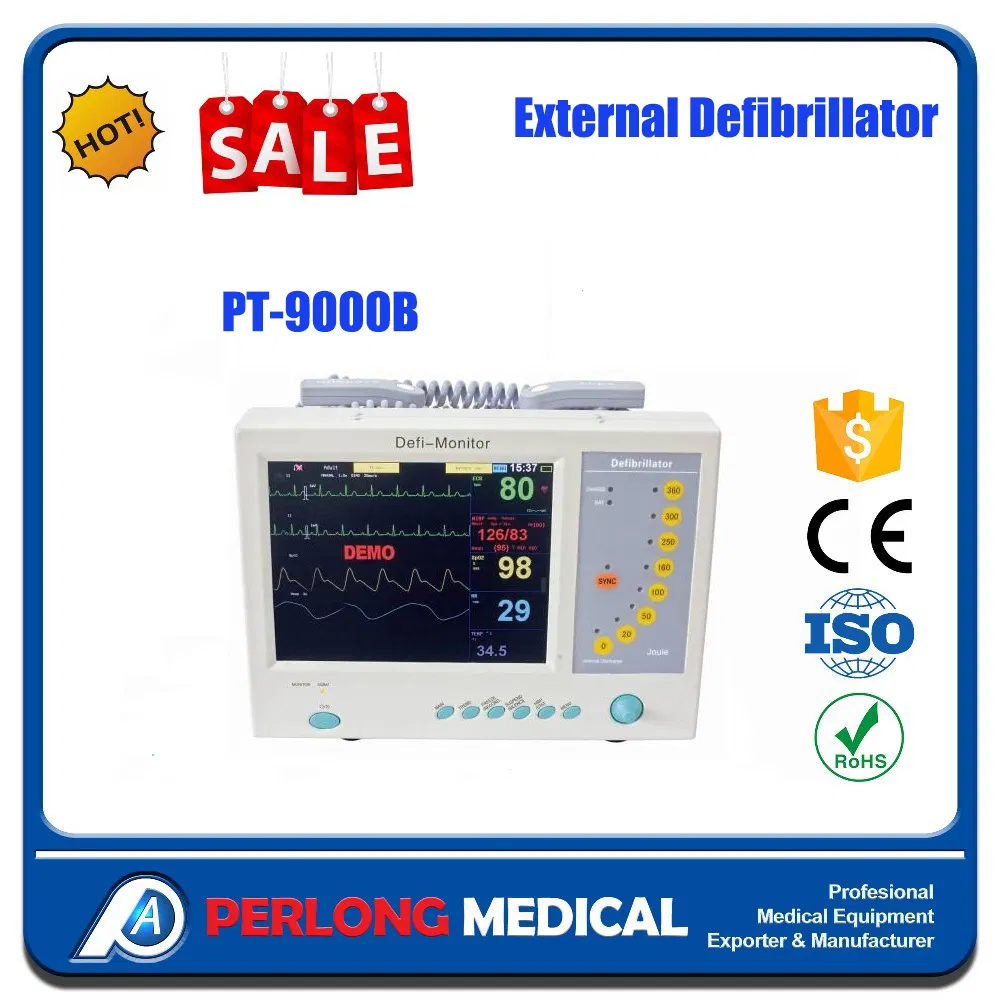

PT-9000B External Defibrillator

Specifications

Model	PT-9000B
Display	10.4 Inch TFT display
Defibrillator Mode	Defibrillator Mode: Manual, Synchronous, Asynchronous
Sine Wave	Monophasic waveform technology
Energy Selection	0, 20, 50, 100, 160, 250, 300, 360J (nominal at 50 resistance)
Charge Time	Less than 10s at 360J
Paddle Options	Standard Adult/Pediatric Paddles: reusable external adult paddles (pediatric paddles integrated)
Respiration	Measurement Method: Thoracic impedance
Power Supply	AC and built-in rechargeable battery

Feature
ECG
ECG Lead Inputs: I, II, III, aVR, aVL, aVF, V1~V6
S-T Segment Analysis: -2.0-2.0mv
Electrical Protection: able to withstand 4000V (AV)/50Hz voltage in isolation, protected from electrosurgical devices & defibrillation
ECG Lead/Cable: general lead/cable for adult, pediatric and neonatal patients

NIBP
Method: oscillometric (automated)
Operating Mode: manual/automatic
Measurement Range: adult 10~250mmHg, pediatric 10~250mmHg, neonatal 10~135mmHg

TEMP
Measurement Range: 20~45°C
Resolution: 0.1°C

SpO2
Display: SpO2 value, pulse histogram, waveform, pulse
Range: 0~99% for adult, pediatric and neonatal patients
Probe: standard adult finger clip,
Optional pediatric Y-type clip and neonatal wrap

Pulse
Pulse Range: 0~300bpm
Pulse Accuracy: ±2bpm
