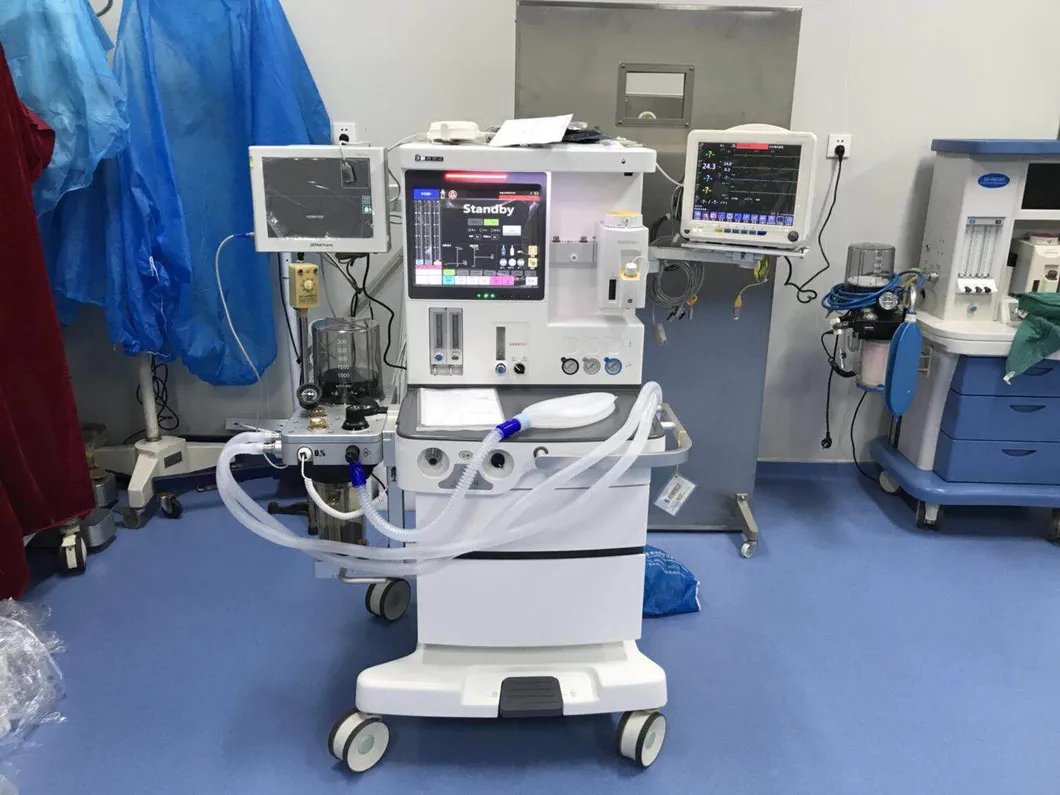

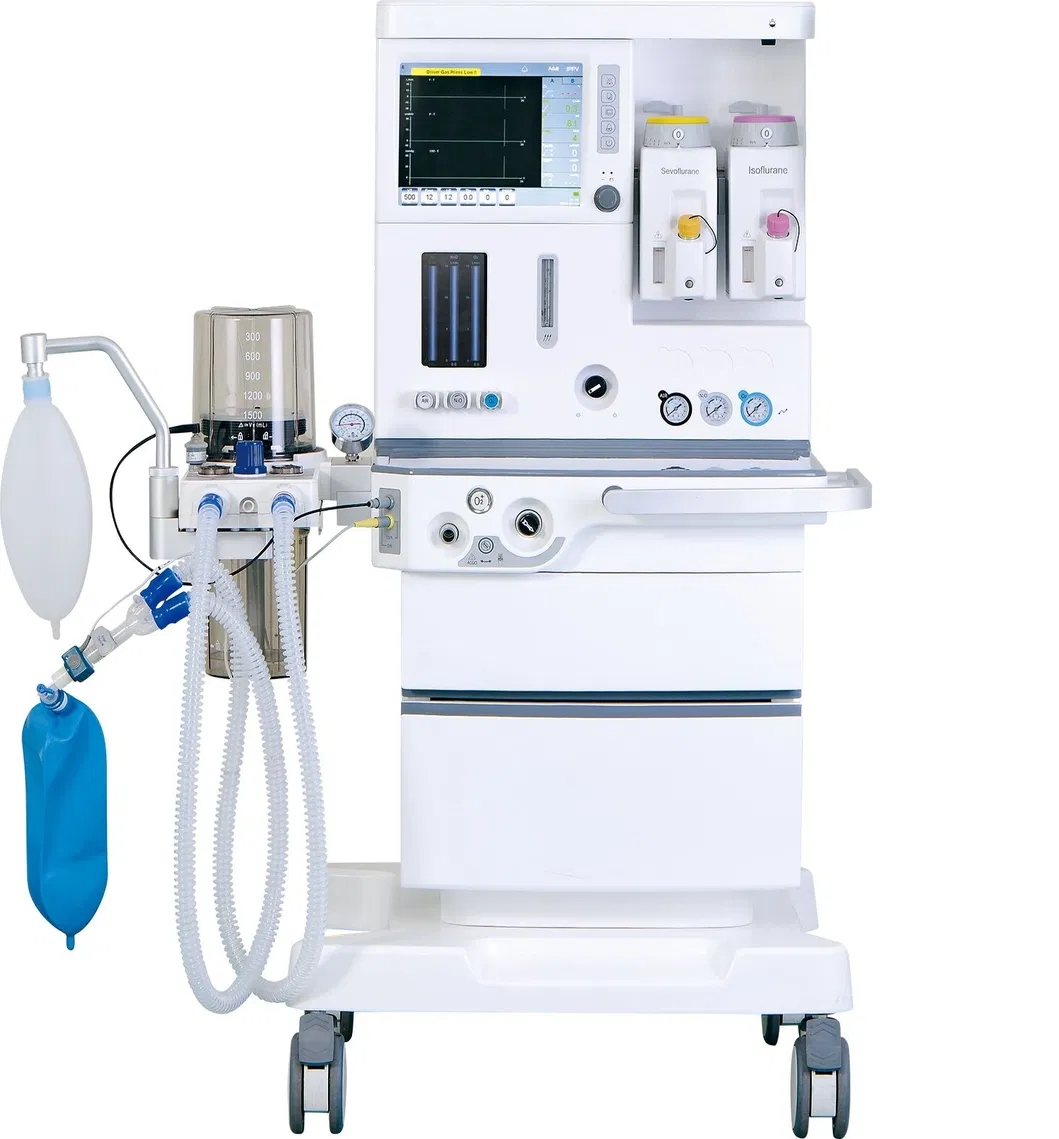

Superstar S6600hospital Medical Anesthesia with 15

Product Description

Model :S6600

APPLICATION
Group:Neonatal, Pediatrics, Adult

Usage : Professional design for adult, child and infant inhalation anesthesia and respiratory manage

Departments: Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments.

TRUST POINT

Patient Centered Ventilation: Precision in an anesthesia ventilator,

from conventional ventilation to advanced modes and adapt to wide range patient.

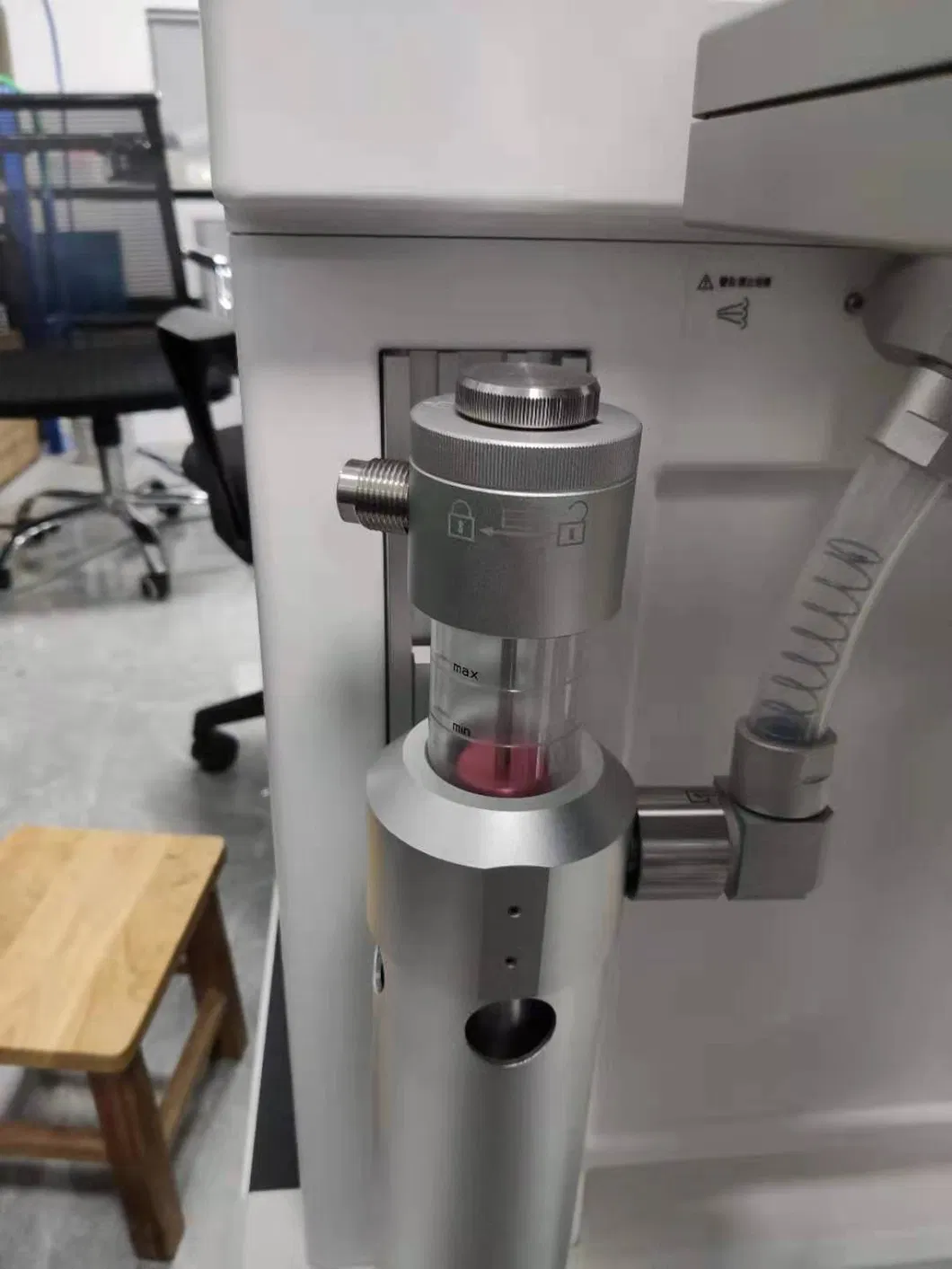

Safty design: Vaporizer with temperature, pressure, flow compensation and self-lock function

Real time pressure-time, flow-time loop oscillogram and high precision ETCO2, O2 concentration detection function included.

Alarm: 14 alarms to make sure the safety. Three level alarm system,

visual and sound alarm information.

Built-in battery ensure 2-3 hours using when power failure.

Visible self-checking system: Make sure the safety of all parts.

Separate design of electric circuit and gas circuit ensure long using life.

Language: 8 languages for exchange including Chinese, English,

Spanish, French, Russian, Turkish, German, Portuguese.

Specifications

Ventilation modes:	(V-CMV)IPPV; (P-CMV) PCV; PSV; (P-0SIMV);(V-SIMV); SIGH, PRVC, MANUAL
Ventilator parameter ranges
Graphical display:
P-T(pressure - time)	ETCO2-T
F-T(flow - time)	V-T
P-V loop (pressure - volume loop)	F-P,F-V
Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	<<>11.3±0.3V
No tidal volume	≤5Ml within 6s
High oxygen concentration alarm Low oxygen concentration alarm	19%-100% 18%-99%
High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O Adult(5L/min-20L/min) Paed(1L/min-15L/min 0-10L/min) (PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	<<>12.5 kPa
Fan error Oxygen deficit	Show on screen Show on screen
Working conditions
Gas source	O2,N2O,AIR
Pressure	280kPa-600kPa
Voltage	100-240V
Power frequency	50/60Hz
Input power	85VA

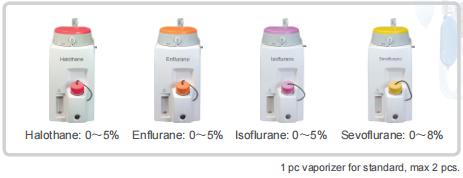

Vaporizer	2 standard

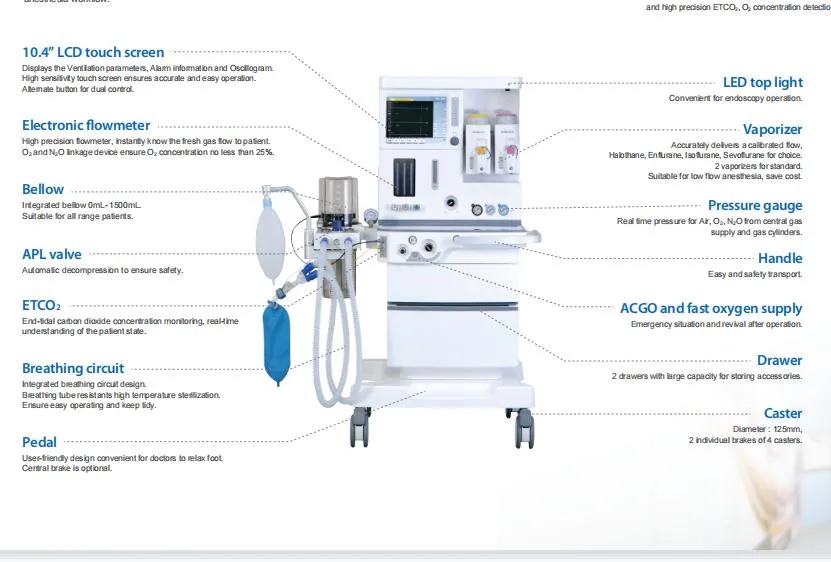

Features

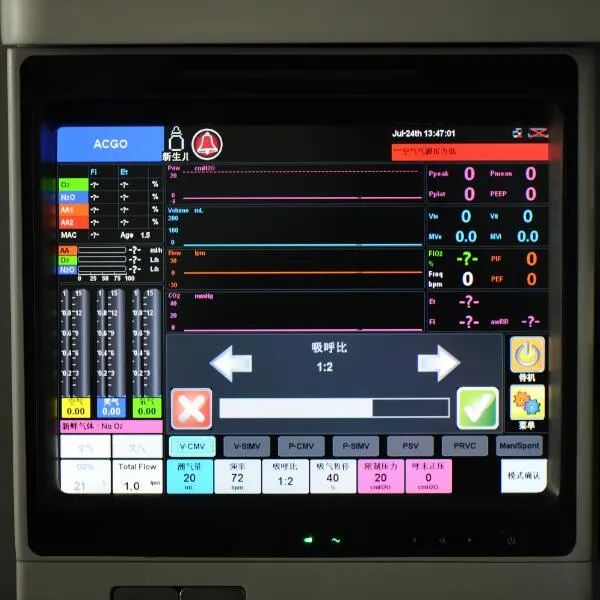

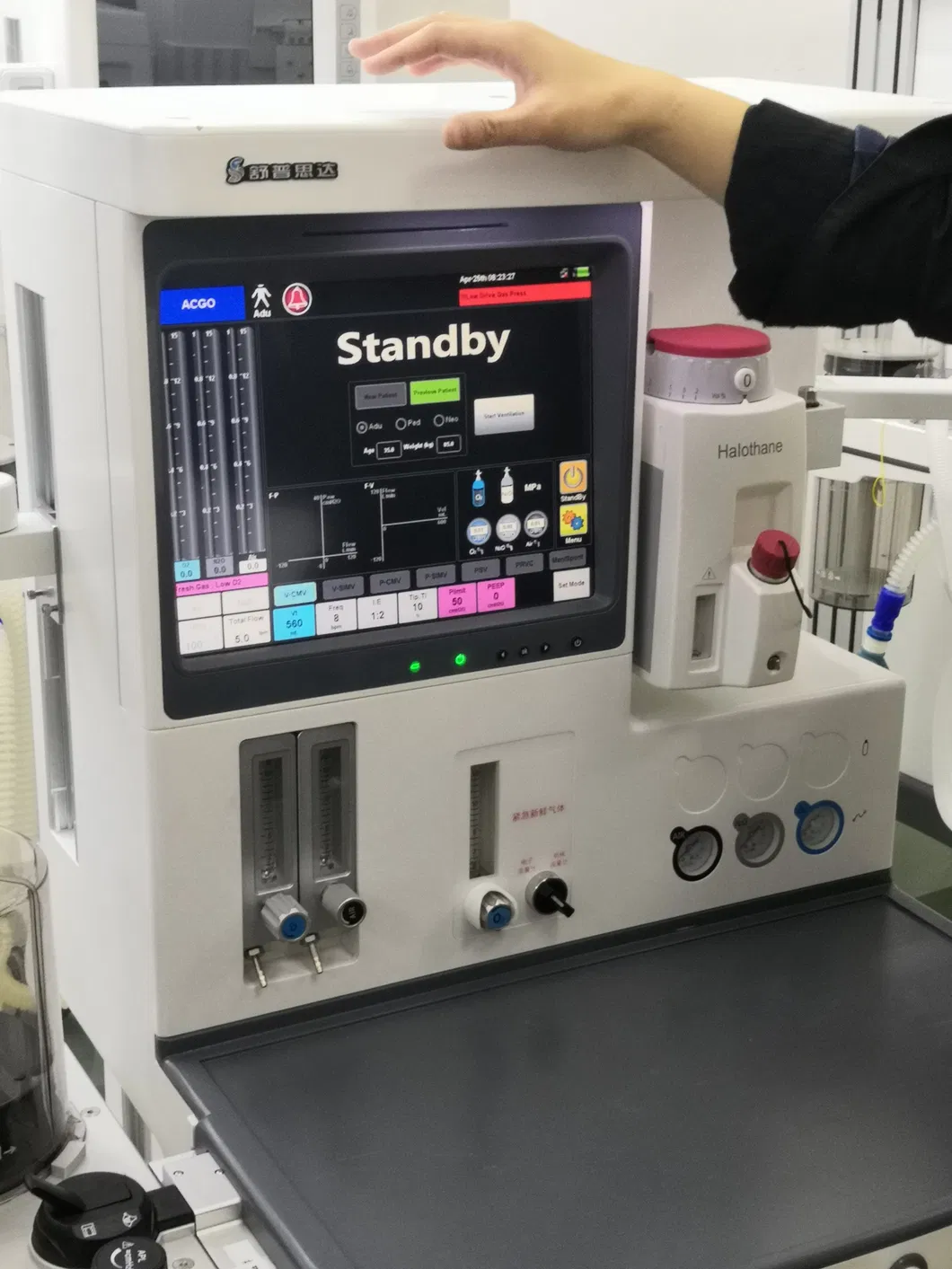

15" TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

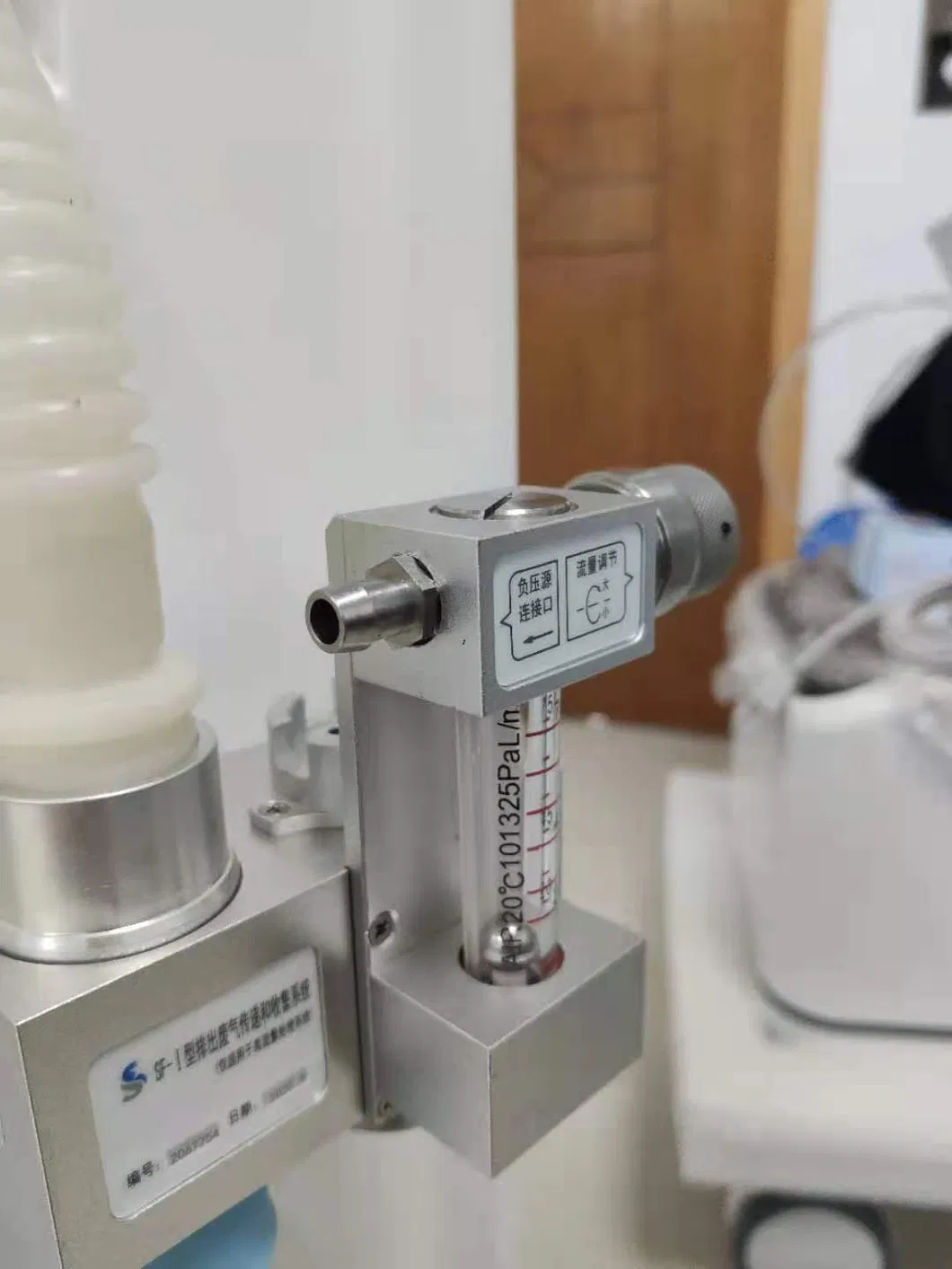

High precision flow meter, instantly know the fresh gas flow to your patient.
Integration breathing circuit design, ensure easy operating and keep tidy.
Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.
Vital sign monitor and Anesthetic gas monitor are optional.
ETCO2 and ACGO module are standard.
