Product Description

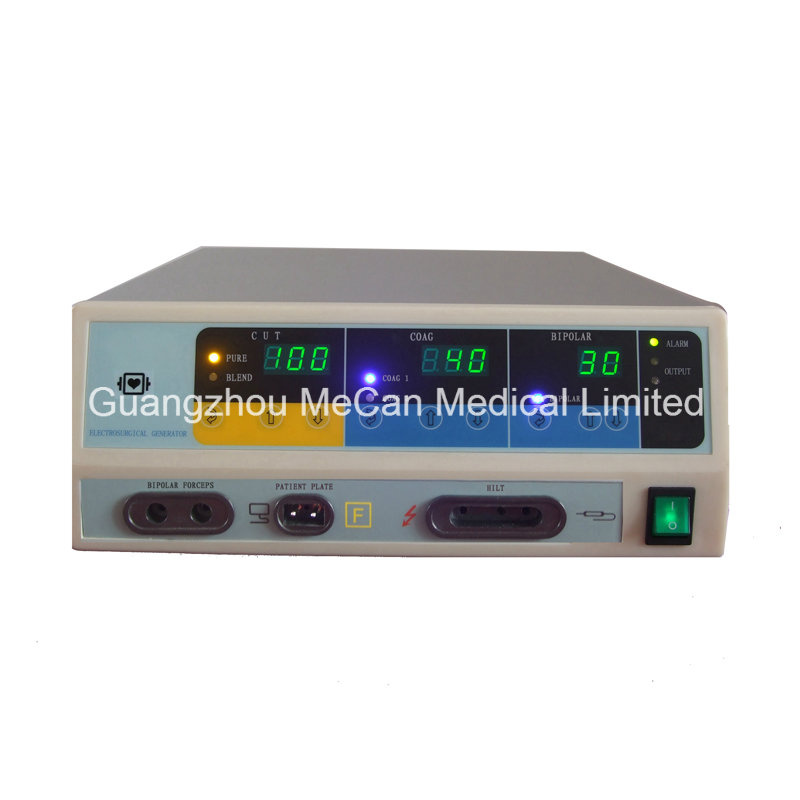

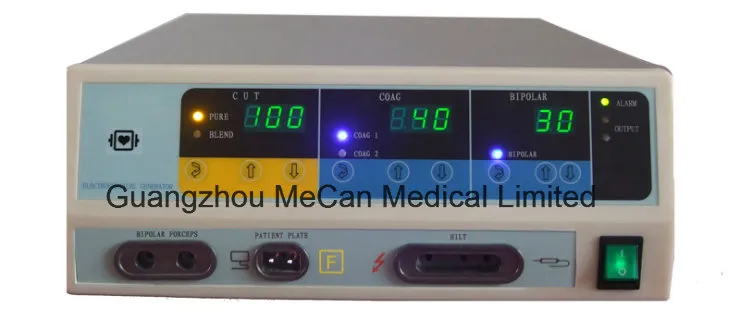

Surgical cautery Electrosurgical Diathermy Machine Cautery
Model: MCS-2000I-5

Main Features

· Max 300W Electrosurgical Generator, with mono-polar and bipolar function.

· Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.

· Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

· Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

· Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

· Both hand and foot controlled.

· Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

· The ESU unit can be connected with laparoscope and endoscope, etc.

· Protection against over-voltage and over-current.

· Defibrillation protected.

· Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Five working modes:
Mono-polar Cut
a) Pure cut:1W~300W( Load 800Ω)
b) Blend:1W~200W(Load 800Ω)
Mono-polar Coag
c) Spray Coag:1W~80W( Load 800Ω)
d) Forced Coag:1W~120W( Load 800Ω)
Bipolar
e) Bipolar Coagulation: 1W~50W( Load 200Ω)
Power Consumption: ≤1100VA

Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: 512KHz
Power rating: 1100VA±10%

Accessories

Description	Quantity
disposable patient plate	10pcs
patient plate Cable	1pc
disposable ESU pencil	5pcs
autoclavable bipolar forceps	1pc
autoclavable bipoar forceps cable	1pc
double footswitch	1pc
Tip Cleaner	1pc
