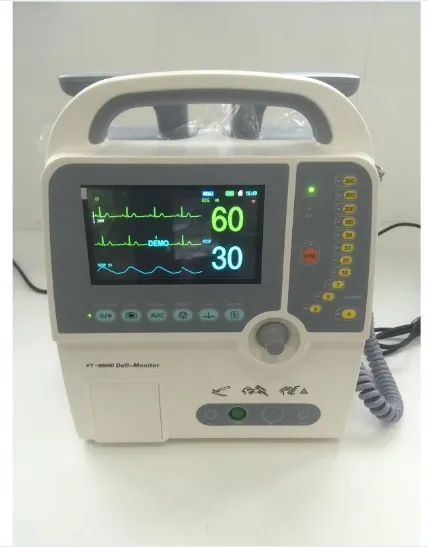

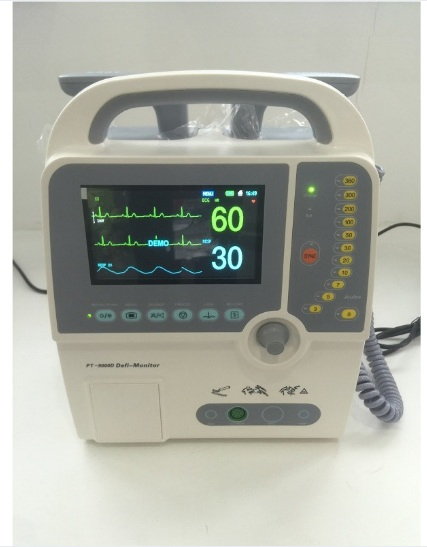

Surgical Instrument Portable Emergency External Defibrillator Monitor; PT-9000d
PT-9000D Defibrillator Specifications1. Ventilation Modes: CMV(IPPV), A/C(SIPPV), SIMV, Spont, PEEP (optional)2. Defibrillator Mode: Manual, Synchronous, Asynchronous3. 7 Inch TFT Display4. Energy Accuracy: <±1%5. Energy Selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360J (nom......
Send Inquiry
Product Description
PT-9000D Defibrillator Specifications
1. Ventilation Modes: CMV(IPPV), A/C(SIPPV), SIMV, Spont, PEEP (optional)
2. Defibrillator Mode: Manual, Synchronous, Asynchronous
3. 7 Inch TFT Display
4. Energy Accuracy: <±1%
5. Energy Selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360J (nominal at 50 resistance)
6. Charge Time: less than 10s at 360J

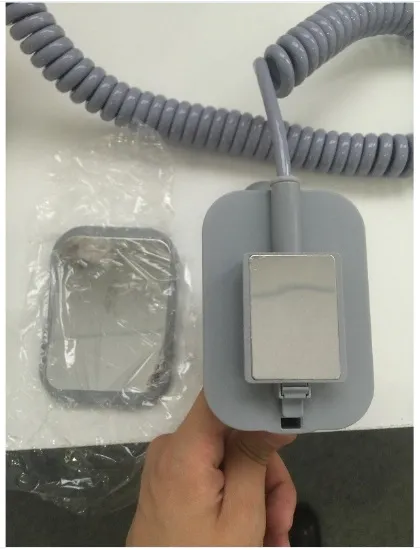

7. Standard Adult/Pediatric Paddles: reusable external adult paddles (pediatric paddles integrated)
8. Respiration Measurement Method: Thoracic impedance
9. Power Requirements
AC Power Supply: 100V~ 240V, 50Hz/60Hz
Vehicle Voltage (optional): DC 12V
Internal Battery Backup
1. Battery Type: rechargeable lead-acid battery (12V2.0AhX2)
2. Minimum Charge Time: 4 hours for full charge
3. Charging/Low Battery Indication: red LED
4. Charging Method: during normal operation of device under AC Power Supply
5. Battery Capacity: the battery (on a full charge) will permit 120 minutes of monitoring & 30 discharges at 360J
ECG
1. ECG Lead: I, II, III, aVR, aVL, aVF, V1~V6
2. S-T Segment Analysis: -2.0~2.0mv
3. Arrhythmia Analysis: yes
4. Electrical Protection: able to withstand 4000VAC/50Hz voltage in isolation and resistant to electrosurgical devices & defibrillation
Standard Configuration
1. ECG/RESP/DEFIBRILLATOR
2. Optional: Recorder, Lithium battery (11.1V4.0AhX2)
Company Brief Introduction
Perlong Medical Equipment Co., Ltd., Seeuco Electronics Technology Co., Ltd., was founded in Nanjing, China with the goal to supply products with high quality, competitive price and good after-sell service.
As the leading professional manufacturer & exporter of medical equipment, we have established its efficient worldwide network of marketing. In the past years, we have exported our products to more than 130 countries all over the world. We also have established long-term cooperation with WHO. UNICEF and many international organizations.
Our products range covers ICU Equipment, laboratory equipment, X-ray machines, Ultrasound Scanner, ECG, Optoelectronic Equipment, Hospital Furniture, Reagents, and other medical equipments.
Your cooperation with us will definitely create a win-win situation for both of us.
After-sales Service
All products have a warranty of 12 months. We have special engineer for after-sales service. If any questions during the use, feel free to tell us by email, fax or telephone at any time, we will do our best to support you to keep your market reputation.
1. Ventilation Modes: CMV(IPPV), A/C(SIPPV), SIMV, Spont, PEEP (optional)
2. Defibrillator Mode: Manual, Synchronous, Asynchronous
3. 7 Inch TFT Display
4. Energy Accuracy: <±1%
5. Energy Selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360J (nominal at 50 resistance)
6. Charge Time: less than 10s at 360J
7. Standard Adult/Pediatric Paddles: reusable external adult paddles (pediatric paddles integrated)
8. Respiration Measurement Method: Thoracic impedance
9. Power Requirements
AC Power Supply: 100V~ 240V, 50Hz/60Hz
Vehicle Voltage (optional): DC 12V
Internal Battery Backup
1. Battery Type: rechargeable lead-acid battery (12V2.0AhX2)
2. Minimum Charge Time: 4 hours for full charge
3. Charging/Low Battery Indication: red LED
4. Charging Method: during normal operation of device under AC Power Supply
5. Battery Capacity: the battery (on a full charge) will permit 120 minutes of monitoring & 30 discharges at 360J
ECG
1. ECG Lead: I, II, III, aVR, aVL, aVF, V1~V6
2. S-T Segment Analysis: -2.0~2.0mv
3. Arrhythmia Analysis: yes
4. Electrical Protection: able to withstand 4000VAC/50Hz voltage in isolation and resistant to electrosurgical devices & defibrillation
Standard Configuration
1. ECG/RESP/DEFIBRILLATOR
2. Optional: Recorder, Lithium battery (11.1V4.0AhX2)
Company Brief Introduction
Perlong Medical Equipment Co., Ltd., Seeuco Electronics Technology Co., Ltd., was founded in Nanjing, China with the goal to supply products with high quality, competitive price and good after-sell service.
As the leading professional manufacturer & exporter of medical equipment, we have established its efficient worldwide network of marketing. In the past years, we have exported our products to more than 130 countries all over the world. We also have established long-term cooperation with WHO. UNICEF and many international organizations.
Our products range covers ICU Equipment, laboratory equipment, X-ray machines, Ultrasound Scanner, ECG, Optoelectronic Equipment, Hospital Furniture, Reagents, and other medical equipments.
Your cooperation with us will definitely create a win-win situation for both of us.
After-sales Service
All products have a warranty of 12 months. We have special engineer for after-sales service. If any questions during the use, feel free to tell us by email, fax or telephone at any time, we will do our best to support you to keep your market reputation.
