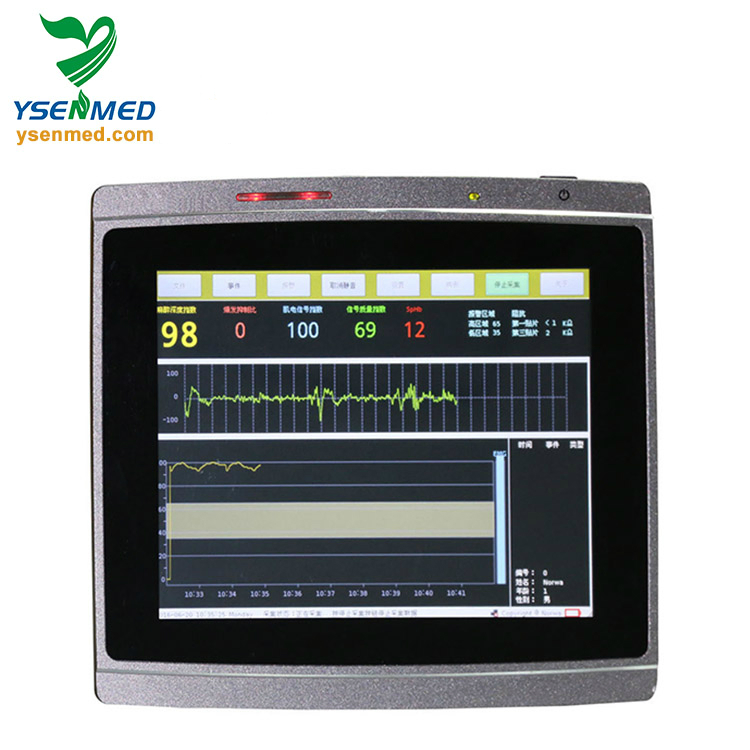

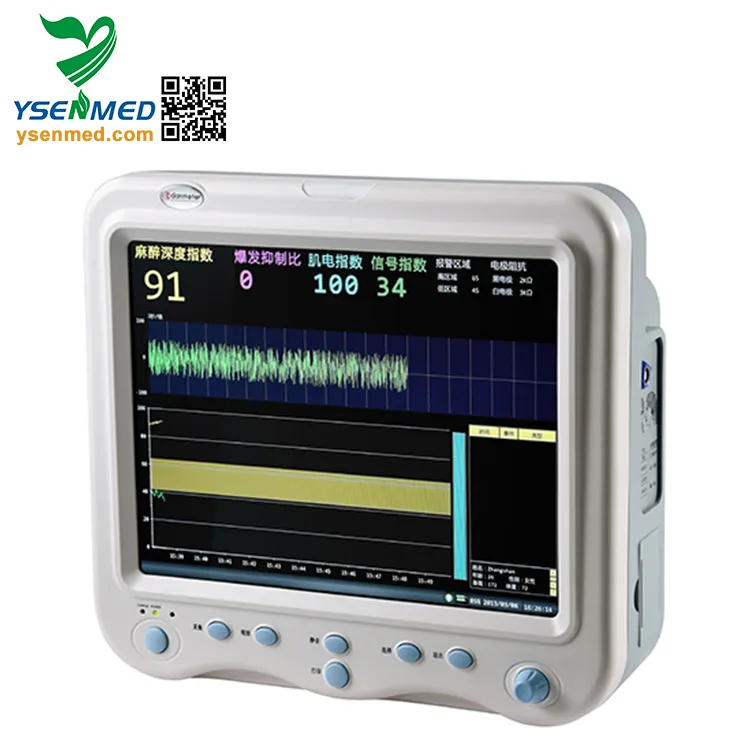

Yspm9002 Top Grade Multi-Parameter Depth of Anesthesia Patient Monitor

Yspm9002 Top Grade Multi-Parameter Depth of Anesthesia Patient Monitor

Monitor Standards

Product Name: Multi-parameter Depth of Anesthesia Monitor

Model: YSPM9002

Physical Property

Dimension: 375*350*147mm

Weight: 2kg

Display Screen: 15"HD-LCD

Electric Parameter

Power Supply: 90-240v   50\60Hz

Battery Supply: FP1223C 12V 2.3Av/20Hz(switch charging with the exterior power supply)

Electric Quantity: be charged full power by 1 hour later, then users could replace the lithium battery pack)

Charge Time: 4 hours

Parameter Characteristics

CSI: connected with the sensor will be displayed in 2-6s, 0-100 range scale, updated per second, displayed the depth of anesthesia

BS%: 0-100 range scale, updated per second, the reference index for anesthesia dosage

EMG: 0-100 range scale, updated per second, reflect the noxious stimulation about the patient, indirect reflect the muscle relaxation degree

SQI: 0-100 range scale, updated per second, reflect the EEG index quality (include collecting and transferring)

CSI

CSI, is Danmeter Company based on the AEP(A-Line) researching which called depth anesthesia index, the private sensor is measuring 2000 times EEG per second, the sub-parameter of the EEG and BS% collected then analysis adopts self-adaptive neuro-fuzzy logical operation system, show the anesthesia index used the range scale of 0-100 number.

Major advantages of the monitor

1,Connecting with the sensor will be displayed the index in 2-6s, realized the real-time monitoring.

2,Self-adaptive neuro-fuzzy logical operation system adopted for full consideration of patient EEG   individual difference.

3,CSI\EMG\BS%\SQI index are shown on one screen, helping doctors management the anesthesia more precisely

4,Strong anti-interference ability, reset quickly

5,Enlarge the date memory ability unless could reach 2000hours, derived information and expanding the capacity infinite

The private sensor for CSI

Keep the date is  excellent quality, also include the usability and patient comfortable.

Clinical significance

0-100 range scale show the depth of anesthesia, the number is more small the more calm down, 100 is completed awake level, 0 is the EEG iso-electric level, 40-60 is the average scale for surgical operation.

90-100----------- Awake

80-90------------ Drowsiness

60-80-------------Light anesthesia

40-60------------ Within the range of anesthesia depth suitable for surgery

10-40-------------Deep anesthesia, with burst suppression(BS%) in most cases

0-10-------------- Close to deep coma, EEG is basically equipotential when CSI<3,BS%>75

Others Characteristics

Anti-interference: available selecting the EMG, anti-interference of public signal, automatic excluding the false data

Date storage: unless 2000 hours capacity, there are deriving out for printing)

Affairs setting: could set the operation phase, such as induction\intubation\surgical etc.

Print function: built-in thermal matrix recorder(printer)

Language setting: Chinese and English alternative

Alarm function: sound\lighting, setting the scale, the volume 18 degree selectable, Mandarin sound alarming function

Safety Note

Security Level: interior power supply\I class CF type

EN IEC60601-1(GB9706.1)(security standard: EN IEC60601-1(GB9706.1)
