Product Description

Display:3.5"Full view
Resolution Ratio:640×480
Pixel:2.0M
Field angle:66°
Superior glottis revealed,
wide field of vision
Warranty:1year
Waterproof:IPX8
Weight:350g
Battery voltage:3.7V
Battery capacity:3200mAh

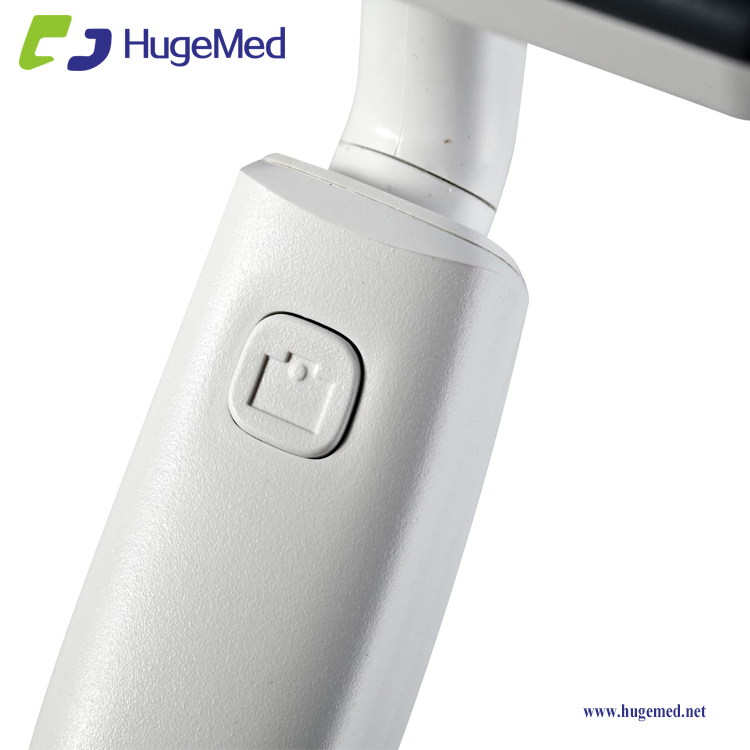

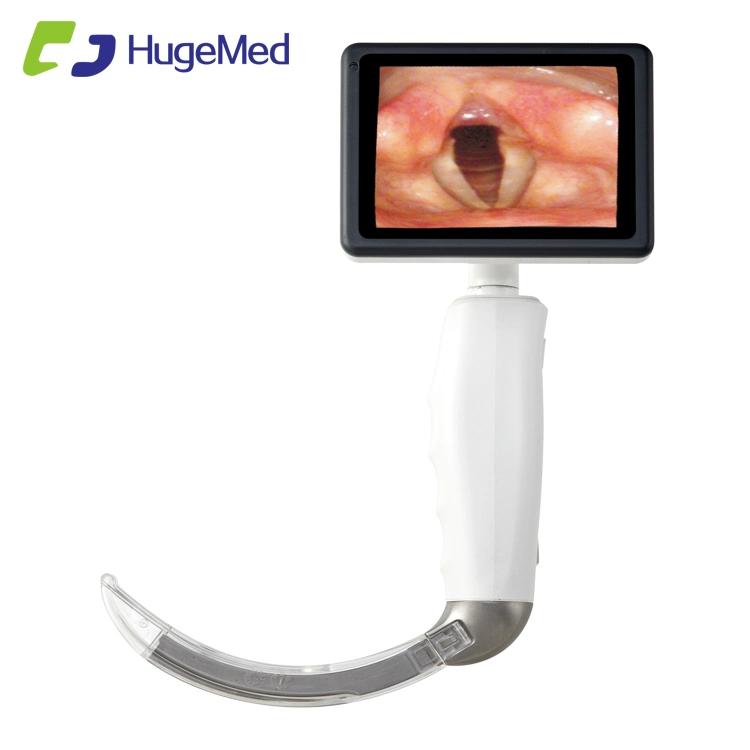

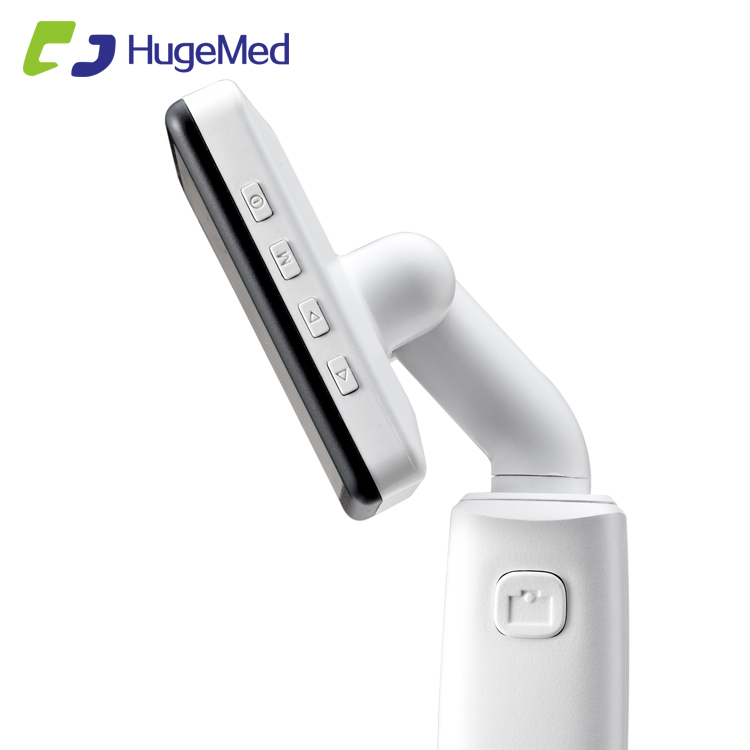

HugeMed Stainless steel video laryngoscope handheld video laryngoscope. With its advanced module design , high resolution images, professional lighting system and recording capabilities, this device represents a state-of-the-art solution to both average and difficult intubation procedures in different environments.
While the products is fairly intuitive to assemble and operate, these instructions will serve as a reference for operation and maintenance of the device. Please read the instructions carefully before attempting to operate the products.
Device Assembly and Disassembly

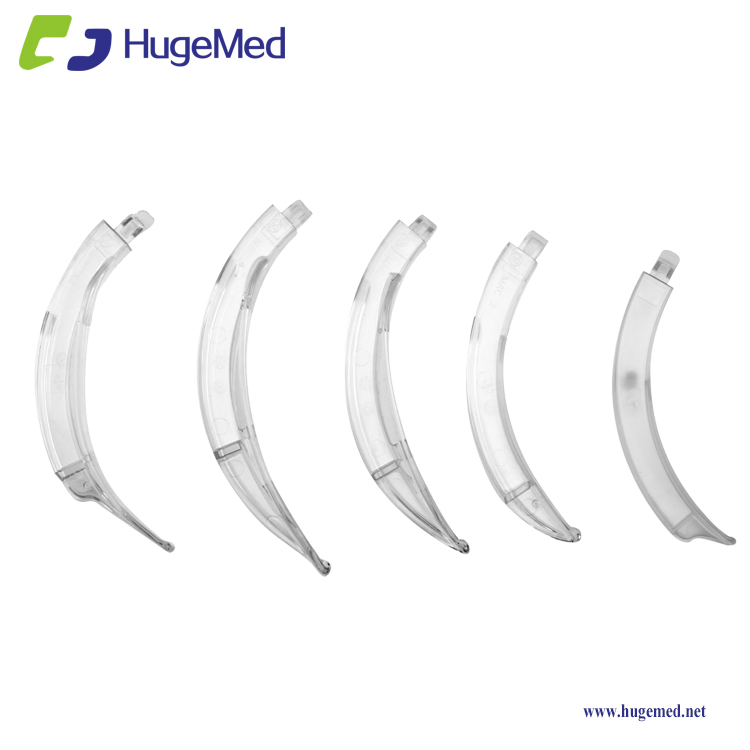

Select the appropriate VL3R video blade according to patient oral cavity size .
Assembly :position the blade connection point to the video handle mounting block and snap together by pushing down the tip of the blade.
Disassembly : reverse action of Step 2 by pulling up the tip of the blade to separate the blade connection from the handle mounting block.

NOTE: The EMISSIONS characteristics of this equipment make it suitable for use in industrial areas and hospitals (CISPR 11 class A). If it is used in a residential environment (for which CISPR 11 class B is normally required) this equipment might not offer adequate protection to radiofrequency communication services. The user might need to take mitigation measures, such as relocating or re-orienting the equipment.
The Stainless Steel is designed to be used with standard laryngoscopy technique similar to that of direct laryngoscopy. Please refer to qualified instructors who provide specialized training in endotracheal intubation techniques before attempting to use this device with human subjects. The static images and video for respiratory and tracheal intubation procedures can be recorded and automatically saved to the SD card inside the display .
