Medical Electric Orthopedic Multifunction Drill and Saw System
NM-100 Medical Electric Orthopedic Multifunction Drill and Saw SystemMain components Components Quantity Multifunctional mainframe 1Quick chuck1Oscillating saw attachment 1Canulate drill attachment1Acetabulum burnishing drill attachment 1Cranial drill attachment 1Cranial mill attachment 1S......
Send Inquiry
Product Description
NM-100 Medical Electric Orthopedic Multifunction Drill and Saw System
Main components
Product feature
1. Professional surgical power tools manufacturer
2. The single trigger modular handppiece can be autoclaved
3. Comprehensive range of quike change attachments
4. The ingenious handpiece is equipped by powerful motor and provides precise and stable performance
5. The ergonomic design offers comfortable grip and more convenient manipulation to meet various clinicians' requirements

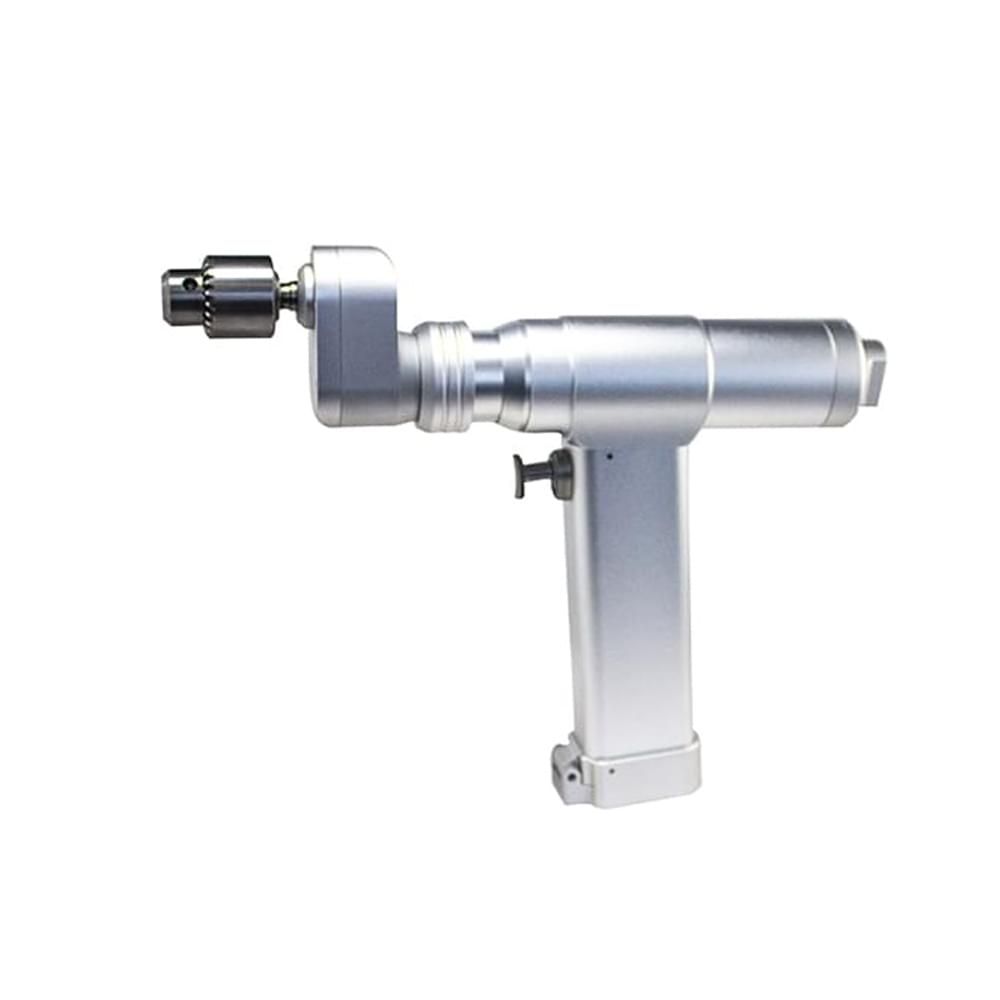

Product Display

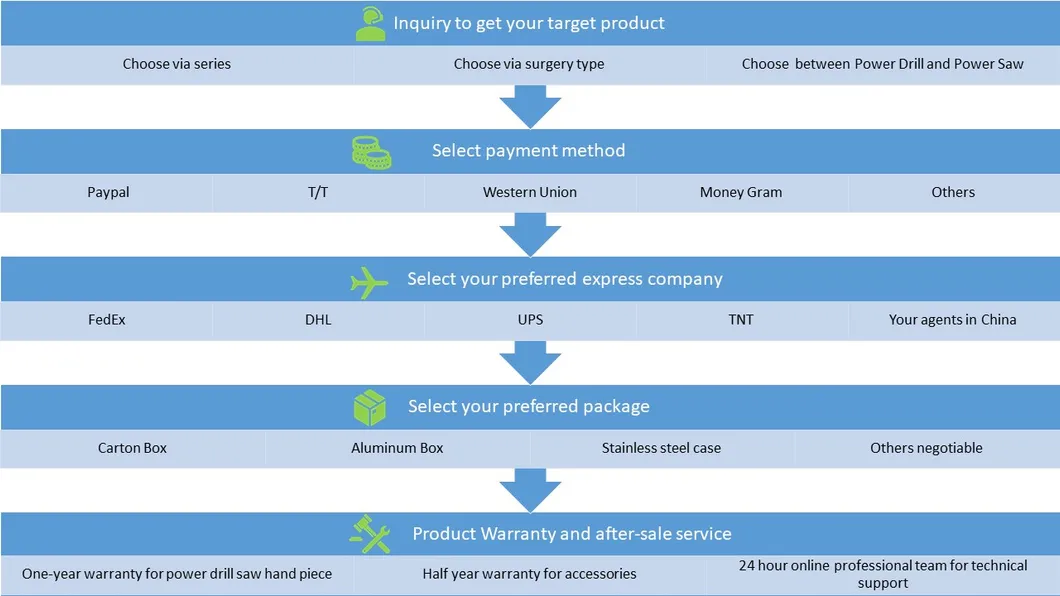

Process introduction of placing order
Payment term
1. Price: USD0-3600/Set FOB Shanghai
2. MOQ: 1 set
3. Payment term: T/T in advance or western union
4. Delivery time: 5 days after receiving the deposit
Technical Data
Points
1. Quick chuck: Imported chuck ensures outstanding performance during operation.
2. Sternum saw: Both 360° Rotating head and blade guard protect soft tissue around sternum.
3. Sternum saw: 4000 r. P. M rates assures fast, efficient and safe process in craniotomy.
4. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery
5. Cranial mill: 0-40000rmp rates of bur ensure the speed, high efficiency and safety duringoperation.
6. Oscillating saw: 360rotating head can be applied to any surgical sites. Can load and unload blades easy, fast and safe.
7. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to all brands' mill universal.
8. Wire and pin chuck: Applied to various intramedullary pin or kischner's wire fixing operation easily and conveniently.

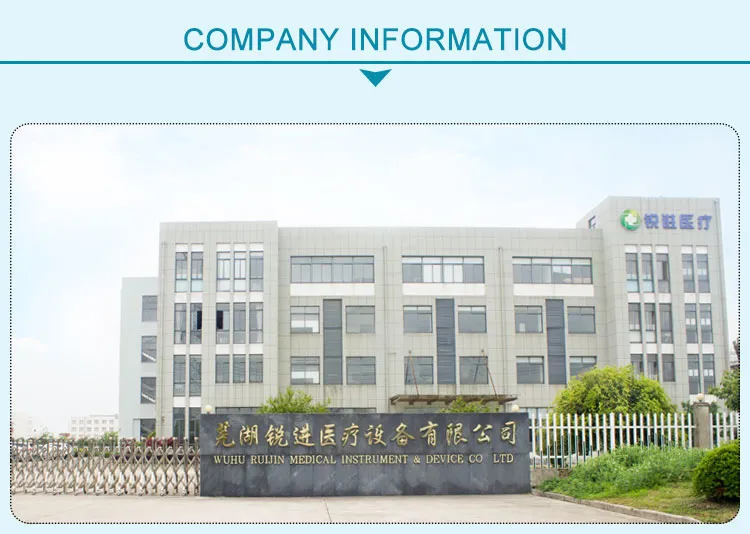

ABOUT US
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
CONTACT US:
No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
+(86) 0553-2672512

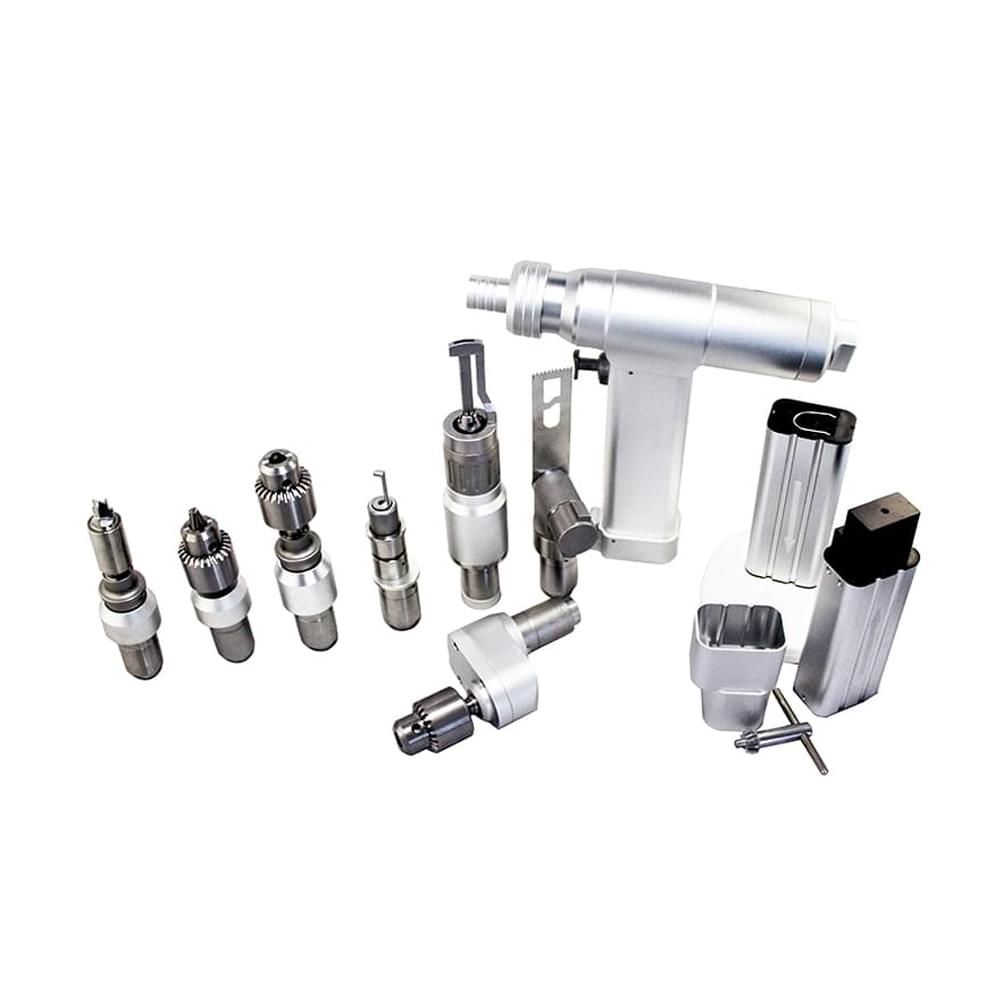

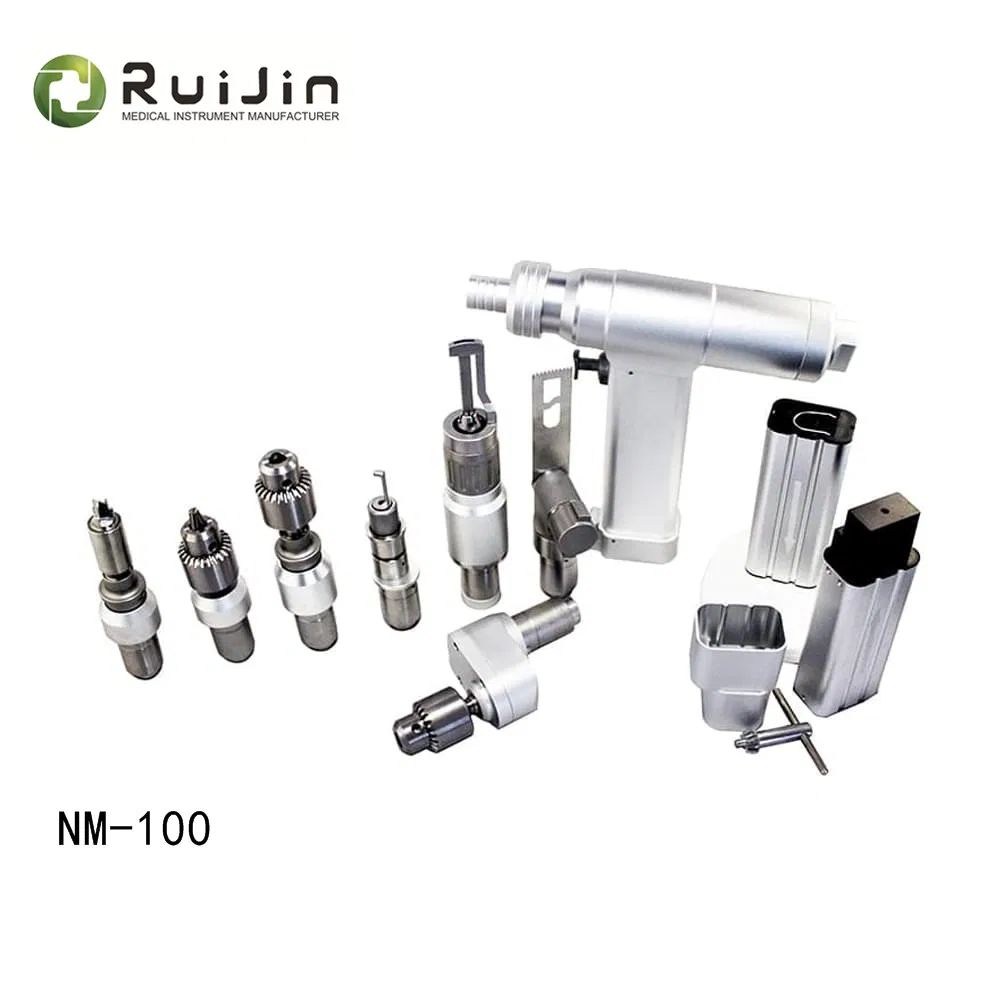

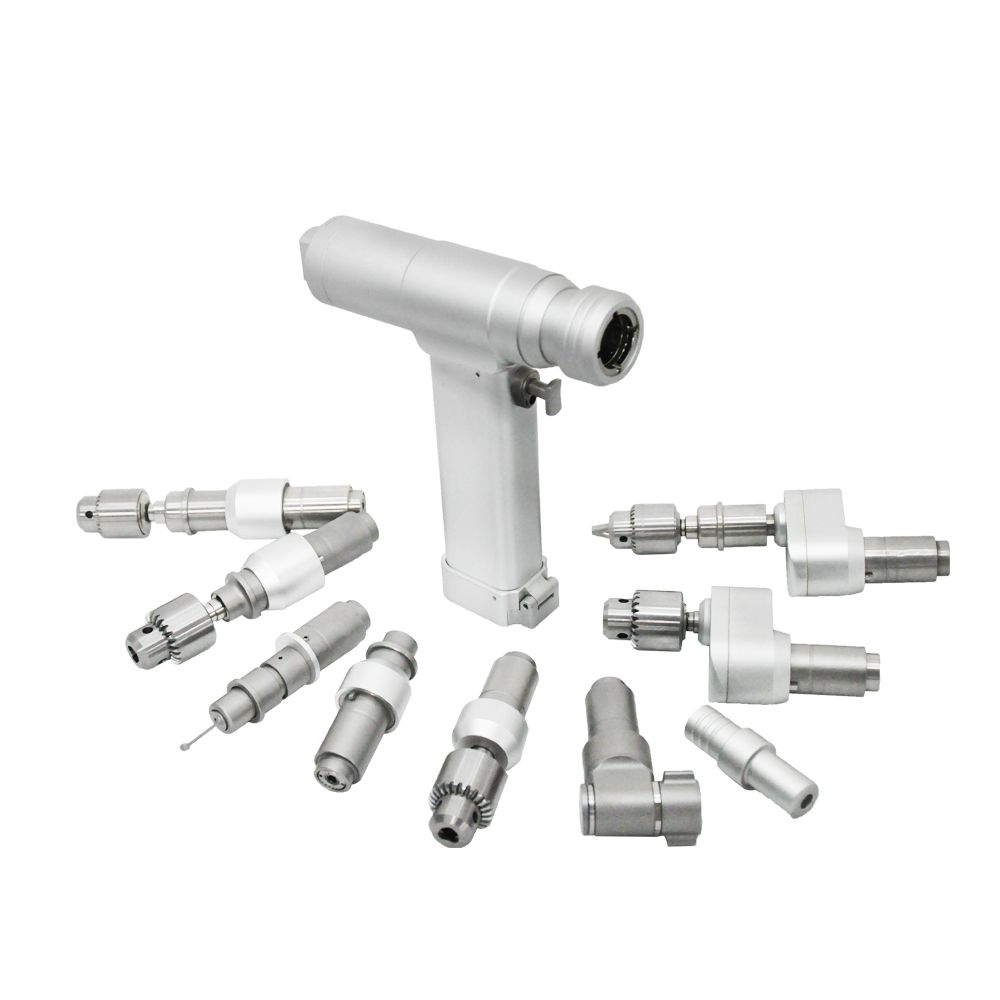

Main components
| Components | Quantity |
| Multifunctional mainframe | 1 |
| Quick chuck | 1 |
| Oscillating saw attachment | 1 |
| Canulate drill attachment | 1 |
| Acetabulum burnishing drill attachment | 1 |
| Cranial drill attachment | 1 |
| Cranial mill attachment | 1 |
| Sternum Saw attachment | 1 |
| Battery | 2 |
| Sterilizing channel | 1 |
| Sterilization tray | 1 |
| Aluminum alloy carrying box | 1 |
| High temperature plug | 1 |
1. Professional surgical power tools manufacturer
2. The single trigger modular handppiece can be autoclaved
3. Comprehensive range of quike change attachments
4. The ingenious handpiece is equipped by powerful motor and provides precise and stable performance
5. The ergonomic design offers comfortable grip and more convenient manipulation to meet various clinicians' requirements
Product Display
Process introduction of placing order
Payment term
1. Price: USD0-3600/Set FOB Shanghai
2. MOQ: 1 set
3. Payment term: T/T in advance or western union
4. Delivery time: 5 days after receiving the deposit
Technical Data
| Hand Piece | Working Voltage | 14.4V |
| Output Power | ≥20W | |
| Unit rise in temperature | ≤25°C | |
| Charger | Input Power | AC 220V,50Hz |
| Output Power | 14.4V,700mA | |
| Input Power | 30VA | |
| Battery | Voltage | 14.4V |
| Charging time | About 3 hours |

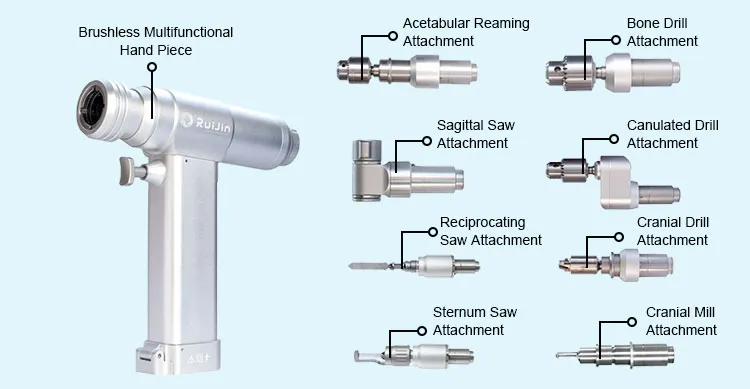

| 7 Attachments | Rotate speed |
| 1) Quick chuck (bone drill) | 0-1100r/m |
| 2) Oscillating saw | 0-16000r/m |
| 3) Acetabulum Reamer | 0-300r/m |
| 4) Wire and pin chuck (canulate drill) | 0- 1100r.m.p |
| 5) Cranial drill | 900r.m.p |
| 6) Craniotomy mill: | 40000r/m |
| 7) Sternum saw: | 15000r/m |
1. Quick chuck: Imported chuck ensures outstanding performance during operation.
2. Sternum saw: Both 360° Rotating head and blade guard protect soft tissue around sternum.
3. Sternum saw: 4000 r. P. M rates assures fast, efficient and safe process in craniotomy.
4. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery
5. Cranial mill: 0-40000rmp rates of bur ensure the speed, high efficiency and safety duringoperation.
6. Oscillating saw: 360rotating head can be applied to any surgical sites. Can load and unload blades easy, fast and safe.
7. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to all brands' mill universal.
8. Wire and pin chuck: Applied to various intramedullary pin or kischner's wire fixing operation easily and conveniently.
ABOUT US
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
CONTACT US:
No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
+(86) 0553-2672512
