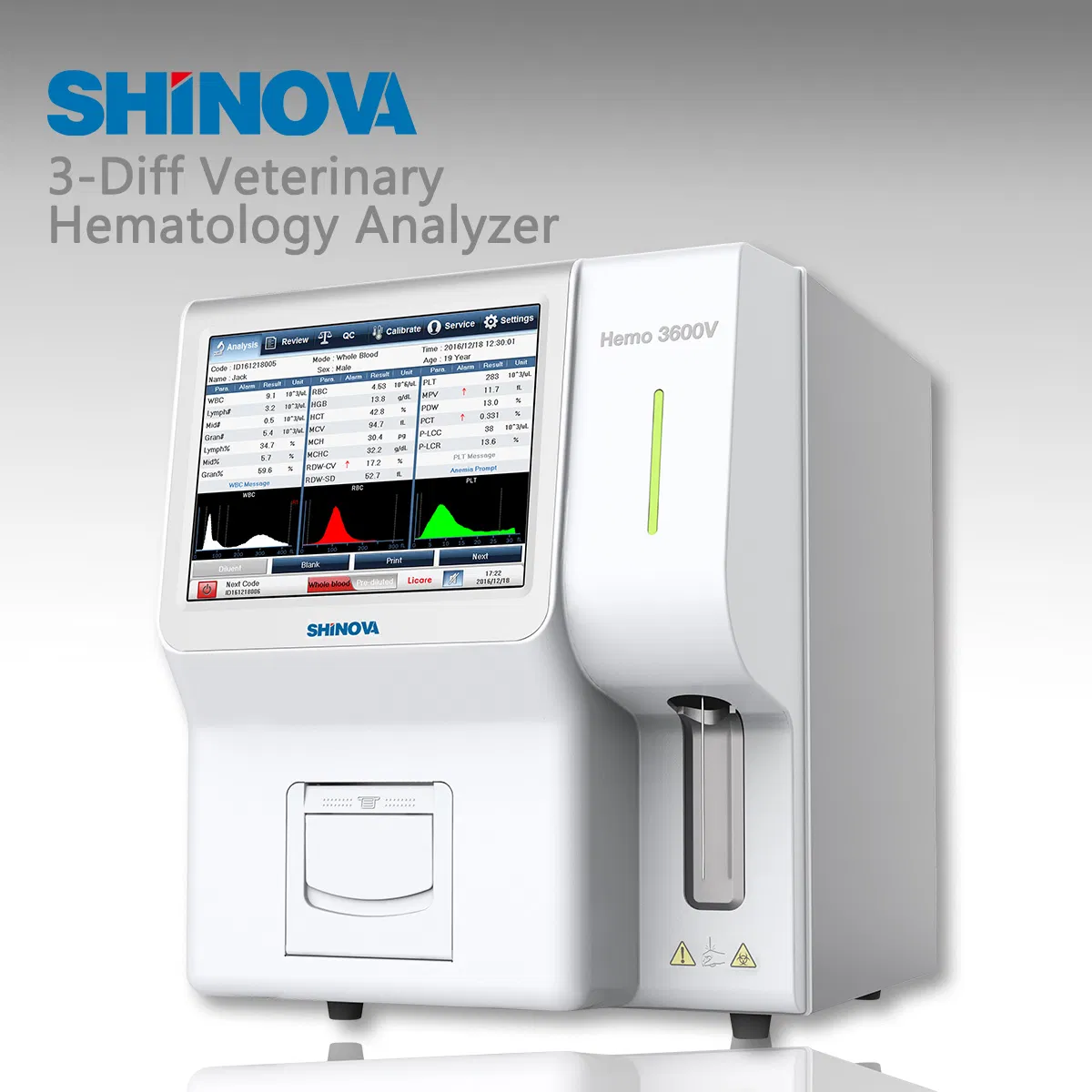

3-Diff Fully-Automatic Veterinary Hematology Analyzer (Hemo 3600V)
Descriptions:User-friendly interface10.4 inch true color TFT LCD & touch screen, more visibleMinimize the number of interface layers, pop-up soft keyboard, easy to operateInternationalization supportPossible choice of parameter units. Several languages available, can switch language onlinePre-de......
Send Inquiry
Product Description
Descriptions:
User-friendly interface
10.4 inch true color TFT LCD & touch screen, more visible
Minimize the number of interface layers, pop-up soft keyboard, easy to operate
Internationalization support
Possible choice of parameter units. Several languages available, can switch language online
Pre-defined for 13 animals plus an addition 3 user-defined animals, satisfy the requirements of most veterinary clinics
Provide text of alarm information
Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer, such as R1, Rm and Pm
Automatic blank counting
Automatically start a blank counting and auto-assessment of the results during start-up process
Automatic re-counting
Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood
Wider linearity range & excellent repeatability
Maintenance-free syringe
Built-in patented structure thermal printer. Easy to load paper, and fast print of large size report
Paper 80mm wide. Report printing takes only 5 seconds
State-of-the-art technology
Sweeping flow technology, Pulse discrimination technology, Intelligent floating threshold technology
Wide application
Pet hospitals, Zoos, Livestock system, Laboratory Animal Center, etc
Specifications:
About Us
SHINOVA, incorporated in October 2005, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and clinics.
With leading research, design, operation and service capabilities, Shinova devotes ourselves to providing advanced veterinary techniques for veterinarians to solve all the diagnostic and treatment difficulties of animal care.
User-friendly interface
10.4 inch true color TFT LCD & touch screen, more visible
Minimize the number of interface layers, pop-up soft keyboard, easy to operate
Internationalization support
Possible choice of parameter units. Several languages available, can switch language online
Pre-defined for 13 animals plus an addition 3 user-defined animals, satisfy the requirements of most veterinary clinics
Provide text of alarm information
Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer, such as R1, Rm and Pm
Automatic blank counting
Automatically start a blank counting and auto-assessment of the results during start-up process
Automatic re-counting
Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood
Wider linearity range & excellent repeatability
Maintenance-free syringe
Built-in patented structure thermal printer. Easy to load paper, and fast print of large size report
Paper 80mm wide. Report printing takes only 5 seconds
State-of-the-art technology
Sweeping flow technology, Pulse discrimination technology, Intelligent floating threshold technology
Wide application
Pet hospitals, Zoos, Livestock system, Laboratory Animal Center, etc
Specifications:
Measuring Principles
Impedance method for cells counting
Cyanide free colorimetric method for HGB measurement
Measuring Channels
Double channel for counting
Throughput
From beginning of a test to completion of the printout: ≤60 Seconds
Counting Modes
Whole Blood, Pre-diluted Blood
Sample Volume
Whole Blood: ≤14µL
Pre-diluted Blood: ≤20µL
Species of Animals
13 pre-defined animal settings (dog, cat, horse, mouse, rat, rabbit, pig, cow, buffalo, monkey, camel, sheep and goat) plus 3 programmable on request
Parameters & Histograms
Three-part differentiation of WBC covering dog, cat, mouse, rat, rabbit, monkey and horse, 21 parameters +3 histograms
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram
Alarm System
Multiple alarms of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area leak or bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc
Measures of Unclogging Treatment
Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
Printout
English/Chinese print report, optional report formats
Storage
Can store more than 10,000 sample results, including parameters, histograms and animal information. Support multiple conditions combination query
Communication
Open communication protocol. Support connection to LIS
Data Import & Export
Import or export data via USB Port
Quality Control System
Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
Calibration System
Support manual and automatic calibration
Software Upgrading
Upgrading software via USB port
Display & Touch Screen
10.4 inch true color TFT LCD and touch screen

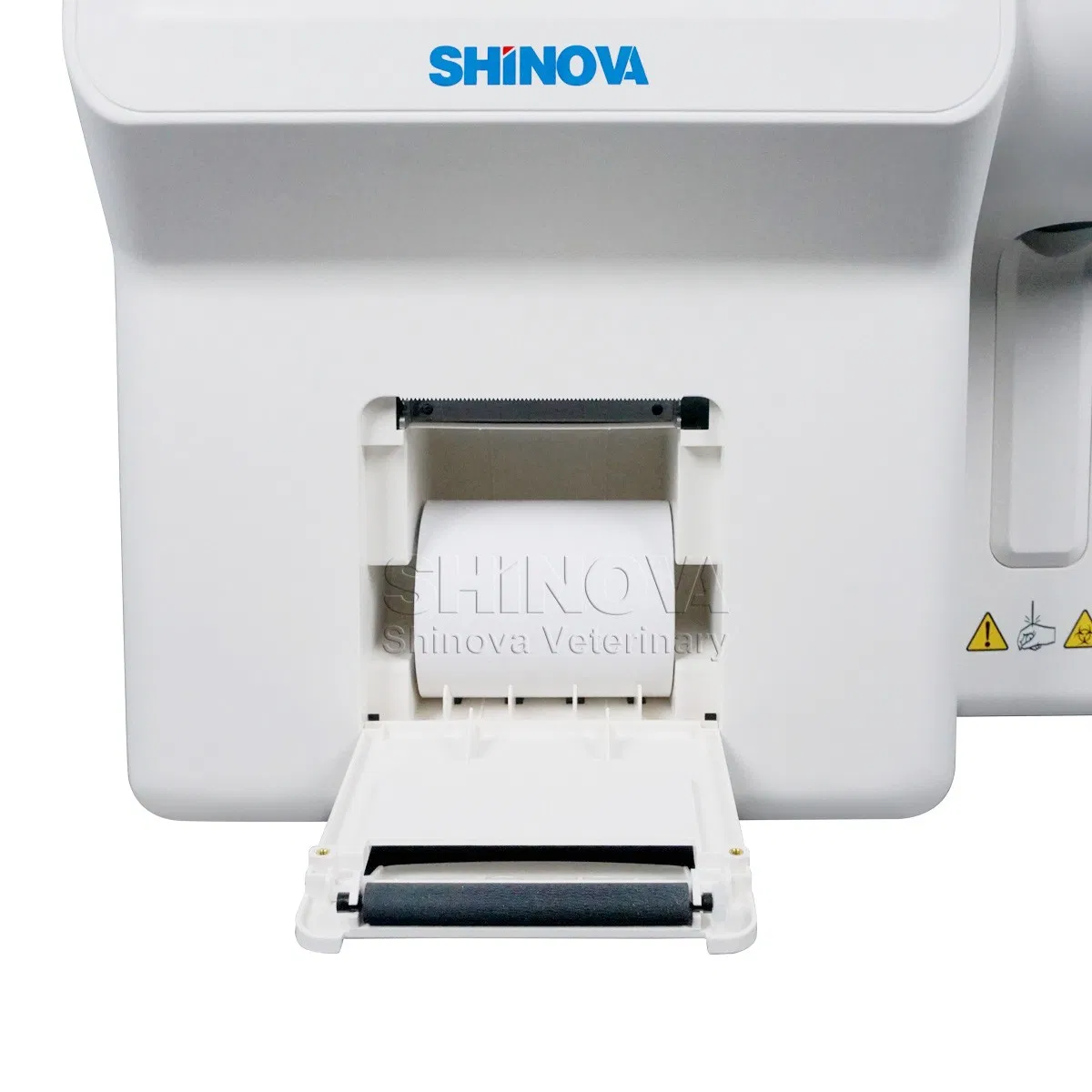

Printer
Built-in thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds

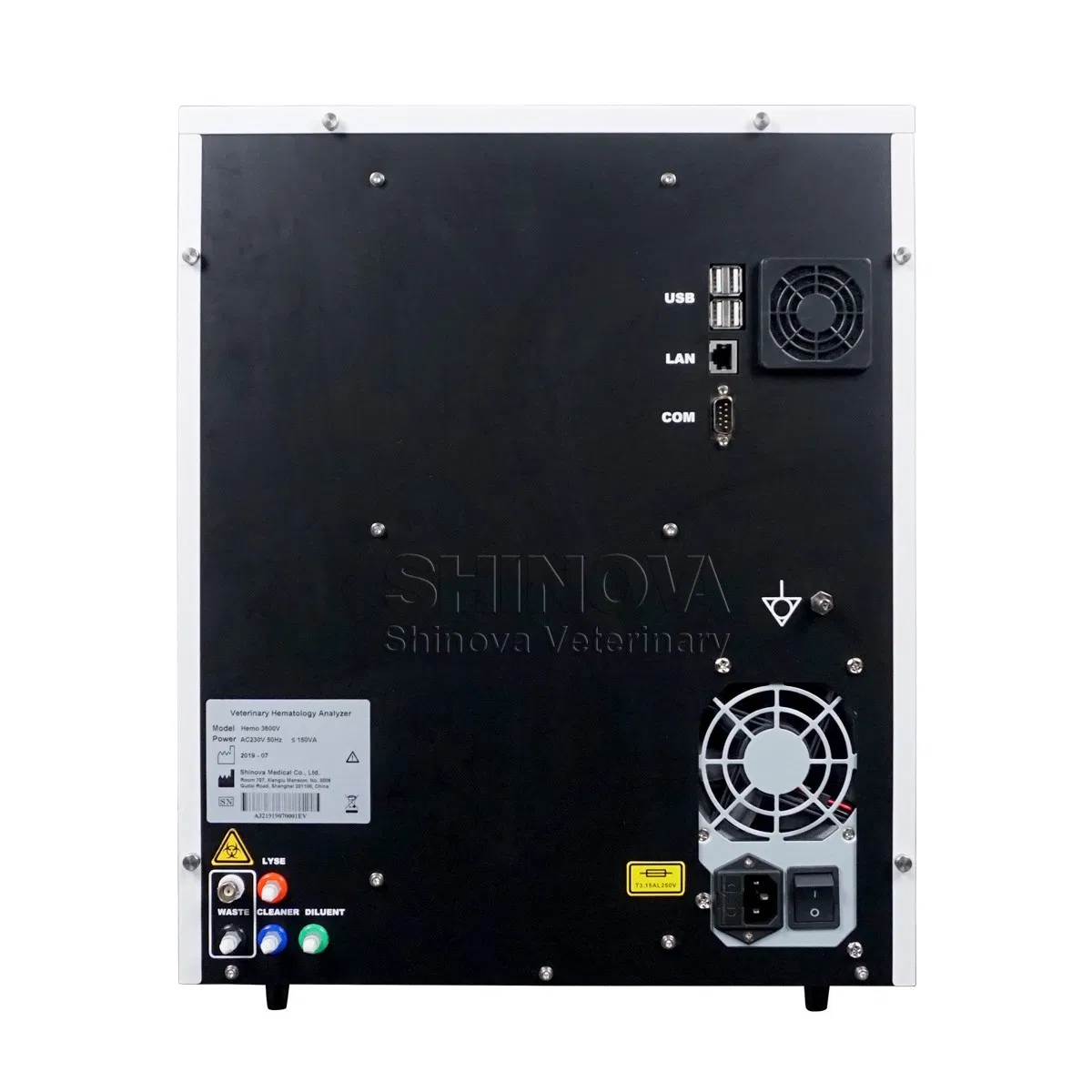

Data Ports
One network port, one RS-232 port, four USB ports
Optional External Devices with USB port
Standard 101 keyboard, mouse, barcode scanner and multiple printers
Power
220V, 50Hz Input power: ≤150VA
Operating Environment
Environment Temperature: 10 ºC~30ºC
Relative Humidity: ≤70%
Atmospheric Pressure: 70.0kPa~106.0kPa

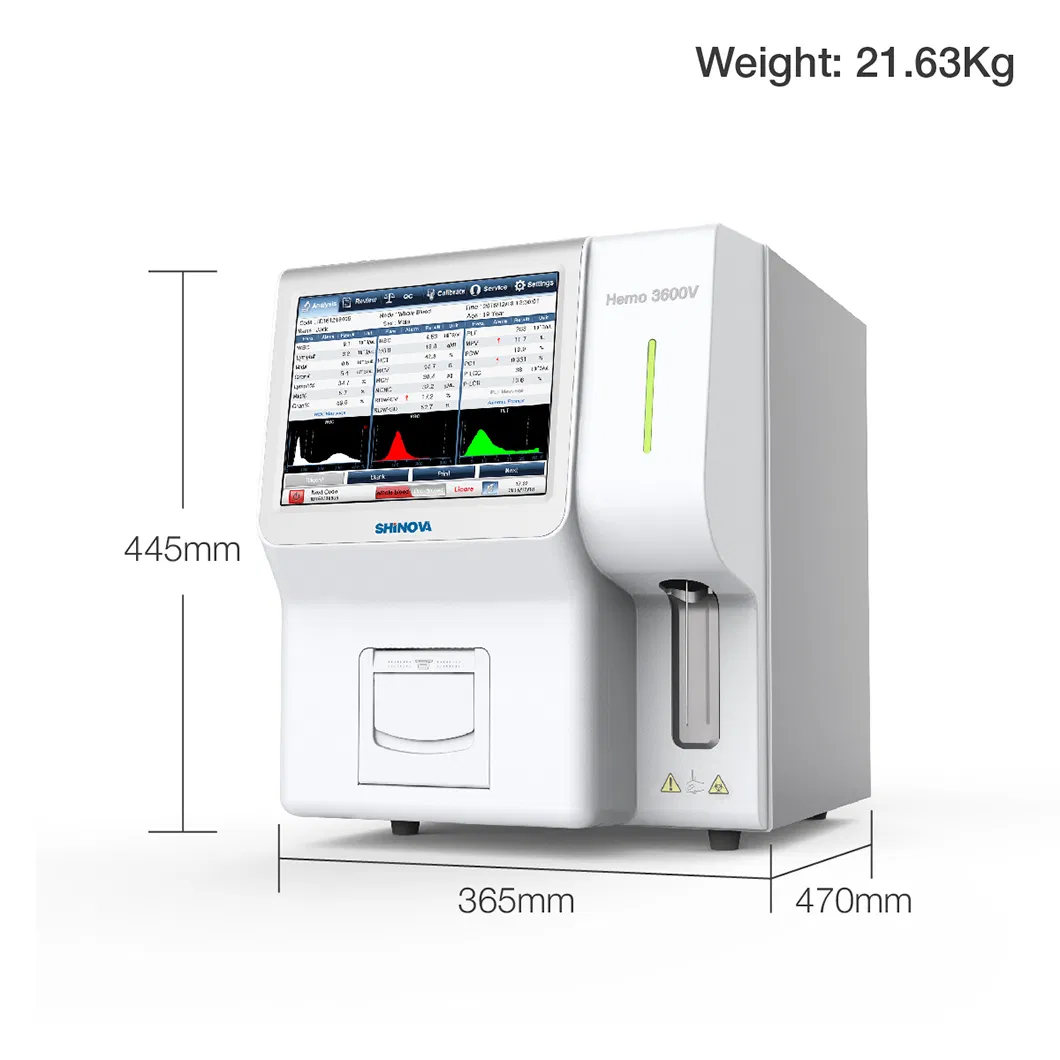

Dimensions
368mm x 448mm x 475mm
Weight
≤23Kg
Reagents
Provide original reagents and Material Safety Data Sheet (MSDS) Certification
Impedance method for cells counting
Cyanide free colorimetric method for HGB measurement
Measuring Channels
Double channel for counting
Throughput
From beginning of a test to completion of the printout: ≤60 Seconds
Counting Modes
Whole Blood, Pre-diluted Blood
Sample Volume
Whole Blood: ≤14µL
Pre-diluted Blood: ≤20µL
Species of Animals
13 pre-defined animal settings (dog, cat, horse, mouse, rat, rabbit, pig, cow, buffalo, monkey, camel, sheep and goat) plus 3 programmable on request
Parameters & Histograms
Three-part differentiation of WBC covering dog, cat, mouse, rat, rabbit, monkey and horse, 21 parameters +3 histograms
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram
Alarm System
Multiple alarms of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area leak or bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc
Measures of Unclogging Treatment
Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
Printout
English/Chinese print report, optional report formats
Storage
Can store more than 10,000 sample results, including parameters, histograms and animal information. Support multiple conditions combination query
Communication
Open communication protocol. Support connection to LIS
Data Import & Export
Import or export data via USB Port
Quality Control System
Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
Calibration System
Support manual and automatic calibration
Software Upgrading
Upgrading software via USB port
Display & Touch Screen
10.4 inch true color TFT LCD and touch screen
Printer
Built-in thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds
Data Ports
One network port, one RS-232 port, four USB ports
Optional External Devices with USB port
Standard 101 keyboard, mouse, barcode scanner and multiple printers
Power
220V, 50Hz Input power: ≤150VA
Operating Environment
Environment Temperature: 10 ºC~30ºC
Relative Humidity: ≤70%
Atmospheric Pressure: 70.0kPa~106.0kPa
Dimensions
368mm x 448mm x 475mm
Weight
≤23Kg
Reagents
Provide original reagents and Material Safety Data Sheet (MSDS) Certification
