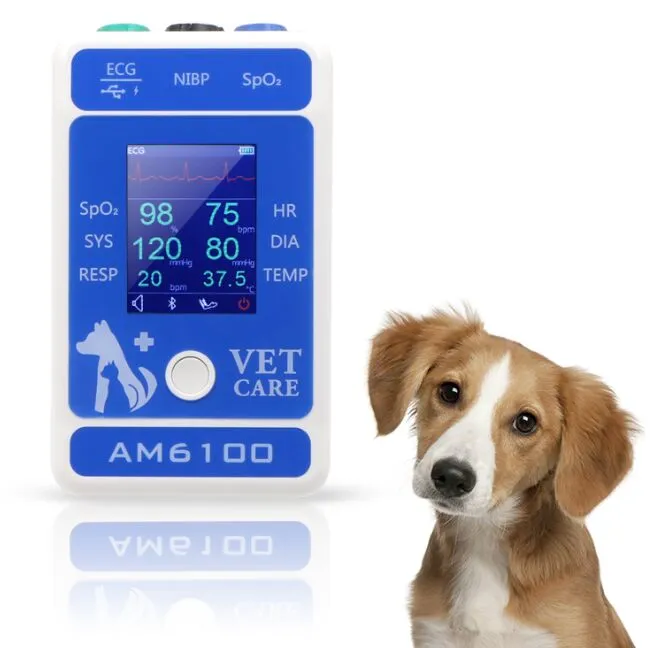

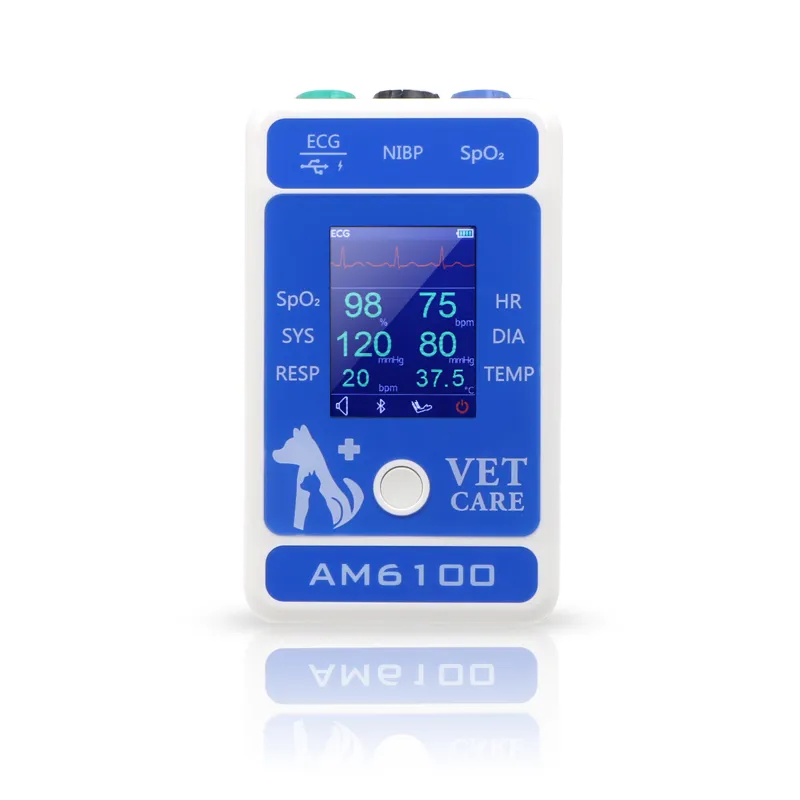

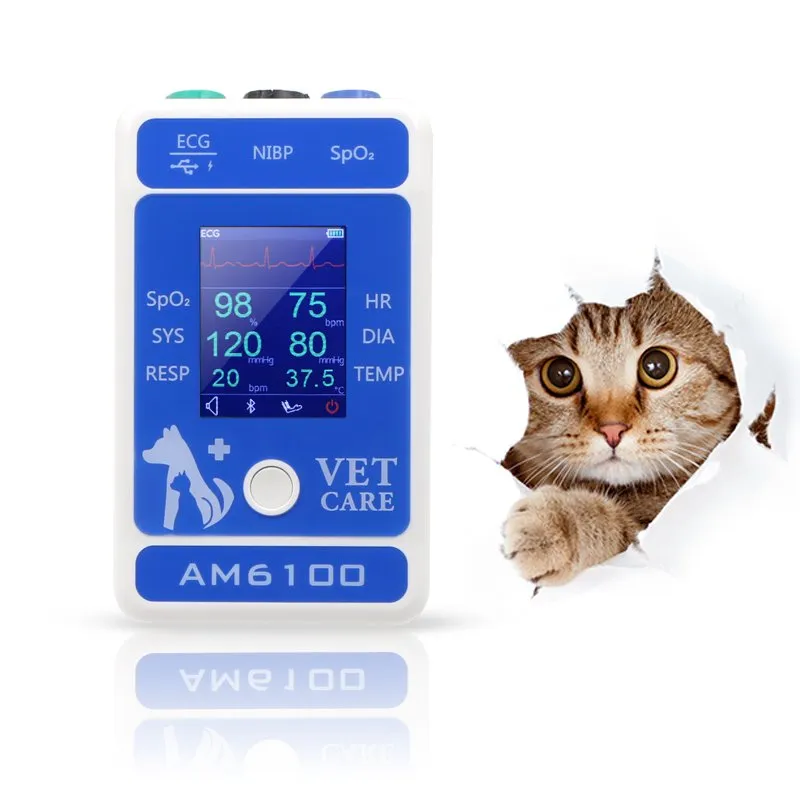

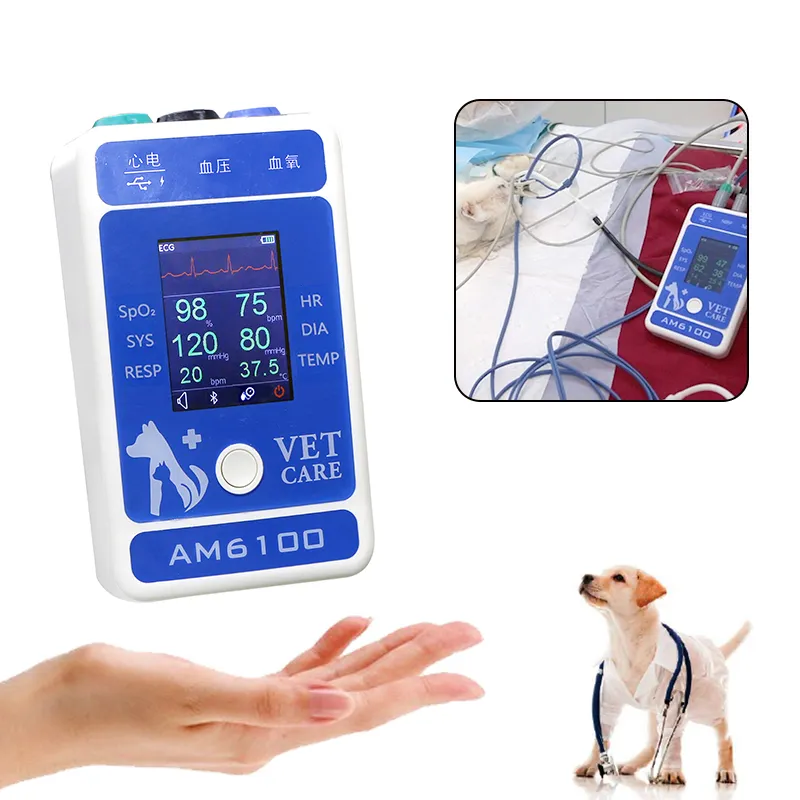

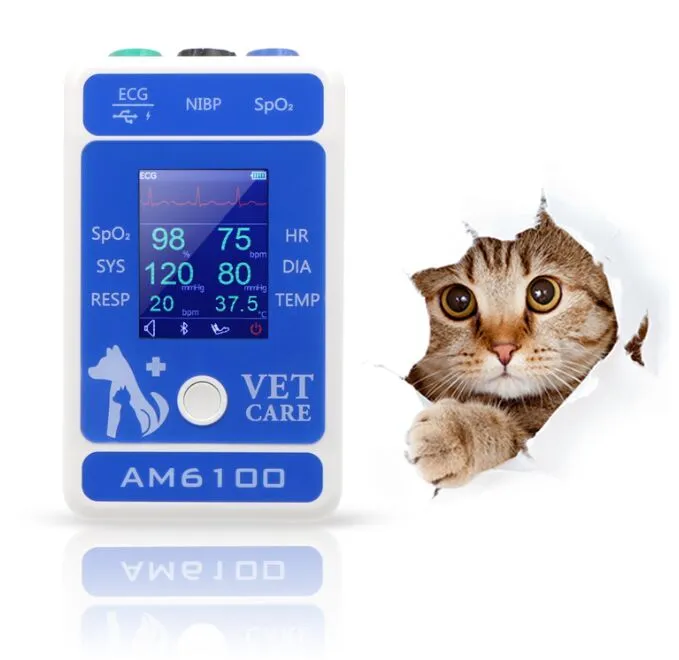

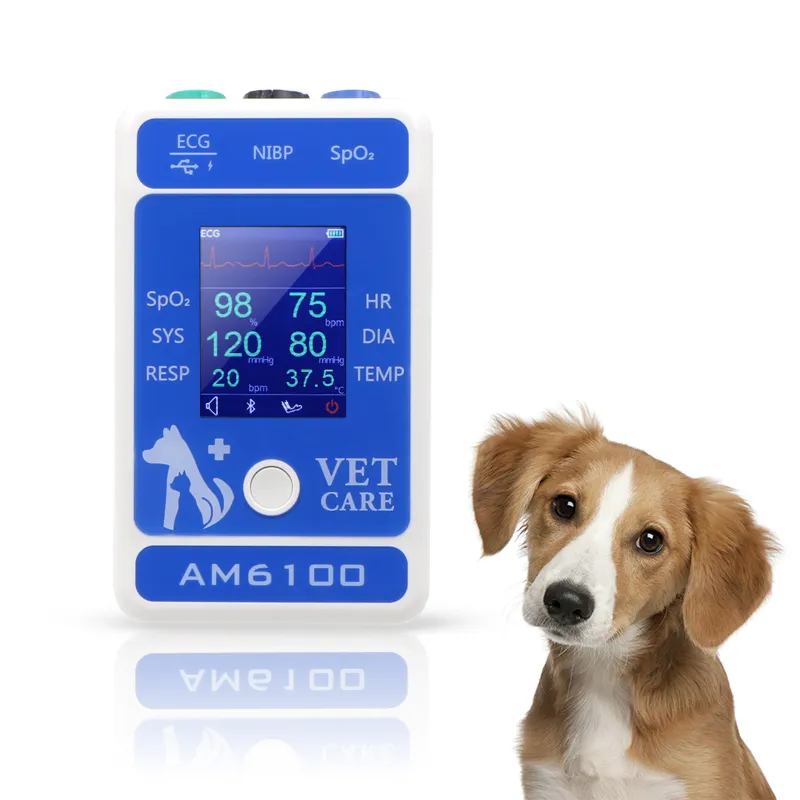

Animal Cat and Dog Vet Patient Monitor Medical Equipment Veterinary Instrument Animal Monitor Pet Monitor Pet Equipment Veterinary Clinic Equipment
Product Features: monitoring 6 vital signs: spo2, PR, NIBP, ECG, Resp, Temp.Free App can be download at google play for Android pad and android phone, named: Pet Monitor.Support Bluetooth BLE 4.0 & 3.0, And the data is transmit from device to App via Bluetooth/serial port. Can active the device ......
Send Inquiry
Product Description
Product Features:

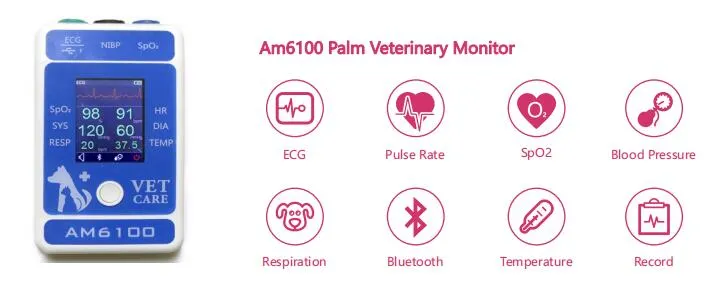

- monitoring 6 vital signs: spo2, PR, NIBP, ECG, Resp, Temp.
- Free App can be download at google play for Android pad and android phone, named: Pet Monitor.
- Support Bluetooth BLE 4.0 & 3.0, And the data is transmit from device to App via Bluetooth/serial port. Can active the device via physical button or on App.
- Small, lightweight, it is simple to operate and easy to carry.
- Rechargeable lithium-ion battery, 13 continuous working after each full charge
SPECIFICATION
Operation system | Android |
ECG | Waveform: Lead I Band width 0.05Hz-100Hz(3dB) diagnose mode 1-40Hz monitor mode 0.1-25Hz operation mode |
Resp | Scope :0bpm to 100bpm Accuracy:±1bmp
|
Temp | Type: Vascular/surface temperature Scope: 20ºC-50ºC Accuracy: ±0.2ºC |
NIBP | Detection scope: Systolic blood pressure: 4kPa-34kPa(30-255mmHg) Diastolic pressure: 2kPa-29.3kPa(15-220mmHg) Mean pressure: 2.7kPa-31.3kPa(20-235mmHg) Detection accuracy: Static pressure:±4mmHg |
SpO2 | Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79% |
Heart rate | Scope: 15bpm to 300bpm Accuracy: ±1bpm |
AC adapter | Input:AC100-240v-200mA Output:DC 5v1A |
Bluetooth | Support both Bluetooth 3.0 and BLE 4.0 |
Service life | Over 10000 times |
Size | 145mm*85mm*37mm |

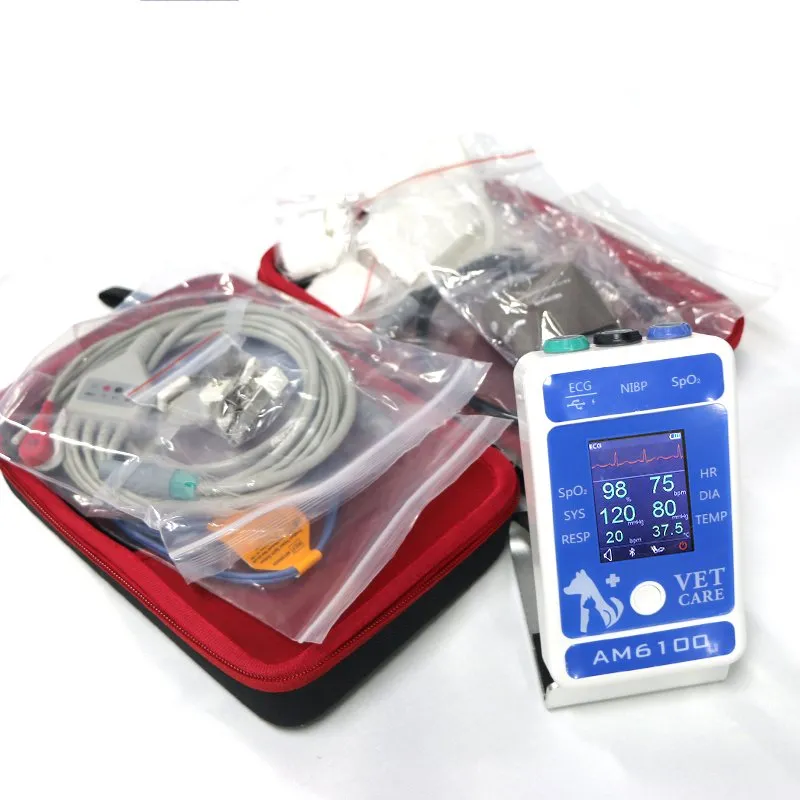

Accessories included:
- 1 pc tongue and ear clip spo2 sensor
- 1 pc ECG cable
- 1 pc temp sensor built together with ECG
- 1 pc NIBP tube and 1 pc reusable NIBP cuff and 5pcs disposable cuff.
- 1 pc charging line
- 1 pc operation manual
- 1 carry case.
