Factory Price Hospital Medical Equipment Animal Handheld Vet Color Doppler Portable Veterinary Ultrasound Scanner

Product Description

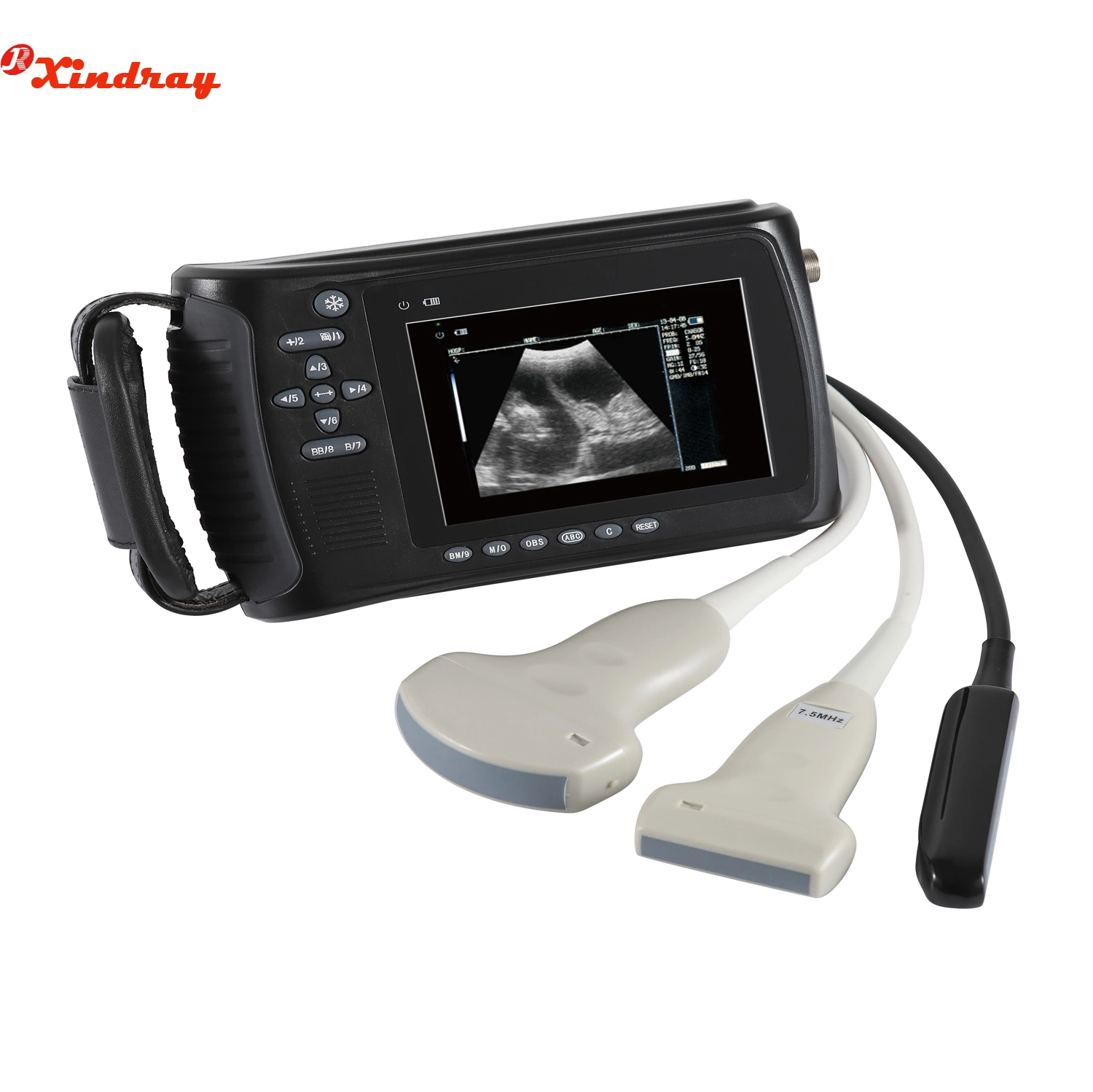

Factory Price Hospital Medical Equipment Animal Handheld Vet Color Doppler Portable Veterinary Ultrasound Scanner

Features:

1. 5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.

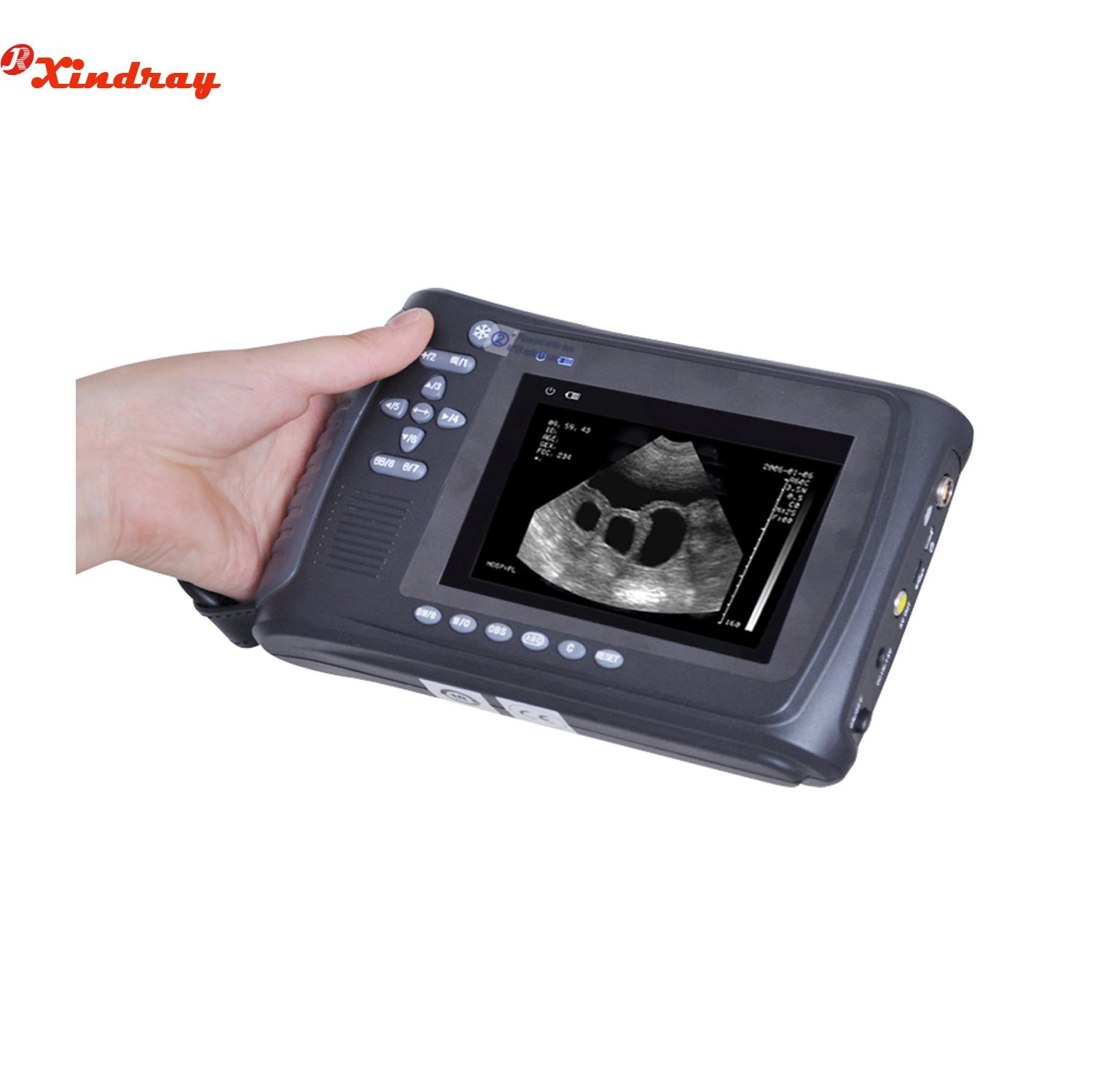

2. Hand-held design, smart and light, easy to carry, convenient for detection.
3. OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
4. 128 frames permanent storage, 256 frames cine loop.

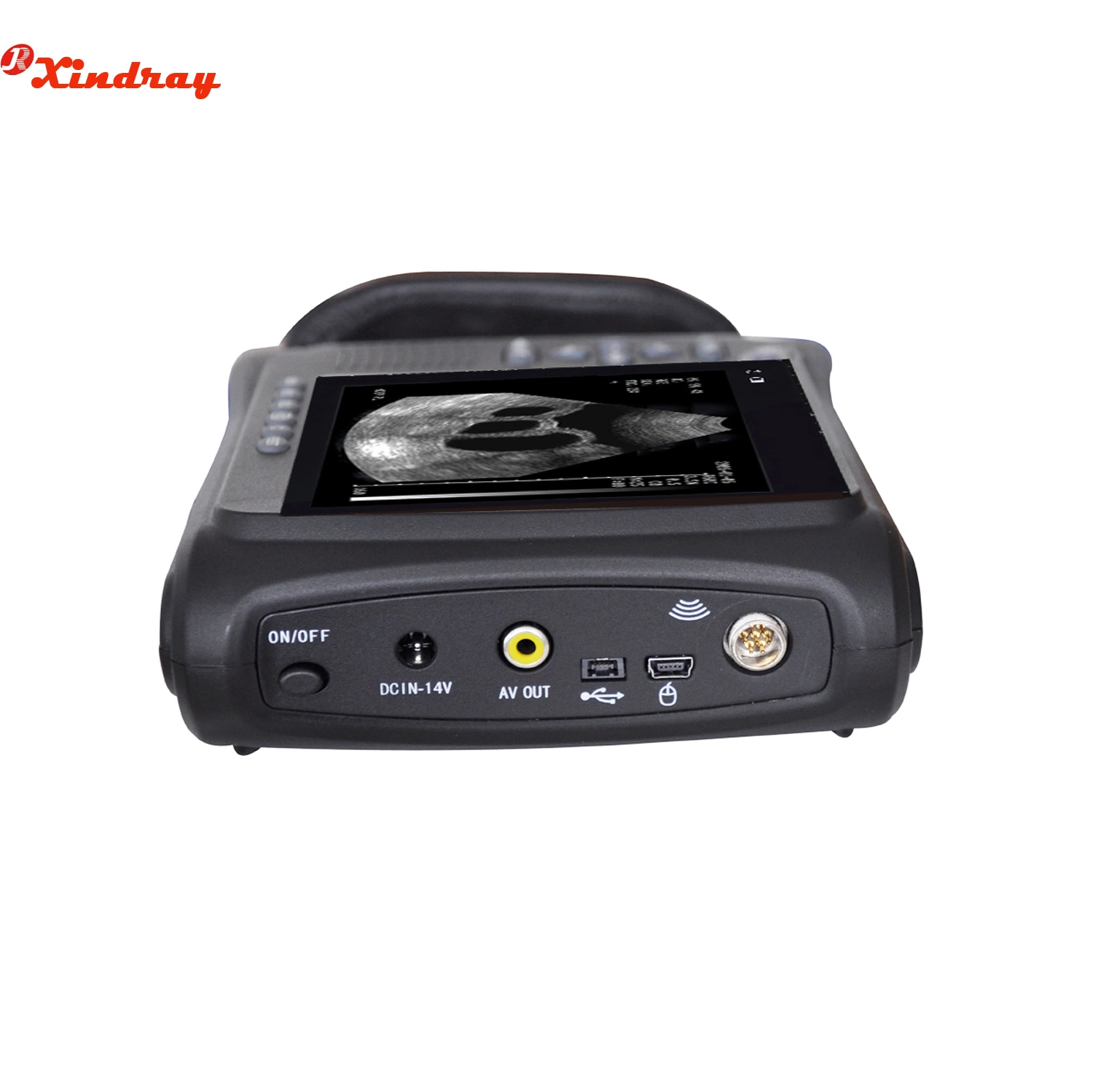

5. Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
6. Easy to print out all kinds of detection images and reports.
7. Optional mouse to operate easier.
8. Adopted AC and DC to supply power, lithium battery capacity 2600mA which can make machine work more than 180 minutes.

Specifications:

Detect Depth(mm)	≥140mm	Image process	Histogram, color encode, gama, image smooth
Blind zone(mm)	≤3mm	Probe frequency	Adjustable ( 3 point each probe )
Monitor size	5 inch TFT-LCD	Frame correction	Adjustable
Display mode	B, B+B, B+M, M, 4B	Measurement	distance, circumference, heart rate, EDD, area, volume, GA and etc.
Image gray scale	256	Notation	date, time, name, sex, age, full screen words edit and etc.
Image storage	128	Output report	regular
Cine loop	≥400 frame	Output	USB2.0, VIDEO( PALD, NTSC)
Scan depth	120mm-220mm	Charging method	adapter, battery
Image flip	up/down, left/right	Adapter rating	100-240V~, 50-60Hz, 70VA
Focus position	Adjustable	Battery	2600mAh, continuous work: ≥3 hours
Posture mark	15	Dimension/Weight	230mm(L)x120mm(W)x39mm(H)/700g

Ultrasound Machine Series

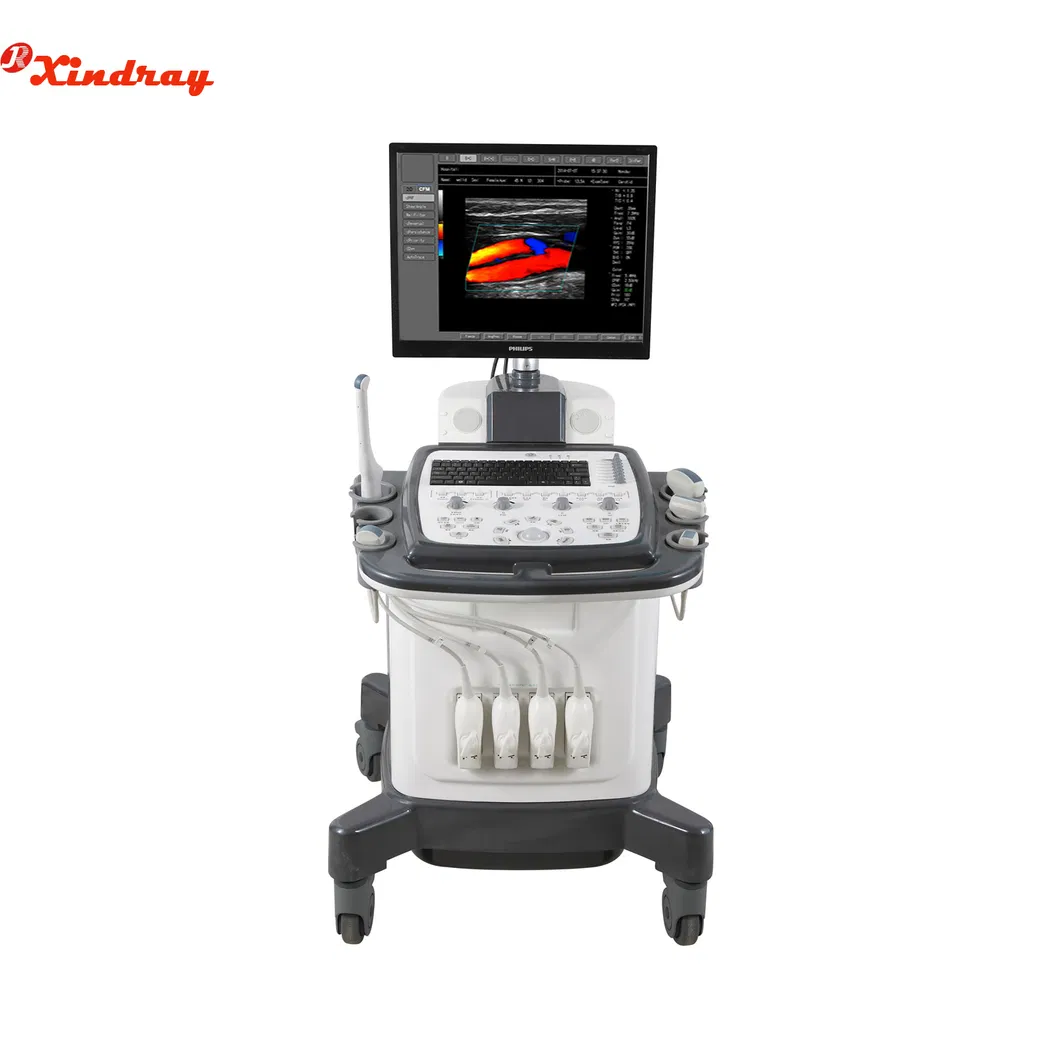

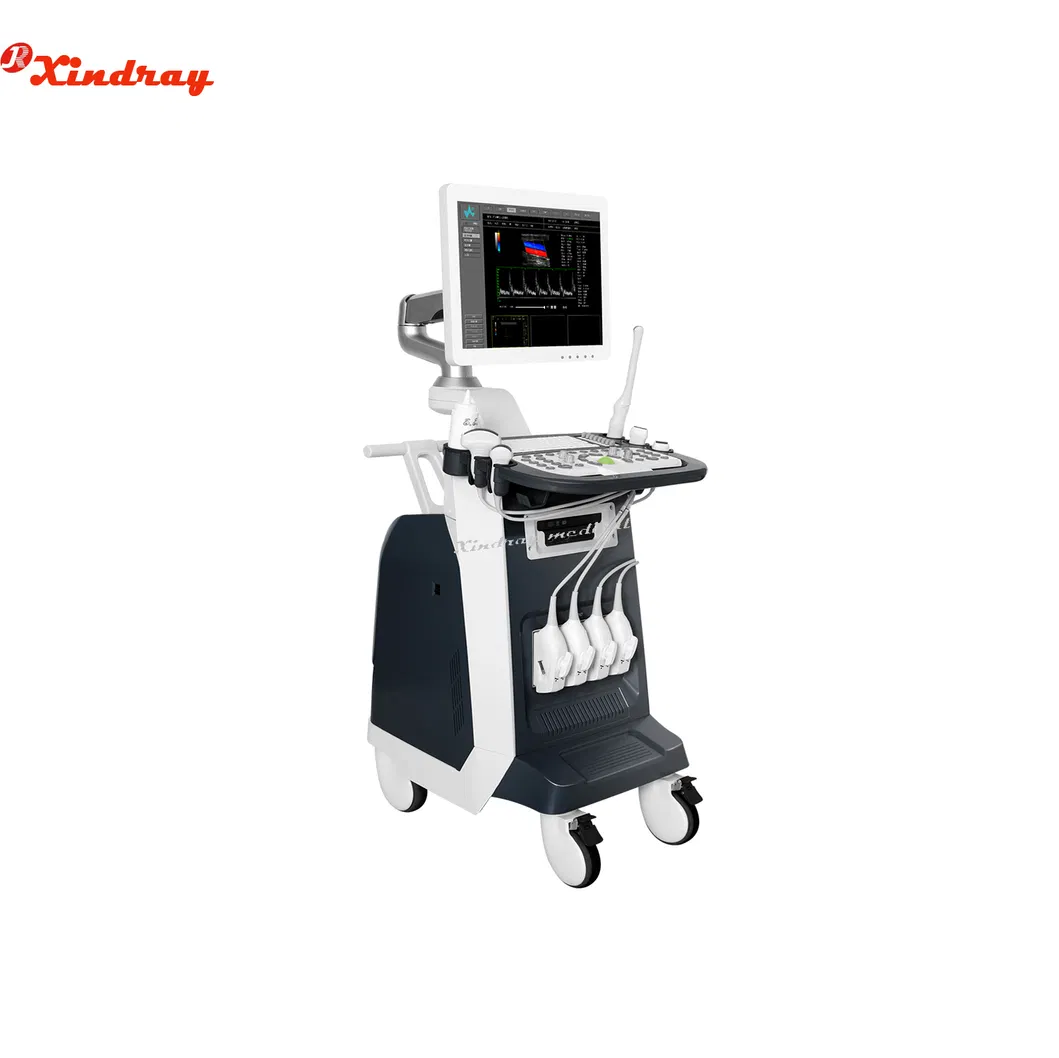

Color Ultrasound Machine

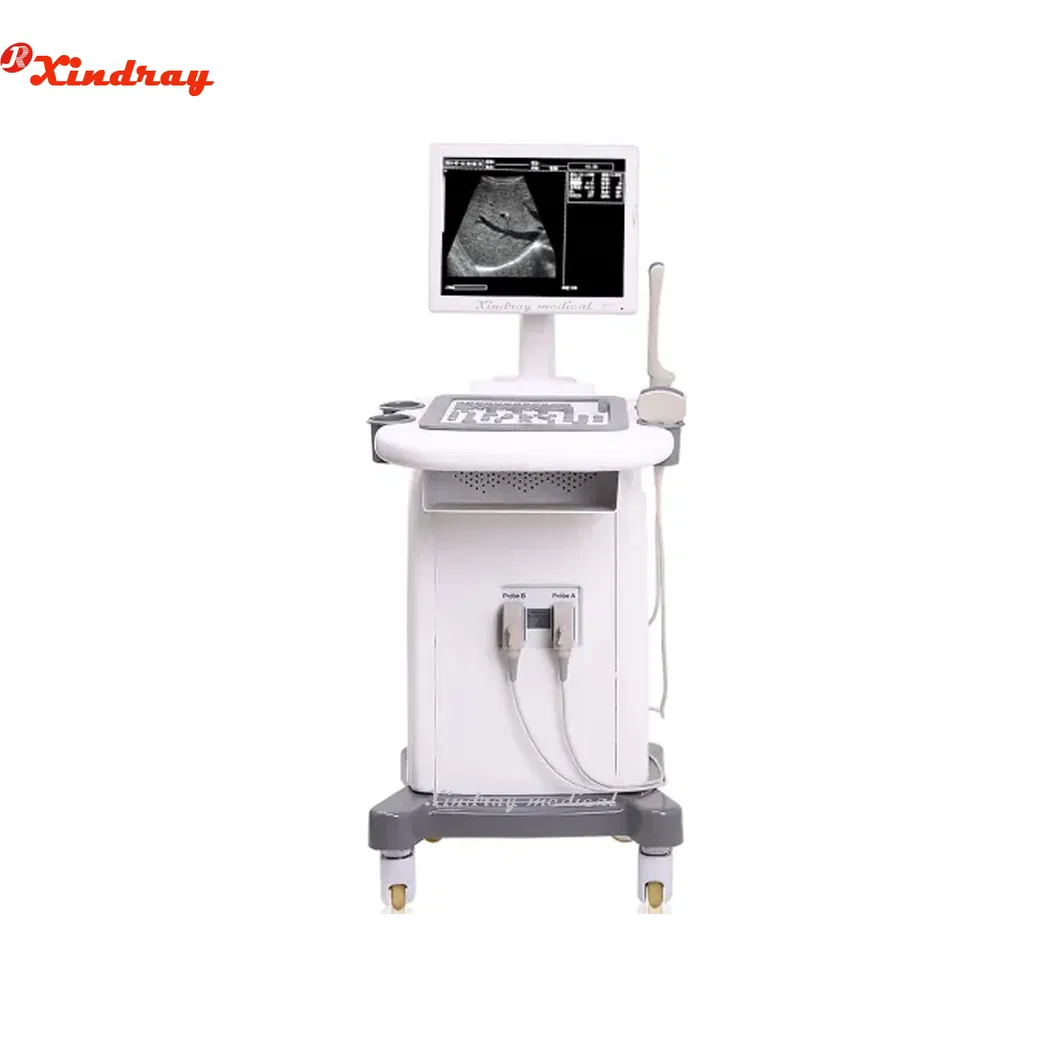

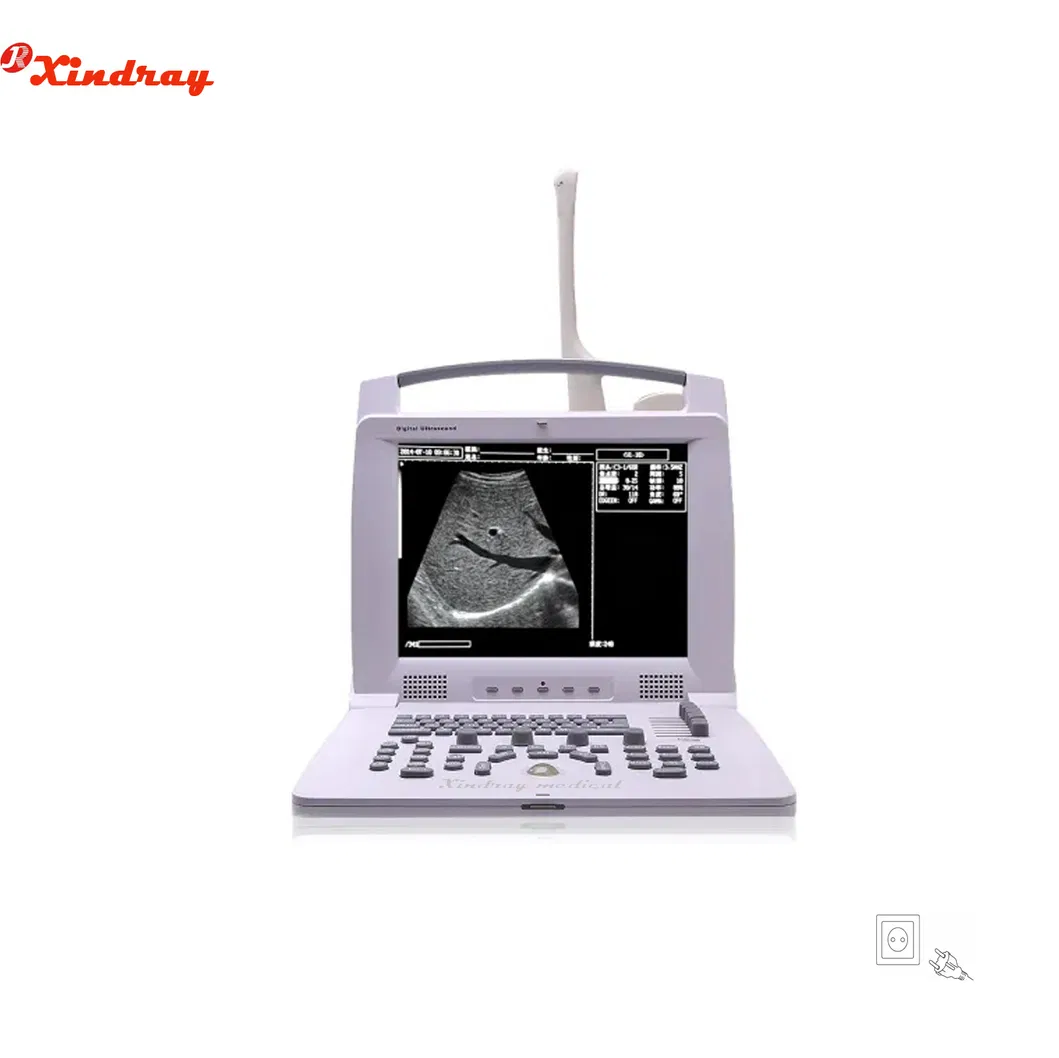

B/W Ultrasound Machine
