HD Imaging Processor for Animal Video Endoscopes (VIS-1200HD(Li))

Large Animal Video Endoscopes HD Imaging Processor
Model: Gastrix 92V(HD),Colonix 98V(HD),Colonix 130V(HD)

With the extended length and sleek design, Shinova multipurpose veterinary endoscopes are Ideal for numerous large animal applications, including: Gastroscopy, Esophagoscopy, Tracheoscopy, Rhinoscopy, Pharyngoscopy and laryngoscopy. Large working channel facilitates bigger biopsies to ensure a more accurate diagnosis. Uniform image brightness, even under difficult lighting conditions

Gastrix 92V
Working length      1500 mm
Diameter of distal-end 9.0mm
Diameter of instrument channel 2.8mm
Range of bending U210° D90°   R/L100°

Colonix 98V
Working length      3000 mm
Diameter of distal-end 9.6mm
Diameter of instrument channel 2.8mm
Range of bending U210° D90°   R/L100°

Colonix 130V
Working length      3000 mm
Diameter of distal-end 12.8mm
Diameter of instrument channel 3.7mm
Range of bending U/D180°   R/L160°

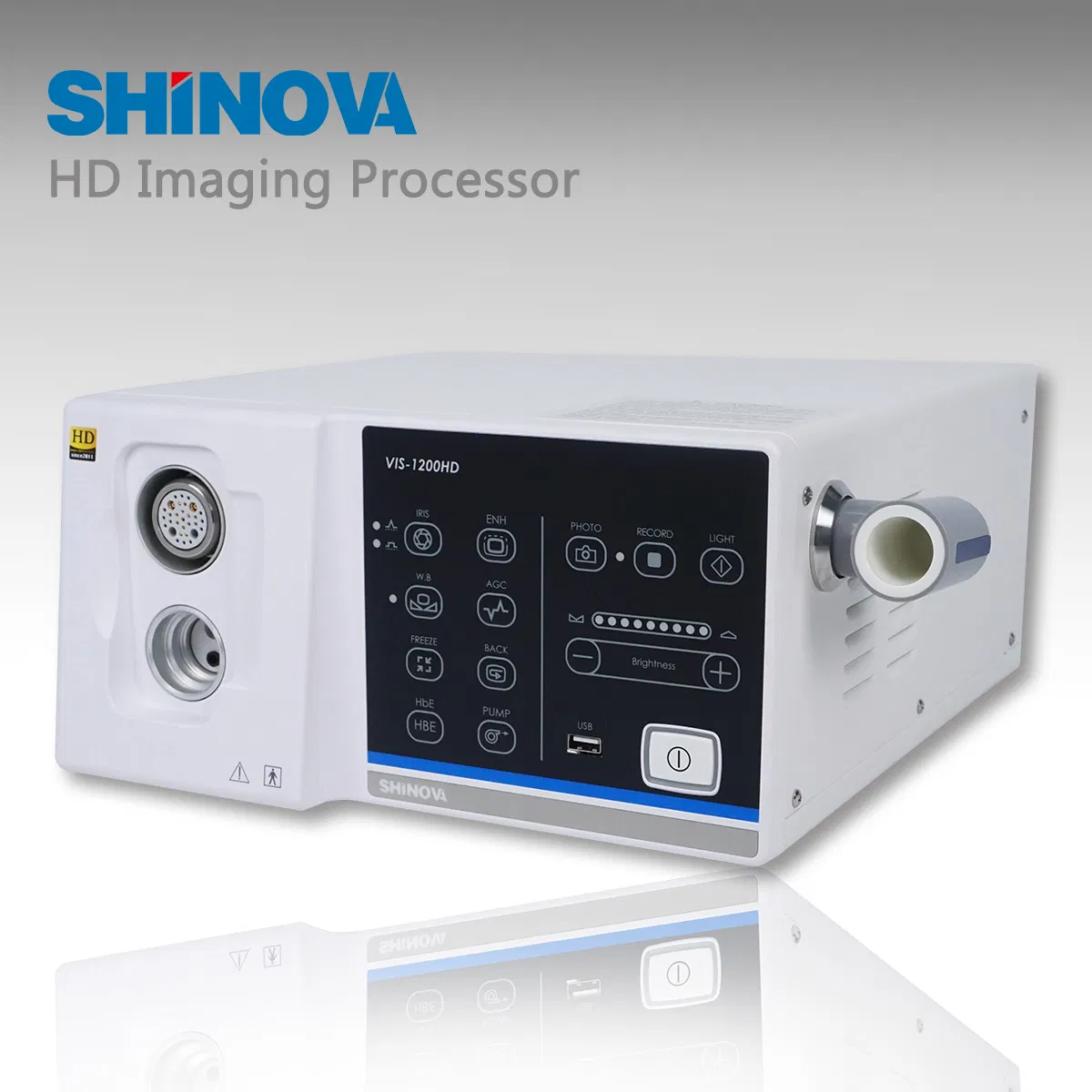

VIS-1200HD Imaging Processor

Observation
Video Signal Outputs: Y/C, DVI, AV
Image Enhancement: profile enhance, 0-3 steps
Brightness Adjustment: ±50 steps
IRIS  Average, Peak
AGC     Electronic emphasis on mucosal morphology or oυtline to enhances the sharpness of the endoscopic Image.
W.B    Press the switch W.B to achieve the white balance adjustment.
Photo/ Record        HD images/video can be saved.
Freeze/Back   HD images can be frozen. saved and reviewed.

Power
Voltage:  AC110V/220V (±10%)
Frequency     50Hz/60Hz
Air pump   Airflow  ≥5L/min
Air pressure 30-80kPa
Lighting     Bulb LED
Colour temperature ≥5500K


HD image
Megapixel Display HD display, true representation

Comparison - SD VS HD
High-definition image display, more details, clearly looking into any subtle changes before the eyes

Clinical- CCD VS CMOS
With high resolution image sensor, and introducing digital image processing technology, it can protect the endoscopic color and present the most high-quality images.


(HbE) Hemoglobin Enhancement
The powerful upgraded HbE function can better highlight the hemoglobin in the blood and has obvious invigorating effect on the possible blood-flow direction in the diseased tissue.

USB Function
The USB interface can be used to store video and still images using U disk.

Brand-new Motus 3.0 image processing platform
High data processing capacity
High modularization
Full digital image processing
A variety of interfaces
