Product Description

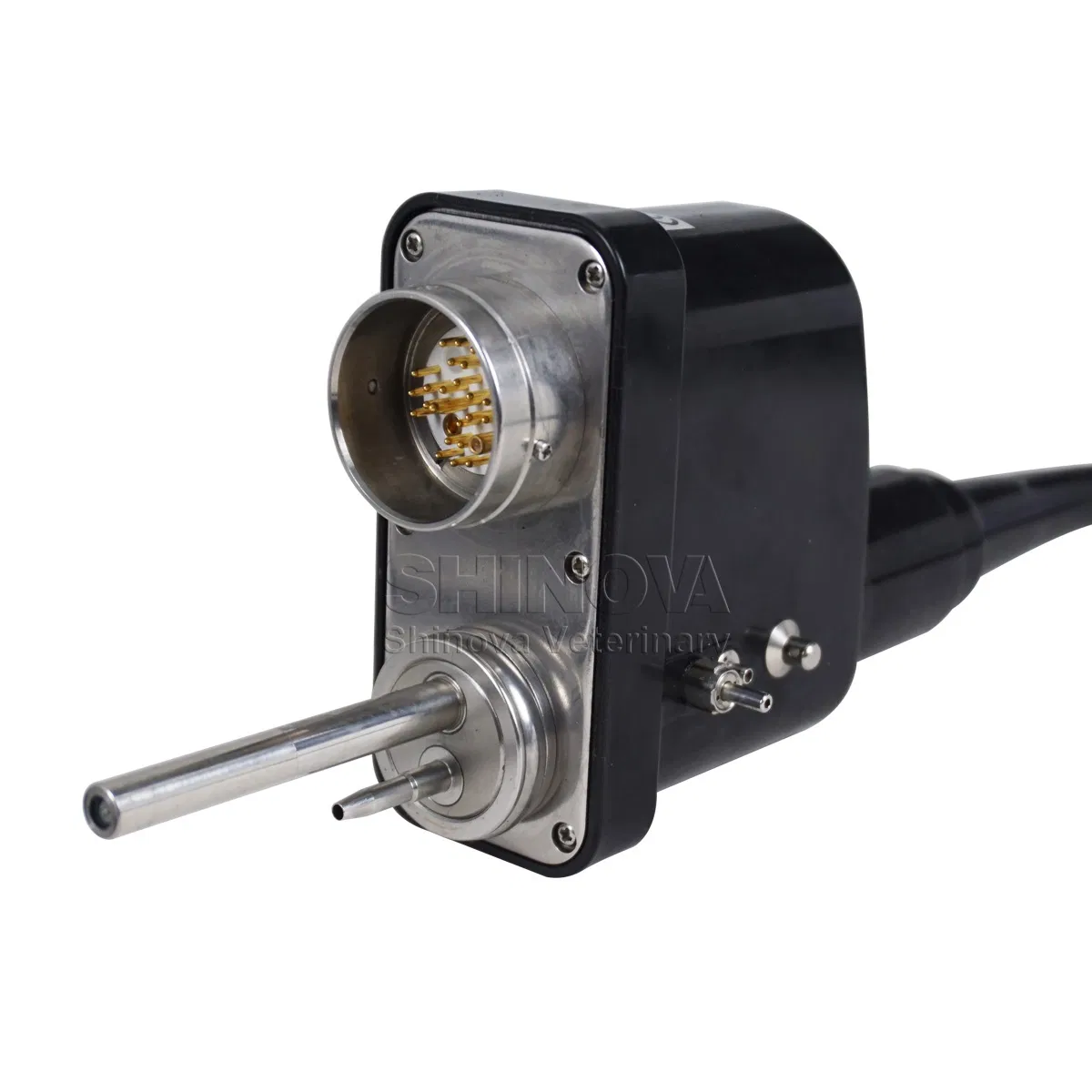

High-definition Veterinary Video Endoscope
Model: Gastrix 85V, Gastrix 92V, Gastrix 60V, Gastrix 35V
Colonix 98V, Colonix 135V
Feature:
Portable design
Gastrix/Colonix series veterinary endoscope adopts the expanded viewing and recording capability. It enables observation without cables or peripherals, providing with a level of mobility that allows it be operated almost anywhere.
Excellent optical system
High-definition image: High-definition CMOS camera adopts the 990K pixels. It can capture high quality images.
Wider field of view technology can provide excellent and detailed images.
Large range angulations make it easier to observation.
3-100mm depth of view provides precise observation ability for both close and far objects.
Wider instrument channel
It is easier to operate that a wide range of instruments can be used with the 1.2mm~3.7mm diameter channel.
Specifications for Veterinary Endoscope:
Specifications for Imaging Processor (Model: VIS-1200HD)
1. Power supply: AC 110-220V(10%), 50/60Hz
2. Video Signal Output: AV, DVI, Y/C (S-video)
3. Build-in USB image capturing device (connect to PC)
4. Type of protection against electric shock: Class I
5. Brightness Adjustment: +- 50 steps
6. Degree of protection against electric shock: BF type
7. Manual IRIS function: Ave/Peak
8. Hemoglobin Enhancement: 0-3 steps
9. Full digital image processing
10. Freeze and Display: 16pics
11. HD Video/Photo Recording through USB disk 16G
12. Multilevel illumination control: 9 steps
13. White balance function
Standard:
Veterinary endoscope, Image processor with light source VIS-1200HD, Accessories: Biopsy forceps (2pcs), Cleaning brush (2pcs), Leakage tester & Water-resistant cap (1pc), Spare suction / air water valves set (1pc), Water bottle (1pc), Biopsy cap (3pcs), Cleaning kits (1pc), Cleaning cap (1pc), Plug information card (1pc), Instruction manual (1pc), Carrying case (1pc).
Optional:
3.5" LCD monitor, Imaging Processor with light source and battery VIS-1200HD(Li), Imaging Processor with light source for both flexible endoscopes and rigid endoscopes VIS-1200R, 19"/27" LCD medical monitor, Trolley, Autoclavable grasping forceps, etc.
Model: Gastrix 85V, Gastrix 92V, Gastrix 60V, Gastrix 35V
Colonix 98V, Colonix 135V
Feature:
Portable design
Gastrix/Colonix series veterinary endoscope adopts the expanded viewing and recording capability. It enables observation without cables or peripherals, providing with a level of mobility that allows it be operated almost anywhere.
Excellent optical system
High-definition image: High-definition CMOS camera adopts the 990K pixels. It can capture high quality images.
Wider field of view technology can provide excellent and detailed images.
Large range angulations make it easier to observation.
3-100mm depth of view provides precise observation ability for both close and far objects.
Wider instrument channel
It is easier to operate that a wide range of instruments can be used with the 1.2mm~3.7mm diameter channel.
Specifications for Veterinary Endoscope:
| Model | View of Field | Depth of View | Working Length | Diameter of Insertion Tube | Diameter of Instrumental Channel | Range of Tip Bending |
| Gastrix 85V | 140° | 3-100mm | 1500mm | 8.5mm | 2.0mm | 210°(U),90°(D), 100°(R),100°(L) |
| Gastrix 92V | 140° | 3-100mm | 1500mm | 9.0mm | 2.8mm | 210°(U),90°(D), 100°(R),100°(L) |

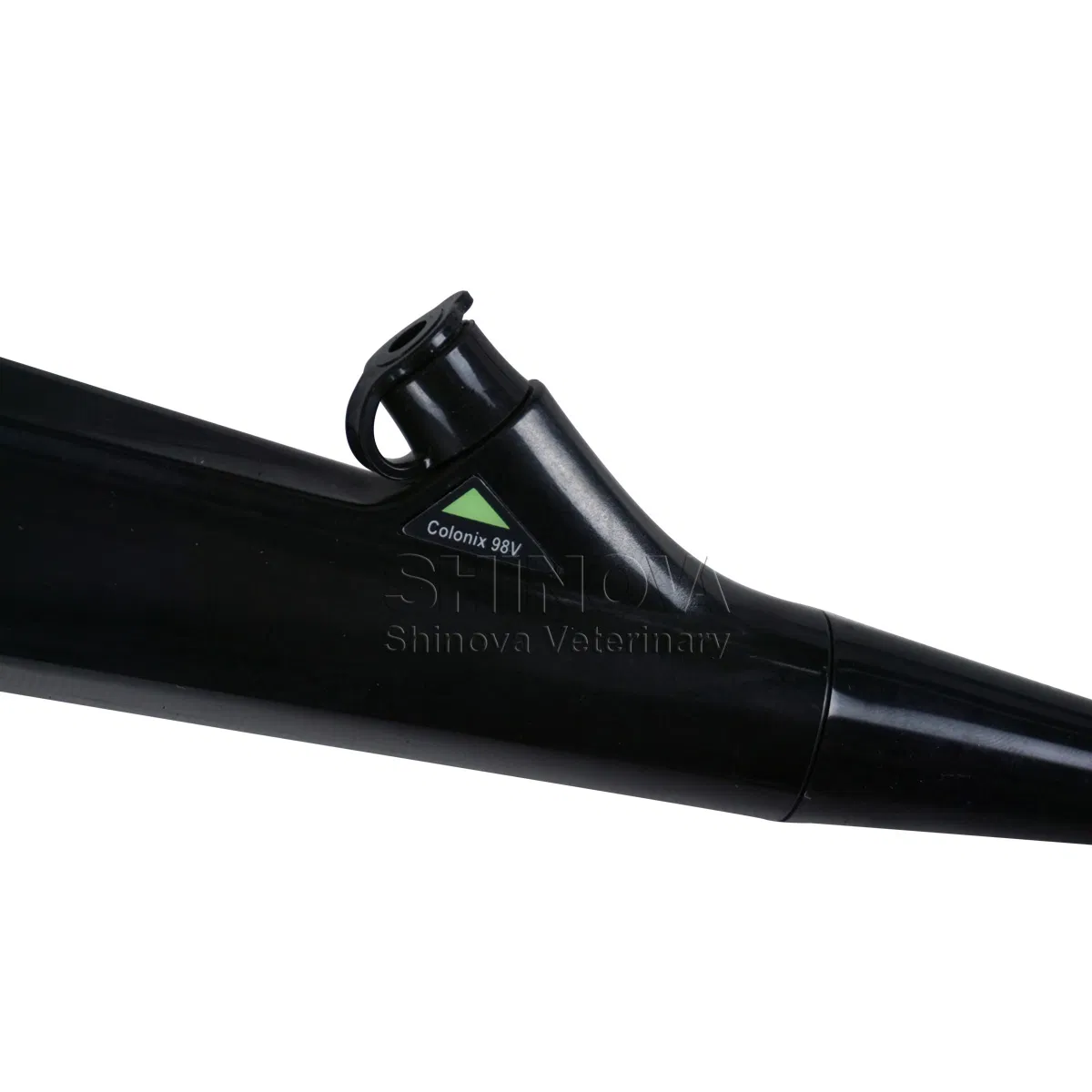

| Colonix 98V | 140° | 3-100mm | 3000mm | 9.6mm | 2.8mm | 210°(U),90°(D), 100°(R),100°(L) |
| Colonix 130V | 140° | 3-100mm | 3000mm | 12.8mm | 3.7mm | 180°(U),180°(D), 160°(R),160°(L) |
| Colonix 135V | 140° | 3-100mm | 3500mm | 12.8mm | 3.7mm | 180°(U),180°(D), 160°(R),160°(L) |
| Gastrix 60V | 120° | 3-50mm | 1000mm | 6.0mm | 2.2mm | 210°(U),90°(D), 100°(R),100°(L) |
| Gastrix 35V | 120° | 3-50mm | 600mm | 3.5mm | 1.2mm | 160°(U),130°(D) |

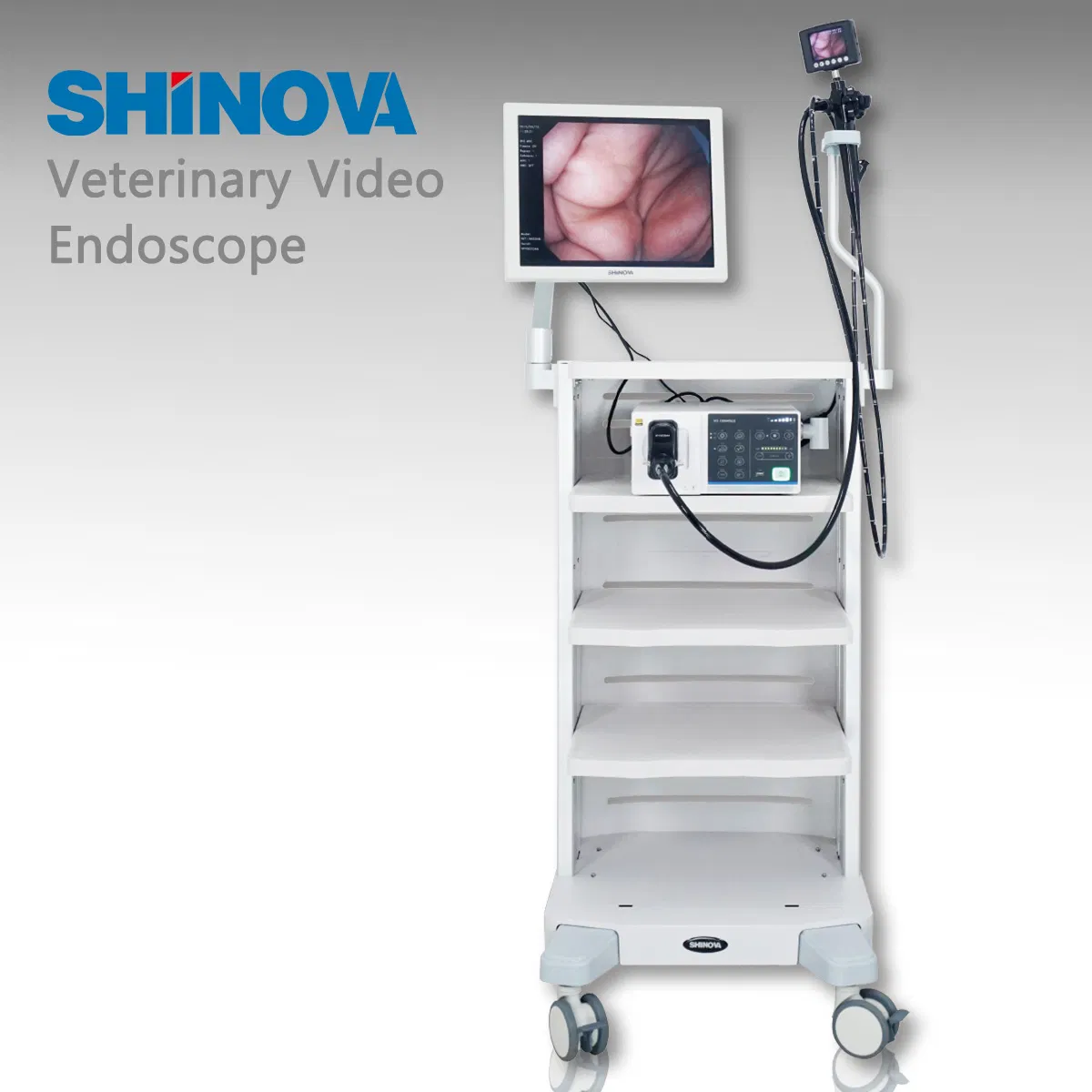

Specifications for Imaging Processor (Model: VIS-1200HD)
1. Power supply: AC 110-220V(10%), 50/60Hz
2. Video Signal Output: AV, DVI, Y/C (S-video)
3. Build-in USB image capturing device (connect to PC)
4. Type of protection against electric shock: Class I
5. Brightness Adjustment: +- 50 steps
6. Degree of protection against electric shock: BF type
7. Manual IRIS function: Ave/Peak
8. Hemoglobin Enhancement: 0-3 steps
9. Full digital image processing
10. Freeze and Display: 16pics
11. HD Video/Photo Recording through USB disk 16G
12. Multilevel illumination control: 9 steps
13. White balance function
Standard:

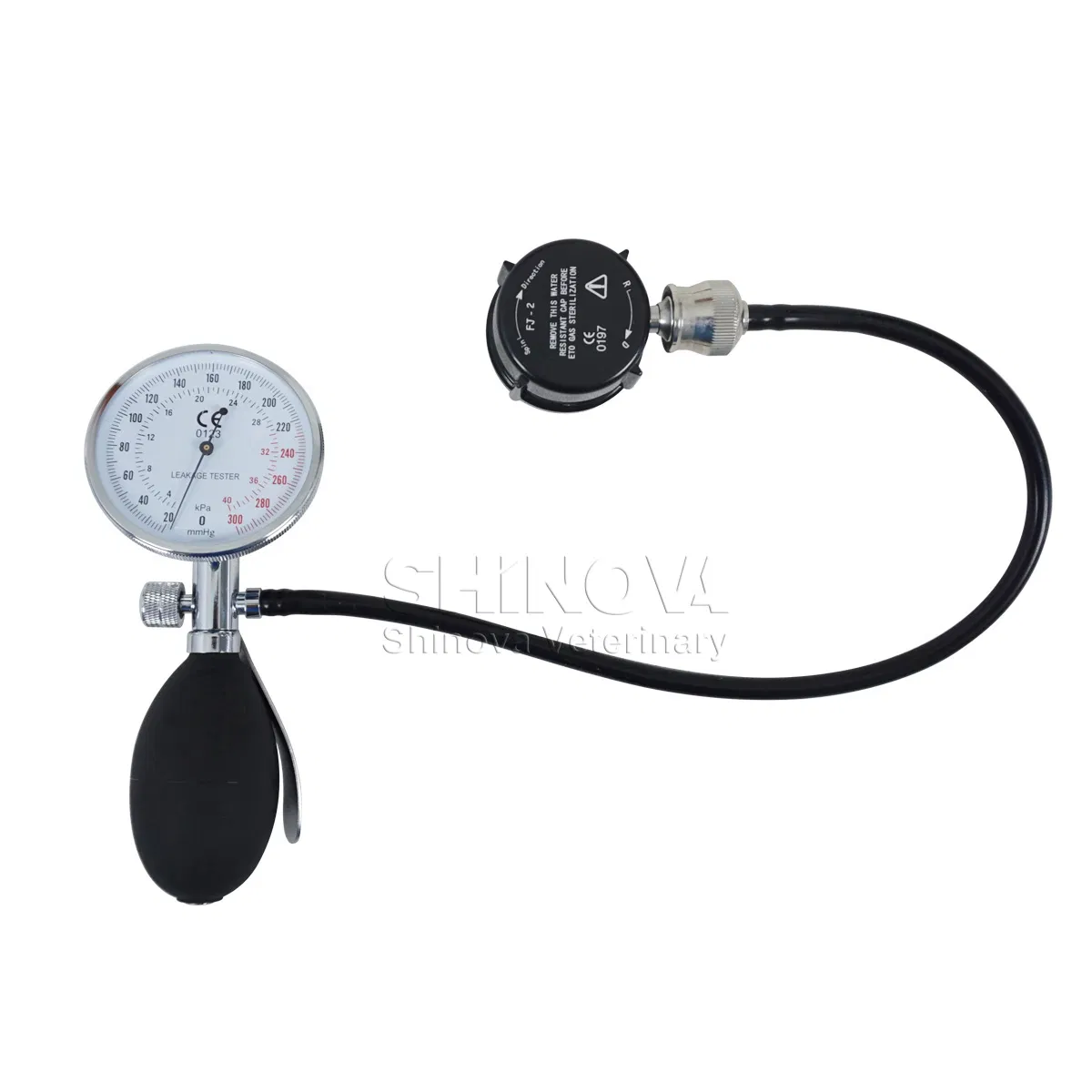

Veterinary endoscope, Image processor with light source VIS-1200HD, Accessories: Biopsy forceps (2pcs), Cleaning brush (2pcs), Leakage tester & Water-resistant cap (1pc), Spare suction / air water valves set (1pc), Water bottle (1pc), Biopsy cap (3pcs), Cleaning kits (1pc), Cleaning cap (1pc), Plug information card (1pc), Instruction manual (1pc), Carrying case (1pc).
Optional:
3.5" LCD monitor, Imaging Processor with light source and battery VIS-1200HD(Li), Imaging Processor with light source for both flexible endoscopes and rigid endoscopes VIS-1200R, 19"/27" LCD medical monitor, Trolley, Autoclavable grasping forceps, etc.
