Hot Sale Veterinary UPM60V Handheld Oximeter Vet Pulse Oximeter optional capnography
uPM60V Veterinary Handheld Pulse OximeterFeatures:3.5 high resolution color display, two display directions.Reliable to measure SpO2 and pulse rate.Easy to adjust LCD display, brightness to optimize viewing.Trend data storage time up to 120 hours.Two selectable working modes: Spot-check and continuo......
Send Inquiry
Product Description

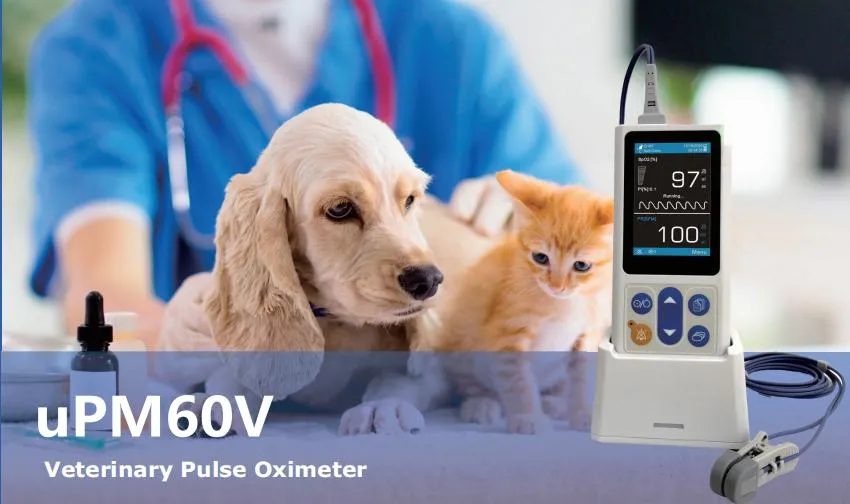

uPM60V Veterinary Handheld Pulse Oximeter
- 3.5″ high resolution color display, two display directions.
- Reliable to measure SpO2 and pulse rate.
- Easy to adjust LCD display, brightness to optimize viewing.
- Trend data storage time up to 120 hours.
- Two selectable working modes: Spot-check and continuous monitoring modes.
- 3-level visual and audio alarms with adjustable alarm ranges.
- Veterinary specific SpO2 sensor to accommodate variety of species.
- Turn off automatically for power saving.
- Two types of power supply: AC charger or 4 AA batteries.
- Data Transfer to PC via USB for storage, review and printing.
- Suitable for Cat, Dog and Horse etc.
Standard configuration: SpO2/Pulse Rate/Hanging Strap
Optional configuration: Protective Cover/AC Adapter/Carrying Bag/ODMS Data Management System
| Technical Specification | |||||
| Enclosure | |||||
| Weight | 265g Weight(with batteries installed) | ||||
| Dimensions | 80mmWx160mmHx30mmD (3.1in.Wx6.3in.Hx1.2in.D) | ||||
| Alarms | Yes | ||||
| Categories | Patient status and system status | ||||
| Notification | Audible and visual | ||||
| Setting | Full storage, low battery and sensor off | ||||
| Range | Pulse rate (30-350bpm), SpO2 (0-100%) | ||||
| Alarm volume level | 0-85dB | ||||
| Range, Accuracy and Resolution | |||||
| Range Type | Range Values | ||||
| Measurement Ranges | |||||
| SpO2 measuring range | 0-100% | ||||
| Pulse rate range | 30-350bpm | ||||
| Measurement Accuracy | |||||
| SpO2 measuring accuracy | 70-100% (±2%), <70% undefined | ||||
| Pulse rate measuring accuracy | ±2bpm/±2% take maximum | ||||
| Resolution | |||||
| SpO2 | 1% | ||||
| Pulse rate | 1bpm | ||||
| Electrical | |||||
| AC power requirement | 100-240VA, 47-63Hz | ||||
| Power comsumption | 20VA | ||||
| Batteries | |||||
| Types | Alkaline/Ni-Mh Batteries, IEC: LR6 | ||||
| Operating time | ≥20hours | ||||
| Charge time | ≤ 6hours | ||||
| Environment | |||||
| Operating tempearture | 0-45ºC | ||||
| Storage temperature | -20-60ºC | ||||
| Operating humidity | 30-95% | ||||
| Operating altitude | -500-5000m | ||||
| Trends | |||||
| Types | Tabular | ||||
| Memory | Save total 120 hours data events. Save data and time, alarm conditions, pulse rate and SpO2 measurements | ||||
