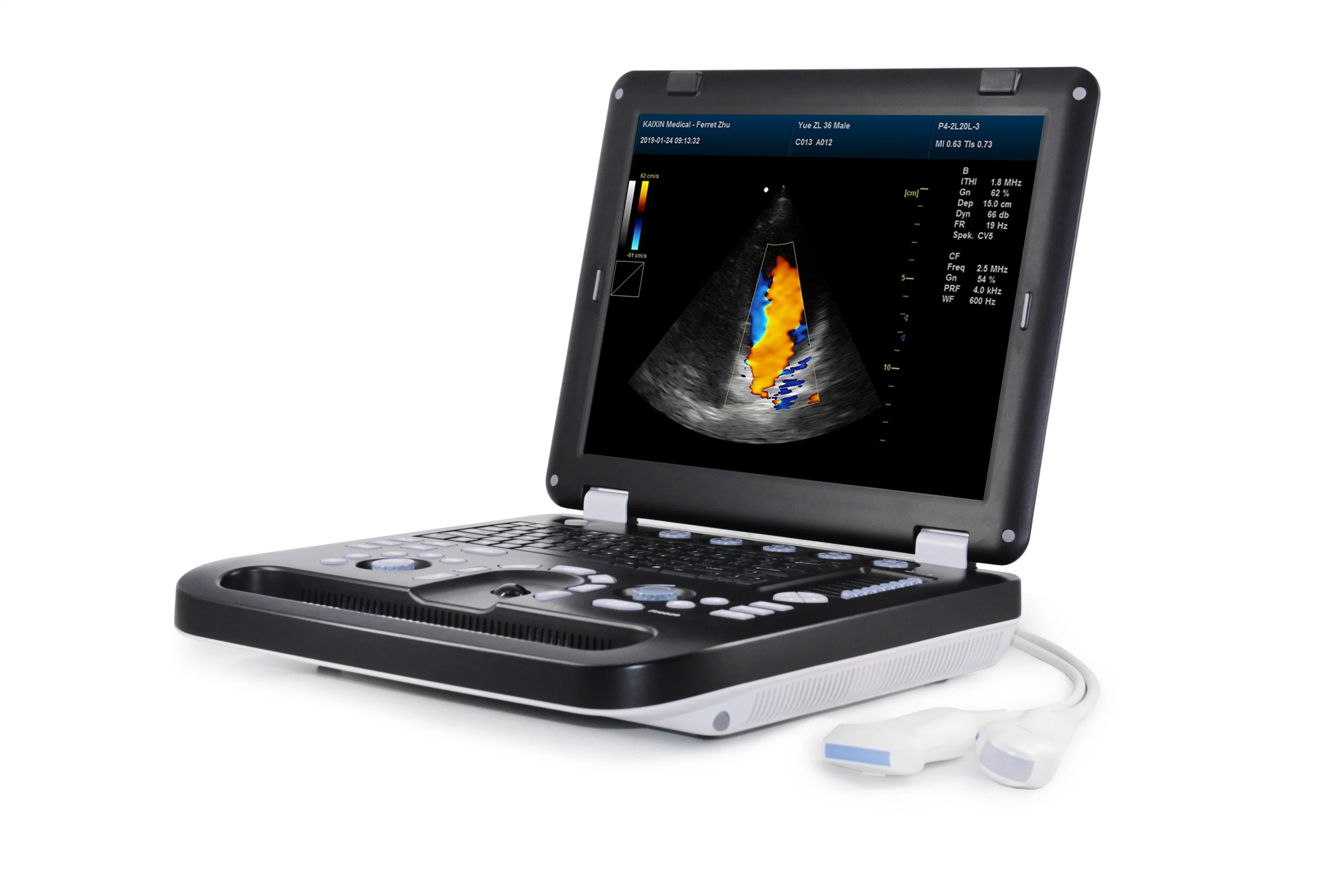

DCU30 3D, 4D VETERINARY COLOR DOPPLER SYSTEMS

1. Imaging Modes:
B, B|B, 4B, B|M, M
Color Doppler (CF), Power Doppler (PDI), Directional Power Doppler (DPDI)
Pulsed Wave Doppler (PW)
Continuous Wave Doppler (Optional)
B+CF (Dual Images)
M+CF
Anatomic M
B+PW (Duplex), B+CFM/PDI/DPDI+PW (Triplex)
High Pulse Repetition Frequency (HPRF)
Tissue Harmonic Imaging (THI), Pulse Inversion Tissue Harmonic Imaging (iTHI)
Tissue Specific Imaging
Convex Extended Imaging
Linear Trapezoid Imaging
Spatial Compound Imaging
Wide Range Imaging (Optional)
3D/4D Imaging (Optional)

2. Scanning Method:
electronic linear, electronic convex, electronic micro-convex,
electronic phased array, 4D probe, scanning depth: 2-30cm

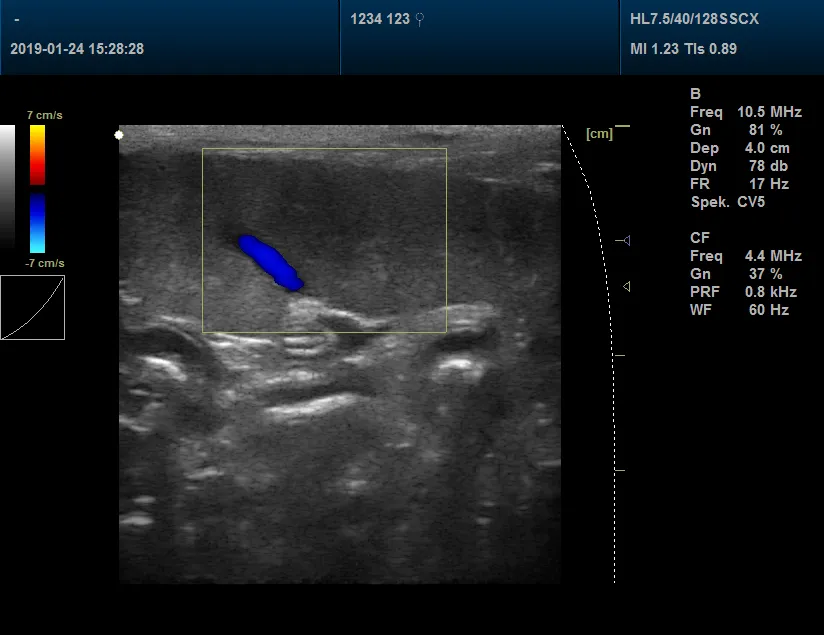

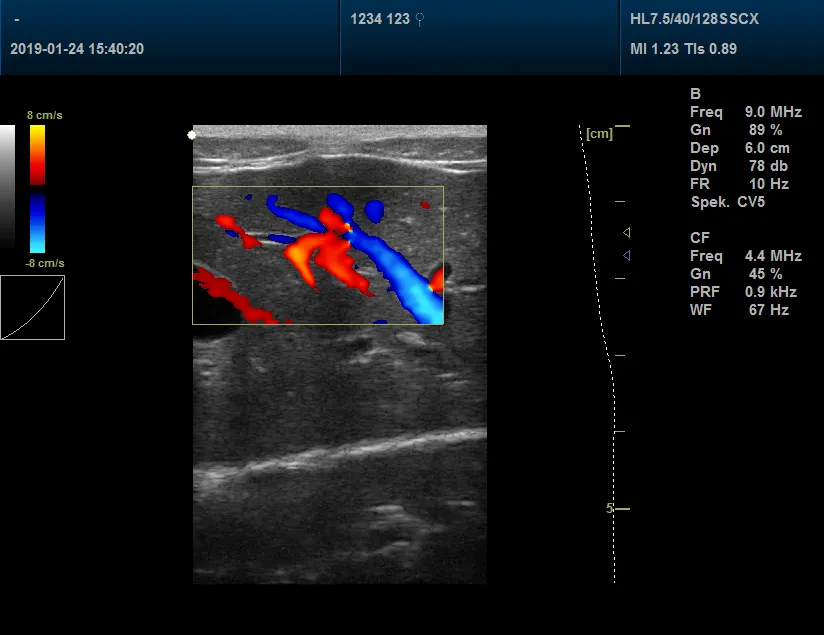

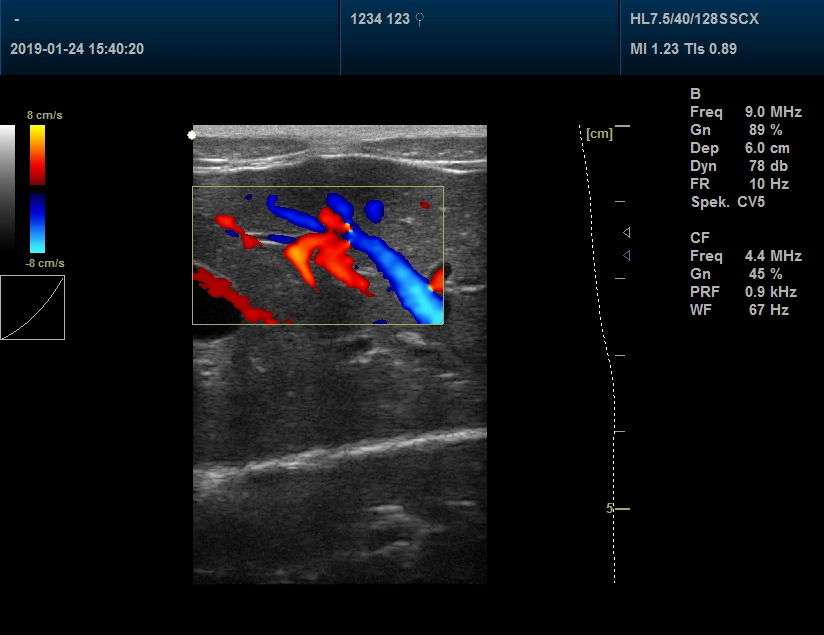

3. Color Doppler:
PRF variable: 0.6-20kHz
Wall filter settings: ≥ 5 steps
Angle steering for linear transducers: ±5°, ±10°, ±15°
Real-time spatial filter: ≥ 4 values
CFM palette: ≥10 maps
PDI palette: ≥10 maps
B/Color priority control
Color threshold control
CFM baseline control
Doppler frequency selection: ≥ 4 values
color frame averaging
Transparent Color Mapping (TCM)

4. Pulsed Wave Doppler:
PRF variable: 0.6-20 kHz
Wall filter settings: ≥ 10 steps
Angle steering for linear transducers: ±5°, ±10°, ±15°
Real-time trace line with automatic calculation of spectrum parameters
Stereo sound: volume control
PWD palette: ≥10 maps
Doppler frequency selection: ≥ 4 values

5. Processing:
Multi-beamform Imaging
High Line Density scan mode for better resolution
8 sliders TGC Control
Dynamic Range: ≥120 dB
Overall gain control
M mode sweep speed control
Acoustic power control
Variable frame averaging
Advanced gamma control
Scan direction, rotation, up-down controls
Negative / positive control
Echo enhancement control
Noise rejection function
Speckle reduction

6. Image and video:
AVI, JPG, BMP, PNG, TIF, DCM (DICOM) etc.

7. General Measurements and Calculations:
Distance, Length, Area, Circumference,
Volume, Angle, Stenosis %, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration,
Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc.

8. Measurements and Calculations Software Packages:
Obstetrics, Gynecology,
Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.

9. 3D/4D module included, 3D probe optional

10. Expansion interfaces:
VGA, TV Interface
USB Interface
RJ-45 Network interface
Support DeskJet printer, LaserJet printer, video printer
