PM5000V Veterinary Medical First-Aid Equipment 12 Inch Animal Surgery Monitor for Sale
12.1 inch PM5000V Veterinary Patient Monitor with TrolleyFeatures:12.1'' inch colored, high definition TFT screenLightweight, compact and portableParameters: SpO2, ECG, NIBP, TEMP, RESPSuitable for DOG, CAT and HORSE etc.72 hours graphic and tabular trends of all parameters32 seconds full-di......
Send Inquiry
Product Description

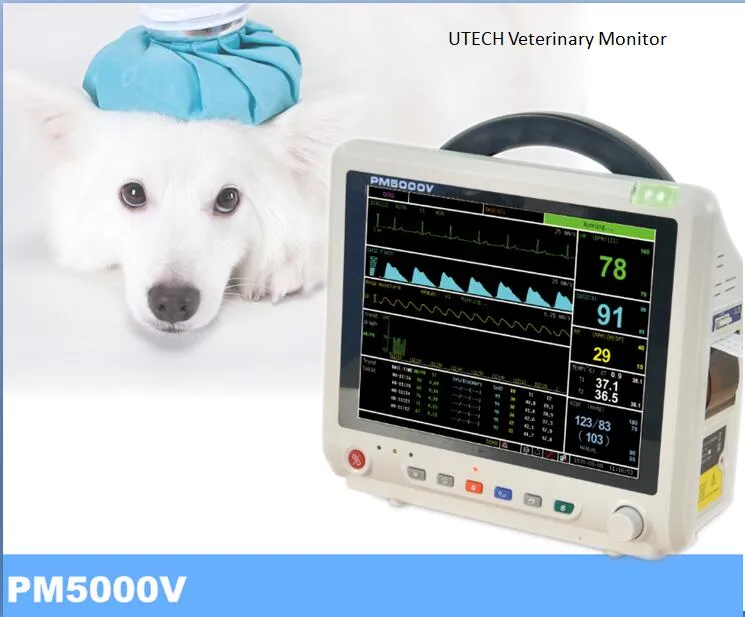

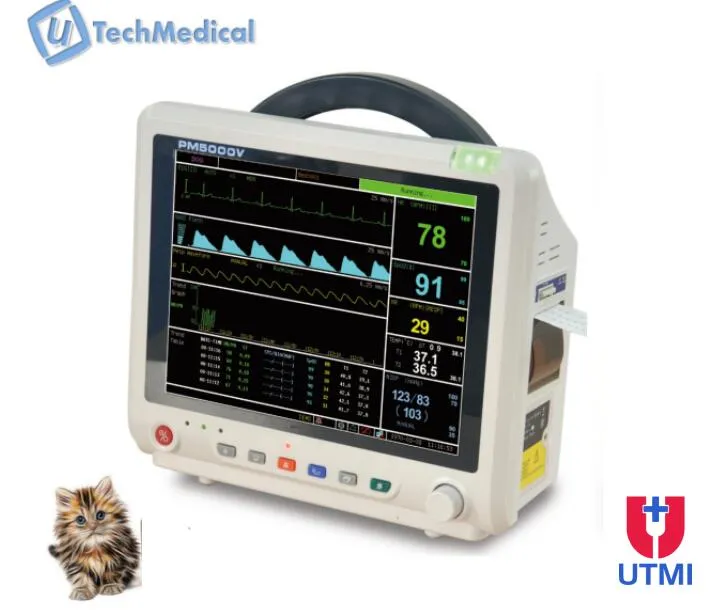

12.1 inch PM5000V Veterinary Patient Monitor with Trolley
Features:
12.1'' inch colored, high definition TFT screen
Lightweight, compact and portable
Parameters: SpO2, ECG, NIBP, TEMP, RESP
Suitable for DOG, CAT and HORSE etc.
72 hours graphic and tabular trends of all parameters
32 seconds full-disclosure waveform review
500 NIBP measurement data can be stored and recalled
Storage and recall of 500 SpO2 measurement data
Built-in rechargeable Lithium battery
Technical Specifications:
1. Parameters: SpO2, ECG, NIBP, TEMP, RESP, PR, ETCO2(Optional), internal printer(Optional).
2. Power supply
AC power adapter, AC 85~265V/ 50Hz/60Hz;
Lithium battery.
3. SpO2
Range: 0%-100%.
Accuracy: ± 2% at 70-100%; <70%, undefined.
4. Pulse rate
Range: 30-250bpm.
Accuracy: ± 2bpm at 30-250bpm.
5. NIBP
Method: Oscillometry
Modes: Manual/Auto/Comtinuous
Auto measure time: Adjustable
Measurement range: 10-270mmHg
6. ECG
Lead mode: 3-lead or 5-lead
Lead selection: I; II; III, AVR; AvF; V
Heart rate range: Adult: 15-300bpm; Pediatric/Neonatal: 15-300bpm
ECG waveform: 2 channals
Accuracy: ± 1 bpm or ± 1%, which is greater
S-T segment detection; Measurement range: -2.0mv~2.0mv
Alarm: Yes, audible and visual alarm, alarm events review
7. Respiration
Method: RA-LL impedance
Range: Adult: 0-120rpm; Pediatric/neonatal: 0-150rpm
Apnca alarm: Yes
8. Temperature
Range: 0-500C
Accuracy: ± 0.10C
Channal: Dual-channel
Environment Specification:
Operating Temp.: 0 to 45° C
Storage Temp.: -20 to +60° C
Relative Humidity: 30 to 95%(Operating), 10 to 95%(Storage)
Standard Package:
PM5000V Main Uint
Veterinary SpO2 Probe
5-leads ECG Cable (mini clip)
NIBP Cuff for VET
NIBP Extension Tube
Power cable
Battery
User manual
Product details:
Optional configuration: ETCO2/Dual IBP/Recorder/Trolley/Brace/IPMS8600 Intelligent Patient Management System

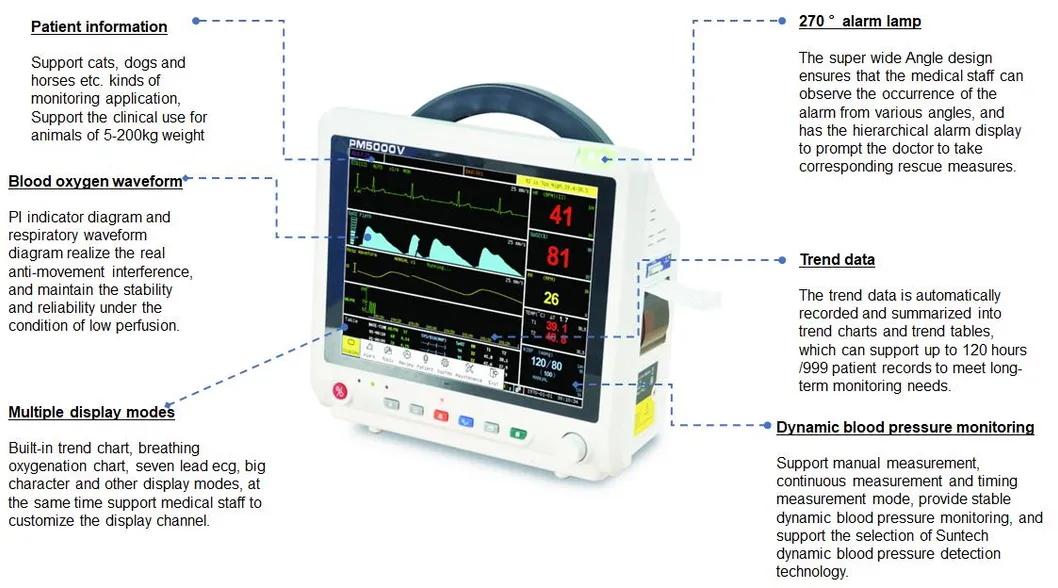

Features:
12.1'' inch colored, high definition TFT screen
Lightweight, compact and portable
Parameters: SpO2, ECG, NIBP, TEMP, RESP
Suitable for DOG, CAT and HORSE etc.
72 hours graphic and tabular trends of all parameters
32 seconds full-disclosure waveform review
500 NIBP measurement data can be stored and recalled
Storage and recall of 500 SpO2 measurement data
Built-in rechargeable Lithium battery
Technical Specifications:
1. Parameters: SpO2, ECG, NIBP, TEMP, RESP, PR, ETCO2(Optional), internal printer(Optional).
2. Power supply
AC power adapter, AC 85~265V/ 50Hz/60Hz;
Lithium battery.
3. SpO2
Range: 0%-100%.
Accuracy: ± 2% at 70-100%; <70%, undefined.
4. Pulse rate
Range: 30-250bpm.
Accuracy: ± 2bpm at 30-250bpm.
5. NIBP
Method: Oscillometry
Modes: Manual/Auto/Comtinuous
Auto measure time: Adjustable
Measurement range: 10-270mmHg
6. ECG
Lead mode: 3-lead or 5-lead
Lead selection: I; II; III, AVR; AvF; V
Heart rate range: Adult: 15-300bpm; Pediatric/Neonatal: 15-300bpm
ECG waveform: 2 channals
Accuracy: ± 1 bpm or ± 1%, which is greater
S-T segment detection; Measurement range: -2.0mv~2.0mv
Alarm: Yes, audible and visual alarm, alarm events review
7. Respiration
Method: RA-LL impedance
Range: Adult: 0-120rpm; Pediatric/neonatal: 0-150rpm
Apnca alarm: Yes
8. Temperature
Range: 0-500C
Accuracy: ± 0.10C
Channal: Dual-channel
Environment Specification:
Operating Temp.: 0 to 45° C
Storage Temp.: -20 to +60° C
Relative Humidity: 30 to 95%(Operating), 10 to 95%(Storage)
Standard Package:
PM5000V Main Uint
Veterinary SpO2 Probe
5-leads ECG Cable (mini clip)
NIBP Cuff for VET
NIBP Extension Tube
Power cable
Battery
User manual
Product details:
Standard configuration: ECG/RESP/SpO2/NIBP/TEMP/Lithium Battery
Optional configuration: ETCO2/Dual IBP/Recorder/Trolley/Brace/IPMS8600 Intelligent Patient Management System
