Product Description

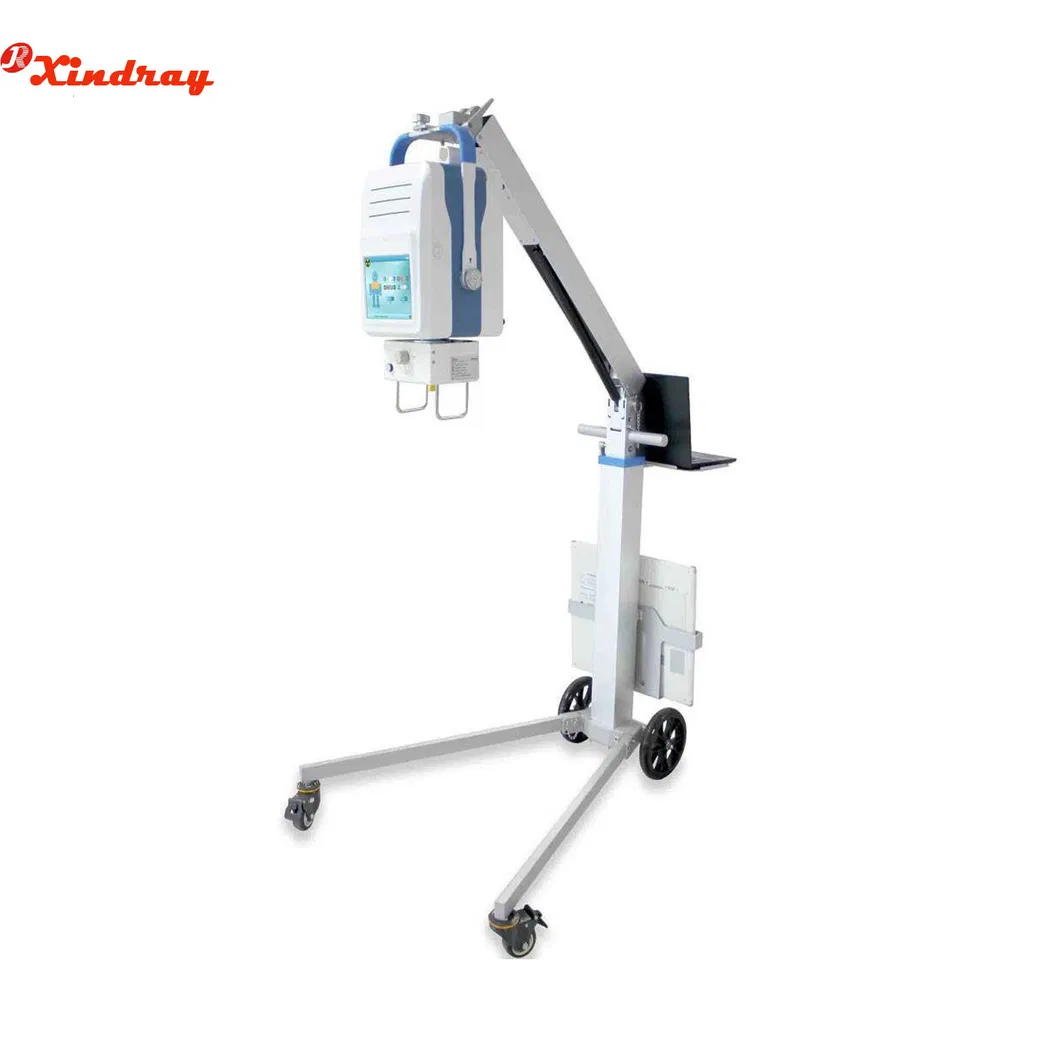

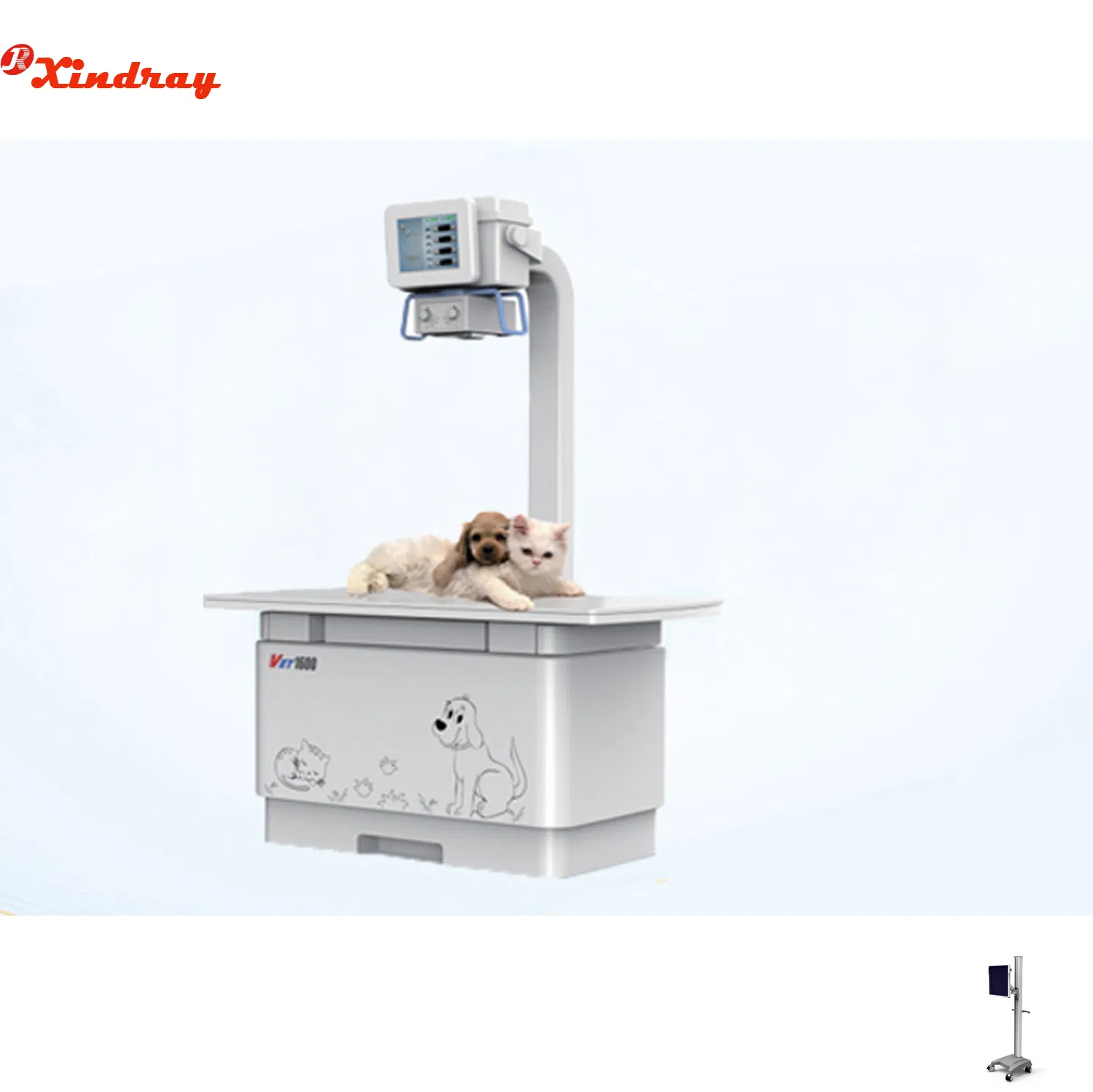

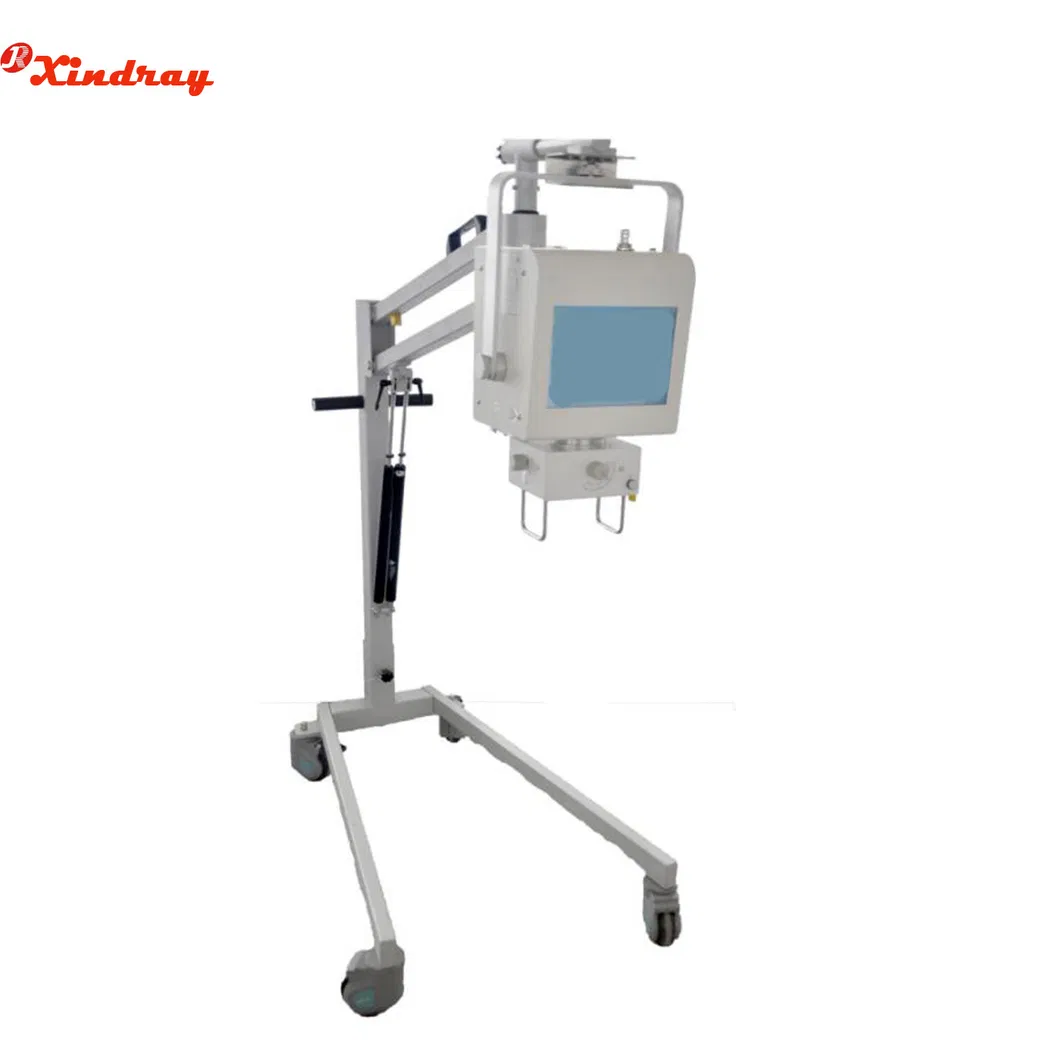

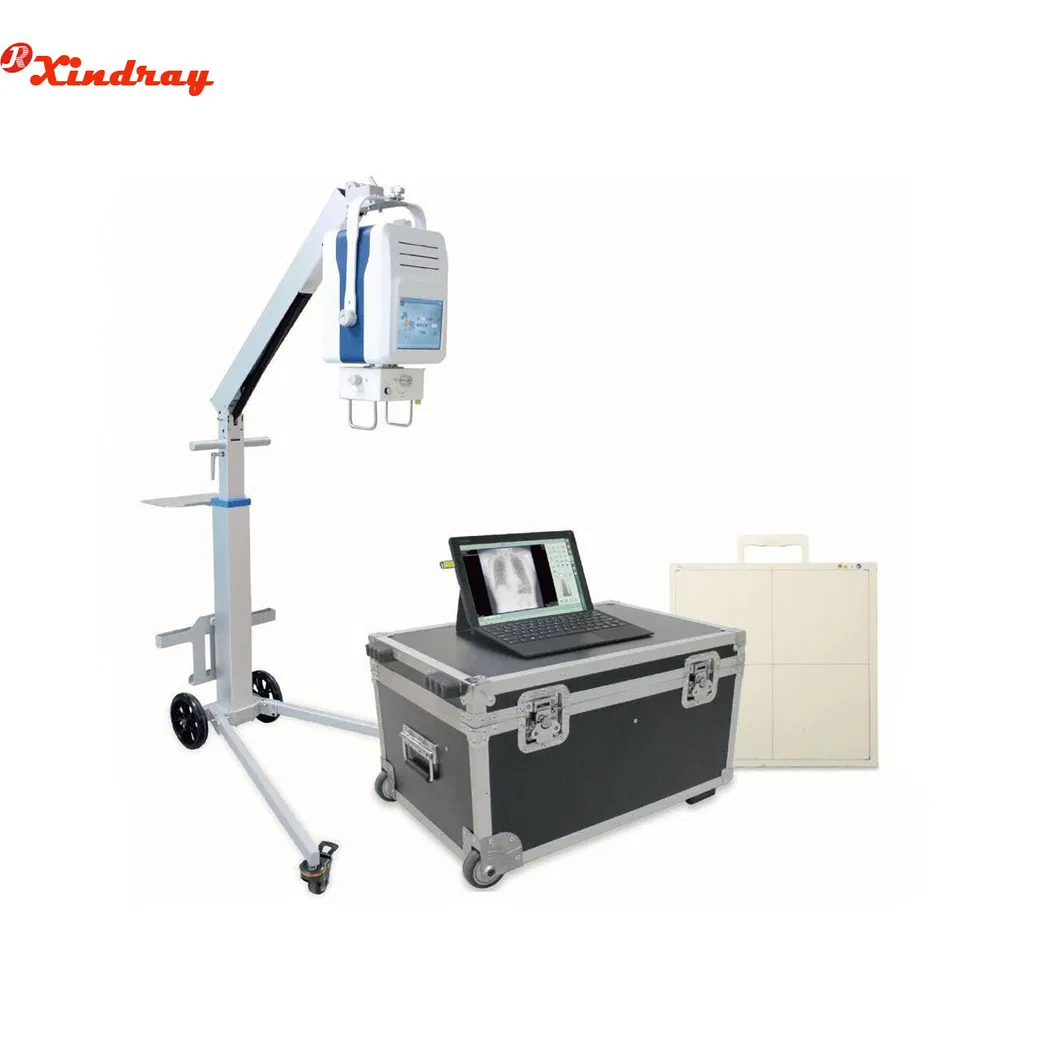

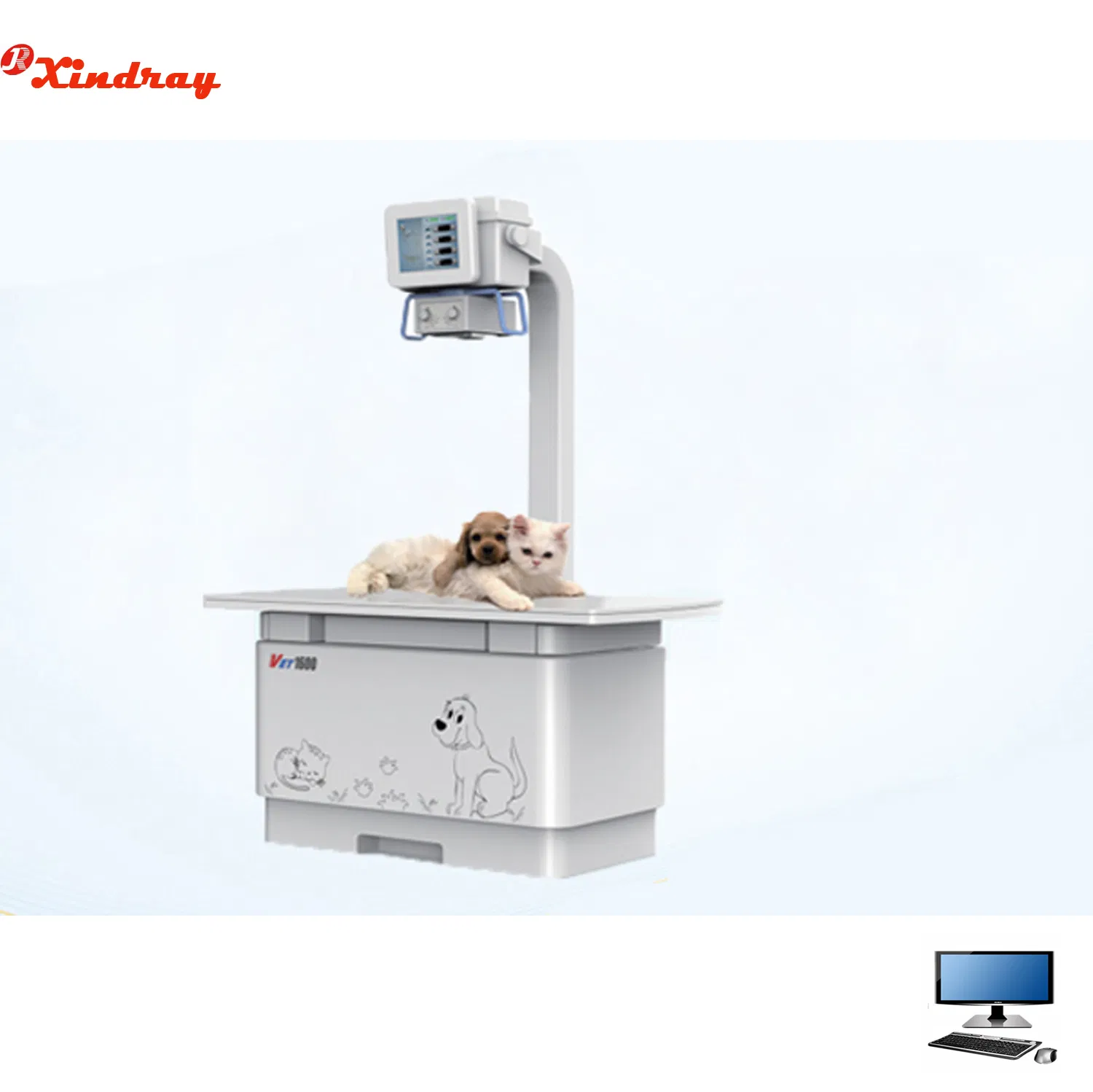

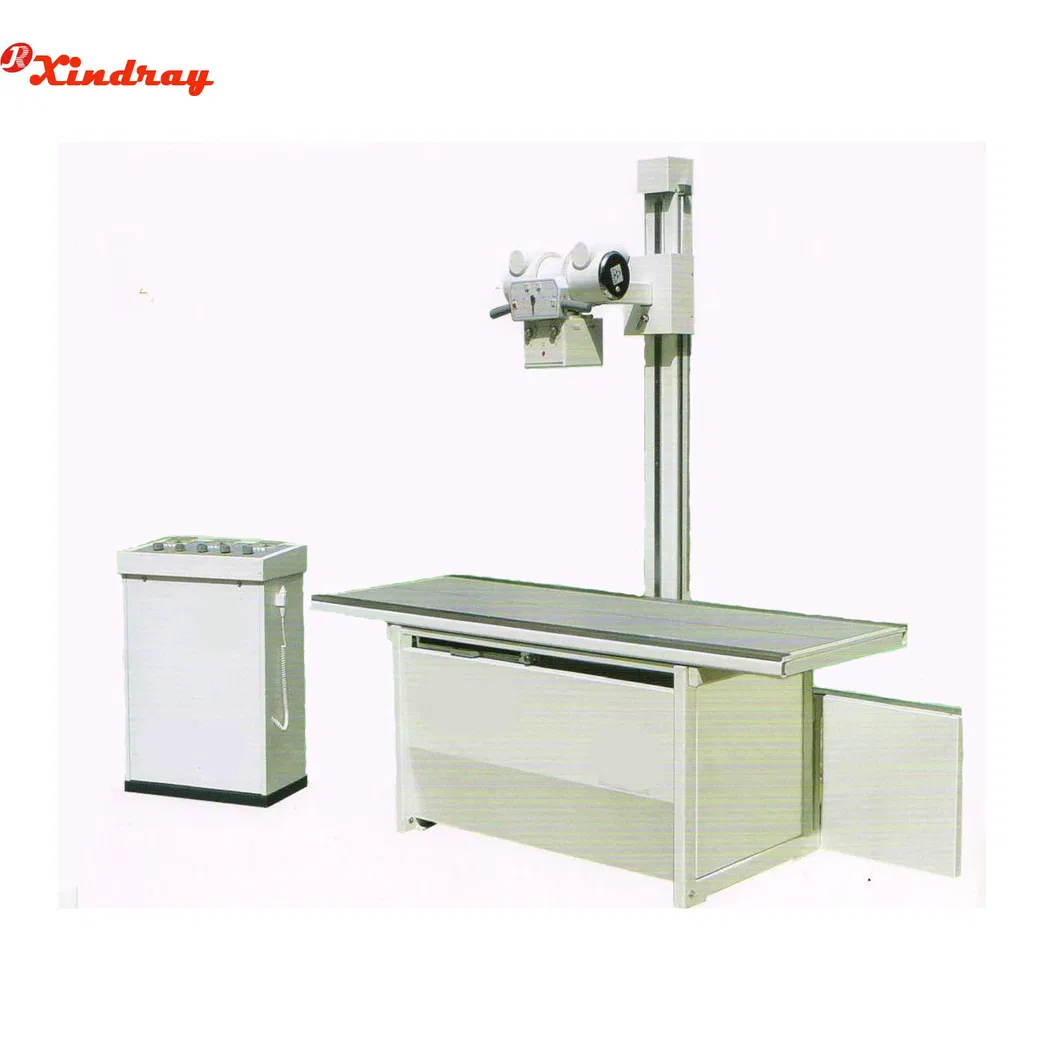

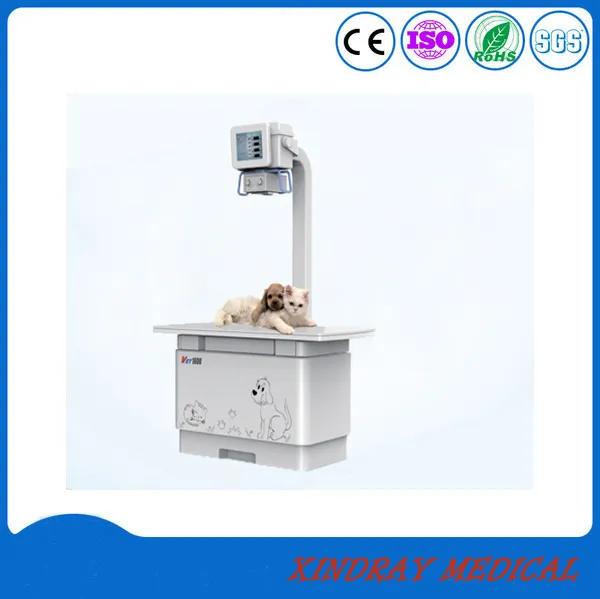

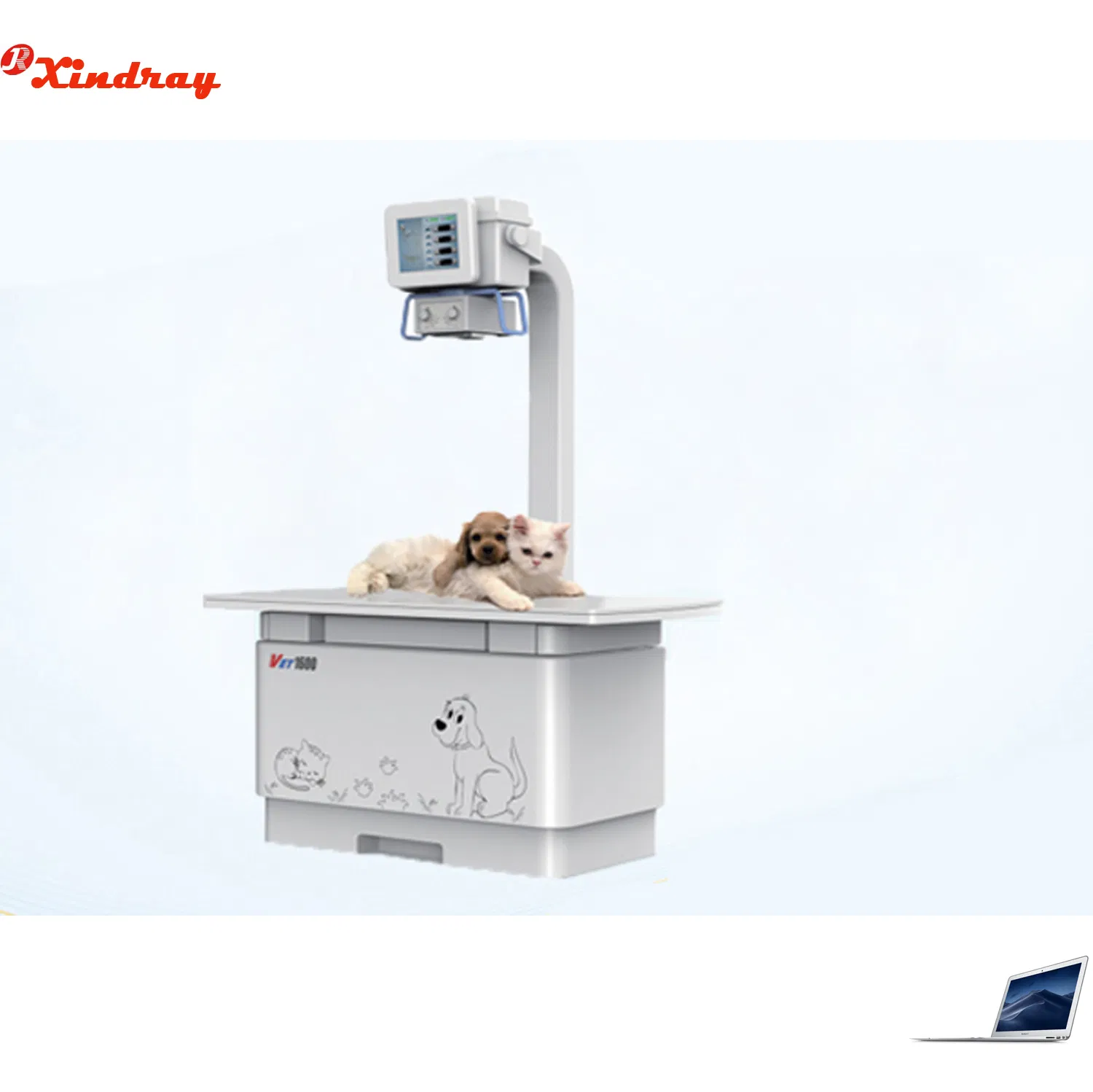

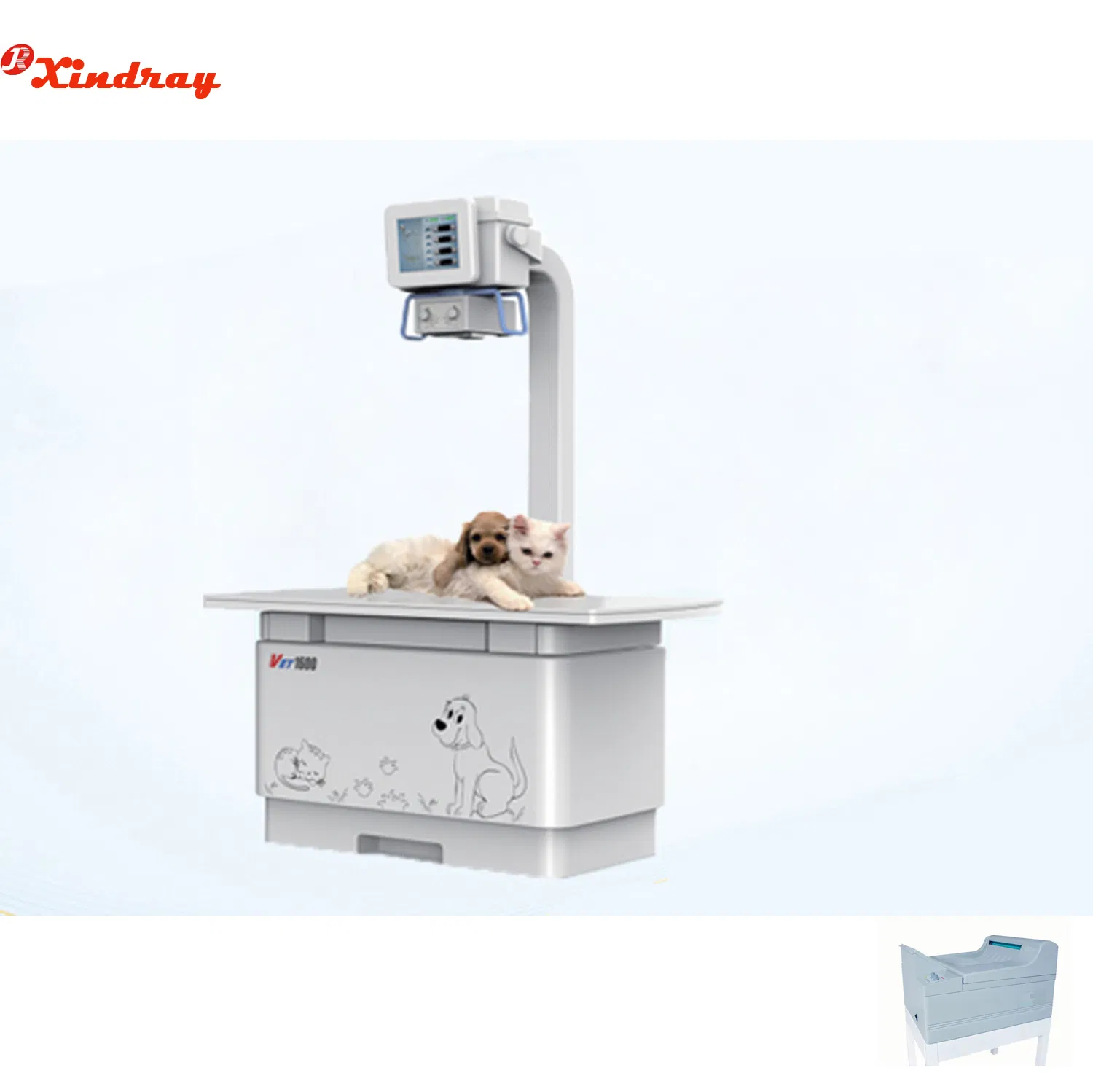

Professional Diagnosis Factory Medical Equipment Veterinary X-ray Machine

Features:

Special design for vet animals. Easy to operate

Optimized Human -- Friendly Design
1,Multiple self - protection and fault alarming function, safe and reliable.
2,Automatically save parameters when suddenly power off, no lose of data.
3,Four way floating table, electromagnetic brake ensures accurate positioning.

Simple Operation, Sharp Image
1,Special veterinary radiography modes, easy to operate and safe use.
2,DICOM 3.0 interface supports concise image processing and work list output.

Specifications:

Product Type:	Digital veterinary X-ray
Application:	all large, medium and small animal inspections
Flat panel detector detailed parameters Optional
Origin	Toshiba, Japan
Sensor type	Amorphous silicon germanium iodide TFT (single panel)
Pixel pitch	127 microns
Imaging time	2-5 seconds
X-ray generator
Power supply voltage	AC220V
Power frequency	50Hz/60Hz±1Hz
Maximum current	320 mA
Tube current adjustment range	in the range of 10mA ~ 320mA, the voltage regulation range of the 14-speed adjustment tube: in the range of 40kV ~ 120kV
Exposure time range	0.002s ~ 6.3s
Microcomputer console length × width × thickness	340mm × 250mm × 70mm
X-ray tube
Tube	Japan Toshiba
Maximum tube voltage	150kV
Intrinsic filtration	1.3mmAL/75kV
Double focus	0.6mm (small focus) / 1.2mm (large focus)
Anode input power	25KW
Anode rotation speed	7200 rpm / anode
X-ray tube assembly heat capacity	1000kJ (1350kHU)
Photography bed
Power supply voltage	single-phase AC220V±22V
power supply frequency	50Hz±1 Hz
Input power	≤1kVA
Bed size	A-1 type 120×700 four-way floating A-2 type 130×700 floating around
Exposure method
Exposure method	Manual exposure, remote exposure, foot exposure
