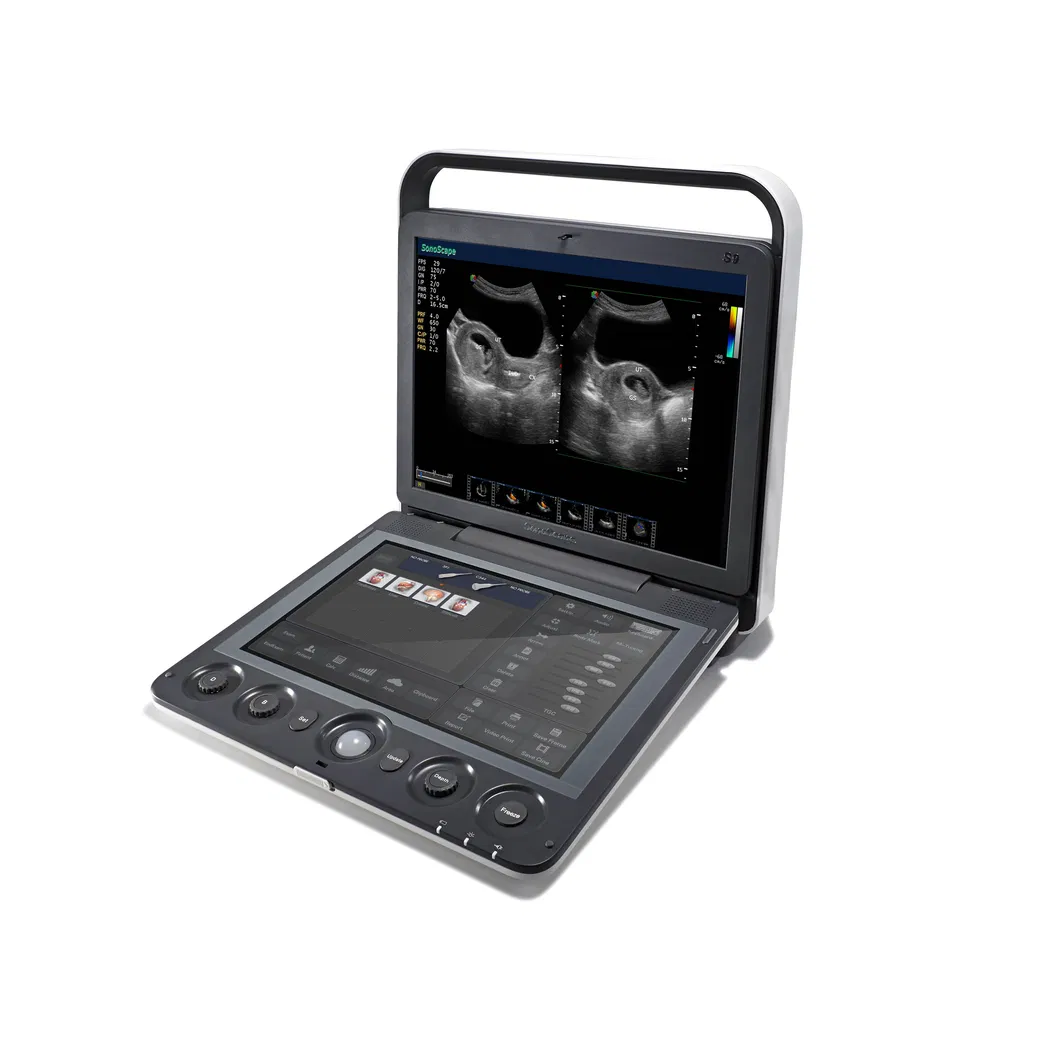

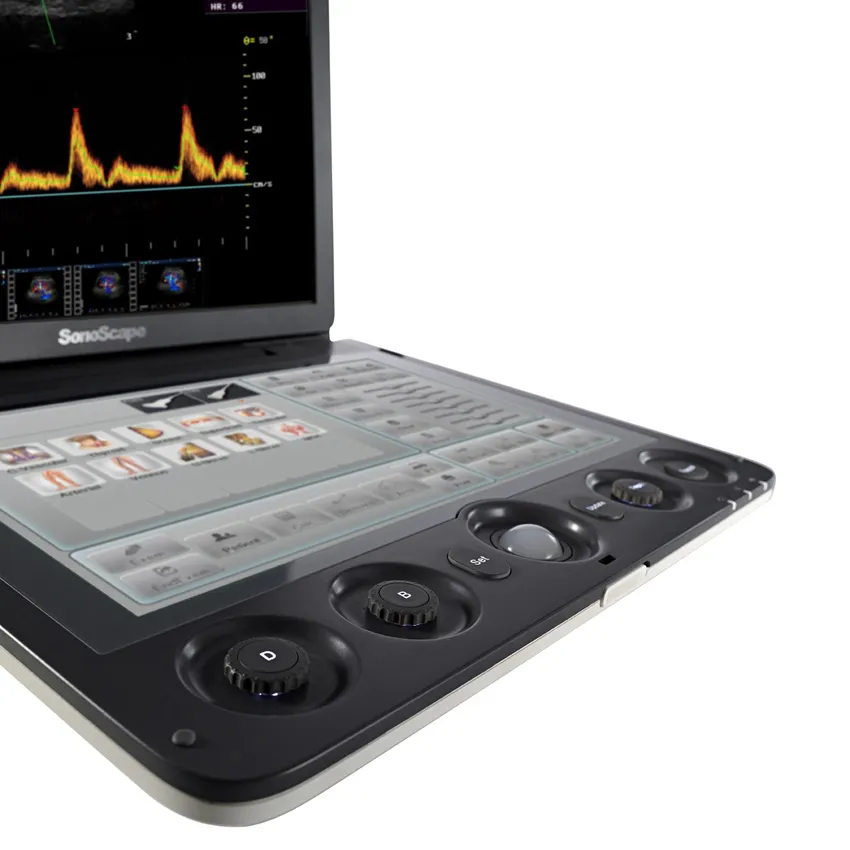

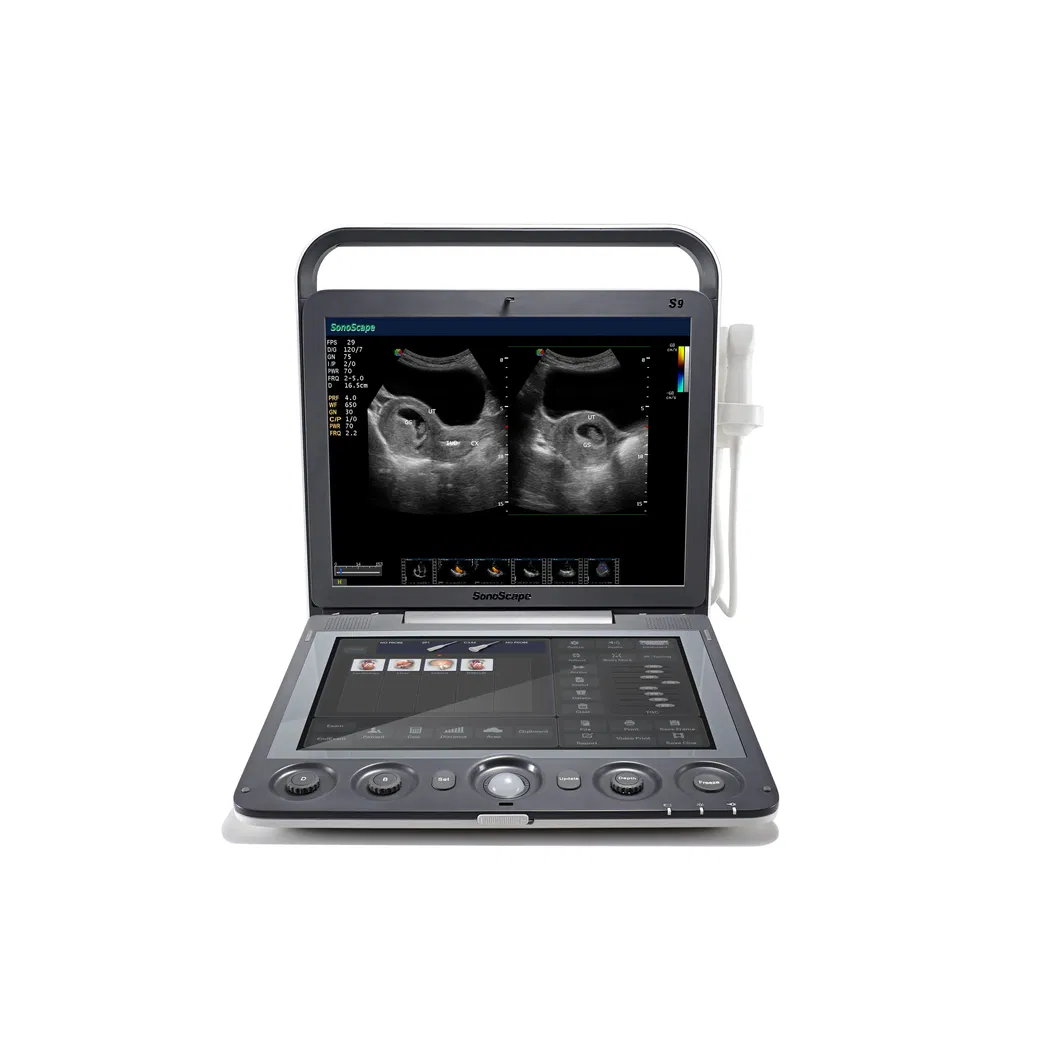

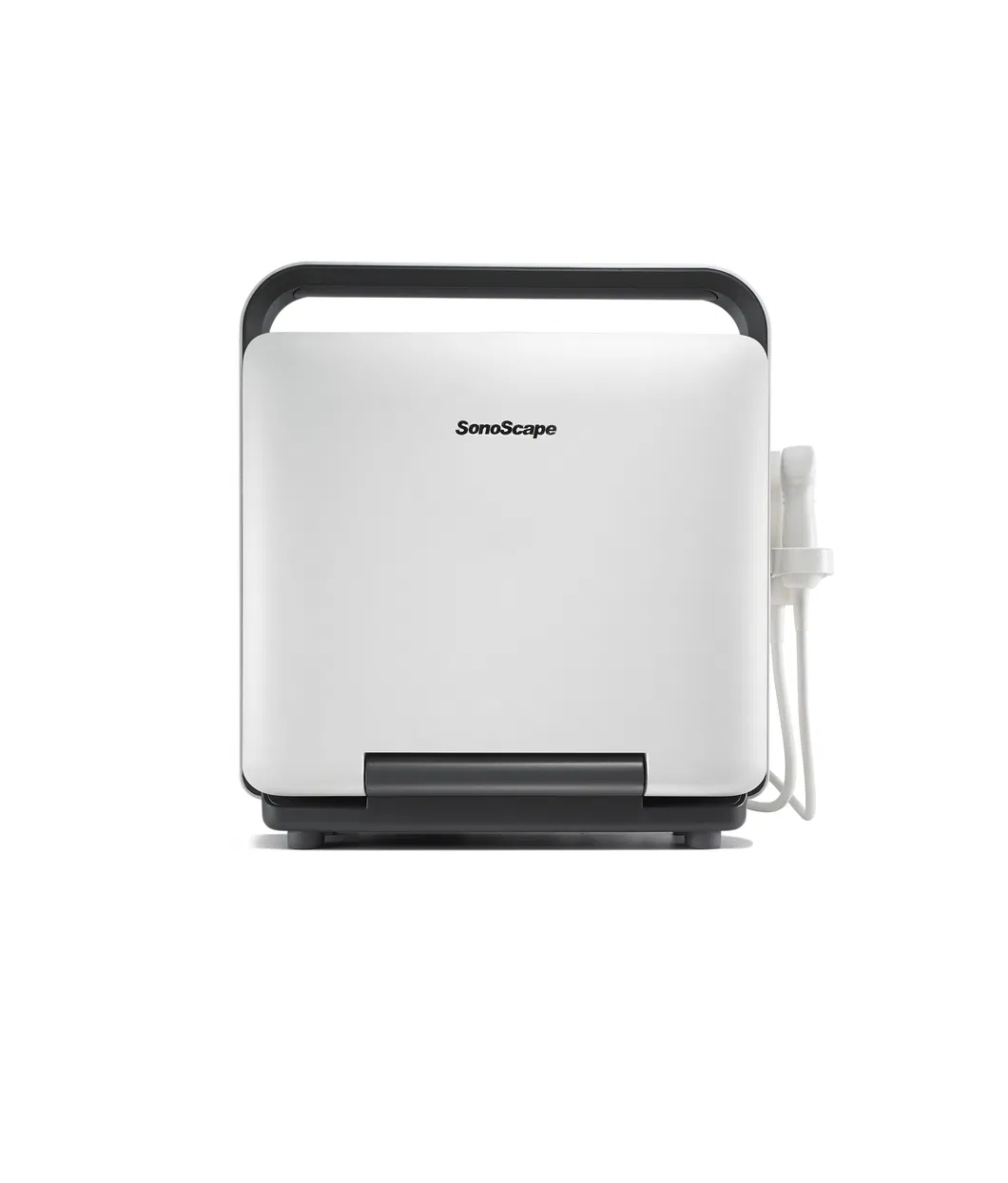

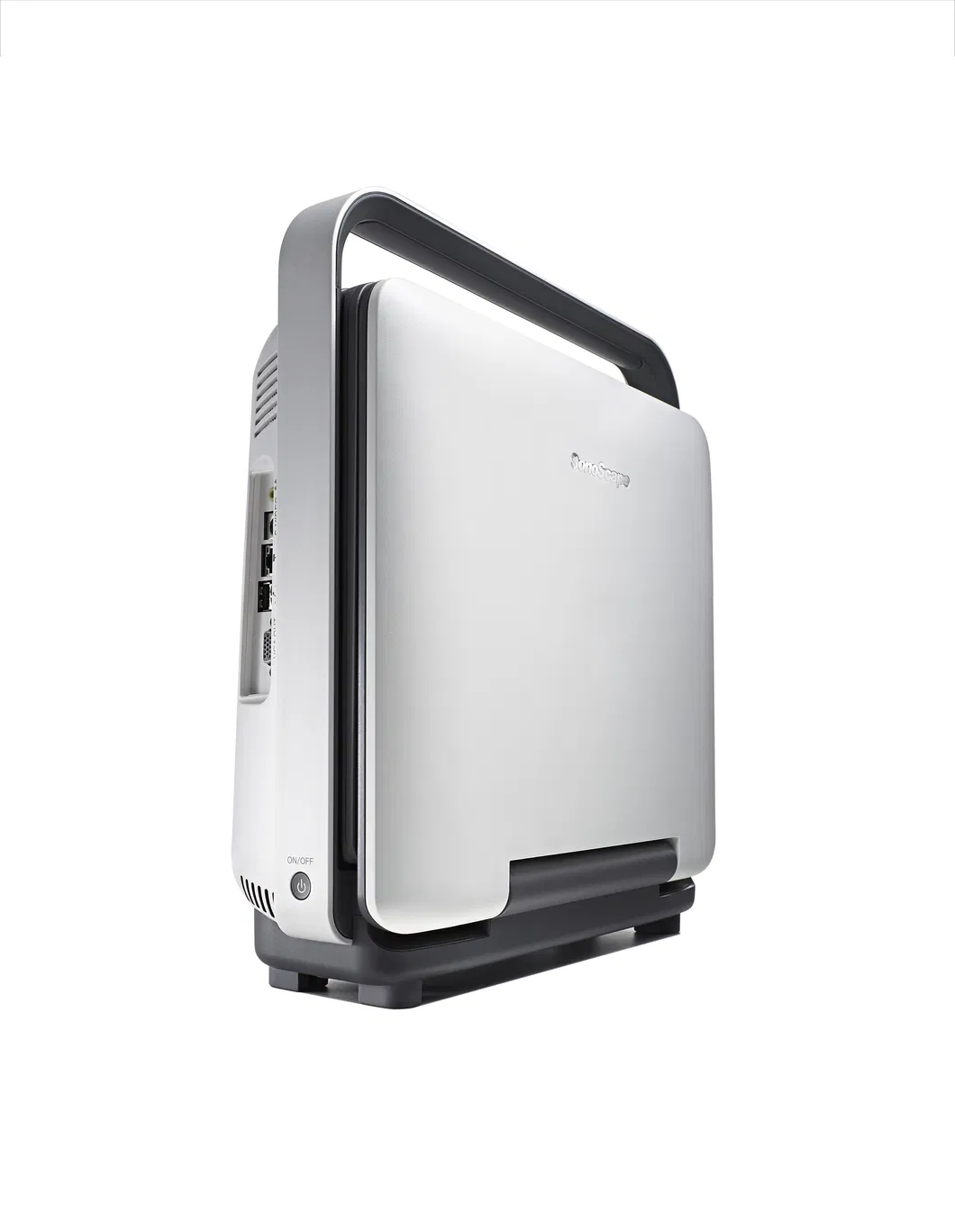

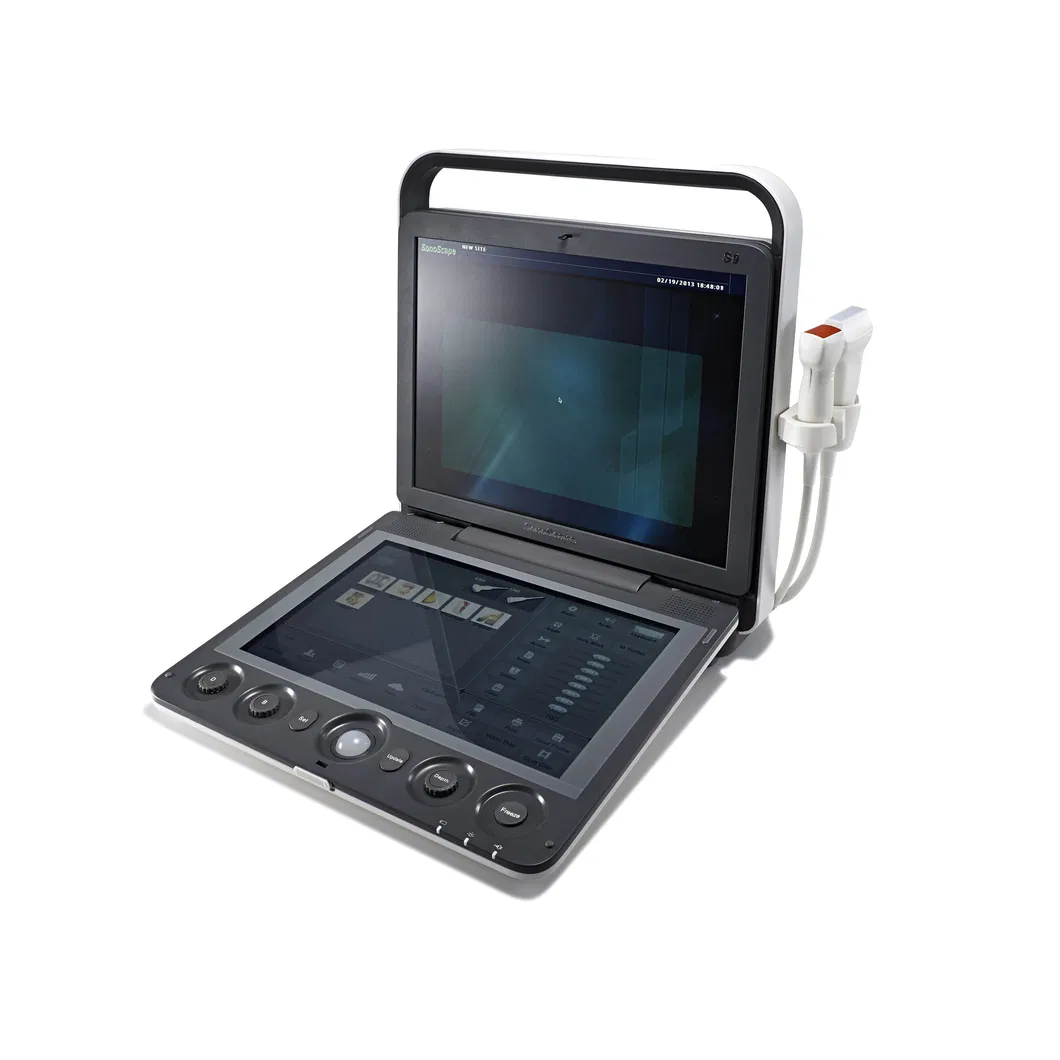

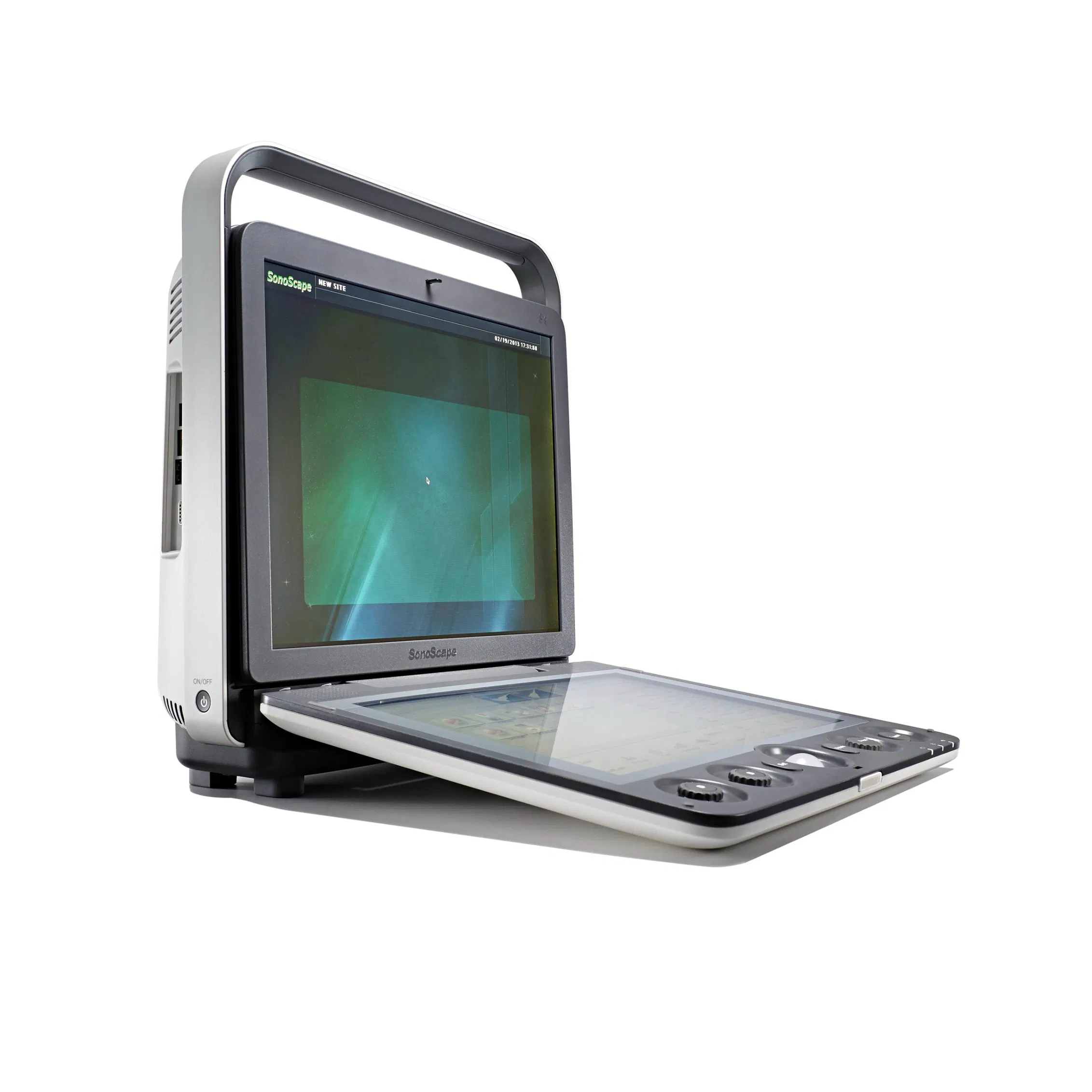

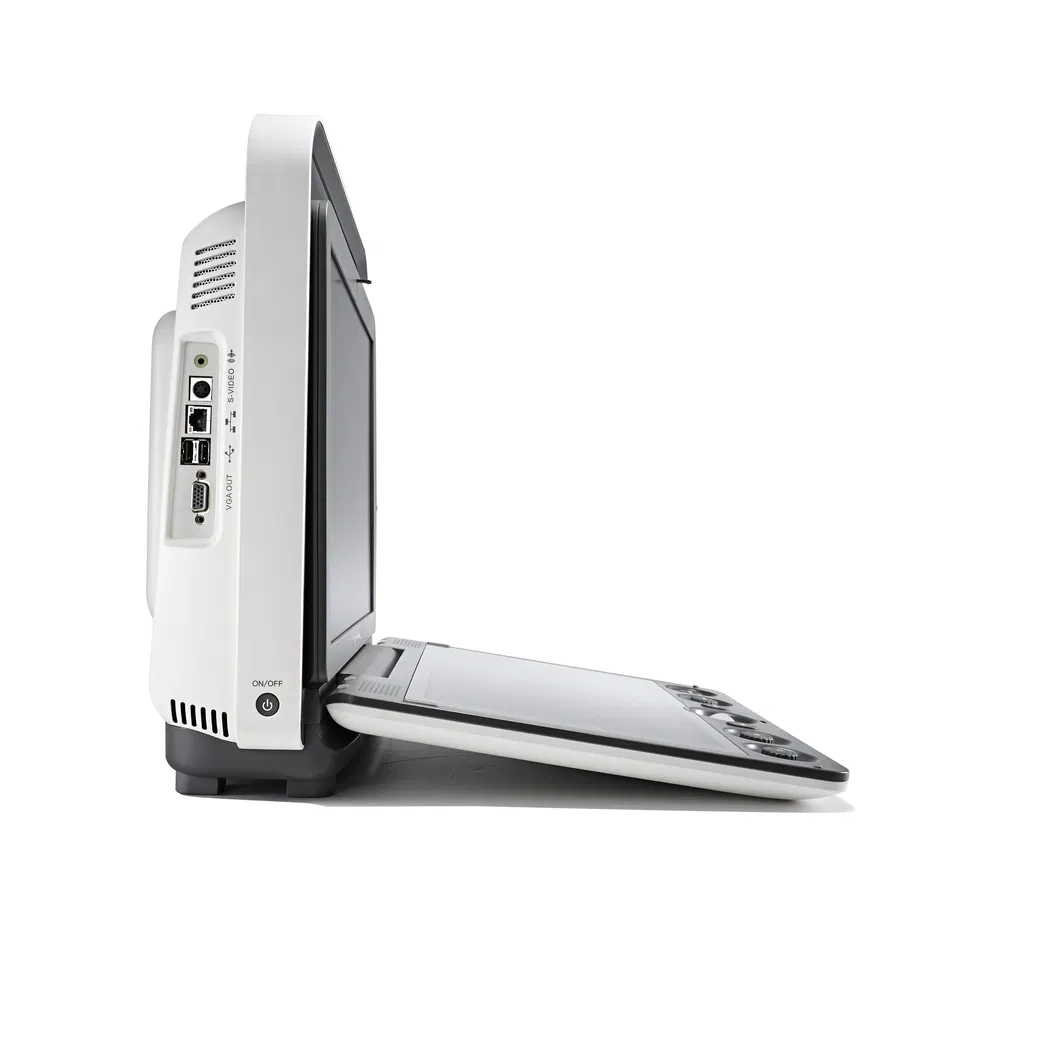

Touch Screen Sonoscape S9V Colour Doppler Veterinary Ultrasound
SonoScape S9V Touch Screen Color Doppler Veterinary Ultrasound Product DescriptionThe new, versatile and powerful portable colour doppler veterinary ultrasound system. Featuring an intelligent, user-friendly touch-screen the S9V has successfully overcome the hardware limitations of traditional keyb......
Send Inquiry
Product Description
Color Doppler Veterinary Ultrasound

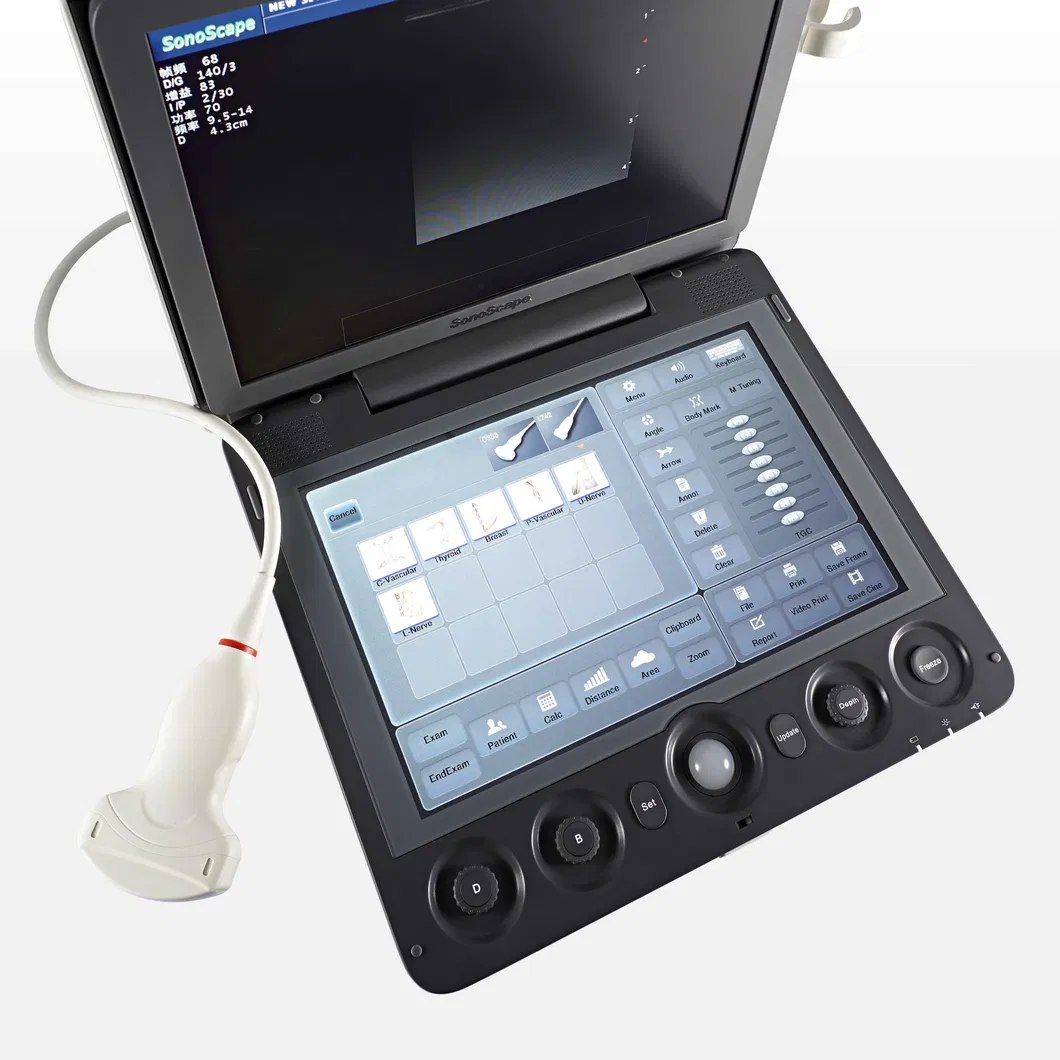

The new, versatile and powerful portable colour doppler veterinary ultrasound system. Featuring an intelligent, user-friendly touch-screen the S9V has successfully overcome the hardware limitations of traditional keyboards, now offering unprecedented ease of use and practicality. Compact and lightweight, this hand-carried ultrasound still features comprehensive applications suited to a broad range of veterinary applications and includes superior cardiac imaging with state-of-the-art cardiac packages as well as spatial compound imaging ideal for abdominal scanning.
Key Features:
- Includes state-of-the-art cardiac packages such as stress echo mode
- Pulse Inversion Harmonic Imaging to improve contrast resolution
- Spatial Compound Imaging for optimal contrast resolution, speckle reduction and border detection, all creating great clarify and improved continuity of structures
Imaging Mode and Relative Parameters | |
2D Mode | yes |
M Mode | yes |
Anatomic M Mode | yes ( three sample lines ) |
Color Flow Mode | yes |
Power Doppler Mode | yes |
Directional Power Dopploer Mode | yes |
Pulsed Wave Doppler | yes |
Continuous Wave Doppler | yes |
Static 3D | yes |
Free Hand 3D | yes |
4D (The realtime time 3D) | optional |
Panoramic Imaging | Real-time panoramic/Unreal-time Panoramic<=150cm |
Tissue Doppler Imaging | yes |
Color M Mode | yes |
Imaging Technologies and System Parameters | |
Physical Channel | 128 |
Tissue Harmonic Imaging | Pulse Inversion Tissue Harmonic |
HPRF | yes |
B Steer | yes |
Multi-beam Processing Technology | Quad-beam Technology |
Compound Imaging | Frequency/Spacial Compound Imaging |
Panoramic Imaging | Real-time panoramic/Reconstructed Panoramic<=150cm |
Trapezoidal Imaging | yes |
Speckle Reduction Tecnology | μ-Scan 4 layer |
Duplex for 2D and Doppler | yes |
Triplex for 2D, Doppler, and Color | yes |
Real Time Doppler Auto Calculation | yes |
One-Button Image Optimization | m-Tuning |
Elastography | optional |
Stress echo | optional |
Needle Visualization | no |
Gray Shades | 256 |
Dynamic Range | 20-280dB |
Zoom | Real Time/Frozen |
Cine Loop in 2D | 500 frames |
Ergonomic Designs and Device Support | |

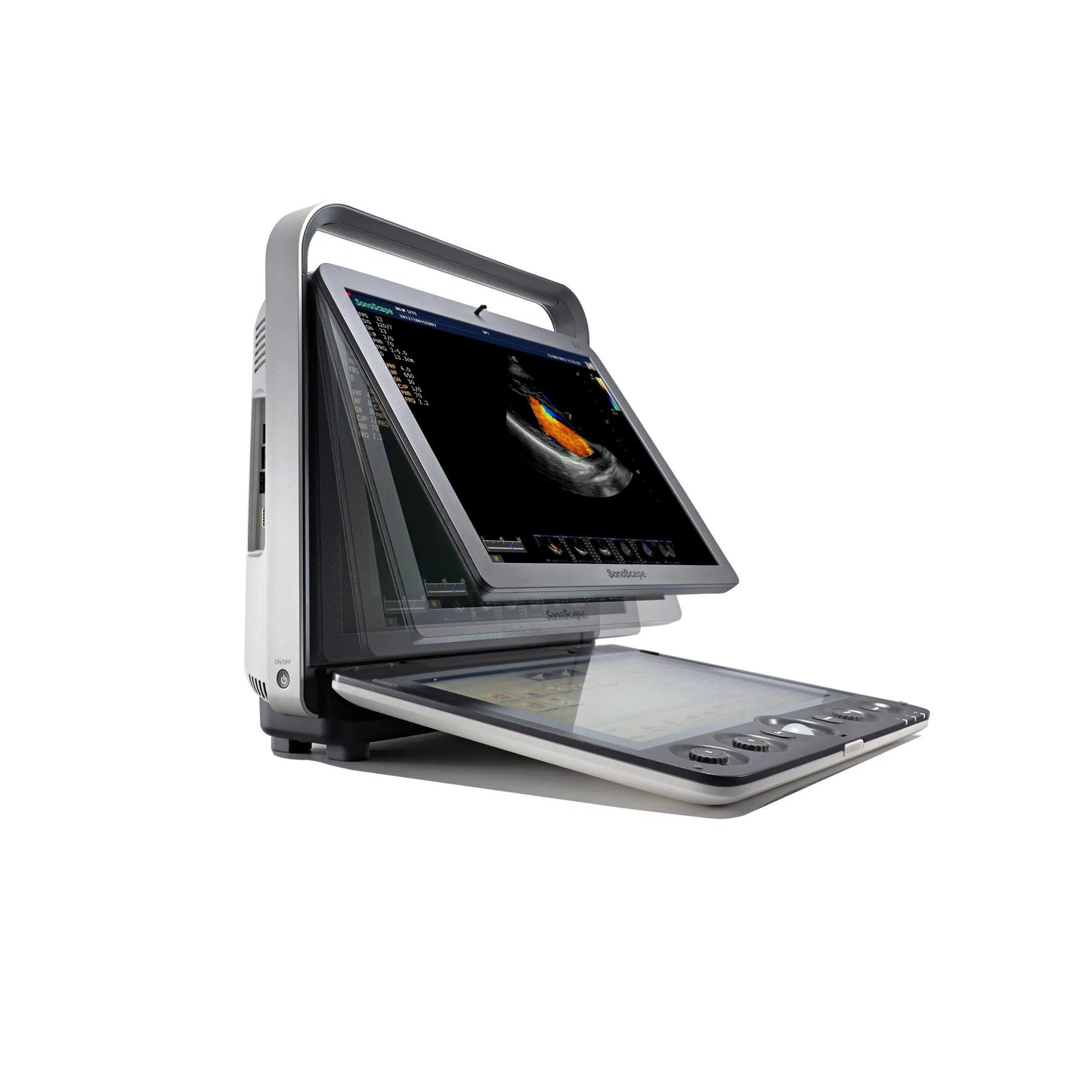

Monitor | 15" LCD (50° adjustable) |
Touch Screen | 13.3'' (135° changeable) |
Transduce Socket | 2 |
