Veterinary Medical Equipment Portable Veterinary Color Doppler ( DopScan 6060V)
Descriptions:DopScan 6060V is a portable veterinary color doppler ultrasound with superior image performance and diverse applications. Based on the advanced imaging technology and ergonomic design, it's equipped with superior image quality, comprehensive functions, high cost effectiveness and mo......
Send Inquiry
Product Description
Descriptions:
Support probes
Advanced imaging platform
High-performance image processing chips can provide more powerful algorithm
Large storage capacity can provide more patient data base
Unique imaging technology, superior image quality
High Precision dynamic focus imaging
Speckle noise reduction technology
New image enhancement technology
Pulse-inverted tissue harmonic imaging
Multi-beam parallel processing technology
Comprehensive Clinical Application Solutions
Automatic trace on PW frequency map
Real time dual-display 2D images and color flow images
Measurement packages of all parts meet with clinical needs of different applications
Double transducer port is designed to meet the different clinical applications
Large capacity removable built-in battery supports long time outdoor operation
Supper Data Management System
Built-in workstation helps quickly searching patient data and reviewing cines, which facilitates the doctor's operation
The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly

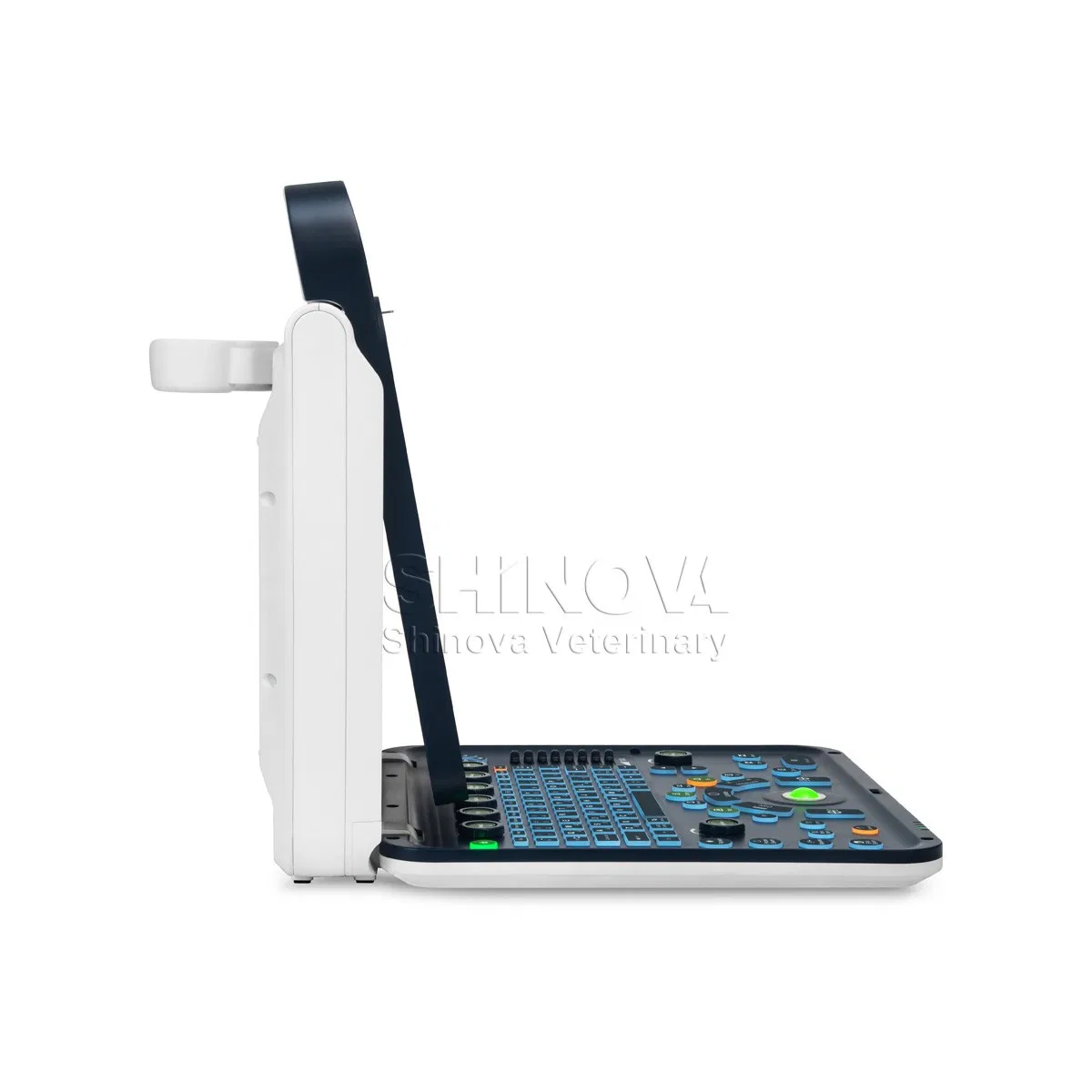

Ergonomic Appearance Design
15 LCD medical-used high resolution screen display brings winder visual angle and clearer image.

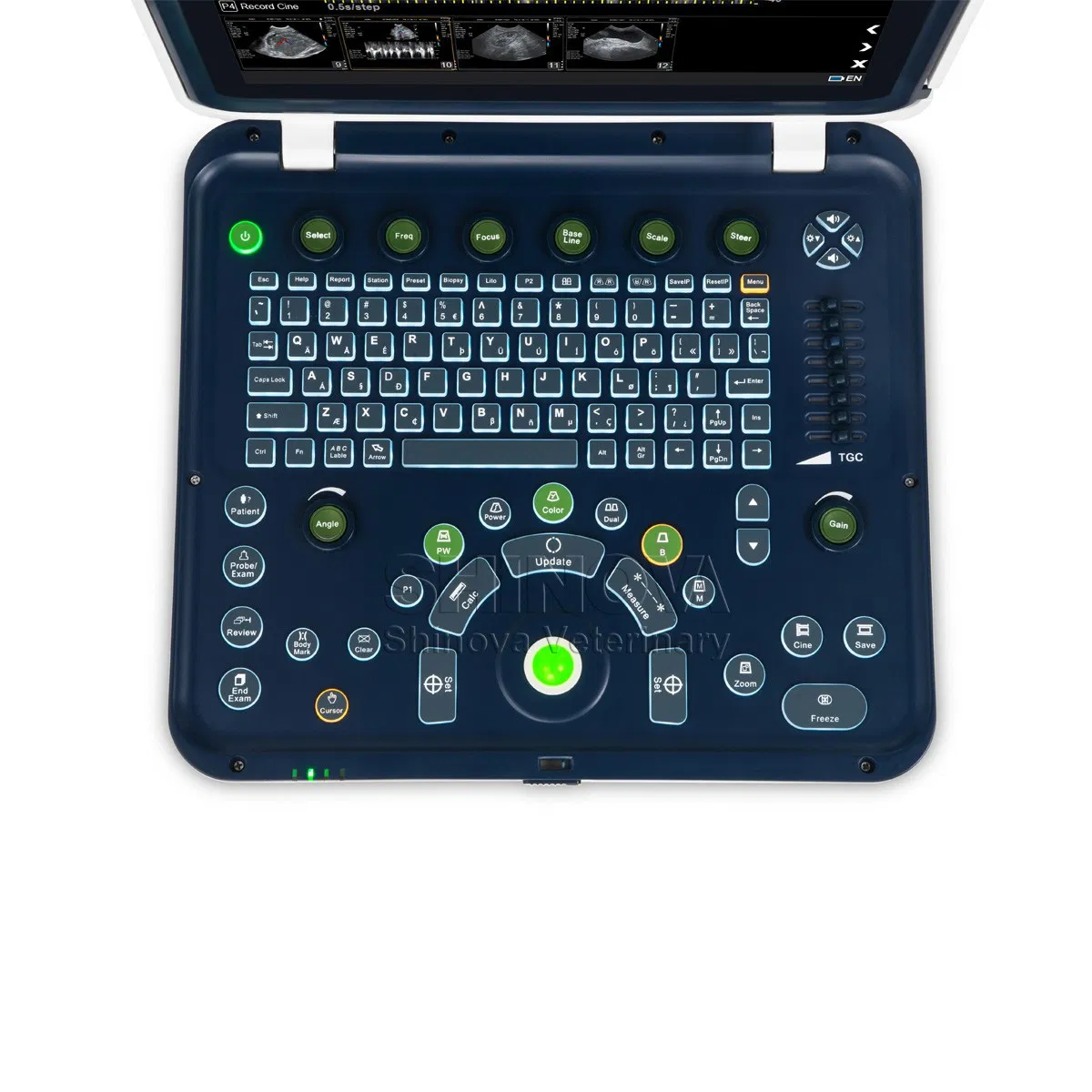

Control panel is backlighted, waterproof and antisepticised.

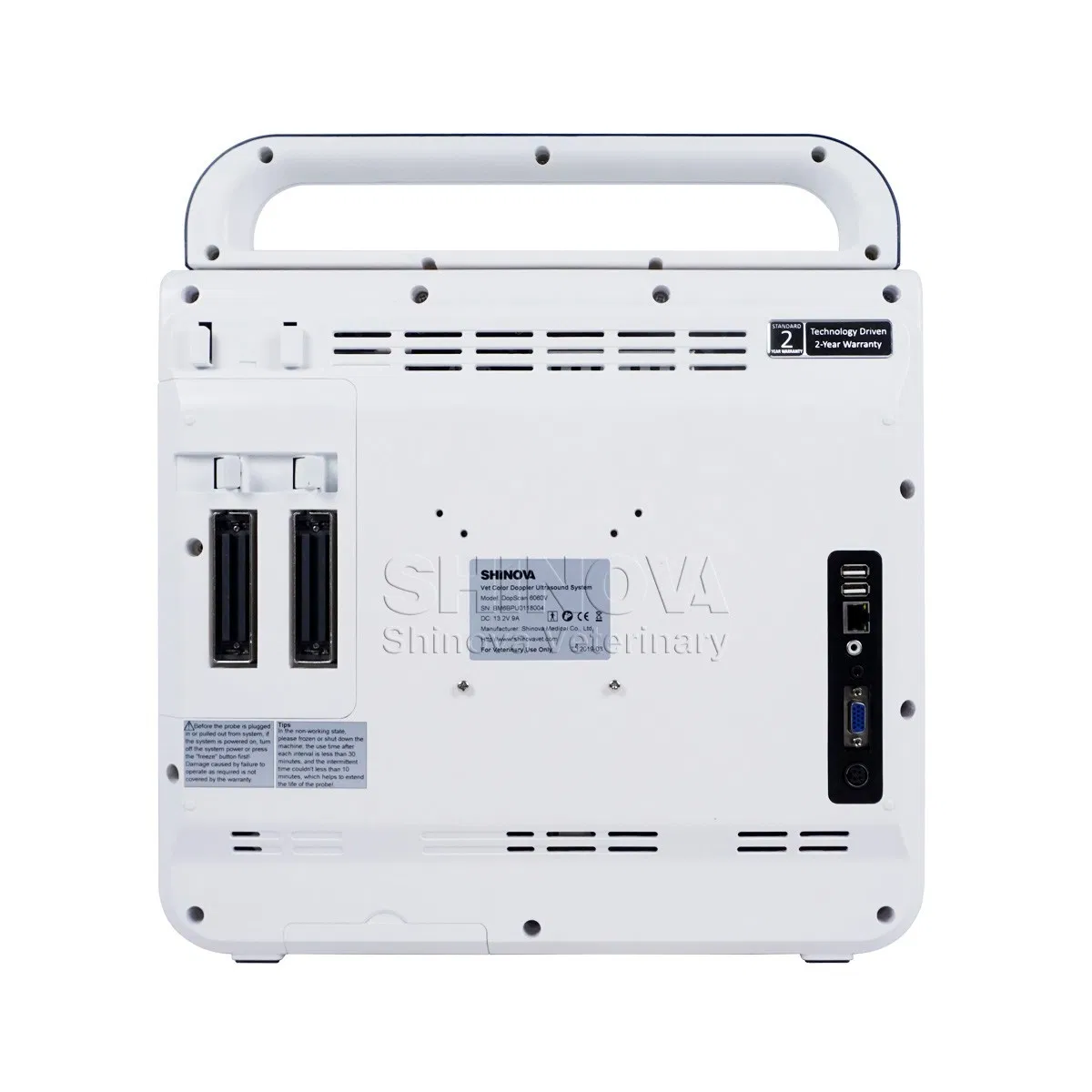

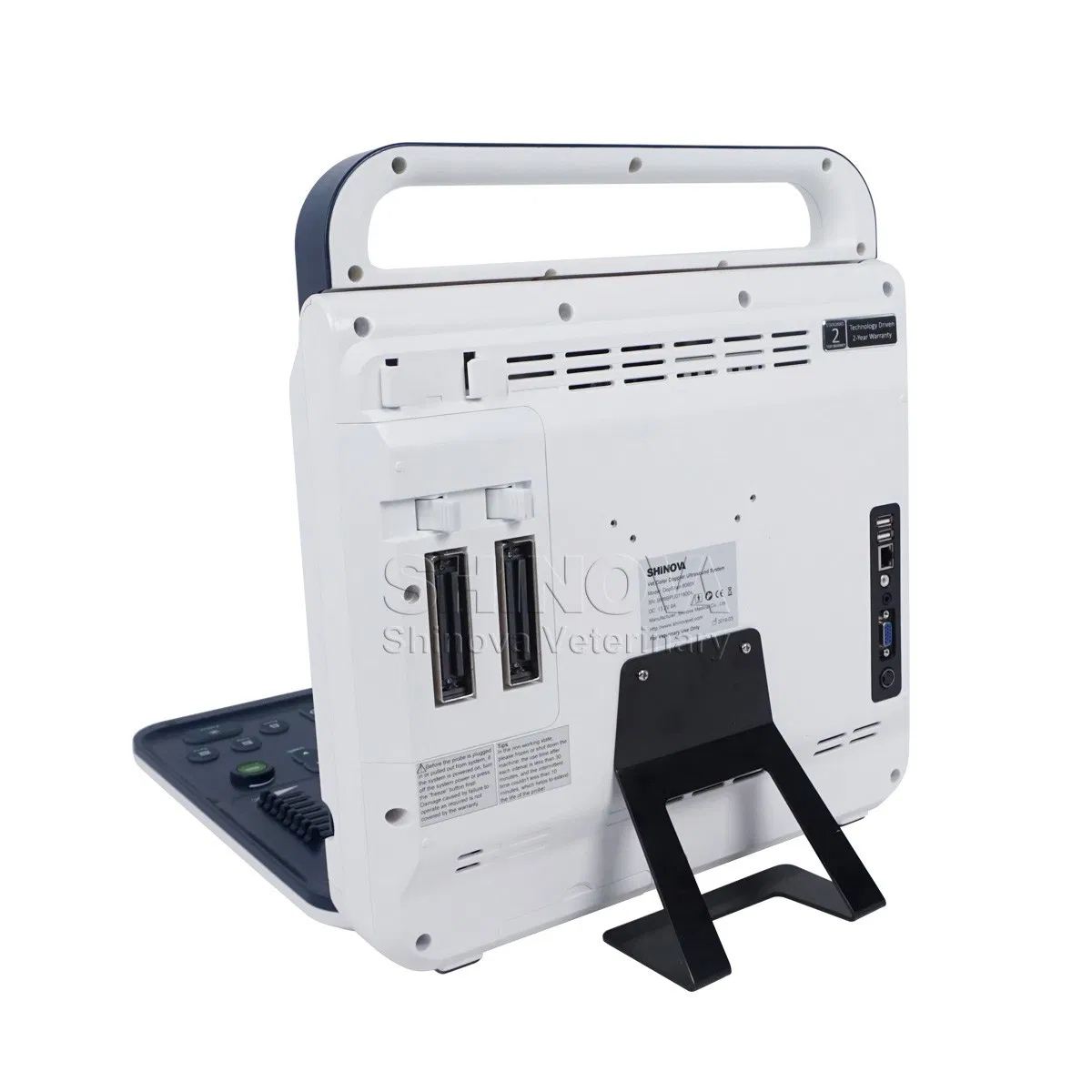

Two USB ports are at the side of the system, which is more convenient for use.
Specifications:
About Us
SHINOVA, incorporated in October 2005, is a professional veterinary equipment manufacturer and veterinary solutions provider primarily for animal hospitals and clinics.
With leading research, design, operation and service capabilities, Shinova devotes ourselves to providing advanced veterinary techniques for veterinarians to solve all the diagnostic and treatment difficulties of animal care.
DopScan 6060V is a portable veterinary color doppler ultrasound with superior image performance and diverse applications. Based on the advanced imaging technology and ergonomic design, it's equipped with superior image quality, comprehensive functions, high cost effectiveness and mobility, which make it applicable to scans of different animals, for example farm animals, pets, etc. With this machine, we are capable to provide very comprehensive imaging system solutions.
ADVANTAGES AT A GLANCE
Advanced imaging technology and superior image quality can provide fast and precise scans.
Applicable to scans of Equine, Bovine, Ovine, Swine, Feline, Canine, etc.
Applicable to different diagnosis of Abdomen, Obstetrics, Cardiology, small parts, vascular, tendon, etc.
Comprehensive probe options can meet different clinic demands.
Powerful measurement software can provide comprehensive diagnostic bases.
Smart design and mobility make it easy to carry.
Built-in battery can support long-time outdoor diagnosis.
Efficient workflow can provide easy and comfortable operation experience
ADVANTAGES AT A GLANCE
Advanced imaging technology and superior image quality can provide fast and precise scans.
Applicable to scans of Equine, Bovine, Ovine, Swine, Feline, Canine, etc.
Applicable to different diagnosis of Abdomen, Obstetrics, Cardiology, small parts, vascular, tendon, etc.
Comprehensive probe options can meet different clinic demands.
Powerful measurement software can provide comprehensive diagnostic bases.
Smart design and mobility make it easy to carry.
Built-in battery can support long-time outdoor diagnosis.
Efficient workflow can provide easy and comfortable operation experience
Support probes
Advanced imaging platform
High-performance image processing chips can provide more powerful algorithm
Large storage capacity can provide more patient data base
Unique imaging technology, superior image quality
High Precision dynamic focus imaging
Speckle noise reduction technology
New image enhancement technology
Pulse-inverted tissue harmonic imaging
Multi-beam parallel processing technology
Comprehensive Clinical Application Solutions
Automatic trace on PW frequency map
Real time dual-display 2D images and color flow images
Measurement packages of all parts meet with clinical needs of different applications
Double transducer port is designed to meet the different clinical applications
Large capacity removable built-in battery supports long time outdoor operation
Supper Data Management System
Built-in workstation helps quickly searching patient data and reviewing cines, which facilitates the doctor's operation
The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly
Ergonomic Appearance Design
15 LCD medical-used high resolution screen display brings winder visual angle and clearer image.
Control panel is backlighted, waterproof and antisepticised.
Two USB ports are at the side of the system, which is more convenient for use.
Specifications:
Standard configuration: Main unit + 5.0~9.0MHz Micro-convex probe (6C15C) + 6.5~10.0MHz Linear probe (7L4C), 15" high definition LED monitor, Two probe connectors, 500GB Hard disk, Two USB ports+One HDMI port+One S-video out port+Ethernet, 982-frame cine loop, Veterinary measurement & calculation software packages, Rechargeable Li-battery.
Optional:
1) 3C6C Convex probe (2.5/3.5/4.5/H5.0/H6.0MHz, Abdominal, Gynecology, Nerve, Musculoskeletal,Obstetrics): US$1100.
2) 6C15C Micro-convex probe (5.0/6.5/8.0/H9.0MHz, 1. small animal scanning-Criticare, Cardiac, Abdominal etc. 2. big animal scanning - Cardiac, difficult to image areas, etc): US$1300.
3) 7L4C Linear probe (6.5/7.5/8.5/H9.0/H10.0MHz, 1.small animal scanning-Criticare, abdominal, etc. 2. Equine scanning - Tendon): US$1100.
4) 6I7C Rectal linear probe (4.5/6/7.5/H8.0/H9.0 MHz,Large animal scanning-reproductive, breeding, occasional 2.Equine tendon): US$1300.
5) 8L4C Linear probe (5.0/8.5/12.0/H10.0/H11.0MHz,1.small animal scanning-Criticare, abdominal, etc 2. Equine scanning-Tendon): US$1500.
6) Mobile trolley: US$370.
7) Transport case: US$150.
8) DICOM 3.0 (Print, Storage): US$370.
9) Video Printer (MITSUBISHI P93W-Z): US$850.
10) AC Adapter: US$70.
11) Battery Charger: US$20.
Optional:
1) 3C6C Convex probe (2.5/3.5/4.5/H5.0/H6.0MHz, Abdominal, Gynecology, Nerve, Musculoskeletal,Obstetrics): US$1100.
2) 6C15C Micro-convex probe (5.0/6.5/8.0/H9.0MHz, 1. small animal scanning-Criticare, Cardiac, Abdominal etc. 2. big animal scanning - Cardiac, difficult to image areas, etc): US$1300.
3) 7L4C Linear probe (6.5/7.5/8.5/H9.0/H10.0MHz, 1.small animal scanning-Criticare, abdominal, etc. 2. Equine scanning - Tendon): US$1100.
4) 6I7C Rectal linear probe (4.5/6/7.5/H8.0/H9.0 MHz,Large animal scanning-reproductive, breeding, occasional 2.Equine tendon): US$1300.
5) 8L4C Linear probe (5.0/8.5/12.0/H10.0/H11.0MHz,1.small animal scanning-Criticare, abdominal, etc 2. Equine scanning-Tendon): US$1500.
6) Mobile trolley: US$370.
7) Transport case: US$150.
8) DICOM 3.0 (Print, Storage): US$370.
9) Video Printer (MITSUBISHI P93W-Z): US$850.
10) AC Adapter: US$70.
11) Battery Charger: US$20.
