Veterinary Ultrasound Scanner, Ultrasound Machinefor Equine, Bovine, Swine, Canine, Feline, Horse, Cattle, Cow, Goat, Sheep, Vet Ultrasonic Machine

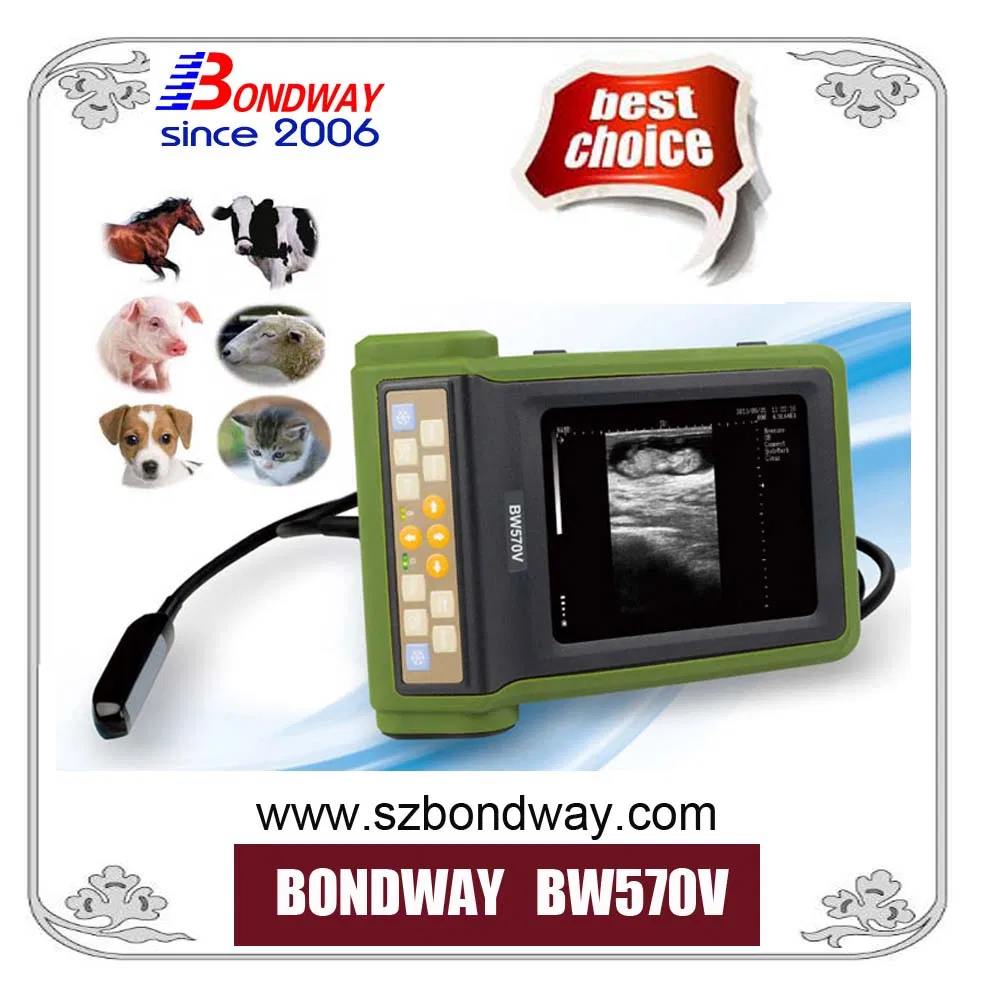

BW570V is one of the best selling veterinary ultrasounds. Over the past few years, it's been exported to over 110 countries, very popular in USA, Canada, Spain, France, Italy, Netherlands, Sweden, Belgium, Ireland, Romania, UK, Slovakia, Australia, New Zealand, Saudi Arabia etc.This machine is particulary good for reproduction imaging of large animals like equine, bovine, etc.

Standard Configuration
1. Main unit with 5.7-inch LED display, high contrast, high brightness,wide visual
2. 4.0/5.0/6.5/7.5MHz transrectal linear probe
3. Internal rechargeable lithium battery (supporting 360-minute operation)
4. Charger
5. Sunshine Cover
6. Black plastic suitcase
7. Operation Manual (English Version)
8. Power adapter
9. Protective silicon coat

Optional Parts
1. 2.0/2.5/3.5/5.0MHz convex array probe
2. 2.0/2.5/3.5/5.0MHz transtectal convex probe
3. 5.0/6.5/7.5/9.0MHz micro-convex probe
4. 5.0/6.5/7.5/9.0MHz high-frequency linear aray probe
5. 2.0/2.5/3.5/5.0MHz linear loin probe
6. Leather Saddlebag
7. Goggles(Video Glass)
8. Extension handle of rctal probe
9. Large capacity lithium battery

Application
1. Diagnose the pregnancy of Equine, Swine, Bovine, Ovine, Canine, Feline and other animals.
2. Diagnose animals'uteri and tetus condition
3. Backfat and lean percentage calculated automatically

Benefits
1. Easy carry with Handle Freeze Switch
2. Light and compact design: 1.1kg only
3. Powered by Mains or Rechargeable battery
4. Pseudo Color System
5. Unique Design particularly suitable for outdoor veterinary diagnosis, Left/right hand alternative use available to eliminate operrator's fatigue. Multiple methods for holding the machine: hand-held, chest hanging, back hanging, waist hanging, ect.
6. Soft rubber coat, splash-proof, dust-proof
7. High Resolution & High contrast LED monitor to display images beautifully
8. Color laser printer to print out varous images and reports directly
9. High-capacity lithium battery supporting 6-hour operation
10. Sunshine cover, suitable for outdoor use under stong sunshine
11. USB port ofr archiving, software upgrade and one-key operation
12. Back fat and lean percentage of swine automatically calculated.

Technical Parameter
1. Built-in 5.7-inch high resolution LED display, high brightness, high contrast, wide viewing angle, suitable for outdoor use
2. English language
3. single probe socket, type of probe identified automatically
4. Body mark: 1.General 2. Bovine 3. Canine 4 .Equine 5. Feline 6. Cardio 7. Swine, total 27 kinds body mark with probe director
5. Display mode: B, 2B, 4B , B/M, M
6. Gain:0 to 127dB
7. Contrast: 27 to 90dB
8. Gray: 256
9. Focus: 1,2,3,4
10. Magnification: 0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0
11. Multi frequency: 4 different frequencies of each probe
12. Depth: 8 steps, 240mm
13. Frame correlation: 0,1,2,3
14. IP: 0,1,2,3
15. IE: 0,1,2,3
16. Character brightness: selectible between160,192,224,255
17. Key sound: on/off
18. Compressing curve:7 kinds
19. 100-image permanent storage, 256-frame cineloop
20. Measurements
      * Normal measurement: distance, circumference, area (trochoid or ellipse), volume, etc.
      * Cardio measurement: Depth, slope, heart rate, cycle
      * OB measurement: EDD and GA for equine, bovine, ovine, swine, canine, feline and Liama
21. OB report created automatically
22. Grid measurement: 6 kinds(non-gid, point grid, line grid, 10mm-space point ruler, 2mm-space point ruler, 10mm&2mm-space point ruler)
23. USB port for large capacity storage (file management, software upgrade, one-key storage), and laser color printer image and report.
24. Battery: large capacity (5200mAh) more than 6 hours work.
