Product Description

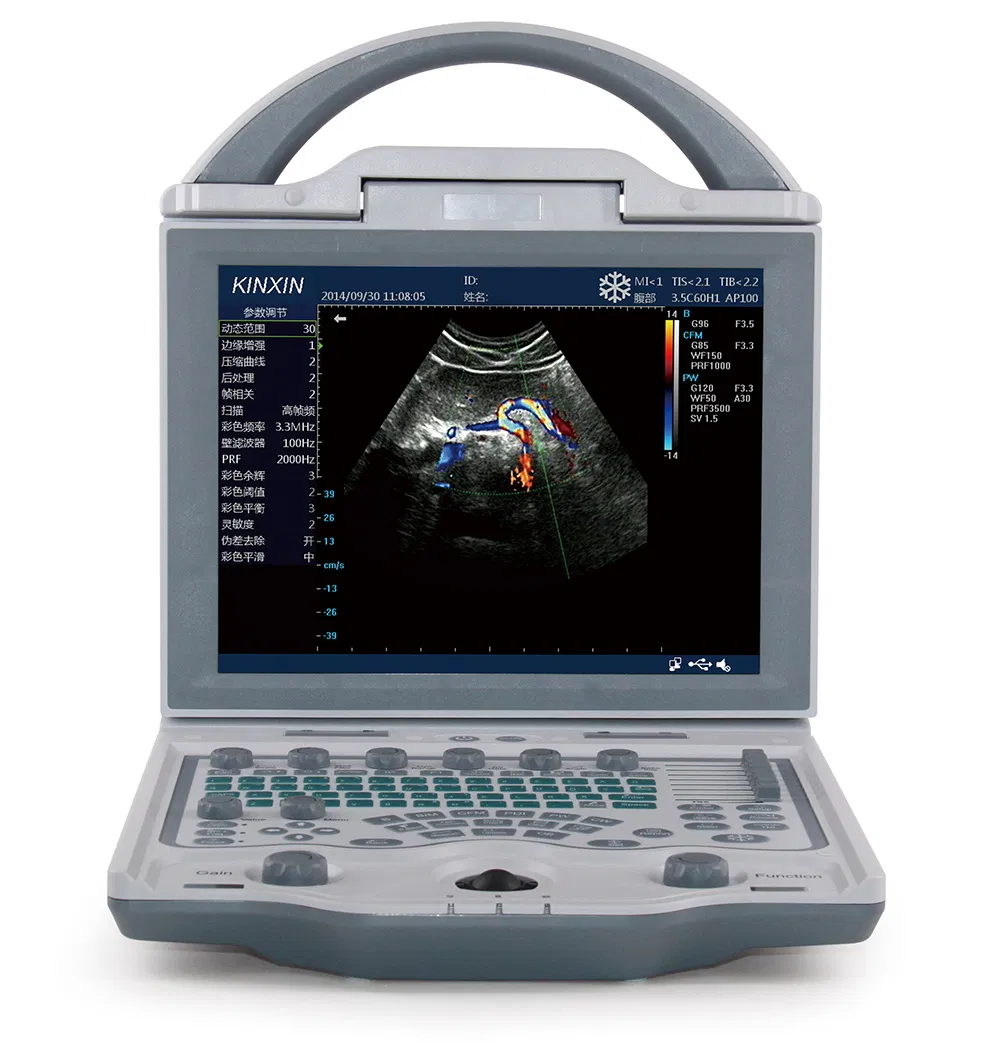

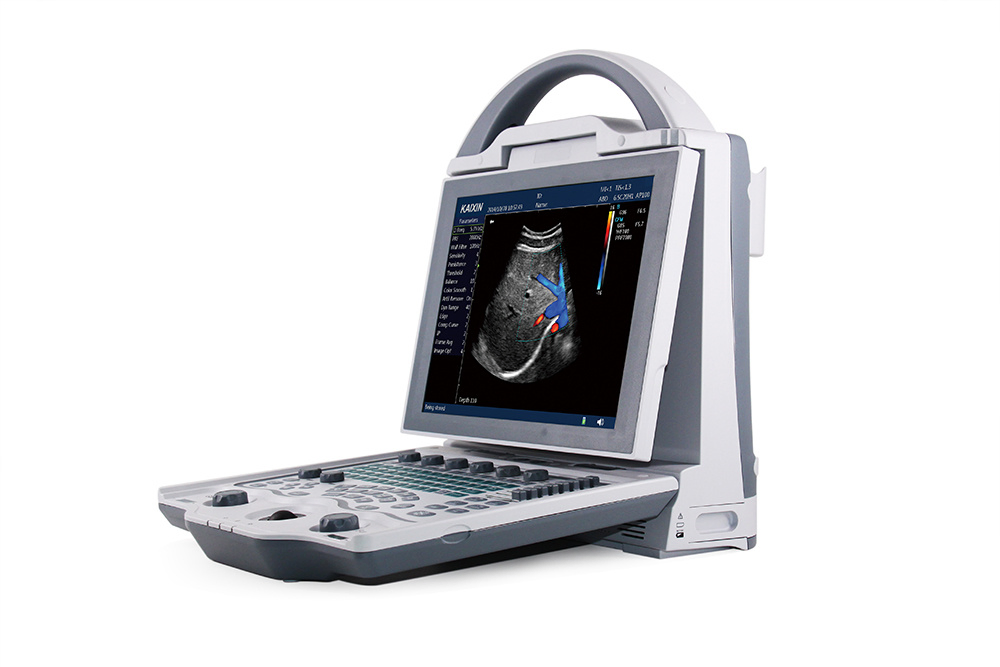

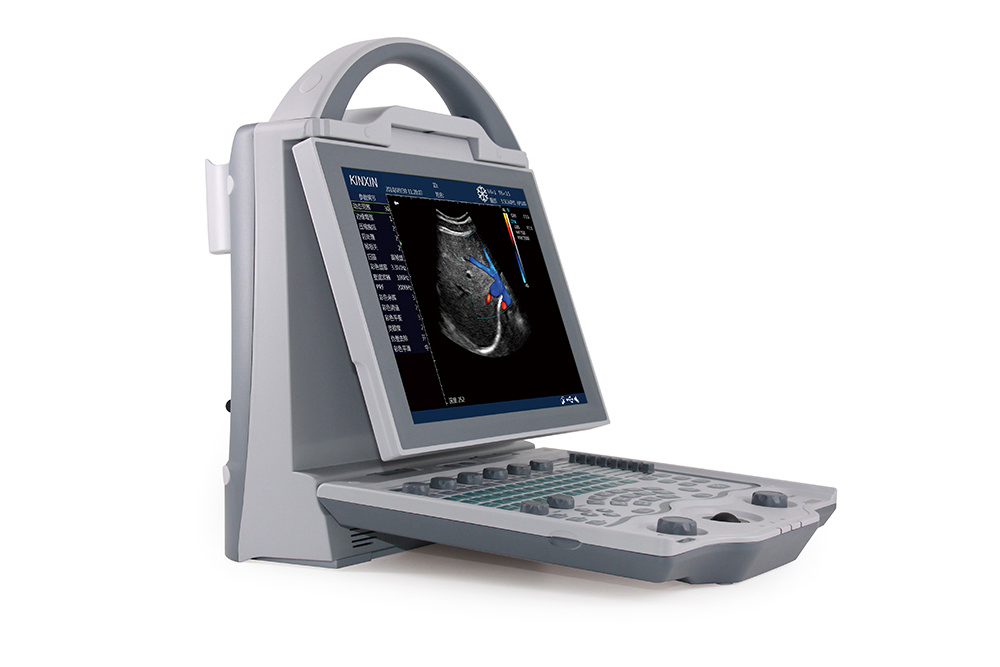

DCU12 Full Digital Color Doppler Ultrasound scanner(Veterinary)

1. Application:
Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.

2. Parameters:

Specification parameters	1. Grey scale: 256 level 2. Color scale: 256 level 3. Display: 10.4'flicker-free high-resolution medical color LCD 4. Power: 100-240V, 1.2-0.6A frequency: 50-60Hz 5. Adapter output: DC12.8V 3.0A 6. Power consumption: ≤100VA 7. Main unit size: 256150326(mm, Lengthwidthheight) 8. Unit net weight: 4.5Kg(Accessories not included)
Multi-media and accessory equipments	1. Video recorder 2. I-station integral work station, realize image storage, report form and cloud print 3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission. 4. Dual-mode TV output: PAL/NTSC

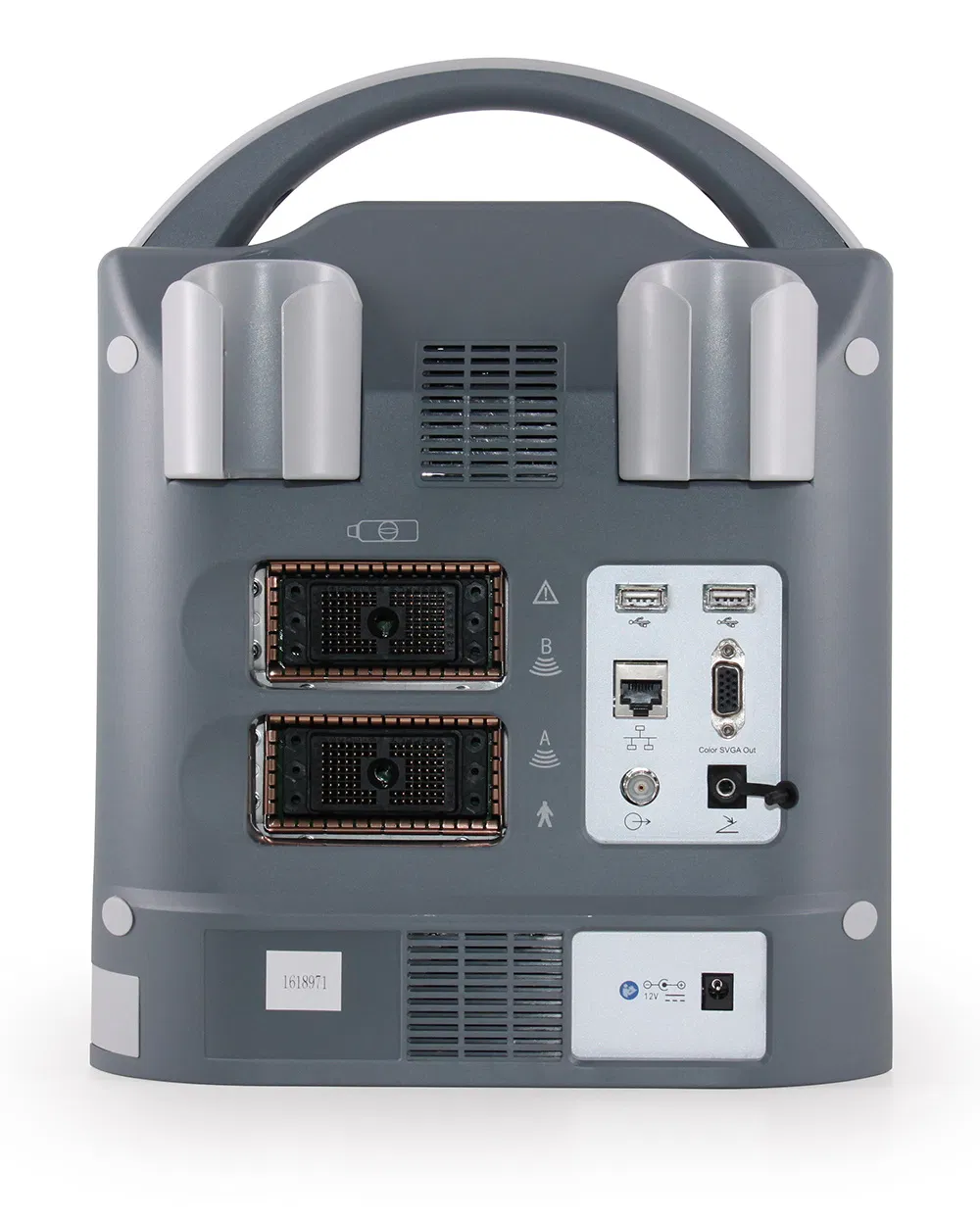

Probe port	Two enabled probe ports, automatic identification technology, available to optional probe configuration.
Language	Menu operation, interface language: English/Chinese switch alternatively

3. Operation Mode:

B,B/B,4B
M,B/M
CFM
PDI
PW
THI

4. Ultrasonic imaging technology:

High precise digital multi-beam formator
Dynamic frequency fusion imaging
High precise delay dynamic receiving focusing
Ultra-wideband image technique
Adaptive color artifact removal technique
Adaptive vessel imaging
Adaptive Doppler image technique
THL tissue harmonic imaging technology

5. Measurement & calculation:
A. Routine measurement: measurement software package & report for B mode,M mode,D mode
B. OB software for Cattle, dogs, horses, cats, goats, camels, sheep and pigs;
C. Software package for urological measurement & analysis
D. Software package for superficial organs measurement & analysis
E. Software package for cardio measurement & analysis

6. Reports:
OB, Cardio, Urological report

7. Configuration:
7.1 Standard Configuration:

1	Main unit:1 pc
2	3.5 MHz convex abdomen probe:1 pc
3	You can choose 1pc probe from below: > 6.5 MHz Linear Rectal probe > 7.5 MHz linear probe > 6.5 MHz Micro-Convex Probe
4	Workstation software: 1 set
5	Reticle:1 pc
