Tealth Handpiece with External Irrigation Straight Extra Water Tube
Name: External irrigation surgical Straight dental handpieceModel : SEN-07CPacking List: - Straight handpiece: 1 pcs - Oil nozzle: 3 pcs - English manual: 1 pcs Features:1.Ratio: E-type Low Speed Handpiece 1:1 Ratio, with external water Cooling System3. Air Pressure: 245-392Kpa (2.5-4.0 kgf/cm&s......
Send Inquiry
Product Description

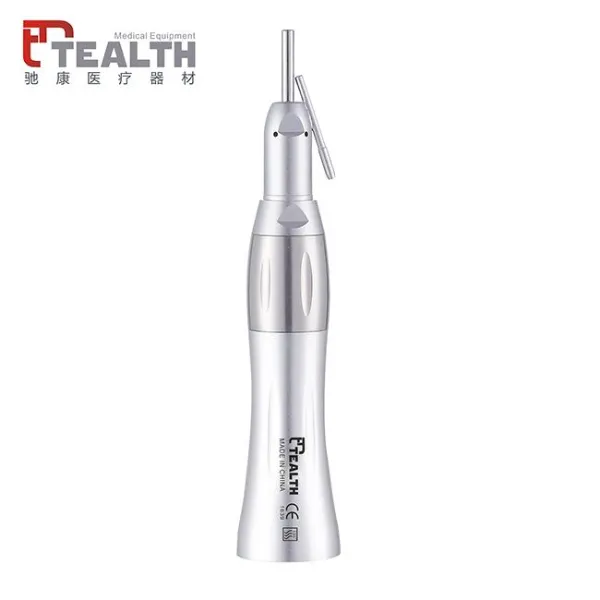

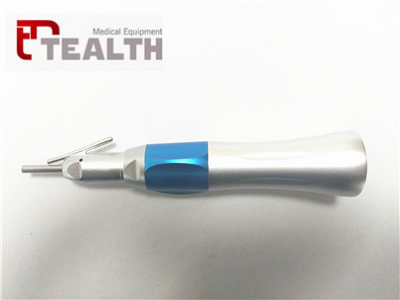

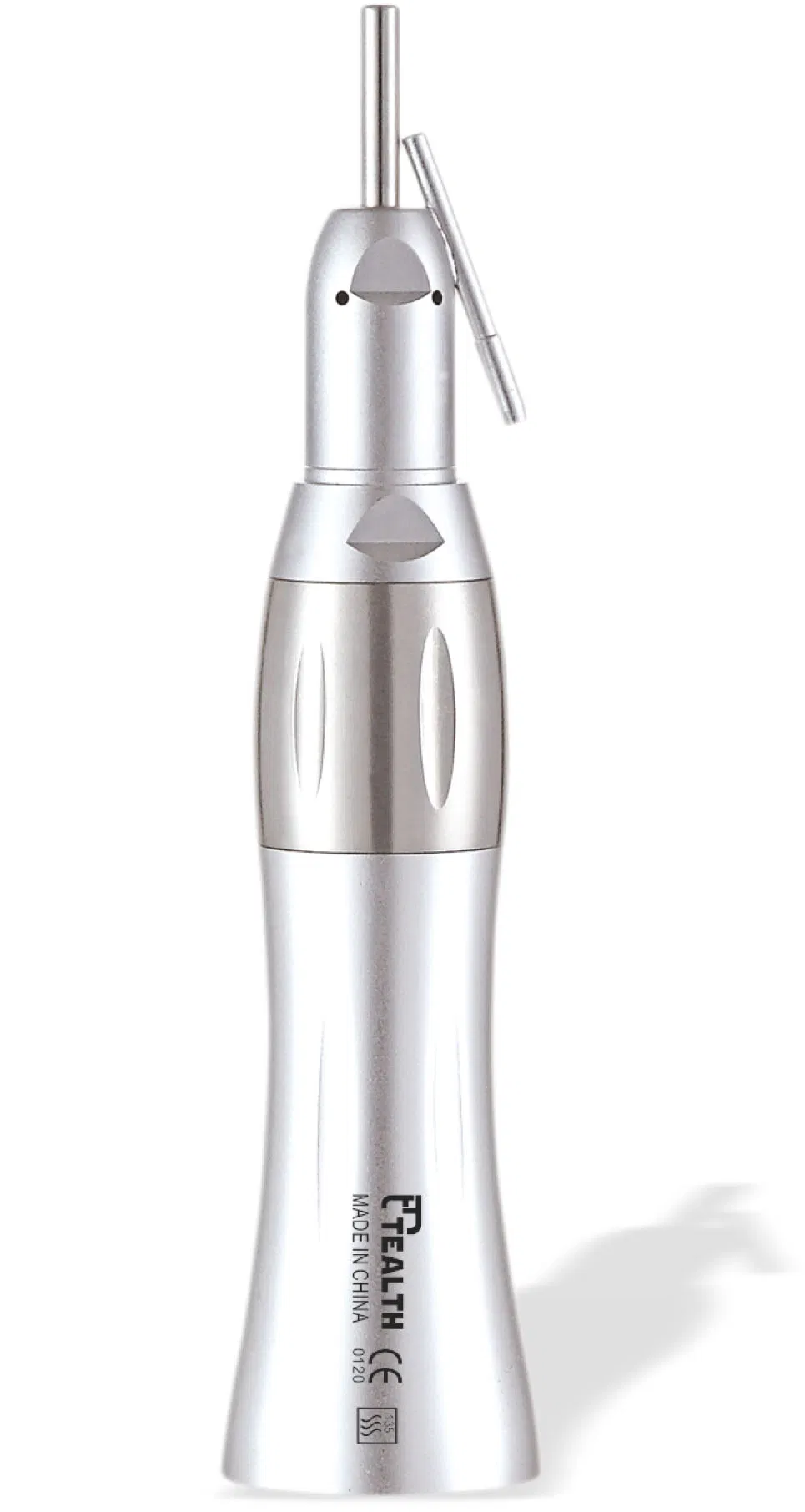

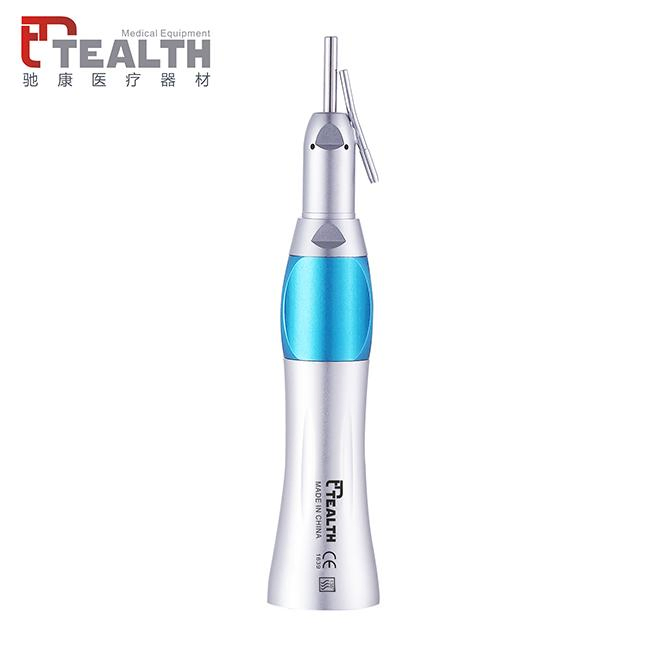

Name: External irrigation surgical Straight dental handpiece
Model : SEN-07C
Packing List:
- Straight handpiece: 1 pcs
- Oil nozzle: 3 pcs
- English manual: 1 pcs
Features:
1.Ratio: E-type Low Speed Handpiece 1:1 Ratio, with external water Cooling System
3. Air Pressure: 245-392Kpa (2.5-4.0 kgf/cm²)
4. Water Pressure: 200Kpa (2kg)
5. Rotation Speed: 14,000-20,000 rpm
6. Bur Applicable: Φ2.334-2.355mm (CA BUR CONTRA ANGLE & HP BUR STRAIGHT CONE)
7. Noise: ≤65dB

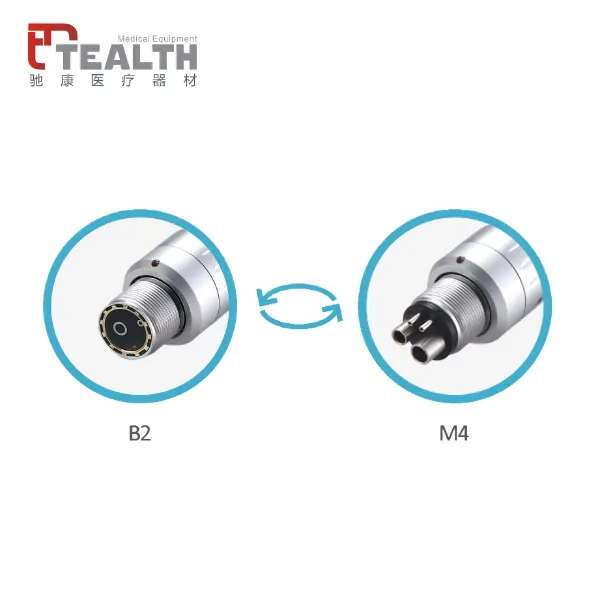

Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.
Removal
Grip both handpiece and motor respectively, pulling and separating.
Forward/Reverse Rotation
1) Forward Rotation: Turn the FWD/REV change ring to "F".
2) Reverse Rotation: Turn the FWD/REV change ring to "R".
3) When the FWD/REV change ring is positioned in the middle of "F"and "R",the drive air is interrupted and the motor does not rotate.
4) When FEW/REV change ring is positioned in F or R, the rotation speed is maximum.
Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
Model : SEN-07C
Packing List:
- Straight handpiece: 1 pcs
- Oil nozzle: 3 pcs
- English manual: 1 pcs
Features:
1.Ratio: E-type Low Speed Handpiece 1:1 Ratio, with external water Cooling System
3. Air Pressure: 245-392Kpa (2.5-4.0 kgf/cm²)
4. Water Pressure: 200Kpa (2kg)
5. Rotation Speed: 14,000-20,000 rpm
6. Bur Applicable: Φ2.334-2.355mm (CA BUR CONTRA ANGLE & HP BUR STRAIGHT CONE)
7. Noise: ≤65dB
Handpiece inserting & removalInserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.
Removal
Grip both handpiece and motor respectively, pulling and separating.
Forward/Reverse Rotation
1) Forward Rotation: Turn the FWD/REV change ring to "F".
2) Reverse Rotation: Turn the FWD/REV change ring to "R".
3) When the FWD/REV change ring is positioned in the middle of "F"and "R",the drive air is interrupted and the motor does not rotate.
4) When FEW/REV change ring is positioned in F or R, the rotation speed is maximum.
Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
