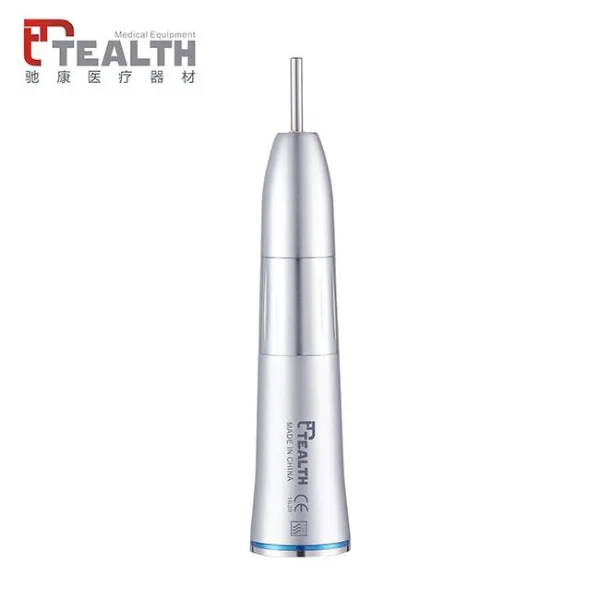

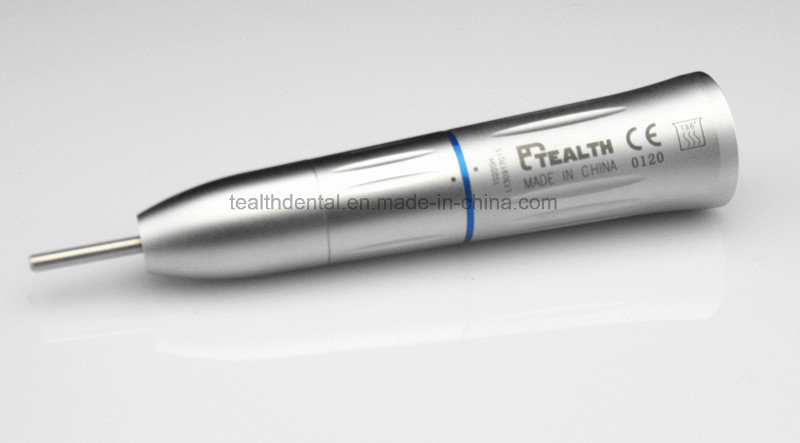

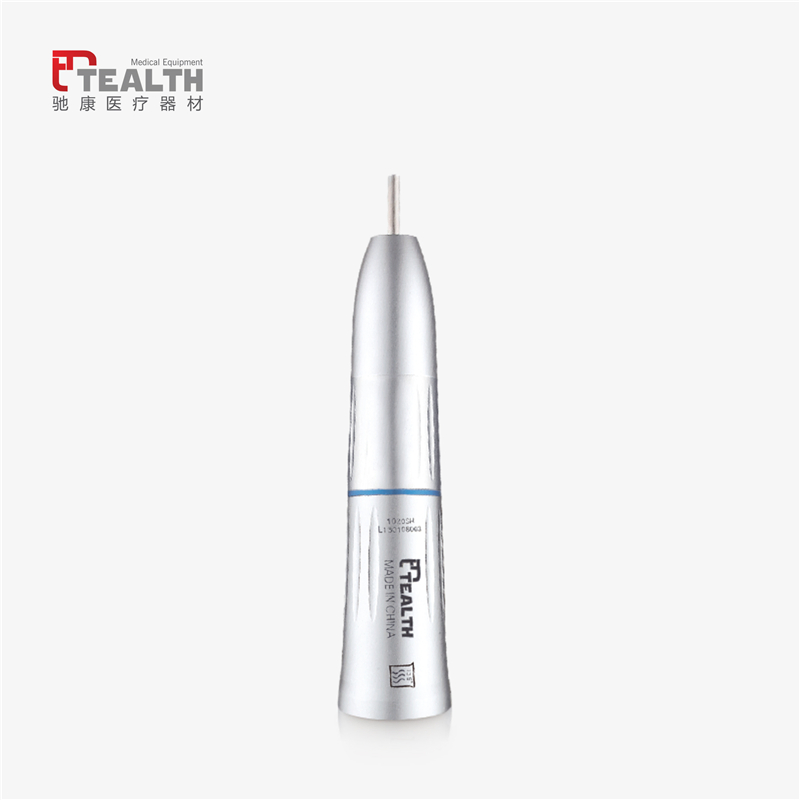

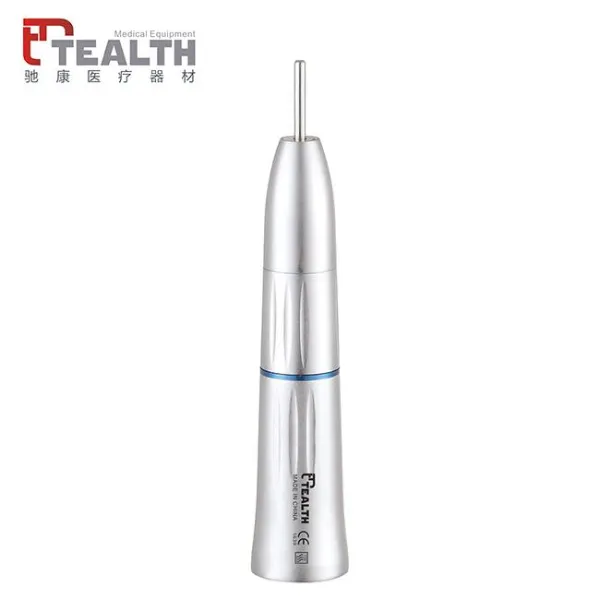

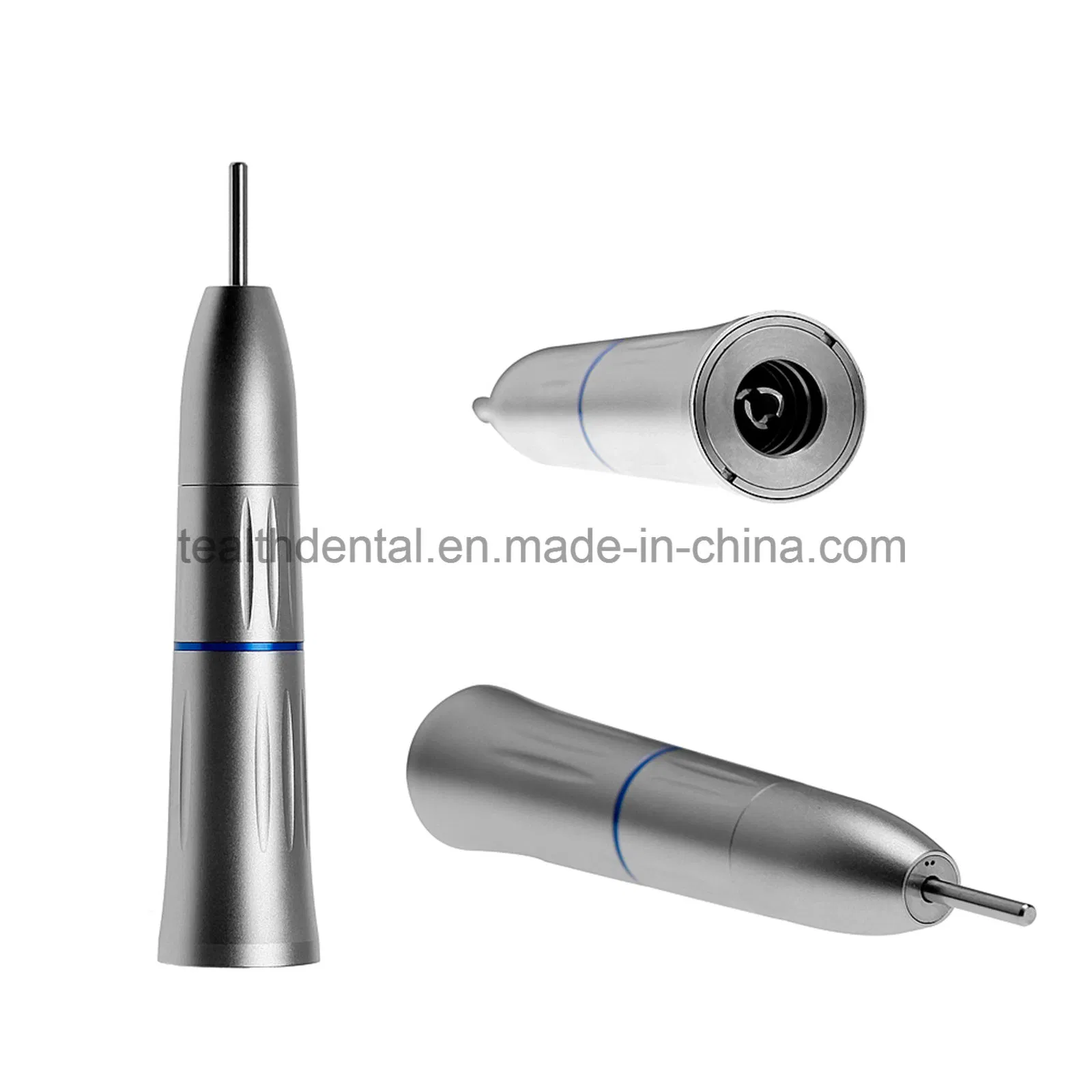

Tealth Low Speed Straight Handpiece

Name: Low speed 1:1 straight handpiece dental handpiece
Model : SIN-01C

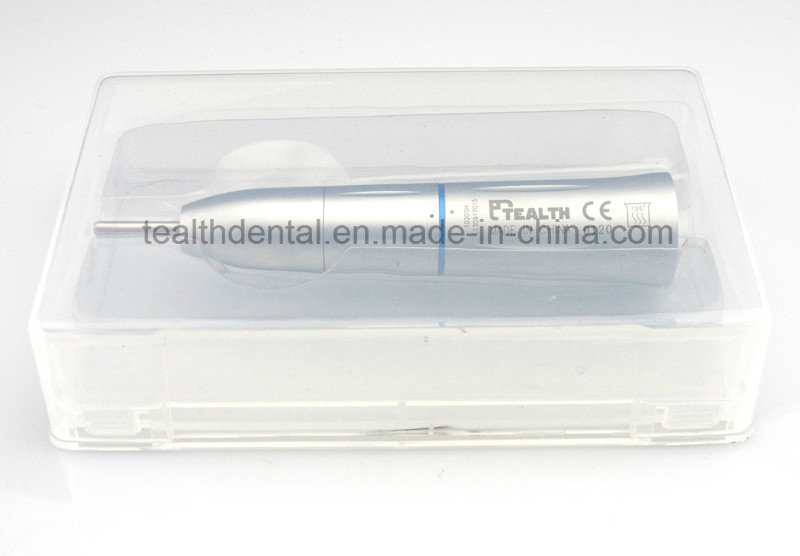

Packing List:
- Straight handpiece: 1 pcs
- Clean needle: 1 pcs
- English manual: 1 pcs

Features:
1. Internal irrigation, perfect cooling  systerm
2. Bur size: Φ2.35mm
3. Imported bearing from Japan

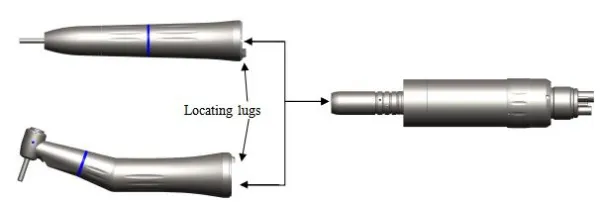

Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.

Removal
Grip both handpiece and motor respectively, pulling and separating.


Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
